Wet Par 50 Owner's Manual

Settings

Press the MENU button repeatedly to cycle through modes. Press ENTER to select the desired mode. Use the UP and DOWN buttons to scroll through the settings (options or numerical values) for that mode. Press the ENTER button to save your settings. The saved settings will remain in place even after powering off the unit and will be the default when you power the unit back on.

Master/Slave Settings

1. Power on the first unit.

2. Use the MENU button to reach SLNd then press ENTER. Use the UP/DOWN buttons to select NASt. Press ENTER to save your selection. This will be your master unit denoted by the red flashing wireless DMX LED indicator.

3. Use the MENU button to reach U512 then press ENTER. Using the UP/DOWN buttons, set the unit to any number between U1 - U7. Press ENTER to save your selection.

4. Power on the second unit.

5. Use the MENU button to reach SLNd then press ENTER. Use the UP/DOWN buttons to select d512. Press ENTER to save your selection. This will be your slave unit denoted by the green flashing wireless DMX LED indicator.

6. Use the MENU button to reach U512 then press ENTER. Using the UP/DOWN buttons, set the unit to the same U number as the master unit you set previously. Press ENTER to save your selection.

   Now the second (slave) unit will be paired to the first (master unit). The master unit's LED will flash red and the slave unit's LED will flash green. To add more slave units, repeat steps 4 - 6.

   Please note, do not add more than one master unit to a group. Doing so will cause complications.

Remote Control Group Settings

1. Power on the unit.

2. Use the MENU button to reach SLNd then press ENTER. Use the UP/DOWN buttons to select NASt. Press ENTER to save your selection.

3. Use the MENU button to reach U512 then press ENTER. Using the UP/DOWN buttons, set the unit to any number between U1 - U7. Press ENTER to save your selection.

4. Use the MENU button to reach rEnx then press ENTER. Use the UP/DOWN buttons to select rEn1. Press ENTER to save your selection. You can now use the remote to control this unit which is now in the Remote channel 1 group.

   Set Remaining Lights to RF Group 2 (ren2):



5. Power on the unit.

6. Use the MENU button to reach SLNd then press ENTER. Use the UP/DOWN buttons to select NASt. Press ENTER to save your selection.

7. Use the MENU button to reach U512 then press ENTER. Using the UP/DOWN buttons, set the unit to any number between U1 - U7. Press ENTER to save your selection.

8. Use the MENU button to reach rEnx then press ENTER. Use the UP/DOWN buttons to select rEn2. Press ENTER to save your selection.

9. Hold down the (+/-) buttons until the LED at the front of the remote flashes. You can now use the remote to control this unit which is now in the Remote channel 2 group. To switch back to remote channel 1, repeat this step.

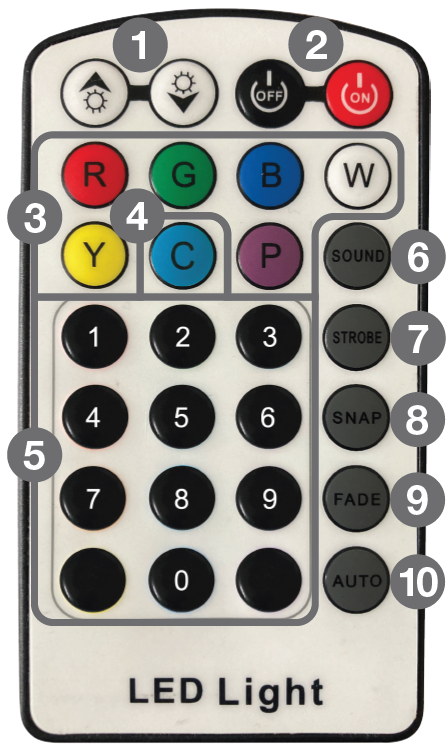

Remote Control Functions

1. (up/down): Adjust selected mode/color/speed up or down in increments of 1. These buttons have no function when using COLOR PAD (preset static colors).
2. ON/OFF: Turns the LEDs on or off. Please note, this button is strictly for the LEDs. The unit will remain on. To turn it off, use the power switch on the bottom of the unit.
3. COLORS: Directly select red, green, blue, white, amber (yellow), or UV (purple) LEDs. Repeatedly press the specific color's button to decrease the color's brightness in increments of 10%. Use the up/down buttons to increase or decrease the color's brightness in single unit increments. You can also press the keys to create a custom blend of colors.
4. PRESET COLORS: Press the C button to enter color wheel mode. Use the up/down buttons to scroll through the 32 color presets.
5. COLOR PAD: Use these buttons to select preset static colors Ir01 - Ir12.
6. SOUND: Press this button to select the desired sound mode (SU00 - SU99; see chart above). Press the button repeatedly to cycle down through the sound modes in increments of 10 or press the up/down buttons to cycle up or down in single unit increments.
7. STROBE: Select the desired color (direct/preset/static) or mode, then press the STROBE button to activate strobe mode. Press the button repeatedly to decrease the speed in increments of 10 or use the up/down buttons to increase or decrease the speed in increments of 1.
8. SNAP: The unit will snap (pulse) through colors. Press the button repeatedly to decrease the speed in increments of 10 or press the up/down buttons to increase or decrease speed in increments of 1.
9. FADE: The unit will fade from one color to next. Press the button repeatedly to decrease the fade speed in increments of 10 or use the up/down buttons to increase or decrease speed in increments of 1.
10. AUTO: Cycles through colors. Press the button repeatedly to decrease the cycle speed in increments of 10 or press the up/down buttons to increase or decrease speed in increments of 1.

DMX Controller Functions

Wireless DMX Group Settings:

1. Power on the unit.
2. Use the MENU button to reach Addr then press ENTER. Use the UP/DOWN buttons to set the DMX address to 001 or a different address depending on your setup. Press ENTER to save your selection.
3. Use the MENU button to reach SLNd then press ENTER. Use the UP/DOWN buttons to select d512. Press ENTER to save your selection.
4. Use the MENU button to reach U512 then press ENTER. Using the UP/DOWN buttons, set the unit to any number between U1 - U7. For each DMX group, the LED indicator will show a different color: U 1/red, U 2 and U 3/green, U 4 and U 5/blue, U 6 and U 7/light blue. Press ENTER to save your selection.

Now select the same group color on your wireless DMX console. Once the unit is paired, the LED indicator will flash green and the characters on the LCD display will flash. When connecting to a console, the group color order will be as listed in the chart below:

DMX Channel Functions/Values

When using a DMX controller, use the charts below to reference each channel's function.

3-Channel Mode

4-Channel Mode

6-Channel Mode

10-Channel Mode
