BEST PACK H2O: How To Charge, Transport & Set Up w/ Charging Case

Introduction

The Rockville Best Pack H2O Charging Transport Case is designed for Best PAR H2O wash lights, providing convenient charging, safe storage and easy transportation for gigs and events. This guide will walk you through the charging process, safety precautions and additional features of the case.

For more info on how our Best PAR H2O Lights function, check out our BEST PAR H2O: How To Set Up & Use...

What’s Included?
✅8x Best PAR H2O Lights (available in black or white)
✅8x Dual Brackets (for mounting or angling the lights)
✅8x IR Remotes (for wireless control)
✅8x Marine-Grade Locking PowerCon Cables
✅8x Marine-Grade DMX Cables
✅Main Locking PowerCon Cable (for the case)
✅Built-In Power Strip (in the case for charging)

In this guide, we’ll walk you through:
✅How to charge your lights using the case
✅How to transport and secure your lights
✅Additional features like stackability and accessory storage

Setup Guide

A.) Connecting Your Lights for Charging

1. Find the PowerCon cable for each light.
2. Plug the blue end into the Power In socket on your light.
3. Plug the white/gray end into one of the charging sockets in the center of the case.

B.) Powering the Case

1. Find the main PowerCon cable.
2. Plug the blue PowerCon end into the case’s power input socket.
3. Plug the other end into a power outlet.
4. Flip the charging switch on the side of the case to the On position.

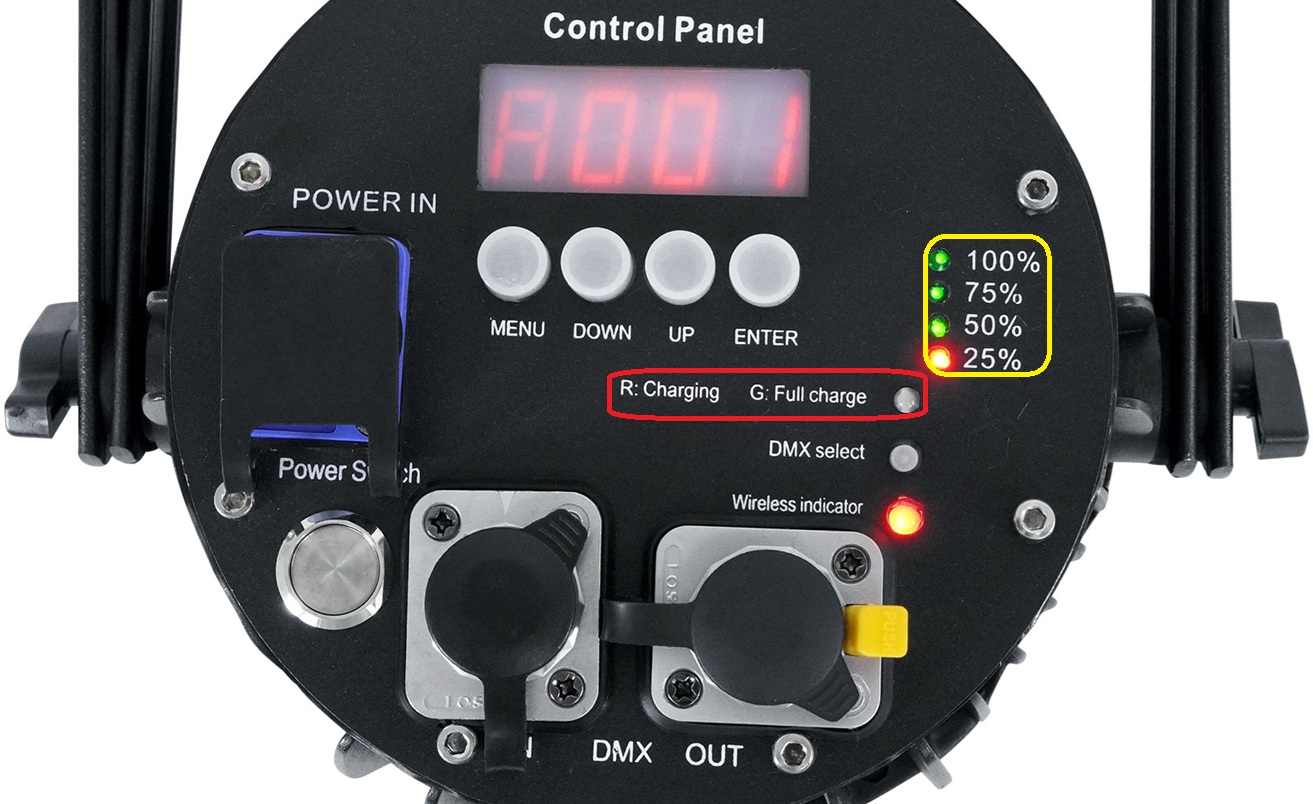

5. Check the lights' charging indicator LED (circled below in red):
   • Flashing Red LED = Charging
   • Flashing Green LED = Fully Charged
6. If charging, check lights' battery percentage meter LEDs (circled below in yellow):
   • Lights on = Charging
   • Lights off = Fully Charged
7. When the battery is completely dead, it should take about 6 hours to fully charge.
8. The battery has been shown to last 4 to 12 hours per charge (depending on the mode and brightness level).
   • Using lower frequency static colors (e.g. red / green) will drain battery much slower.
   • Using higher frequency static colors (e.g. violet / white) and color-changing modes will drain the battery much faster.

C.) Safety Precautions

⚠️ Important Note: Always keep the case open while charging.

• Keep the case open while charging to allow proper ventilation.
• Ensure all connections are secure before turning on the power switch.
• Always make sure the wheels are locked before charging.

D.) Transporting and Securing Your Case

Using the Locking Brakes:

• The case has two locking brakes on the corner wheels.
• Press down on the brakes with your foot to prevent the case from moving while charging or loading lights.

Stacking Multiple Cases:

• The case is stackable for easier storage and transport.
• Lock the brakes on both cases before stacking.
• Align the wheels of the top case with the grooves on the bottom case.
• Unlock the bottom case’s brakes to move them together.

Securing the Case with Locks:

• The case features two butterfly locks for secure closure.
• You can use small padlocks through the built-in holes for additional security.

E.) Using Extra Storage Space

• If you are not using all 6 lights in the Best Pack Pack H2O, with the extra slot(s) in the case, you can store additional gear, such as:
  • Microphones
  • Cables & Wires
  • Additional Accessories

This keeps all your lighting gear organized and easily accessible.

FAQs

Q: Why do I need to keep the case open while charging?

• The batteries generate heat, and keeping the case open ensures proper ventilation.

Q: How do I know if my lights are charging?

• Ensure the power cables have all been twisted and locked into position.
• After flipping the power switch, check if the lights show charging indicators (as shown in the image above).

Q: Can I transport the case with the lights plugged in?

• No, always unplug the lights before moving the case to avoid damage.

Q: How do I secure my case when leaving it unattended?

• To prevent rolling, lock the wheels by pressing down on the front and rear locking brakes with your foot.
• Use a padlock through the built-in lock holes on the butterfly latches.

Conclusion

The Rockville Best Pack H2O Charging Transport Case is a must-have for DJs and lighting professionals, offering efficient charging, secure storage, and easy transport for your Best PAR H2O wash lights. With its stackable design, locking brakes, and extra storage, this case is the perfect solution for on-the-go lighting setups.
