Rockville: Single 4-Ohm DVC Subwoofer Wiring

Introduction

This guide will walk you through wiring a single Dual Voice Coil (DVC) 4-ohm subwoofer. The parallel wiring method would be the most commonly used. It gives you the most efficient performance by lowering the impedance to 2 ohms. However for compatibility with certain amplifiers, a 4-ohm DVC sub can be wired in series for an 8 ohm final impedance. For either method the steps are simple and easy to follow, even if you’re new to car audio wiring.

Requirements:

• Single DVC (Dual Voice Coil) 4 Ohm subwoofer
• Speaker Wire
• Subwoofer Enclosure Box
• Mono-Block or Bridged 2-Channel Amplifier (must be 2 ohm stable for parallel wiring method)
• Wire Cutters / Strippers
• Multimeter (recommended for checking impedance)

Step-by-Step Instructions

A.) Understand Your Subwoofer

• A DVC 4-ohm subwoofer has two separate voice coils, each measuring about 4 ohms.
• When wired in parallel, the final impedance load drops to 2 ohms.
  • This method is much more commonly used because there are many sub amplifiers made to provide optimal power output at 2 ohms.
• When wired in series, the final impedance load increases to 8 ohms. (not common because it reduces amplifier output).
  • This method is much less commonly used because there are not nearly as many amplifier options available to provide optimal power output at 8 ohms.

B.) Confirm Voice Coil Impedance

1. Use a multimeter to check the impedance of each voice coil.
2. Each coil should measure close to 4 ohms (about 4.1–4.2 ohms is normal).
3. Once confirmed, you can proceed with wiring.

C.) Prepare Your Wires

1. Strip and separate the positive (+) and negative (–) leads from the enclosure terminal.
2. Split the wire strands so you can connect them to both sets of terminals.
3. Twist the strands tightly to avoid loose connections.

D.) Wire Subwoofer / Amplifier Using Parallel or Series Wiring

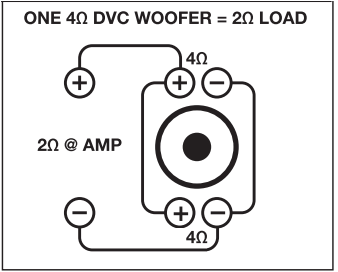

Parallel Wiring (Final Load = 2 Ohms):
Parallel wiring combines both coils by connecting positive to positive and negative to negative.

1. Take a speaker wire and connect the positive terminal of coil 1 to the positive terminal of coil 2.
2. Connect the negative terminal of coil 1 to the negative terminal of coil 2.
3. Twist and secure the connections so they act as one solid wire for positive and one for negative.
4. Run these combined positive and negative wires to the subwoofer enclosure terminals.
5. Check impedance at the box terminals – it should read close to 2 ohms (i.e. 1.9 ~ 2.2 ohms).
6. The enclosure leads can then be connected a compatible amplifier (as per next section).

Amplifier Recommendation for 2 Ohm Load:

• Use a mono-block amplifier (or bridged multi-channel amplifier) with a minimum impedance of 2 ohms or less per manufacturer's specification.
• Avoid amps (or bridged outputs) with a minimum impedance of more than 2 ohms.

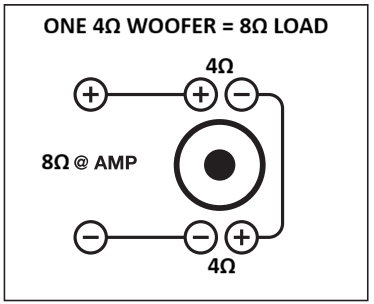

Series Wiring (Final Load = 8 Ohms)
Series wiring adds the impedance of both coils together, giving you a higher final load.

1. Run a short speaker wire from the positive terminal of coil 1 to the negative terminal of coil 2.
   • Be careful not to connect both terminals on the same coil—this won’t work.
2. Connect your enclosure’s positive lead to the remaining positive terminal.
3. Connect your enclosure’s negative lead to the remaining negative terminal.
4. Check impedance at the enclosure terminals – it should read around 4 ohms (4.1–4.2 ohms).

Amplifier Recommendation for 4 Ohm Load:

• Ideal for many 2-channel amplifiers in bridge mode.
• Also works well for a 2-ohm stable monoblock amplifier running at 4 ohms.
  • Running at 4 ohms reduces heat, increases efficiency, and often improves sound quality.
• Always compare the amplifier's max. output power with the subwoofer's power handling.
  • If a sub is rated for 350 Watts-RMS, you will want to make sure the amp being used can deliver at least 350 Watts-RMS to the sub–preventing damage that can be caused by line distortion(when underpowered).

Troubleshooting & FAQs

My multimeter shows slightly higher than 4 ohms per coil. Is that normal?
✅Yes. Readings around 4.1–4.2 ohms are within tolerance and perfectly normal.

What happens if I wire it wrong?
✅Incorrect wiring can result in no sound, poor performance, or even damage to your amplifier.
✅Always double-check your connections.

Can I use any amp for both configurations?
✅No. Make sure your amplifier is stable at the impedance you’re wiring for.
✅A 2 ohm stable amplifier is required for parallel wiring.
✅An 8 ohm stable amplifier is required for series wiring.

Conclusion

Wiring your DVC 4 Ohm subwoofer is simple once you know the difference between parallel (2 ohm) and series (8 ohm) wiring. Parallel provides maximum power draw but requires a 2-ohm stable amp, while the series runs cooler and may work with more amp types. We strongly recommend they you verify impedances and connections with a multimeter before connecting to your amplifier.
