Settings
Use the MENU button to enter the settings menu. Press and hold the UP and DOWN buttons to quickly scroll through the menu items. Press ENTER to make a selection and use the UP and DOWN buttons to scroll through the options or numerical values for that setting. Press the ENTER button to save your selection. If you press the ENTER button on any setting, the saved mode/settings/values will remain in place even after powering off the unit and will be the default when you power the unit back on.
Display Mode | Value | Description | Submenu Function |
A001 | A001–A512 | Wireless DMX channel address | Please note: a flashing red dot will appear on the bottom corner of the LCD indicating that wireless DMX communication is occurring. |
Chnd | 6Ch–10Ch | Select 6 or 10 channel modes | Press the ENTER button, then use the up/down buttons to toggle between 6Ch and 10Ch. |
CL01 | CL01–CL32 | Single color mode | N/A |
CC01 | CC01–CC99 | Automatically cycle through colors | |
EE01 | EE01–EE99 | Color pulse | |
FF01 | FF01–FF99 | Color fade | |
ST01 | ST01–ST99 | Select strobe speed | Press the MODE button until the screen reads ST01. Press the ENTER button to toggle between ST (strobe speed) or Co (strobe color) to make adjustments as necessary. |
Co01 | Co01–Co32 | Select strobe color | |
SoU1 | SoU1–SoU4 | Select sound control mode | SoU1: Cycles through solid colors |
SoU2: Color pulse | |||
SoU3: Color strobe | |||
SoU4: Color change + color fade + strobe | |||
IRCL | On/Off | Turn remote control function on or off. | Press the ENTER button, then use the up/down buttons to toggle on/off. Please note: In order to use the 2.4G Wireless DMX, the IRCL function needs to be "OFF". |
2.4G | On/Off | Turn wireless DMX function on or off. | Press the ENTER button, then use the arrow keys to toggle on or off. Use the DMX SELECT button on the unit to set your wireless dmx channel. |
r000 | r000–r255 | Red dimmer | N/A |
g000 | g000–g255 | Green dimmer | |
b000 | b000–b255 | Blue dimmer | |
u000 | u000–u255 | White dimmer | |
y000 | y000–y255 | Yellow (amber) dimmer | |
P000 | P000–P255 | Purple (UV) dimmer | |
OF00 | N/A | Temperature display | Shows the unit's temperature in degrees fahrenheit. |
Charging
To charge the unit plug in the power cord, turn off the power switch. It is suggested to charge the battery for at least 4 hours, which will extend the life span of the battery. Please note: Be sure to charge the battery for 6–7 hours before first use. On a full charge the battery can last for 4 hours with all LEDs on, 8 to 10 hours on auto mode, and up to 20 hours with one LED on. Results will vary based on the brightness setting of the LEDs.

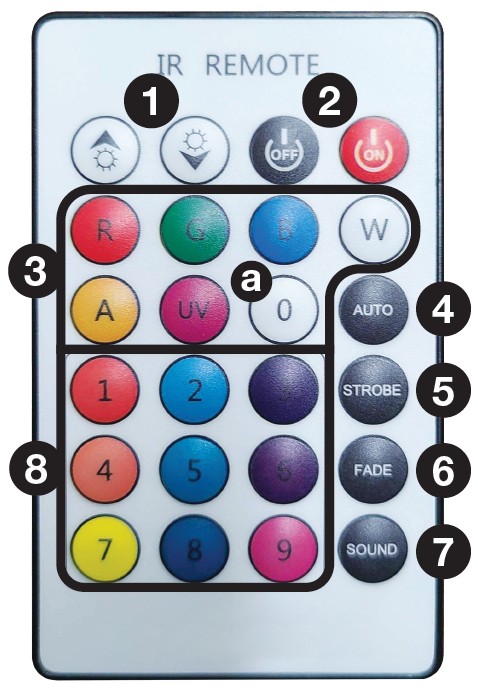

Remote Control
Functions
|
DMX Controller Functions
When using a DMX controller, use the charts below to reference each channel's function.
6-Channel Mode
Channel | Function | Value | Description |
1 | Red | 0–255 | Adjust individual color brightness |
2 | Green | 0–255 | |
3 | Blue | 0–255 | |
4 | White | 0–255 | |
5 | Yellow (amber) | 0–255 | |
6 | Purple (UV) | 0–255 |
10-Channel Mode
Channel | Function | Value | Description |
1 | Master dimmer | 0 – 255 | Adjust overall brightness |
2 | Red | 0 – 255 | Adjust individual color brightness |
3 | Green | 0 – 255 | |
4 | Blue | 0 – 255 | |
5 | White | 0 – 255 | |
6 | Yellow (amber) | 0 – 255 | |
7 | Purple (UV) | 0 – 255 | |
8 | Strobe | 0 – 10 | Strobe off |
11 – 255 | Set strobe speed | ||
9 | Off | 0 – 9 | Adjust function settings |
Select color | 10 – 50 | ||
Color change | 51 – 100 | ||
Color fade | 101 – 150 | ||
Pulse color change | 151 – 200 | ||
Color changes to the beat | 201 – 220 | ||
Color strobe changes to the beat | 221 – 240 | ||
Pulse color changes to the beat | 241 – 255 | ||
10 | Ch9 speed/color options | 0 – 255 | Adjust Ch9 function speeds and single colors |
