Rockville RockWedge LED

54W RGBWA+HUV Wireless DMX Par Light with Rechargeable Battery

Includes

• Par Light

• Remote Control

• Power Wire

• Mounting Clamp

• Owner's Manual

• Warranty Card

Important Safety Instructions

No user serviceable parts inside. Refer service to the Rockville service center.

• Avoid looking directly into the lights.

• Do not expose this unit to any kind of moisture.

• The product's housing may become hot during operation. Do not touch.

• Please ensure that the unit is situated in a properly ventilated area. Allow at least 20 inches between this device and a wall.

• This device has an IP20 rating and is intended for indoor use only.

• Maximum operating temperature is 104°F (40°C).

• Do not operate this unit when the cover is open.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to break off or remove the ground prong. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.

• Never plug this unit into a dimmer pack.

• Do not operate this unit if it is damaged.

• This unit is intended for indoor use only.

• Always mount this unit in a safe and stable manner.

• Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point of exit from the unit.

• To avoid unnecessary wear and to improve the unit's lifespan, unplug the unit when not in use for extended periods of time.

Attention:

Please charge fixture for 10 hours before initial use. To charge the light: plug in the power cord and turn off the power switch. The power LED indicator will remain red while charging and will turn green once the unit is fully charged.

Always charge your light for 8 - 10 hours.

This will help extend the battery's life span.

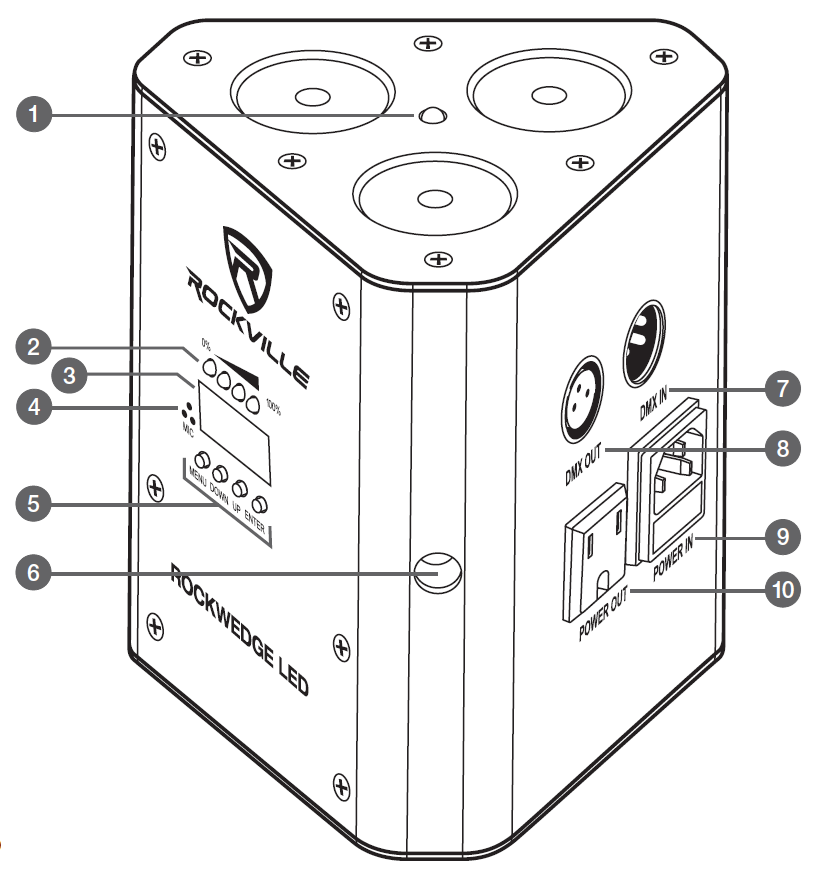

Functions

1. IR Receiver

2. Battery Level LED Indicators

3. LCD Display: Shows unit status

4. Sound Mode Mic

5. Controls:

   • MENU → Enter mode menu

   • DOWN → Scroll down through menu

   • UP → Scroll up through menu

   • ENTER → Confirm selection

6. 4 Mounting Bracket Holes: One on each side and one on the bottom

7. DMX Input Port

8. DMX Output Port

9. IEC AC Power Input Socket (with replaceable fuse)

10. AC Power Out

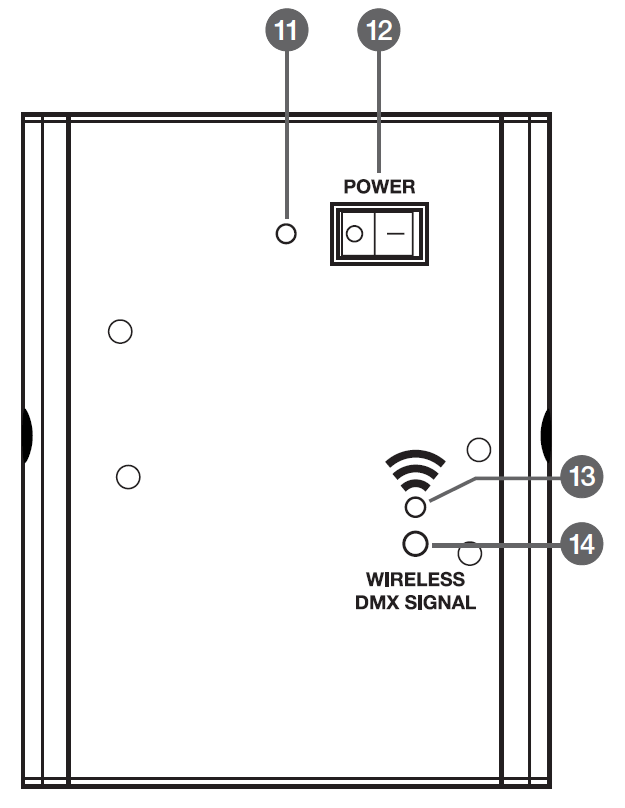

11. Power LED Indicator


12. Power Switch













13. Wireless Frequency ID Set Button


14. Wireless Frequency ID Color Code LED Indicator

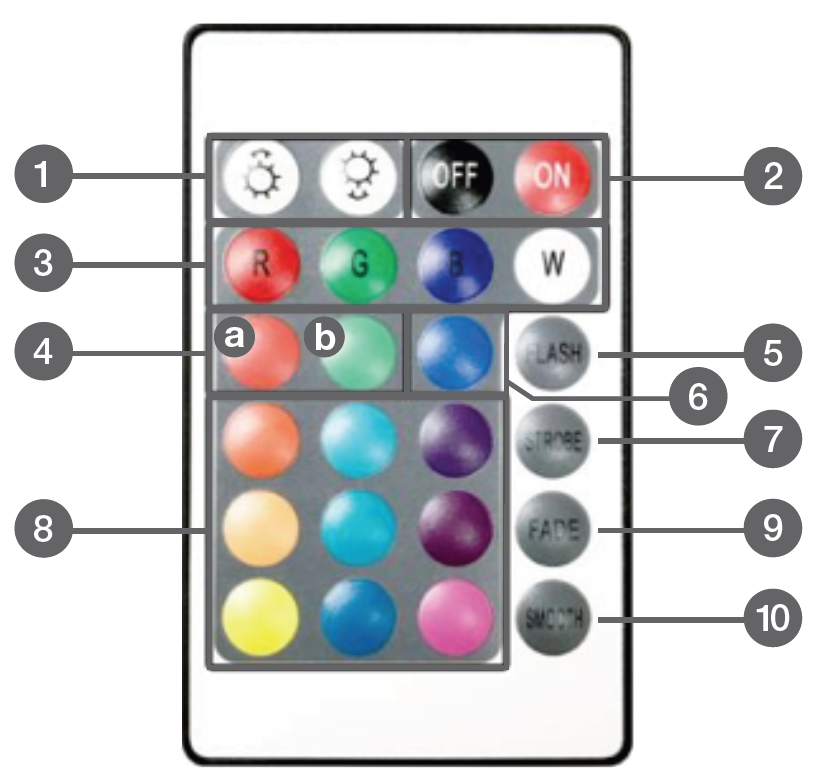

Remote Control

1. ☼ Up / ☼ Down Buttons:

   • Dimming: Adjusts the brightness of the fixture when manually adjusting colors.

   • Speed: In Auto Mode, the buttons are used to adjust the speed of the selected program.

   • Select: In Color Select mode, they serve as up and down buttons to cycle through 32 available colors.

2. LED On / Off Buttons

3. Red, Green, Blue, and White LED Buttons: Use these buttons quickly to select basic static color choices.

4. (a) Amber and (b) UV Buttons: Use these buttons quickly to select Amber and UV static color choices.

5. Flash Button: Activate/deactivate auto color switching mode.

6. Color Select Button: Press this button to activate, then use the ☼ Up / ☼ Down buttons to cycle through 32 available colors.

7. Strobe Button: Activate/deactivate strobe mode.

8. Color Buttons: Use these buttons quickly to select one of 9 popular static color choices.

9. Fade Button: Activate/deactivate auto fade mode

10. Smooth Button: Activate/deactivate sound mode

⚠️The RockWedge LED remote control uses a CR2032 battery (included). Always use CR2032 battery for replacement.

Charging

To charge the light, connect the power cord to the unit and to an outlet. Turn off the power switch. The LED indicator next to the power switch will be red when the unit is charging. Once the unit is fully charged, the LED will be green. For prolonged battery life we recommend fully charging the unit before first use (10 hours) and charging for 8 - 10 hours whenever the battery is depleted.

Setting Wireless Frequency Groups

The ROCKWEDGE features seven individual 2.4GHz groups so you can organize your fixtures. Each group is represented by a color. Use the wireless frequency set button to select any one of the seven available group colors. Make sure all the other fixtures within that group are set to the same group color.

Operation

Master/Slave Function:

1. Connect to power source and turn on all fixtures.

2. Connect all fixtures wirelessly or via the DMX IN/DMX OUT ports.

   • If connecting wirelessly, make sure that all fixtures are set to the same frequency group; see the previous Setting Wireless Frequency Groups section for instructions.

3. Set all fixtures to DMX mode A001 (10CH) or D001 (6CH) on the panel display.

4. Select one fixture to be the master. All other fixtures will follow the master fixture.

Display Codes:

Use the MENU button to enter the settings menu. Use the UP and DOWN buttons to select the desired setting and set their values. Press and hold the UP and DOWN buttons to scroll quickly through the menu options. Press the ENTER button to save your selection.

DMX Controller Function

When using a DMX controller, use the chart below to reference each channel's function.

6 Channel Mode

10 Channel Mode

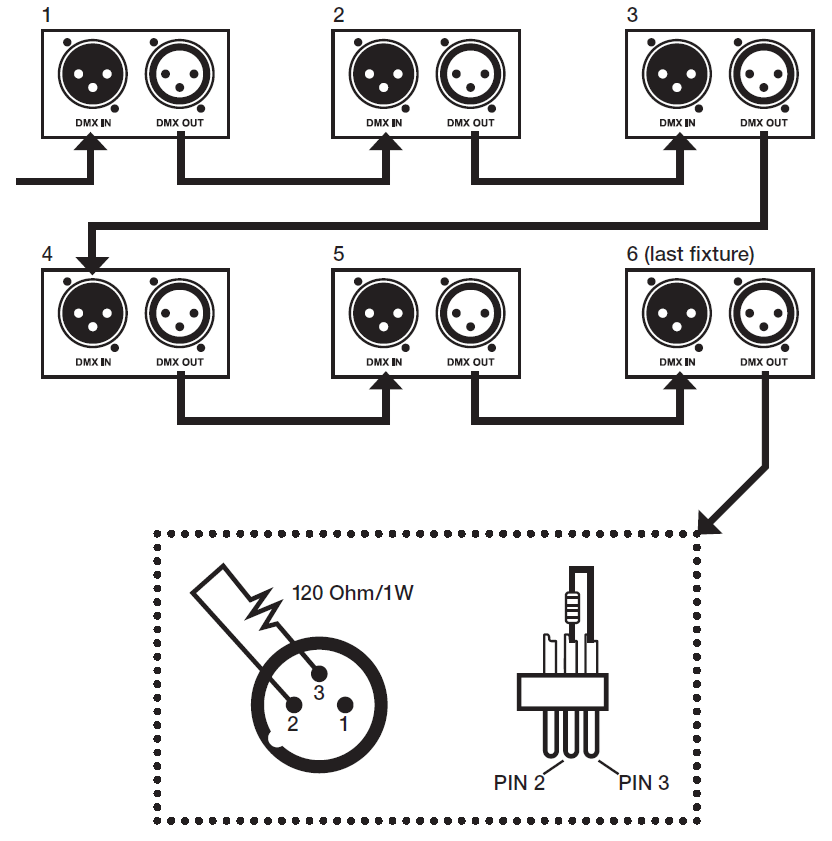

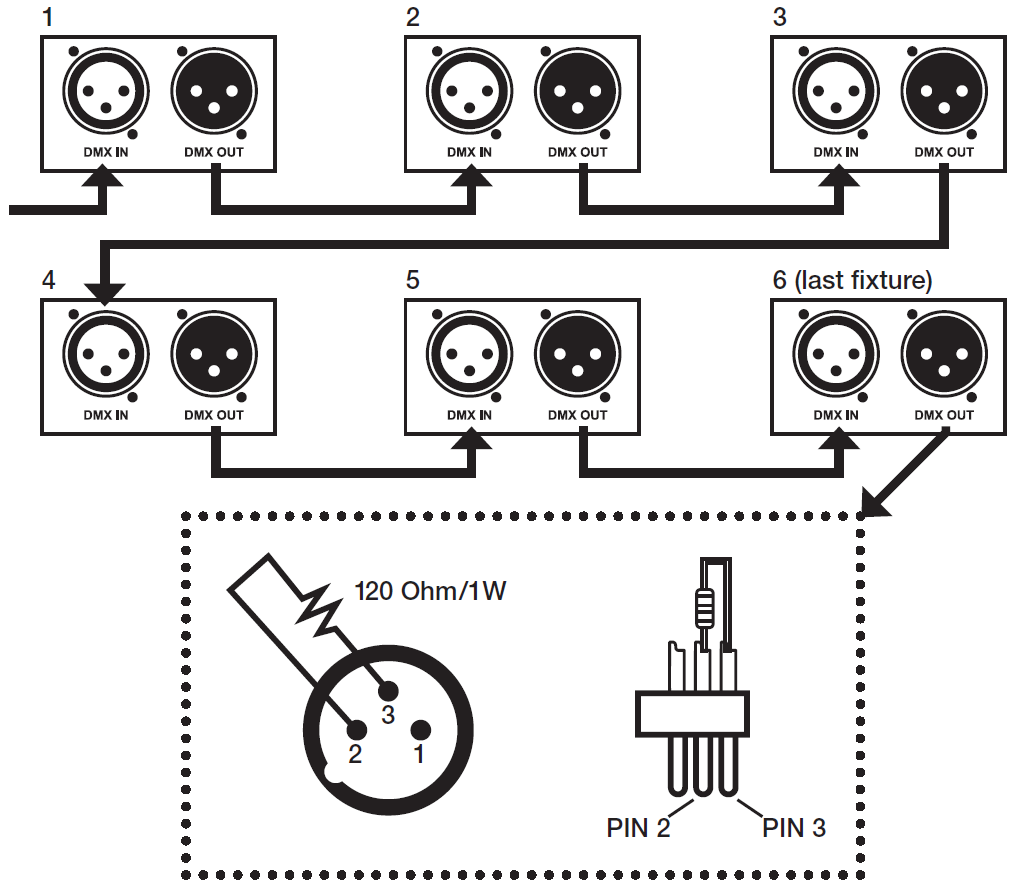

DMX Termination (OPTIONAL)

The last fixture of a DMX chain has to be "terminated." This prevents electrical noise from disturbing and corrupting the DMX control signals. To terminate the last fixture, solder a 1/4 Watt, 120 Ohm resistor across the DATA - and DATA + wires (PIN 2 and PIN 3). If you are only connecting a few fixtures that are close together and use a short run to the controller, you may be able to operate without a terminator.

Mounting

Please follow the directions below for safely hanging the ROCKWEDGE LED on a truss. You will need an adjustable wrench and pliers. Please use a safety cable when hanging the fixture. This will prevent any injuries in the event that the fixture falls.

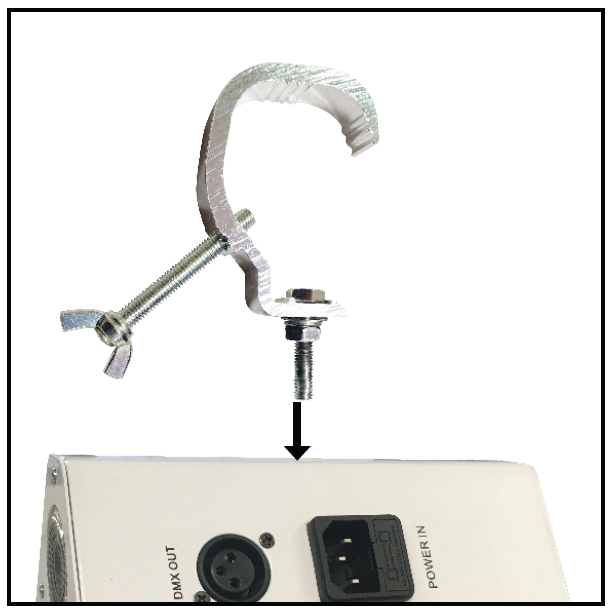

• STEP 1: Attach your mounting clamp to any one of the four mounting holes located on the sides and bottom of the fixture.

  PLEASE NOTE: Your mounting clamp may differ from the one used in our installation instructions. Make sure to refer to your clamp's specific mounting instructions for proper use.

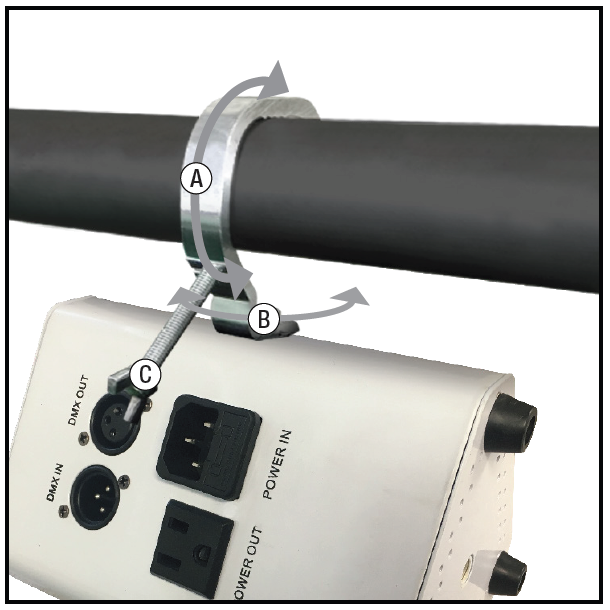

• STEP 2: Attach the clamp to a truss. Adjust the angle (A) and direction (B) as needed. Next, tighten the wing nut (C).

Features And Specifications

• 100% true wireless! Built-in 2.4GHz Wireless DMX 512 receiver allows you to link multiple lights together without wires

• Built-in rechargeable battery allows you to use the lights without plugging them in, making your setup 100% wireless

• Light Source: 3 LEDs/18 Watts each LED

• Each LED is a 6-in-1 RGBWA+UV (RED, GREEN, BLUE, WHITE, AMBER + ULTRA VIOLET)

• DMX control channels: 6 or 10 channels

• DMX input and output (3 pin)

• Wireless DMX Range: 1,000 to 1,500 feet

• 50,000 hours life expectancy

• IRC wireless remote control (uses CR2032 battery, included)

• Super bright: 6500 lux @1m

• Large 4-digit color LCD display - for easy color mixing & operating. Our interface is the easiest to use on the market

• Easy to operate either through the large LCD display, remote control, DMX controller, built-in programs, or sound activated mode

• Easy color mixing on one screen

• LED angle: 30 degree (±5)

• Built-in 7,500 mAh lithium battery

• Battery indicator above LCD display so you always know how much longer your battery will last

• Single color run time: Red: 36 hours / Green: 28 hours

• Double color run time: 14 hours

• All colors run time: 8 hours

• Recharge time: 4 hours

• Battery will still perform optimally even after hundreds of charging cycles

• Built-in battery overcharge protection

• Power supply: AC110V-220V/50-60Hz

• Power consumption: 25w

• Automatic modes: color change, strobe, dimmer, gradual color change, jump change, sound activated

• Flicker-free lights

• Colors: 16.7 million colors

• 1-year warranty

• Housing color: Black or White

• Create customized colors using the built-in LCD display

• 110/220 switchable for use in any country

• Unit dimensions: 6.69" x 6.69" x 8.86"

• Unit weight: 4.4 Lbs.
