Operating Instructions

Settings

Use the MENU button to enter the settings menu. Press and hold the UP and DOWN buttons to quickly scroll through the menu items. Press ENTER to make a selection and use the UP and DOWN buttons to scroll through the options or numerical values for that setting. Press the ENTER button to save your selection. If you press the ENTER button on any setting, the saved mode/settings/values will remain in place even after powering off the unit and will be the default when you power the unit back on.

DMX Controls

When using a DMX controller, use the charts below to reference each channel’s function.

7-Channel Mode

Channel	Function	Value	Description
1	Mode	0 – 10	Manual dimming, Ch4 – Ch7 only.
		10 – 50	A1: Color selection
		51 – 100	A2: Color cycle change
		101 – 150	A3: Gradual change
		151 – 200	A4: Sound mode
		201 – 255	A5: Strobe
2	Color	0 – 255	Changes the color for the Mode (Ch1) function being used.
3	Speed	0 – 255	Changes the speed for the Mode (Ch1) function being used.
4	Master dimmer	0 – 255	Adjust overall brightness of Ch5 - Ch7.
5	Red	0 – 255	Adjust individual color brightness (Ch1 must be set to 0 – 255 Manual dimming mode to engage these channels)
6	Green	0 – 255
7	Blue	0 – 255

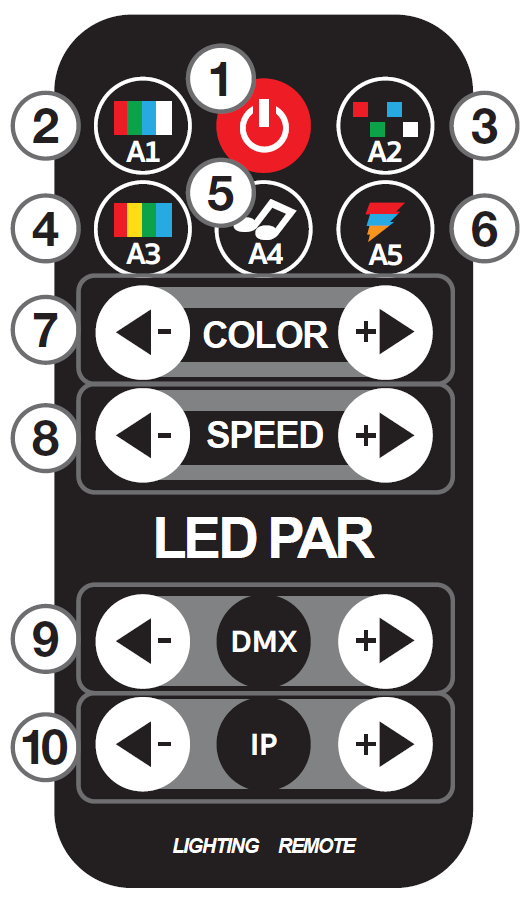

Remote Control

Functions
