RGHR2 Owner's Manual

Keith Harris
Updated

Water-Resistant Gauge-Hole Digital Media Receiver w/Bluetooth, USB, AM/FM Radio

Important Safety Instructions

A standard electrical safety warning label enclosed in a rounded rectangular border: Left Icon: A black triangle containing a white lightning bolt symbol indicating high-voltage electrical hazard. Center Text Box: A central box with a black top banner reading "CAUTION" in white uppercase text. The white lower box reads "RISK OF ELECTRIC SHOCK. DO NOT OPEN" in black uppercase text. Right Icon: A black triangle containing a white exclamation point symbol indicating a general safety hazard alert.
  • To reduce risk of electric shock, never open the unit.

Included

  • Marine Digital Media Receiver
  • Wired Remote with 32.8ft Wire
  • 40-inch USB Extension Cable
  • Remote Control Mounting Bracket
  • Mounting Screws for Installation
  • ISO Wire Harness
  • Mounting Template

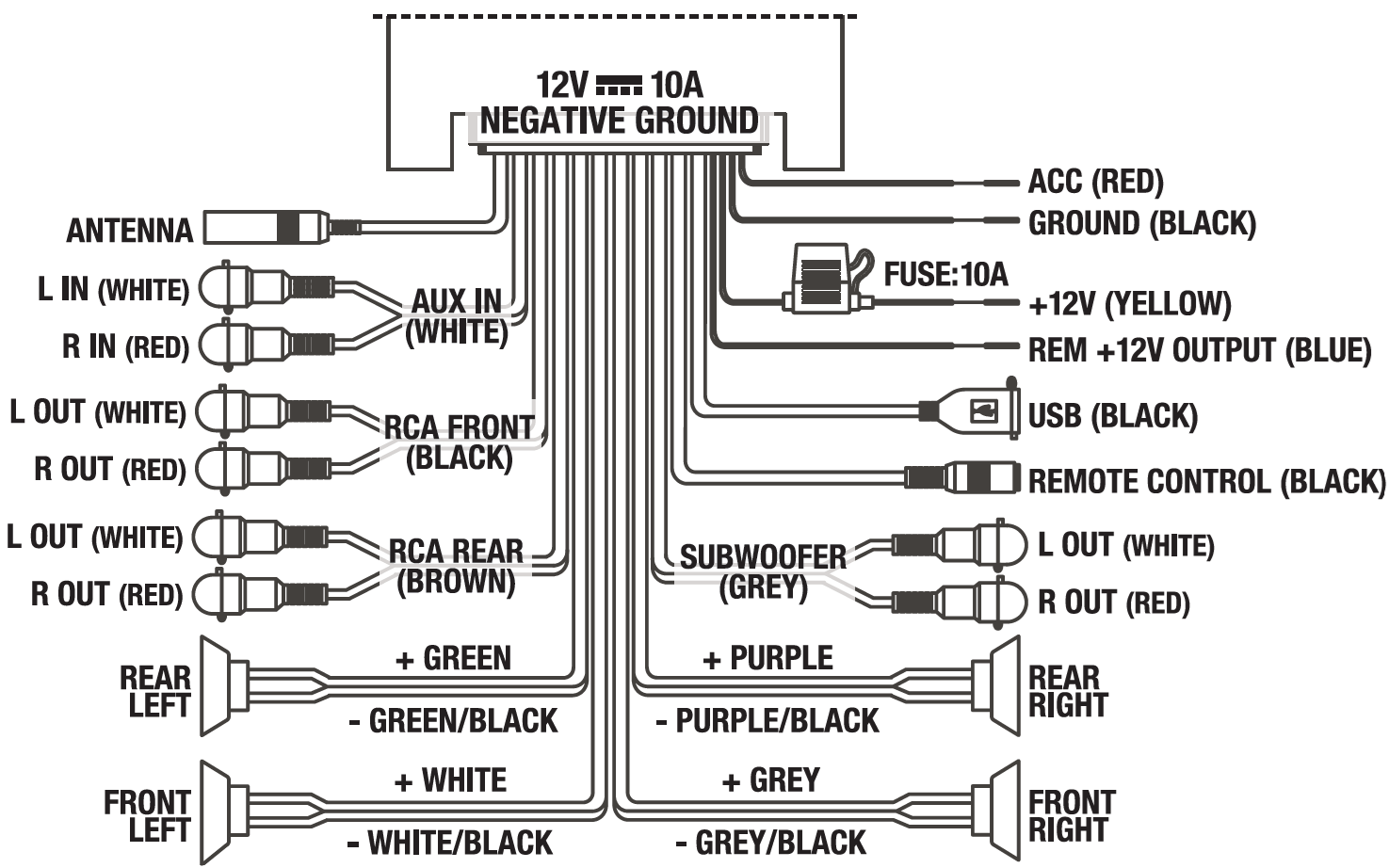

Wiring Diagram

A comprehensive wiring harness pinout diagram for a head unit labeled 12V DC 10A NEGATIVE GROUND at the top connector block. Power, Ground & Control Wires (Right Side): ACC (RED): Accessory power wire. GROUND (BLACK): Main ground wire. +12V (YELLOW): Constant power wire with an inline FUSE: 10A. REM +12V OUTPUT (BLUE): Remote turn-on signal wire. USB (BLACK): Female USB port extension. REMOTE CONTROL (BLACK): Wired remote input jack. Audio Inputs & Pre-Amp Outputs: ANTENNA: Antenna plug connector. AUX IN (WHITE): L IN (WHITE) and R IN (RED) RCA input jacks. RCA FRONT (BLACK): L OUT (WHITE) and R OUT (RED) RCA pre-outs. RCA REAR (BROWN): L OUT (WHITE) and R OUT (RED) RCA pre-outs. SUBWOOFER (GREY): L OUT (WHITE) and R OUT (RED) subwoofer RCA pre-outs. Speaker Wire Outputs (Bottom): REAR LEFT: + GREEN / - GREEN/BLACK FRONT LEFT: + WHITE / - WHITE/BLACK REAR RIGHT: + PURPLE / - PURPLE/BLACK FRONT RIGHT: + GREY / - GREY/BLACK

Attention

Most boats run on two batteries, each 12 volts, combined in series to provide 24 volts of power. In the diagram below, the battery on the left is the ENGINE BATTERY. Its positive lead goes to the engine and its negative lead is tied to the positive lead of the HOUSE BATTERY on the right. The HOUSE BATTERY’S negative terminal provides the common ground for the boat’s electrical system. The RGHR2 runs on 12 volts. Hence, for trouble-free performance, connect the BLACK GROUND WIRE and the YELLOW POWER WIRE of the RGHR2 to the corresponding terminals on the HOUSE BATTERY only. If the BLACK GROUND WIRE does not reach the battery, it can be connected elsewhere, but it may cause intermittent issues. The safest bet is to connect the ground wire directly to the negative (black) terminal of the HOUSE BATTERY. Be sure to connect the RED (ACC) WIRE from the harness to the vessels ignition. This will allow the RGHR2 to power on when the vessel starts up.

A color-coded electrical wiring schematic illustrates how to connect a gauge-style marine head unit to a dual 12-Volt battery system consisting of an ENGINE BATTERY (left) and a HOUSE BATTERY (right). Head Unit Connections: Accessory Connection (ACC): A red wire with an ACC label connects from the receiver to an ignition key switch symbol. Constant Power Connection (+): A yellow wire labeled with a + sign connects from the receiver directly to the positive (+) terminal of the HOUSE BATTERY. Ground Connection (-): A black wire labeled with a - sign connects from the receiver to the negative (-) terminal of the HOUSE BATTERY. Battery System Connections: Engine Battery Power: A red power wire leads out from the positive (+) terminal of the ENGINE BATTERY with the text OUT TO THE ENGINE accompanied by a lightning bolt icon. Battery Jumper Link: A thick black cable connects the negative (-) terminal of the ENGINE BATTERY directly to the positive (+) terminal of the HOUSE BATTERY. System Common Ground: A black ground cable leads out from the negative (-) terminal of the HOUSE BATTERY with the text OUT TO THE COMMON GROUND POINT accompanied by a lightning bolt icon.

Functions

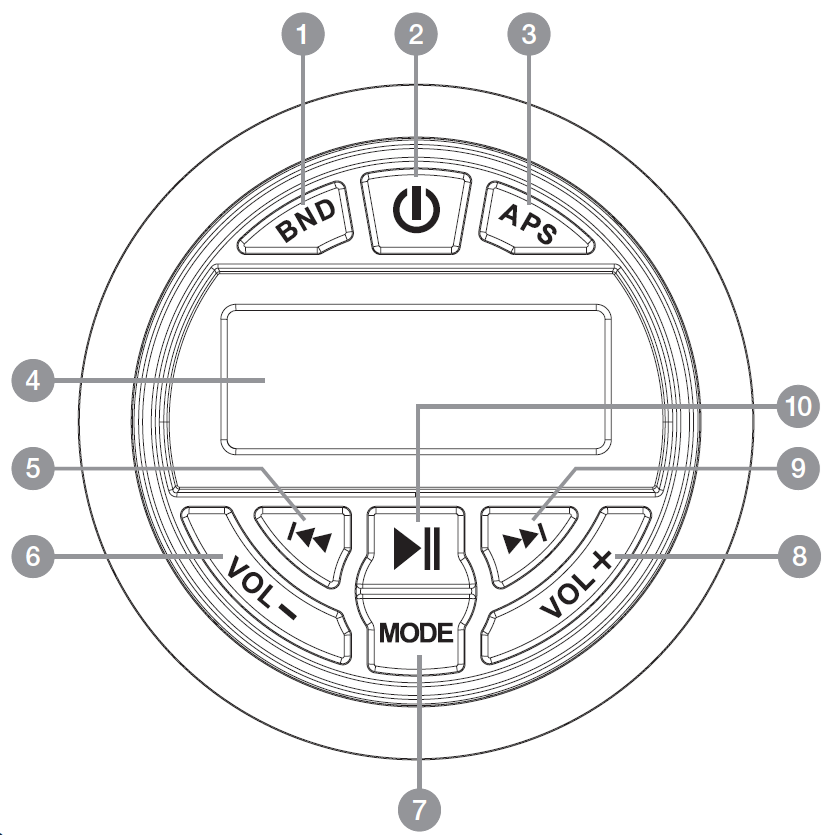

Receiver:

A front-view technical diagram illustrates the button layout and display screen of a circular gauge-style marine receiver, with numbered callout bubbles 1 through 10. Top Controls & Display: 1 (BND): Band selection button, located on the top left. 2 (Power Icon): Power button, located top-center. 3 (APS): Auto Preset Scan button, located on the top right. 4 (Display Screen): Rectangular digital display screen centered in the middle of the faceplate. Bottom Controls: 5 (Previous Track/Rewind): Left arrow button, located directly below the left side of the display. 6 (VOL -): Volume down button, located on the outer bottom-left edge. 7 (MODE): Source mode button, located at the bottom-center. 8 (VOL +): Volume up button, located on the outer bottom-right edge. 9 (Next Track/Fast Forward): Right arrow button, located directly below the right side of the display. 10 (Play/Pause Icon): Play/pause toggle button, located directly above the MODE button in the lower center.
  1. BND: In Radio mode, press to switch between AM and FM bands. Hold to save a station to a preset (see page 8). In USB mode, press to display track name, artist, or album.
  2. POWER: Press or press and hold to turn the unit on. Press the power button while the unit is on to mute audio playback. Press and hold for 2 seconds to turn the unit off.
  3. APS: Press and hold the APS button to automatically save AM/FM stations to the presets. While in AM or FM mode, press the APS button to search forward through the stations. In USB mode, press the APS button once to repeat one track, press again to repeat all tracks. Press and hold the APS button to access the track menu (TKR). Use volume buttons to select the desired track.
  4. LCD screen
  5. PREVIOUS: Press to select the previous track (BT/USB only) modes or radio station. Press and hold to rewind (USB only). Press and hold in Radio mode to enter manual seek mode.
  6. VOL -: Press to incrementally decrease or press and hold to quickly decrease volume.
  7. MODE: Use the mode button to reach the desired mode setting (BT/USB/RADIO/AUX). Press and hold the mode button to enter the unit settings menu (see page 9).
  8. VOL+: Press to incrementally increase or press and hold to quickly increase volume.
  9. NEXT: Press to select the next track (BT/USB only) modes or radio station. Press and hold to fast-forward (USB only). Press and hold in Radio mode to enter manual seek mode.
  10. Play/Pause: Press once to play current track; press again to pause (BT/USB only).

Remote:

A front-view technical diagram illustrates the button layout and display screen of a circular gauge-style marine receiver, with numbered callout bubbles 1 through 10. Top Controls & Display: 1 (BND): Band selection button, located on the top left. 2 (Power Icon): Power button, located top-center. 3 (APS): Auto Preset Scan button, located on the top right. 4 (Display Screen): Rectangular digital display screen centered in the middle of the faceplate. Bottom Controls: 5 (Previous Track/Rewind): Left arrow button, located directly below the left side of the display. 6 (VOL -): Volume down button, located on the outer bottom-left edge. 7 (MODE): Source mode button, located at the bottom-center. 8 (VOL +): Volume up button, located on the outer bottom-right edge. 9 (Next Track/Fast Forward): Right arrow button, located directly below the right side of the display. 10 (Play/Pause Icon): Play/pause toggle button, located directly above the MODE button in the lower center.
  1. PREVIOUS Press to select the previous track (BT/USB only) modes or radio station. Press and hold to rewind (USB only). Press and hold in Radio mode to enter manual seek mode.
  2. BAND: In Radio mode, press to switch between AM and FM bands. Hold to save a station to a preset (see page 8). In USB mode, press to display track name, artist, or album.
  3. NEXT: Press to select the next track (BT/USB only) modes or radio station. Press and hold to fast-forward (USB only). Press and hold in Radio mode to enter manual seek mode.
  4. VOL -: Press to incrementally decrease or press and hold to quickly decrease volume.
  5. VOL+: Press to incrementally increase or press and hold to quickly increase volume.
  6. MODE: Use the mode button to reach the desired mode setting (BT/USB/RADIO/AUX). Press and hold the mode button to enter the unit settings menu (see page 9).
  7. POWER: Press or press and hold to turn the unit on. Press the power button while the unit is on to mute audio playback. Press and hold for 2 seconds to turn the unit off.

Operation

Bluetooth:

Pairing

  1. When BT MUSIC and the BT icon are flashing on the screen, the unit is in pairing mode.
  2. Ensure your device is in Bluetooth mode and discoverable.
  3. Under list of available devices, search for and select RGHR2.
  4. Upon successful pairing, the BT icon will stop flashing and, for a few seconds, you will see the word “CONNECTED.”
  5. To disconnect paired device, simply press the APS button.

Bluetooth Music

  1. Press the Play/Pause buttons to start and stop music playback.
  2. Press the Previous/Next buttons to navigate through tracks.
  3. Press/hold VOL-/VOL+ to decrease or increase the volume.

USB:

  1. Press the Play/Pause buttons to start and stop music playback.
  2. Press the Previous/Next buttons to navigate through tracks.
  3. Press and hold the Previous/Next buttons to rewind or fast forward.
  4. Press/hold VOL-/VOL+ to decrease or increase the volume.
  5. Press the APS button once to repeat the current track. Press again to repeat all tracks.
  6. Press and hold APS to search for a specific track number, then press VOL+ or VOL- to change to the desired track.
  7. Press the BAND button to cycle through track title, artist, and album.

AM/FM Radio:

  1. To scan through stations, press the APS button once.
  2. To mute radio mode, press the power button.
  3. Press and hold the APS button to automatically program AM/FM stations. The unit will scan through all frequencies and save available stations to the presets. Now the unit will go into a preview scan mode which will play 5 seconds of each preset station. Press the previous or next buttons stop preview mode.
  4. To manually scroll forward or backwards through stations, hold the Previous or Next button for 1 second, release, then press again. Press to scroll forward/back in increments or press and hold to quickly scroll forward/ back.
  5. To manually save a station, while in manual mode press the previous/next buttons until you’ve reached the desired frequency. Now hold the band button. The preset slot’s number will begin to flash. Use the VOL+/VOL- buttons to cycle through the preset slots. Once you’ve reached the desired slot, press and hold band to save your selection.

Please note, if the unit is receiving a stereo signal from the current station, you will see two interlocking rings at the top left corner of the LCD screen. If these ring are not present, the unit is receiving a mono signal.

AUX:

  1. Press the POWER button to mute
  2. Press/hold VOL-/VOL+ to decrease or increase the volume. Please note that this works independently of your source’s volume control.

Settings:

  1. Press and hold the MODE button to enter the Settings Menu.
  2. Press the MODE button to change Menu items.
  3. Adjustable settings are: Bass, Treble, Balance, Fader, Beep, Subwoofer output, Preset EQs, Loudness setting, Tuner Area/region.
  4. To adjust the settings, use the VOL-/VOL+ buttons.

Dimensions

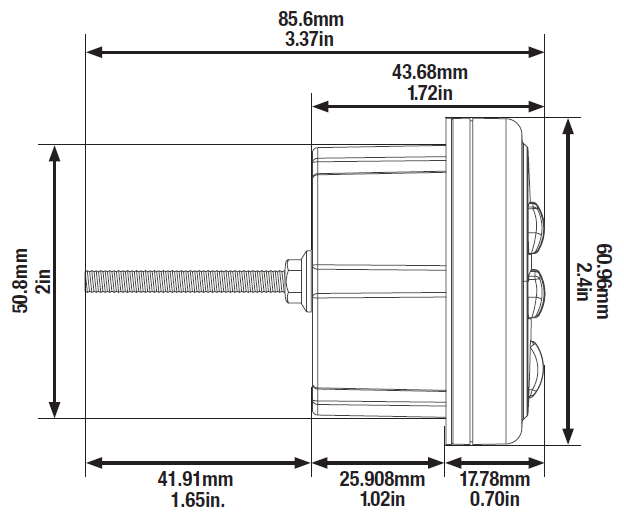

Remote:

  • 2.00˝ mounting cutout diameter
  • 2.40˝ top plate diameter
  • 2.67˝ mounting depth (including the screws)
  • 3.37˝ depth including the top plate and the screws
A technical side-view line drawing showing the overall dimensions of a circular control device: Total Depth: 85.6 mm (3.37 in) overall depth from the tip of the threaded rear mounting stud to the front face. Front Face Outer Diameter: 60.96 mm (2.4 in) overall height/diameter of the front bezel. Front Bezel Depth: 17.78 mm (0.70 in) projection distance from the mounting surface to the front interface buttons. Main Housing Body: Diameter: 50.8 mm (2 in) height/diameter of the rear housing unit. Housing Depth: 25.908 mm (1.02 in) depth from the back of the front bezel to the rear panel. Total Body Depth: 43.68 mm (1.72 in) depth combining the housing and front bezel. Rear Mounting Stud Length: 41.91 mm (1.65 in) extending out from the back panel of the main housing.

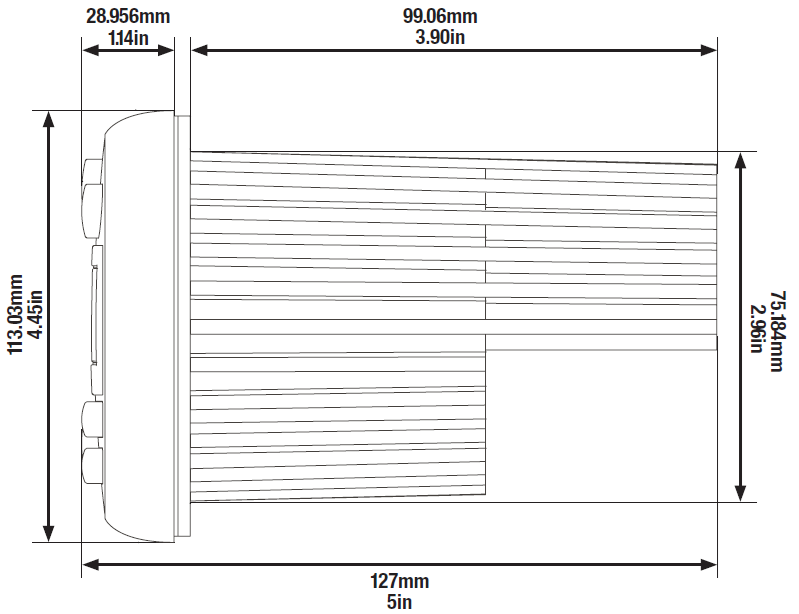

Receiver:

  • 2.96˝ mounting cutout diameter
  • 4.45˝ top plate diameter
  • 3.90˝ mounting depth (not including top plate)
  • 5.00˝ depth including the top plate
Short Alt Text (Recommended) Dimensional side-profile schematic diagram of a round marine media receiver unit, detailing measurements in millimeters and inches. Detailed Description (For extended accessibility captions) A technical side-view line drawing showing the overall dimensions of a cylindrical head unit or audio controller: Total Depth: 127 mm (5 in) overall depth from the front face buttons to the back end of the main body chassis. Front Bezel: Height/Diameter: 113.03 mm (4.45 in) outer vertical diameter of the front interface plate. Projection Depth: 28.956 mm (1.14 in) depth extending outward from the mounting surface. Rear Body Chassis: Height/Diameter: 75.184 mm (2.96 in) vertical diameter of the recessed housing body. Chassis Depth: 99.06 mm (3.90 in) depth extending behind the mounting surface.

Features

  • Fits into a standard gauge-hole (tachometer) opening
  • Built-in 72 x 4 watt peak high-powered amplifier (28 x 4 RMS)
  • Built-in EQ with preset EQ curves (pop, classic, rock, flat)
  • IP66 waterproof certification (tested to withstand the elements)
  • USB input supports 16GB max
  • RCA Aux input
  • AM/FM radio built-in with 18 FM and 12 AM presets + US and European tuning
  • Bluetooth built-in to stream audio from any Bluetooth enabled device
  • Two sets of RCA outputs (front and rear) allow you to connect external amplifiers
  • Dedicated RCA subwoofer output
  • Big easy-to-use buttons
  • Backlit LCD display
  • Wired remote control included
  • USB is 500mA and 5V, supports charging

Amp Specs

  • TDA7850 quad bridge power amplifier
  • 4 x 72 watts peak @ 2 ohms
  • 4 x 48 watts peak @ 4 ohms
  • 4 x 28 watts RMS @ 4 ohms

Troubleshooting

Problem

Solution

No power

  • Check power connections: Yellow wire goes to the house battery; Black wire must be grounded securely. The Red wire goes to the vessel’s ignition.

Poor or no radio reception

  • Make sure antenna cables are properly connected.

Bluetooth pairing fails

  • Check to see that both devices are turned on and that your Bluetooth device is discoverable.
  • Turn both devices off and then on again.
  • Make sure you've selected the proper source.
  • Make sure that the Bluetooth device is within 5 feet of the unit.
  • Move both devices away from other Bluetooth devices and/or other electronics.
  • Make sure that the unit is not paired to a previously paired device.
Files on USB memory device will not play back
  • Make sure you've selected the proper source.
  • Make sure that the audio files are properly formatted.
  • Make sure that the USB drive is properly plugged in.
  • Check USB drive for damage.
  • Make sure the USB drive’s capacity does not exceed the 16GB limit.

No sound

  • Check the unit’s volume settings as well as those of any external sound source.
  • Double check all connections and reattach if necessary.
  • Check and adjust zone settings if necessary.
