BluAmp 90 Owner's Manual – Rockville Audio

Home Stereo Bluetooth Receiver Amplifier w/Mic, Phono, and HDMI Input

Huge Power!

The BluAmp 90 is loaded with 400 watts of peak power and 100 watts continuous RMS! The built-in amplifier is loud enough to maximize a set of bookshelf speakers, ceiling speakers, or wall mount speakers. It also sounds great with tower speakers.

Expandable

This is more than an amplier. The BluAmp 90 will be the control center for your home stereo system or your karaoke system. There are one group of RCA outputs allowing you to connect additional powered speaker(s)/Amplifier(s). The RCA input is selectable as AUX or PHONO so you can use it to connect a turntable or any other analog audio device. The optical input allows you to connect to any digital audio source such as a television. The HDMI ARC input will connect to an HDMI ARC enabled port on any modern television. It also has built-in Bluetooth, USB/SD playback, and coaxial input.

Great for Karaoke

There are two mic inputs along with echo control and mic volume controls, which makes this amp perfect for karaoke parties.

Full Function Remote

The remote control that is included will allow you to access all functions of the receiver quickly and efficiently.

Adjustable Equalizer Settings

The adjustable bass and treble controls will allow you to fine-tune your music to your taste.

Important Safety Instructions

To reduce risk of shock, never open the unit. There are no user-serviceable parts. For service, return the unit to Rockville or take it to an authorized service center.
Do not place this unit near heat sources, expose it to direct sunlight, or expose it to any kind of moisture.
Do not place anything on top of the unit. Doing so will block vents and cause the unit to overheat.
Please ensure that the unit is situated in a properly ventilated area.

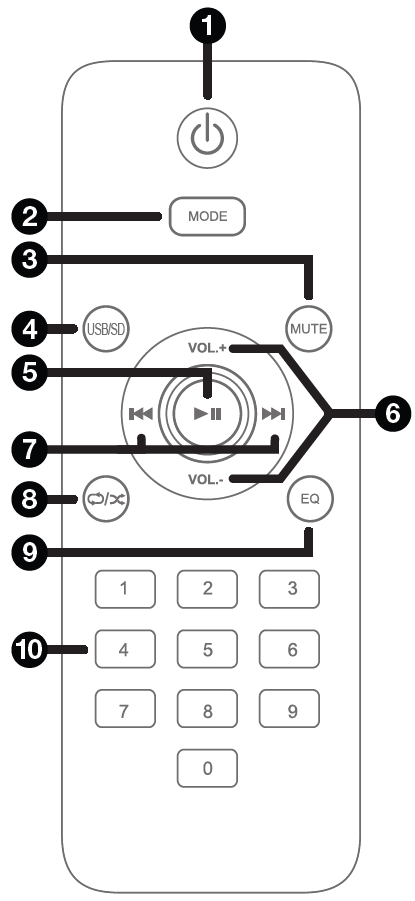

Remote Control Functions

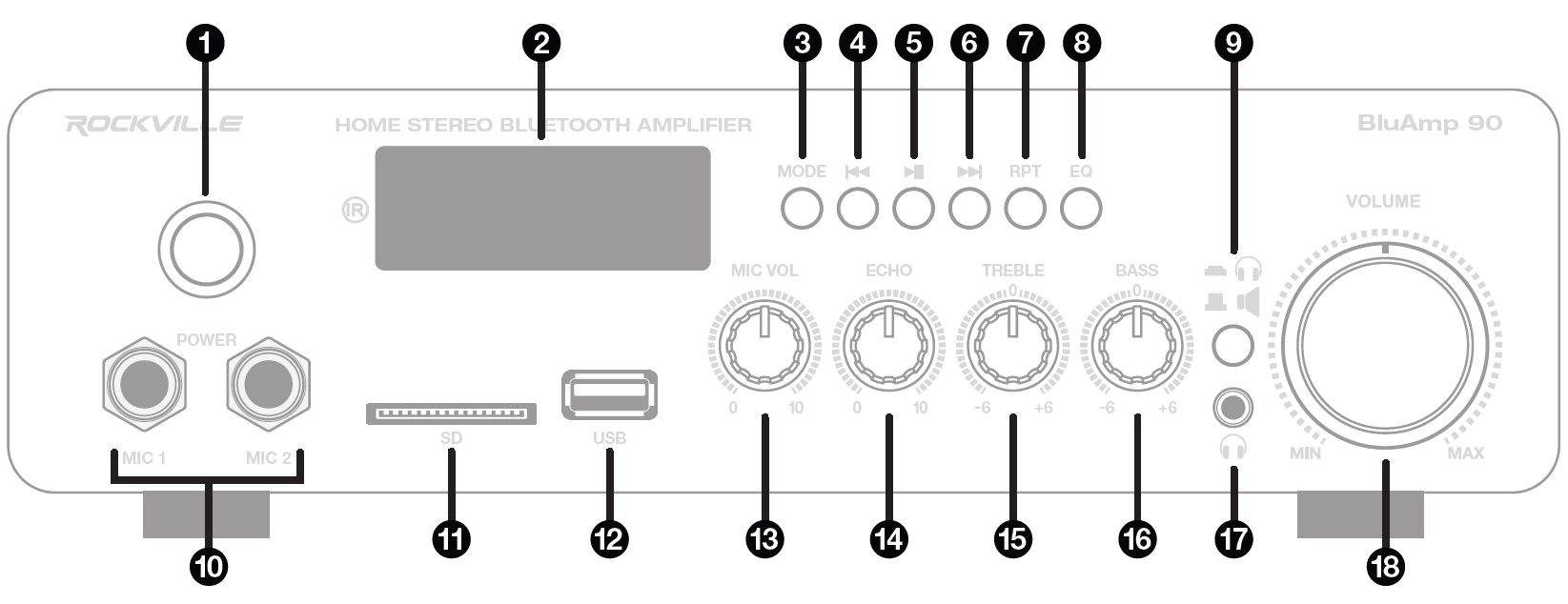

Functions

1. Power button
2. LCD display
3. Mode: Press to switch input modes (USB/SD, DVD/CD, optical, coaxial, and Bluetooth).
4. /Previous: Return to previous track (USB/SD/BT). Press and hold to rewind (USB mode only).
5. Play/Pause: Press to start or pause audio playback.
6. /Next: Proceed to the next track (USB/SD/BT). Press and hold to fast-forward (USB mode only).
7. Repeat: Press once to repeat all tracks; press again for random mode; press again to repeat the current track; press again to repeat all tracks within a folder; and once again to play random tracks within that folder (USB/SD mode only).
8. Press to select EQ preset: rock/jazz/vocal/normal/3d/classical/pop.
9. Headphone/speaker output select button
10. ¼˝ Mic inputs
11. SD card slot
12. USB port
13. Microphone volume control
14. Mic echo control
15. Treble control
16. Bass control
17. 3.5mm headphone output
18. Volume (does not affect mic output volume

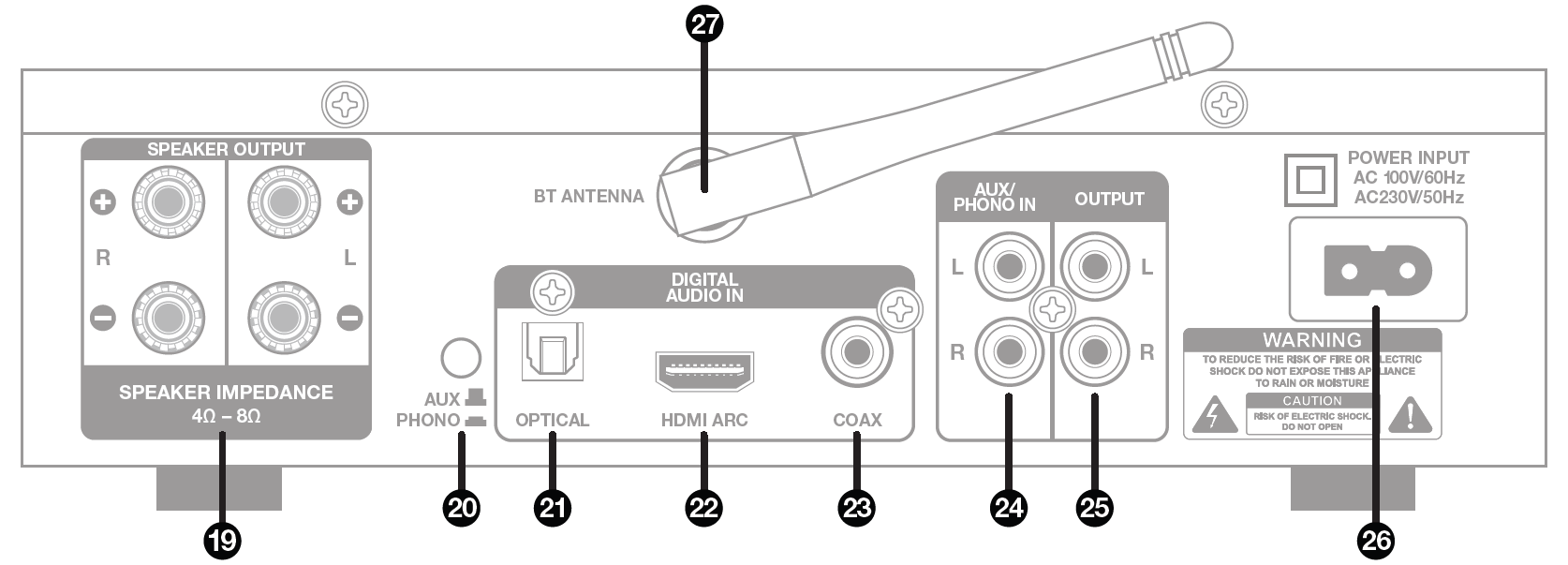

19. L/R Binding post/Banana speaker outputs
20. Phono/Aux input select button
21. Optical input
22. HDMI ARC input
23. Coax input
24. Aux/Phono RCA audio input
25. L/R RCA audio output
26. AC input power cord: 100V/230V~60Hz/50Hz
27. Bluetooth antenna

Bluetooth

Pairing

1. Make sure the Bluetooth antenna is properly connected and upright. Turn on the Bluetooth feature on your device and ensure that it is in discoverable mode.
2. Press the Mode key until the display screen flashes “bt”.
3. Once in Bluetooth mode, look for “BluAmp 90” on your device and select it.
4. If pairing is successful, “bt” will stop ashing and remain on the display screen.
Please note that the unit will remember the last paired device. To unpair the unit, disconnect the BluAmp via your device.

Playback

1. Play/Pause: Press once to play current track; press again to pause.
Previous and Next controls: Press to return to previous track or proceed to the next track.
2. Playback functions may also be controlled from the remote control, the unit front panel control’s, or your Bluetooth device.

USB/SD

1. Insert a USB drive or SD card into the corresponding port on the front panel. The unit will automatically begin to play music stored on the external device.

Playback (controlled from the unit or the remote control)

1. Play/Pause: Press once to play current track; press again to pause.
2. Previous and Next controls: Press to return to previous track or proceed to the next track. Press and hold to rewind or fast-forward.
Please note, inserting a USB drive/SD card will override Bluetooth mode. Formatting the USB drive/SD card is not necessary, but if you do so, use the FAT32 format. Supported file formats: MP3, WMA, WA.

Setup

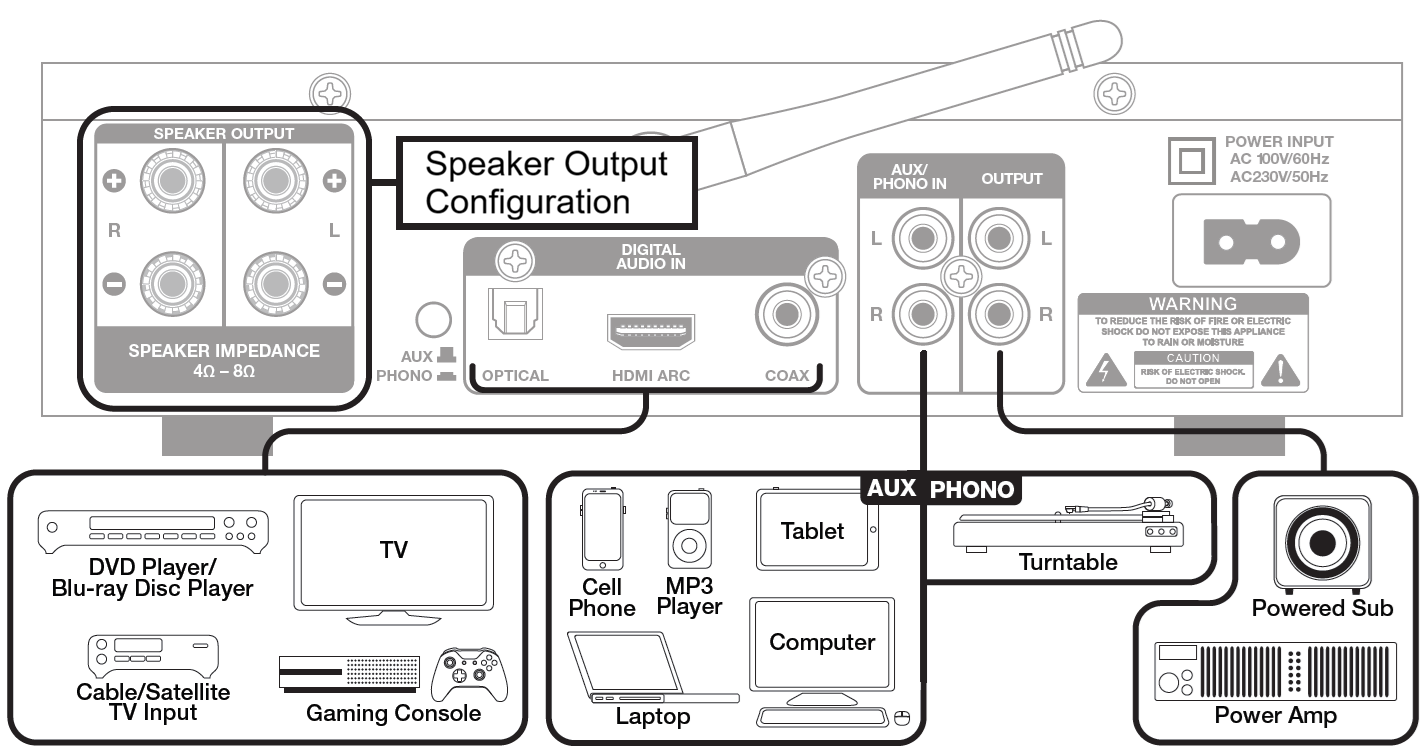

Rear Panel

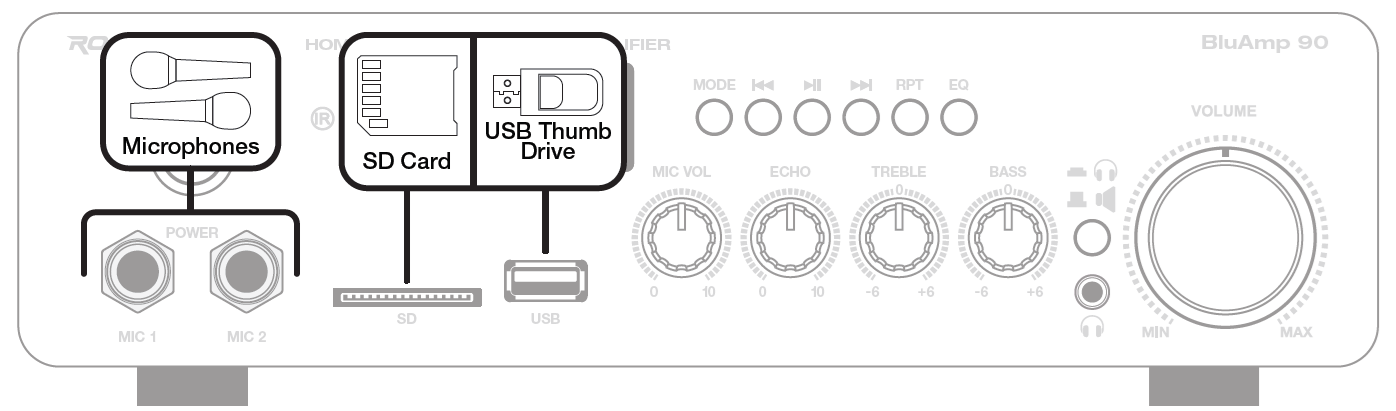

Front Panel

Choosing Compatible Speakers

Speaker Types

Full-Range Speakers:

These are speakers that can produce a full range of sound. They usually come in a 2-way configuration (woofer and tweeter) or a 3-way configuration (woofer, tweeter, and mid-range driver). They can vary in size from 6.5˝ to 15˝. The quantity and type will be determined by the size of the room and the specific requirements of your karaoke set-up. We recommend our KPS or SPGN series of speakers as well as bookshelf and home audio speakers, which can be found at RockvilleAudio.com.

Matching Impedance:

It’s important that you match the impedance of your speakers to your amplifier. The BluAmp 90 has a minimum speaker impedance of 4 ohms; hence, the total impedance of your speakers must not be less than 4 ohms.

Speaker Configurations

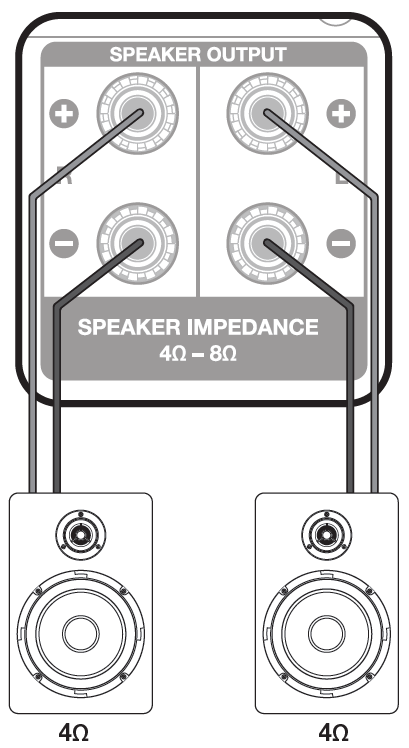

1. One 4-ohm speaker attached to each channel.

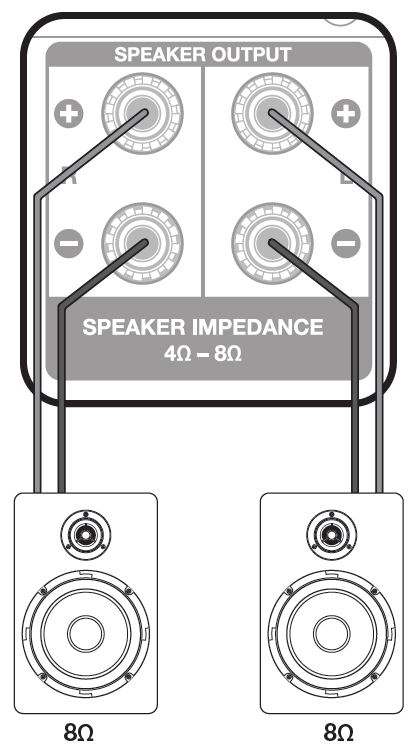

2. One 8-ohm speaker attached to each channel.

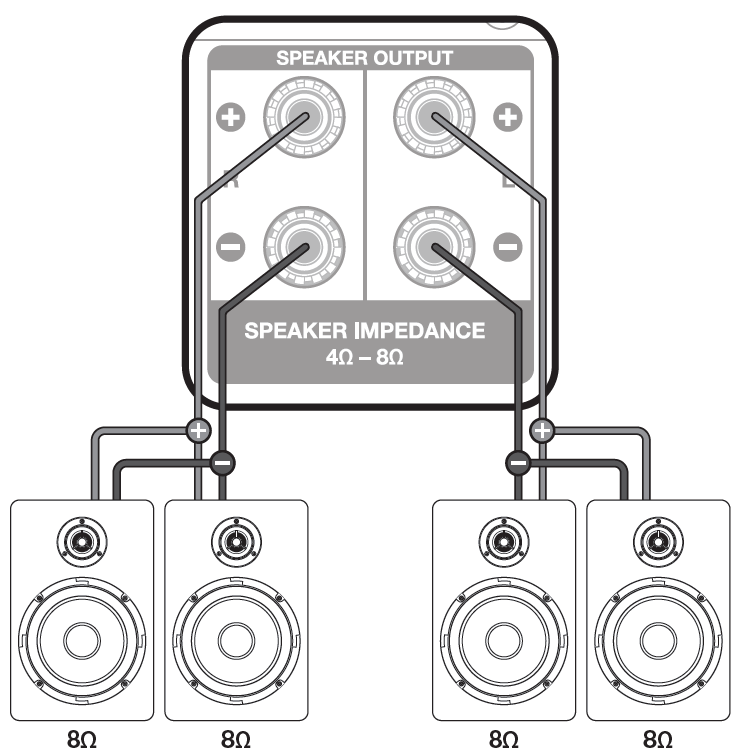

3. Two 8-ohm speakers, in parallel, attached to each channel.

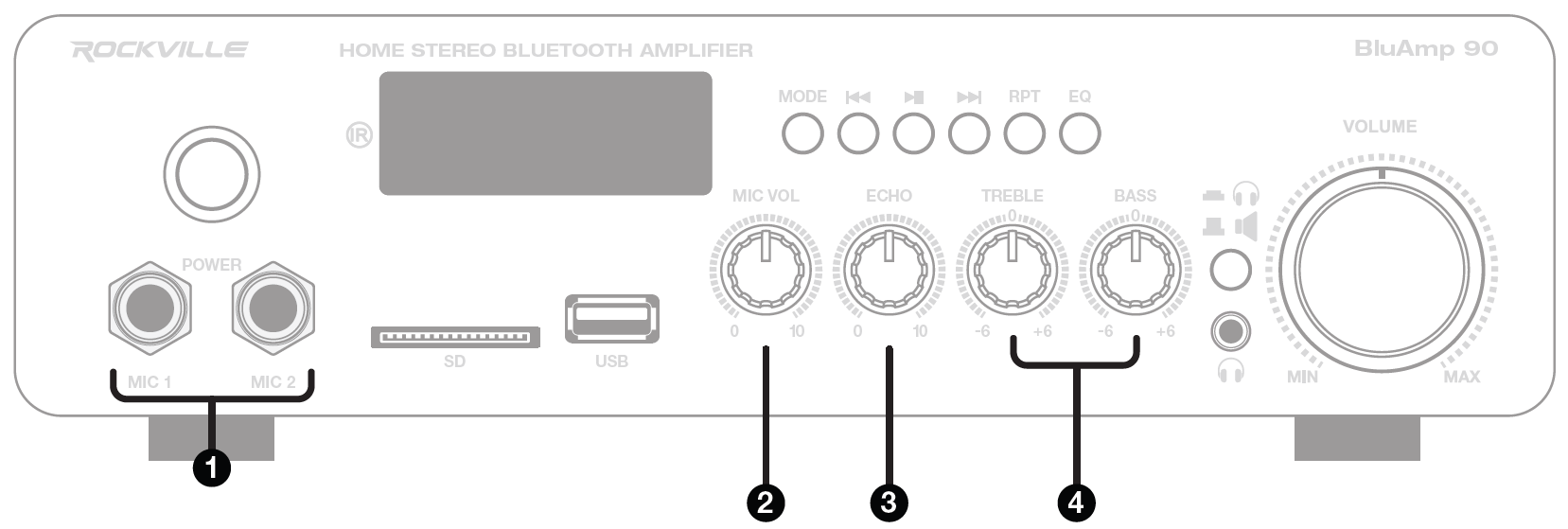

Mic Connections, Echo, Delay, And EQ

1. Connect wired mics (not included) to either one of the ¼˝ mic jacks.
2. Microphone Volume: Adjusts the volume of microphone output.
3. Echo: The echo effect adds a series of repeated, decaying echoes to a sound. Equalizing (treble and bass controls, see below) the delays will change a room’s sound characteristics from one that has reflective surfaces (brighte-rsounding echoes) to one that is totally absorptive (darker-sounding echoes).
4. Equalizer: The bass and treble controls allow the user to make adjustments to these settings, which will affect overall sound output (mics and music).

Using Your Bluetooth-Enabled Device for Karaoke

1. Choose a device to use as your karaoke viewing screen (iPad, iPhone, Android, tablet, or laptop). We recommend using the Rockville IPS20 Tablet/SmartPhone/iPhone/iPad Tripod Stand to support your device. Find it at RockvilleAudio.com.
2. Turn on your device and the BluAmp 90. Pair the two using the Bluetooth feature
3. Next go to www.youtube.com on your device and type the name of the song you would like to sing ( + the word karaoke) into the YouTube search field.
4. Adjust the volume of the BluAmp 90 and microphones as you see fit. Now you’re ready to sing!

Features/Specifications

Rockville BLUAMP 80 Home Stereo Bluetooth Receiver Amp w/Mic, Phono, HDMI Input
4 Ohms: 50 x 2 watts RMS and 200 x 2 watts peak
8 Ohms: 30 x 2 watts RMS and 120 x 2 watts peak
Built-in Bluetooth with 33 foot range and an antenna for better reception
Plays music stored on a USB storage device or memory card
Mic inputs with echo for karaoke
Class D circuit with great sound quality
Selectable RCA aux/phono input to connect a record player or any analog audio device
Bass/Treble/Mic and Master Volume controls
Built-in Pre-Amplifier with low distortion
LCD Display
Frequency Response (±3dB): 22 Hz- 20 KHz
AUX Input Impedance: 10k Ohms
AUX Input Sensitivity: 300mV
Phono input impedance: 47K
Phono input sensitivity:20mV
Output Impedance: 4-8ohm
Total Harmonic Distortion(THD): ≤0.5%
Signal-to-Noise Ratio(S/N): ≥78dBA
Bluetooth Version: 5.0
USB : Supports WAV/MP3/WMA
100-230V

Inputs/Outputs

Front: (2) ¼˝ mic inputs
Front: USB/SD inputs, built-in Bluetooth, 3.5mm heapdhone output
Rear: Optical, HDMI ARC, and Coaxial inputs, One set of RCA inputs, one set of RCA outputs
Two binding post speaker output terminals support 2-speaker or 4-speaker setups

Troubleshooting

Problem	Solution
No power	Make sure the unit is properly plugged in. Make sure that the power switch is in the ON position. Make sure that the unit is not on standby (press the power button on the remote).
Bluetooth pairing fails	Make sure both devices are turned on and that your BT device is discoverable. Make sure you’ve selected the proper source. Make sure the BT device is within 5ft of the unit. Move both devices away from other BT devices, microwaves, wireless routers, and other electronics. Make sure the unit is not paired to another device. Make sure the Bluetooth antenna is in the upright position.
No sound	Make sure the correct input source is selected. Check the master volume and mic volume controls as well as the volume settings of the input source. Check all input connections as well as all output connections.
Microphone feedback	Make sure the speakers are not pointed toward or are too close to the speakers. Adjust the treble settings on the Mic EQ panel.
No sound from microphones	Make sure the microphones are turned on. Check all mic connections. Check individual microphone volume settings Make sure the microphones are in proper working order.
No USB/SD playback	Make sure you’ve selected the proper mode, USB/SD. Make sure that the audio files are in the proper format. If you’ve opted to format your USB drive/SD card, make sure you have chosen FAT32. Make sure that the SD card or USB drive is properly plugged in. Check the SD card or USB drive for damage.
