ROCK ANYWHERE Owner's Manual

20 Watt Portable/Outdoor Bluetooth Speaker w/Aux In

Includes

• Bluetooth speaker
• USB-A to USB-C charging cable
• 3.5mm to 3.5mm aux cable
• Bicycle handlebar mount
• Manual
• Warranty card

Functions

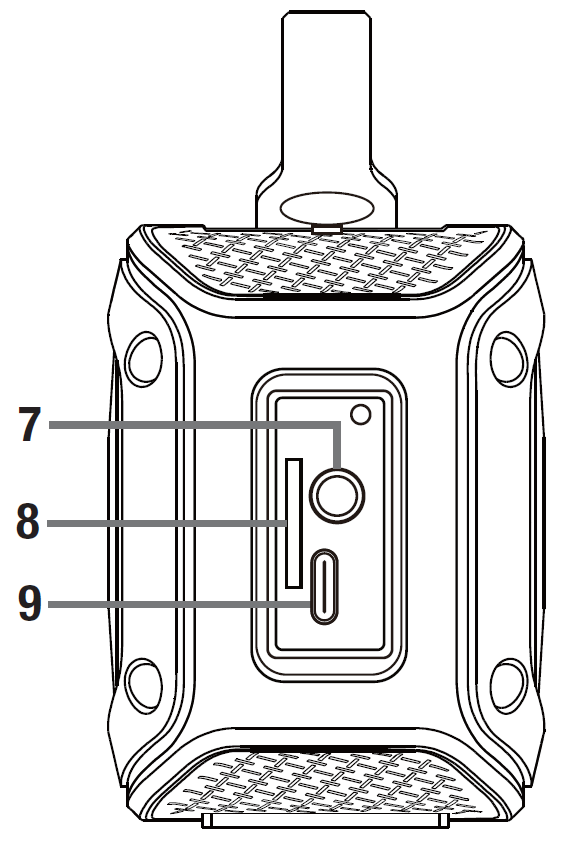

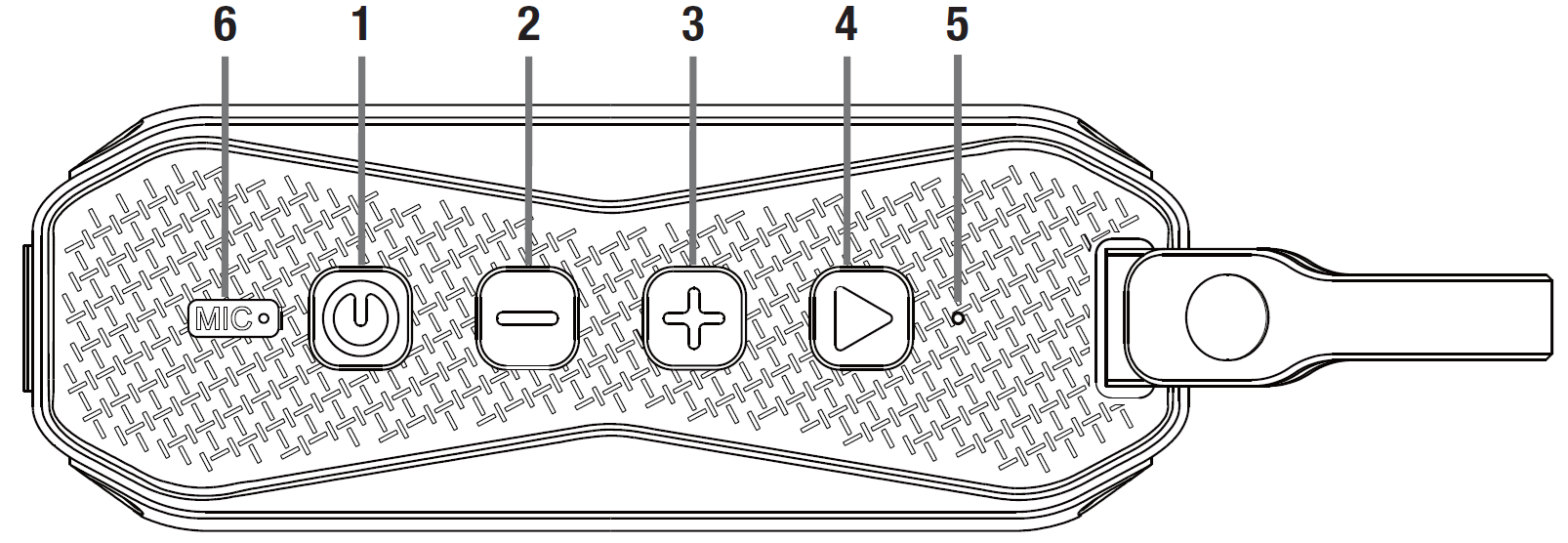

Power On/Off; Mode button Volume -/Previous Volume +/Next Pause/Play, Answer/End call Status indicator LED Mic 3.5mm AUX in SD card slot USB-C charging port

Operation

Power ON: Long press the Power button. The unit will automatically enter into Bluetooth pairing mode.

Bluetooth

Pairing: Power ON the unit or press the Pause/Play button to switch to Bluetooth mode. The blue mode indicator LED will flash quickly. Now look for and select ROCK ANYWHERE on your Bluetooth device’s list of available devices (please input “1234” or “0000” if you are prompted for a PIN). If pairing has been successful, the blue mode indicator LED will blink slowly. To unpair current device and return to paring mode, press and hold the Play/Pause.

Music Playback: Press the Play/Pause button to begin or pause music playback.

Volume Control: Press the + button to increase the volume or press the - button to decrease the volume.

Skip Songs: Long press the + button for the next song. Long press the - button for the previous song.

Answering/Ending Calls: Press the Play/Pause button to answer incoming calls. Press the Play/Pause button to end the conversation. To reject an incoming call long press the Play/Pause button.

True Wireless Stereo (TWS)

If you have a pair of ROCK ANYWHERE speakers, you can set them up as a 2.0 stereo speaker system.

1. Long press the Power button on the first speaker unit. Then short press the Play button to enter Stereo Paring mode. At this time the blue mode indicator LED will blink slowly. If the speaker is already paired with a Bluetooth device, long press the Play/Pause button to disconnect the speaker from the current device and return it to pairing mode.
2. Long press the Power button on the second speaker unit. The speaker will automatically search for the first speaker and then connect with it. Once it has successfully connected, the blue mode indicator LED on the second speaker will blink steadily.
3. Now look for and select ROCK ANYWHERE on your Bluetooth device’s list of available devices. If pairing has been successful, the blue mode indicator LED of the first speaker unit will blink slowly.
4. Short press the Play/Pause button to exit TWS mode.

SD

Insert SD card into the corresponding port at the side of the unit. The Unit will automatically begin playing music (MP3 format) and the red mode indicator LED will blink slowly. Press Play/Pause button to pause music.

Volume Control: Press the + button to increase the volume or press the - button to decrease the volume.

Skip Songs: Long press the + button for the next song. Long press the - button for the previous song.

Auxilliary

Use the included 3.5mm to 3.5mm cable to connect your external audio device. The unit will automatically switch to line-in mode.

Music Playback/Skip Songs: Play/pause and skip track functions are unavailable in this mode. Use your device to control these functions.

Volume Control: Press the + button to increase the volume or press the - button to decrease the volume.

Charging

Connect the USB-C end of the included cable to the USB-C port at the rear of the unit. Connect the USB-A end to an AC adapter (not included) or any USB charging enabled device. The charging mode indicator LED will remain solid green while charging and will turn off once the unit is fully charged. Normal full charge time is 3 – 4 hours. If the speaker is powered on and sits inactive for more than 5 minutes, it will automatically shut off.

Features

• Rockville ROCK ANYWHERE Rugged Waterproof Portable Bluetooth Speaker with 20 Watts Power
• IPX7 waterproof and submergible in water for up to 30 minutes
• 20 watts peak power
• 10 watts continuous RMS
• Battery charges with included USB-A to USB-C cable
• 2000 mAh battery supports 30 hours of playback at 50% volume!
• TWS-True Wireless Stereo technology enables the first speaker to wirelessly pair to a second speaker to give you stereo sound.
• Fast Charge time: 2-3 Hours
• TF slot allows you to play music on a memory card
• Loud and clear deep bass response
• Extremely loud, powerful, and rugged
• Material: 100% ROHS Plastic +TPU which is a unique blend of soft plastic that is impact resistant
• Perfect for shower, bedroom, kitchen, bicycle, camping, hiking, pool, beach, on-the-go, and many other applications
• Includes bicycle handlebar mount
• Bluetooth version 4.1 with EDR (Enhanced Data Rate)
• 40 foot max Bluetooth range
• Playback Controls - Play, Pause, Skip Forward, Skip Back, Volume Up, Volume Down
• Will control next song, pause, play on popular apps like Pandora, Spotify, and others
• The built-in mic allows you to make and receive phone calls hands-free
• Rugged and Shockproof with Rubberized impact-resistant silicone feet
• Compatible with any Bluetooth devices such as iPad, iPhone, Laptops, Android phone, other cell phones, iPods, other Bluetooth MP3 Players
• Distortion: Less than 1%
• Frequency Response: 80Hz – 18kHz
• Dimensions of Unit (inches): 5.3˝ x 2˝ x 2.7˝
• Unit weight: 0.62 lbs
