ROCKSHIP Owner's Manual – Rockville Audio

50 Watt Bluetooth Speaker w/TWS, USB, SD, Aux In, & FM Radio

All new RockShip, a rechargeable Bluetooth speaker with huge power and a unique space saving design. Every Bluetooth speaker we manufacture has a purpose and application in mind. This one is made to be the perfect speaker for your bedroom, office desk, or kitchen. It is also perfect to take with you outside or to the beach since it is rechargeable.

Includes

Bluetooth speaker
Micro USB charging cable
3.5mm to 3.5mm auxillary cable
Manual
Warranty card

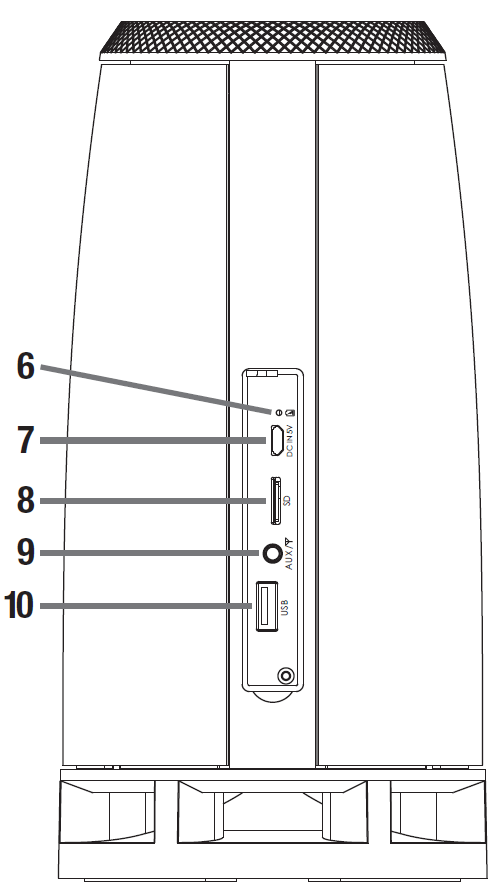

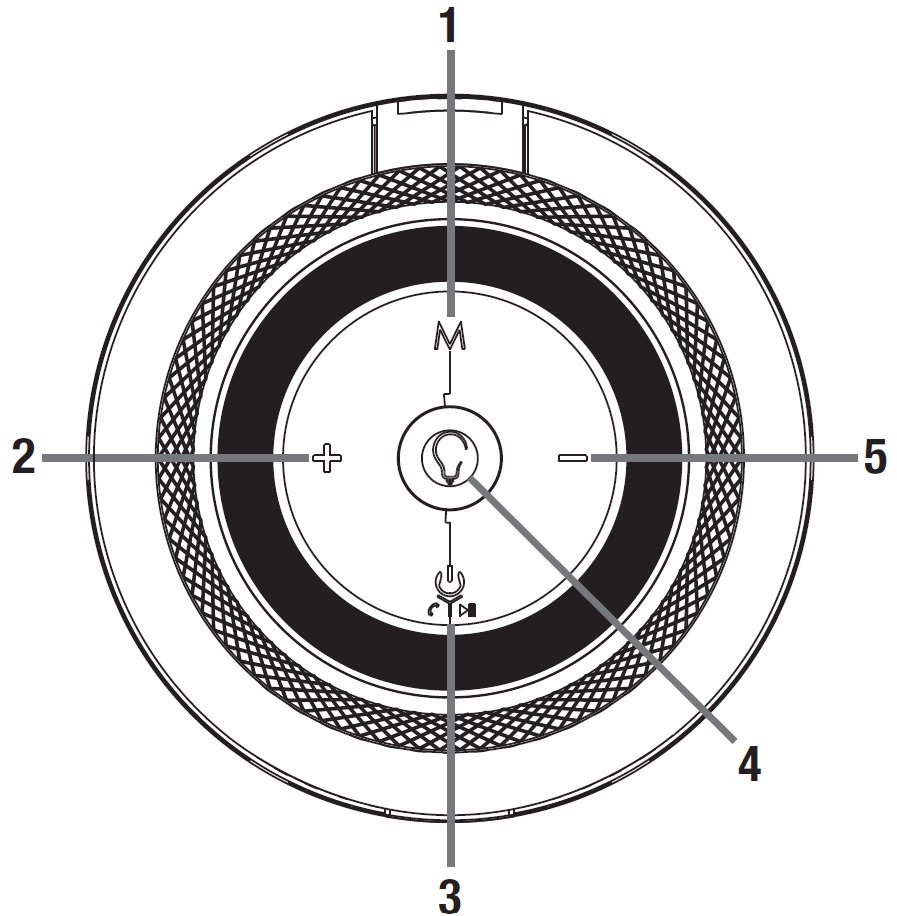

Functions

Operation

Power ON: Long press the Power button. The unit will automatically go into Bluetooth pairing mode.

Bluetooth

Pairing: Power ON the unit or press the M button to switch to Bluetooth mode. Look for and select RockShip on your Bluetooth device’s list of available connections. You will hear a tone if pairing has been successful. If there is no Bluetooth input, the unit will automatically power OFF after 10 minutes.

Volume Control: Press the + or - button to increase or decrease the volume.

Skip Songs: Long press the + or - button for the next or previous track.

Answering/Ending Calls: Double press the Play/Pause button to answer incoming calls. Press the press Play/Pause button once to end the conversation.

Disconnect Bluetooth: Long press the M button to unpair from Bluetooth device.

TWS Pairing:

Power ON both units and ensure they are in Bluetooth mode (see above). Long press the LED button on one of the units to initiate TWS pairing. This will be the primary unit. Once pairing is complete, you will hear a voice prompt, “LEFT CHANNEL, RIGHT CHANNEL.” Now look for and select RockShip on your Bluetooth device’s list of available connections. The primary unit will control all playback functions. Refer to the Bluetooth section above for details. To exit TWS mode, long press the primary unit’s LED button.

FM Radio

Radio mode: Press the M button to switch to Radio mode.

Antenna: Plug the included 3.5mm to 3.5mm cable into the AUX port. This will act as an antenna.

Station Autoscan: Press the Play/Pause button to start autoscan. Stations will be automatically saved.

Volume Control: Press the + button to increase the volume or press the - button to decrease the volume.

Stations: Long press the + button for the next station. Long press the - button for the previous station.

USB/SD

Insert USB flash drive or SD card (up to 32GB) into the corresponding port at the rear of the unit. Unit will automatically begin playing music. Press Play/Pause button to pause music.

Volume Control: Press the + or - button to increase or decrease the volume.

Skip Songs: Long press the + or - button for the next or previous track.

Please do not remove USB drive or SD card while in use. Doing so may damage them.

Auxiliary

Press M button to switch to AUX mode. Use the included 3.5mm to 3.5mm cable to connect your external audio device.

LED Lights

Press LED lighting button to turn on the LED lights. To switch between the different lighting modes, press the LED lighting button again. There are 7 colors and 2 modes: Steady LED light or LED flashes to the beat of the music.

Charging

When the battery charge is low, you will hear a tone indicating that the unit must be charged as soon as possible. Connect the included micro USB cable to the micro USB port at the rear of the unit. Connect the other to an AC adapter (not included). Charging voltage is 5V/2A. The indicator LED will remain on while charging and will turn off once the unit is fully charged.

Reset

The unit can be reset to its original factory via a button inside the 3.5mm jack. Insert a pin and long press to reset.

Features

Rockville RockShip 50 Watt Bluetooth Speaker w/USB+SD+Aux In+FM
50 watts peak power
17 watts continuous RMS
True 2 channel stereo sound delivers top-notch sound quality
Battery charges with included USB cable
2x 1800 mAH batteries! (Total 3,600 mAH) Supports 10 hours of playback at 70% volume and 24 hours at 25% volume
Quick Charge time: 2.5 Hours
Extremely loud and powerful with industry-leading bass!
True Wireless Stereo (TWS) allows you to pair two speakers for stereo sound
Bluetooth version 5.0 with EDR (enhanced data rate)
Bluetooth quick-connect technology pairs with your phone in 5 seconds
A2DP audio streaming with 32 foot max Bluetooth range
Automatically remembers and syncs with previously synced devices
Playback Controls - Play, Pause, Skip Forward, Skip Back, Volume Up, Volume Down
Control next song, pause, play on popular apps like Pandora, Spotify, Youtube, and others
Cool LED light strip on bottom of speaker with controls for on/off, color, and mode
Built-in mic allows you to make and receive phone calls hands-free
Compatible with any Bluetooth capable devices
Input power Input: DC5V/1.5A
Plays back SD cards up to 32GB
Plays USB thumb drives up to 32GB
3.5MM aux input (aux cable included)
Built in FM radio with auto scan (must plug in aux cable to be used as an antenna to get good radio reception)
Dual 2.25˝ inch high quality speaker drivers with, rubber surrounds, and high excursion
No distortion can be heard even at top volume
Distortion: Less than 1%• Auto turn off after 15 minutes of no music to conserve battery life
Frequency Response: 50Hz – 20KHz
Signal to noise ratio: 75dB
Unit weight: 2.6 pounds
Dimensions of Unit (L x W x H): 2.76˝ x 2.68˝ x 7.76˝

Troubleshooting

No Power	Make sure the battery is fully charged. If not, plug the unit to a 5V/2A power source and charge for 2.5 hours for a full charge.
Bluetooth/TWS pairing fails	Make sure both devices are turned on and that your BT device is discoverable. Make sure you’ve selected the proper source. Make sure the BT device is within 5ft of the unit. Move both devices away from other BT devices, microwaves, wireless routers, and other electronics. Make sure the unit is not paired to another device. Repeat the pairing procedures. Refer to the Bluetooth and TWS sections.
No SD or USB playback	Make sure you’re in the proper mode. Check that the SD card or USB flash drive is not damaged. Make sure that the SD card’s or USB flash drive’s capacity is no more that 32GB.
Poor FM radio reception	Make sure the 3.5mm cable is plugged into the AUX port as it will act as an antenna. Move the unit and the antenna for improved reception.
