RLM9U: How To Set Up

Introduction:
This guide will walk you through the simple step-by-step process of assembling your Rolling Rack w/ Mounting Crossbars.

What's Included in the Box:
✅2 Upright Rails
✅2 Top Rails
✅2 Attachable Crossbars
✅2 Base Beams
✅5 Connecting Beams (w/ Bolts & Washers attached)
✅1 Stabilizing Rod
✅4 Caster Wheels (2 w/ Brakes)

Hardware Included:
✅2 Long Bolts
✅6 Short Bolts
✅4 Screws
✅10 Washers
✅2 Adjusting Knobs
✅Allen Key
✅Rack Mounting Screws and Nut Retainers

**Screwdriver or drill required for mounting audio equipment in rack.

Step-by-Step Instructions

Step 1:

• Take 2 Wheels (1 w/ Brake) and 1 Base Beam.
• Screw each Wheel onto either side of the Base Beam.
• Repeat this process with the other 2 Wheels and Base Beam.

Step 2:

• Take the Upright Rails, 4 Short Bolts, 4 Washers and the Allen Key.
• Make sure the inside of the Upright Rails lines up with the inside of the Base Beams.
• Line up the holes at the bottom of the Upright Rails with the holes on the top of the Base Beams.
• Secure the Upright Rails to the Base Beam with 2 Short Bolts and 2 Washers; tightening with the Allen Key.
• Repeat this process for the other Upright Rail and Base Beam.

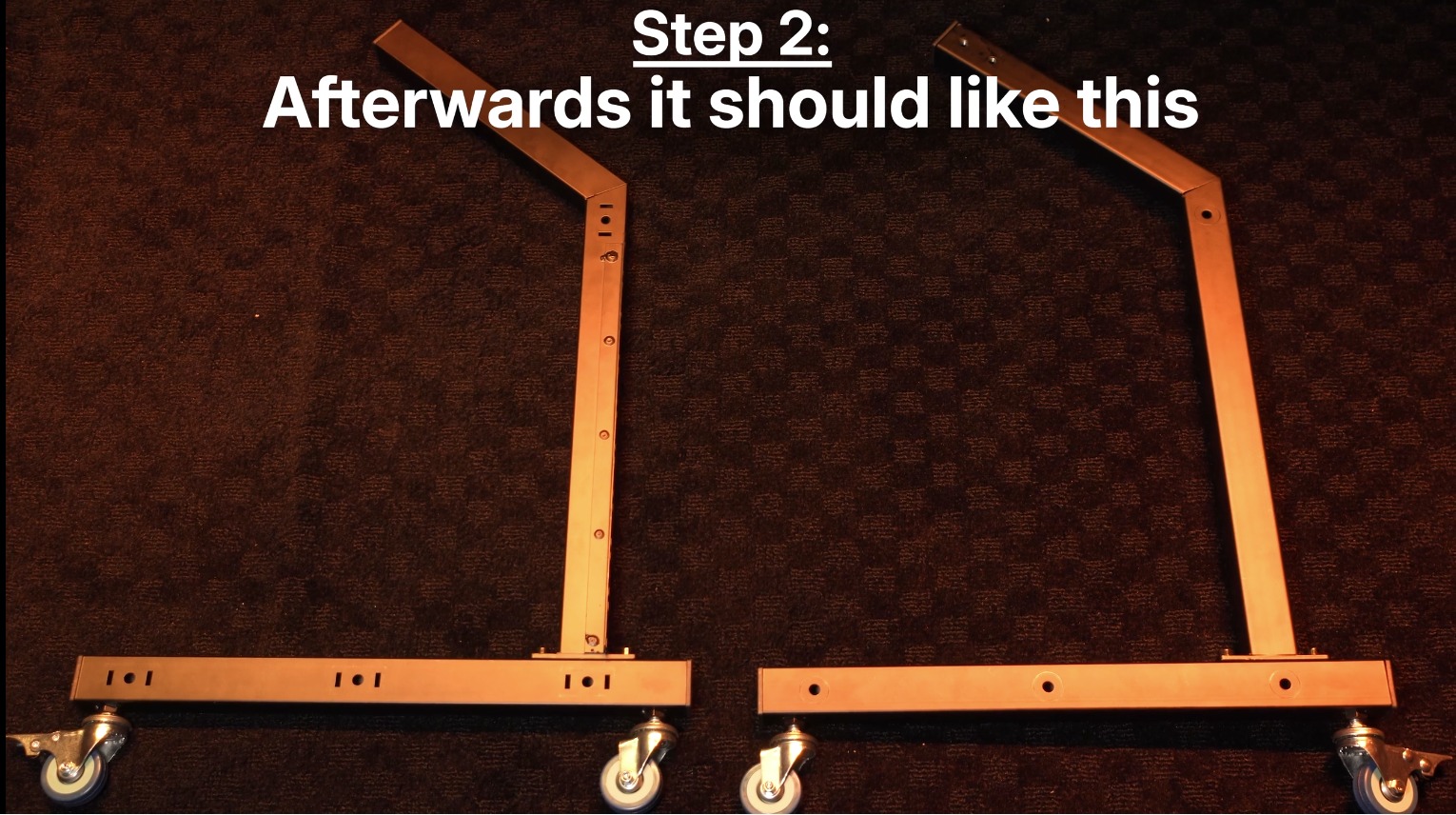

• At this point you should have two matching sets of  Upright Rails attached to Base Beams, each with 2 Wheels (1 w/ Brake) attached.

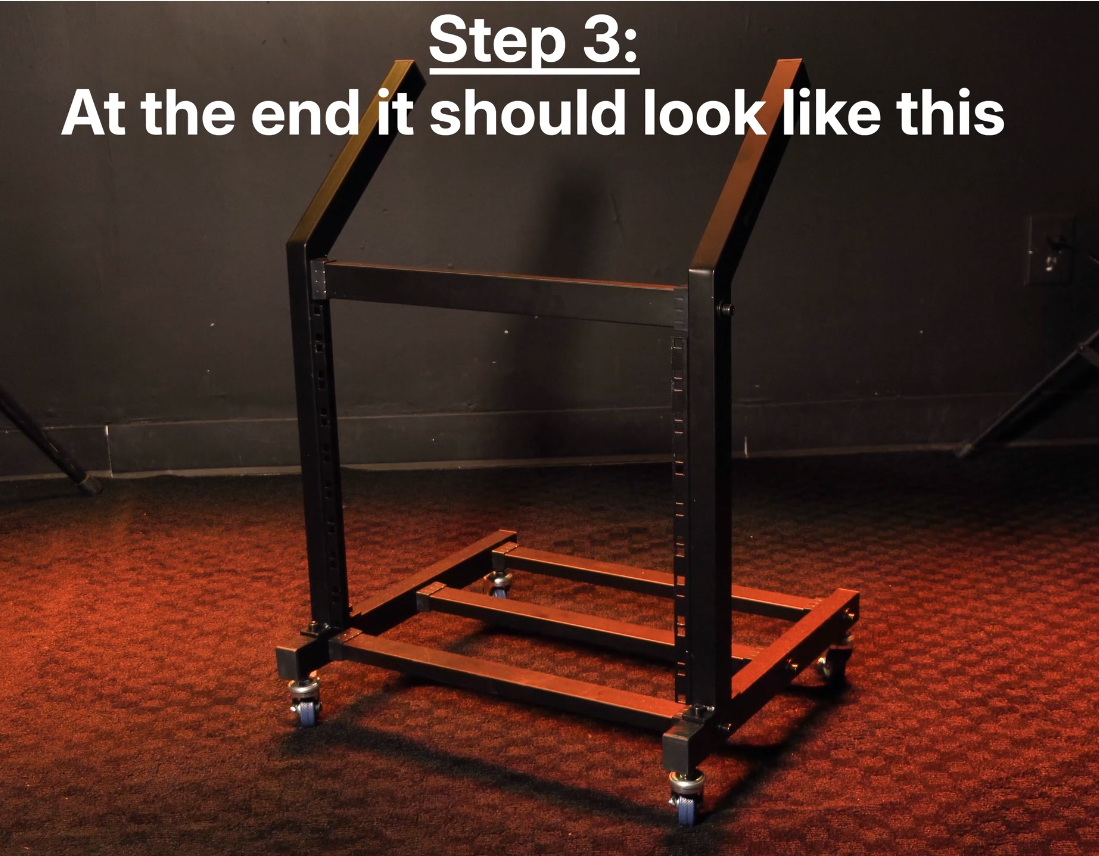

Step 3:

• Take the 4 Connecting Beams and the Allen Key.
• Loosen and remove the Bolts and Washers from each Connecting Beam.
• Run the Bolt through the Washer and Base Beam.
• Align the Base Beams with the Connecting Beams, making sure the grooves line up and connect.
• Tighten the Bolt using the Allen Key to secure the Connecting Beam to the Base Beam.
• Do the same thing on the opposite side.
• Attach 2 more Connecting Beams between the Base Beams the same way.
• Attach 1 more Connecting Beam using the holes near the top of the Upright Rails.

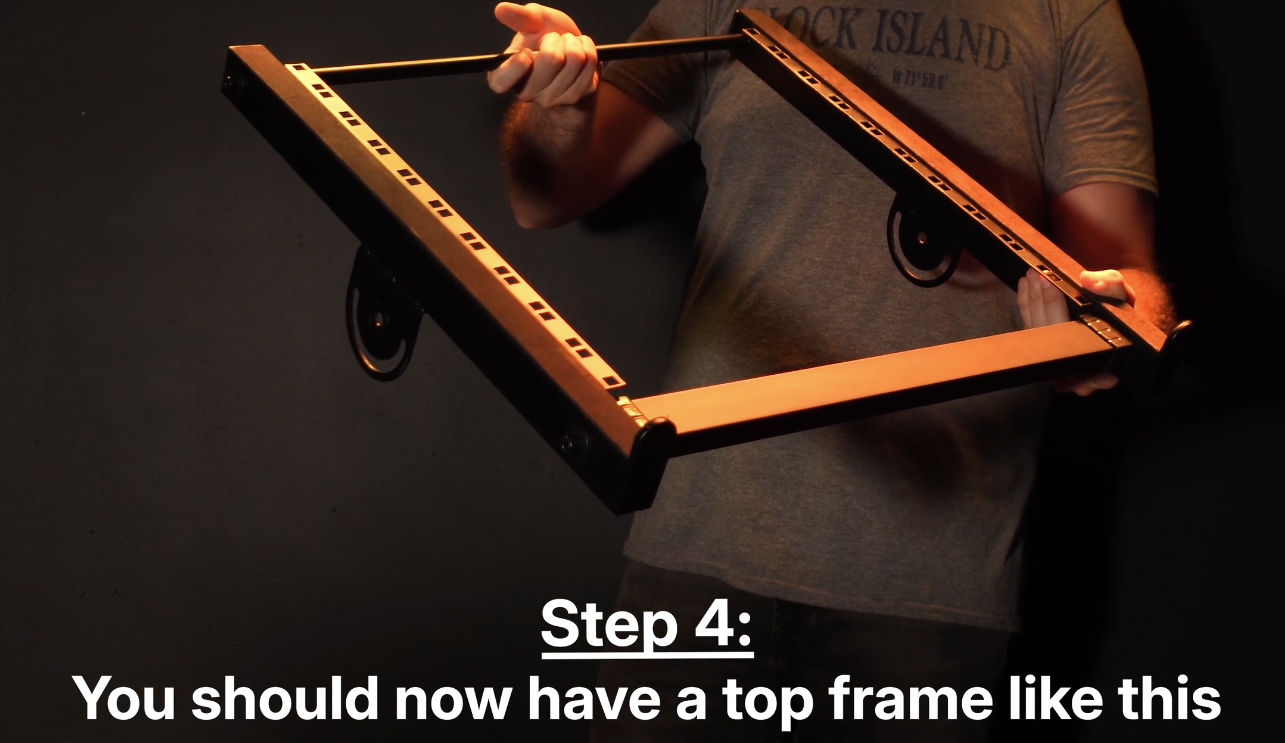

Step 4:

• Take the 2 Top Rails and the remaining Connecting Beam.
• Loosen and remove the Bolts and Washers from the Connecting Beam.
• Align the Connecting Beam with both of the Top Rails, making sure the grooves of the Connecting Beam and Top Rail line up.
• Run the Bolts through the Washers and each of the Top Rails.
• Tighten the Bolt using the Allen Key to secure the Connecting Beam to the Top Rails.
• Flip the top around to reveal the holes on the other ends of the Top Rails.
• Grab the Long Bolts and Washers, and run them though the holes one the end of the Top Rails.
• Grab the Stabilizing Rod, line it up to the Long Bolt and tighten to secure.
• Do the same on the other side of the Stabilizing Rod.

Step 5:

• Align the Top Frame with the Upright Rails.
• You should be able to see 2 holes.
• Grab 2 Small Bolts and Washers.
• Feed the Small Bolts through the Center Hole to secure the Top Platform to the Top Rails.
• Tighten with the Allen Key.
• Take 2 Screw Knobs and screw them into each Side Hole.
• From here the knobs can be used to adjust the angle of the Top Platform.

Step 6:

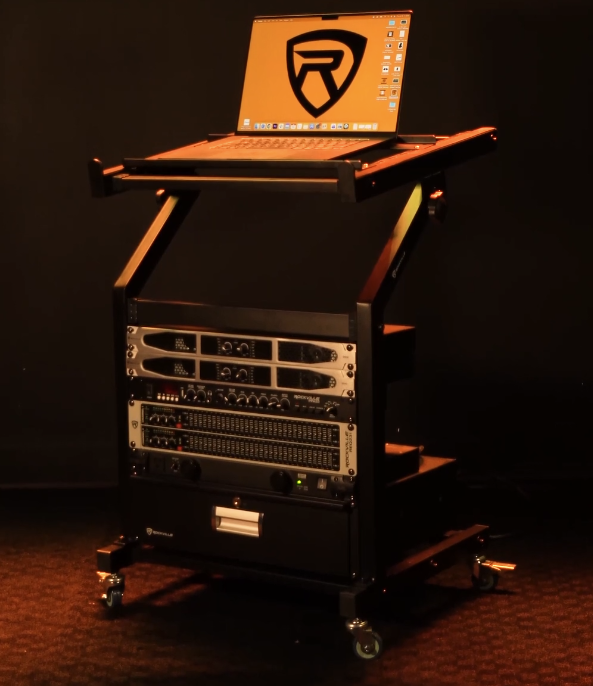

• Now you can add gear to the rack.
• Grab 2 Rack Cage Nuts (a.k.a. Nut Retainers) from Rack-Mounting Hardware.
• Slide in Rack Cage Nuts along the rails where screws will be inserted for each piece of gear.
• Line up your gear along the spaces and secure with included Rack Screws using a Screwdriver or Drill.
• Follow the same steps to attach Crossbars to the Top Platform.
• Skip the previous step for placing larger gear on top.

Step 7:

• Press down on the Brakes of the wheels to keep the rack in place.
• Lift the Brakes to move the rack.
