UT65B Owner's Manual – Rockville Audio

6.5˝ IPX6 UTV/ATV Roll Bar/Wakeboard Tower Marine Swivel Mount Speakers

Includes

Two tower speakers
Mounting brackets and mounting hardware to fit 1.5˝, 1.75˝, 1.875˝, or 2˝
Installation hardware
Owner’s manual
Warranty card

Mounting Parts List

Installation safety considerations

Please remember that these are heavy products that will be installed on an ATV, UTV, or a boat. These vehicles can travel at high speeds and be unstable, so please keep this in mind and use extreme caution.

When installed on a boat, do not mount the speaker in a location where someone could either walk into it or strike their head. During a turbulent ride, please make sure that you do not lose footing and fall or hit the unit as it may cause injury.
For boat installations, secure the wires to the speaker in multiple locations along the route to the audio source so there are no hanging wires. Having nonsecure wires, especially in low light conditions, can cause entanglement and injury.
Make sure to use the included rubber inserts when securing the speaker to the wake tower. Do not overtighten the clamp. After installation is complete, and before operating your vehicle or vessel, please check all bolts to ensure they are completely tightened.
Do not install these speakers where they may block the view of the operator or prevent safe operation of your vehicle or vessel.

Installation

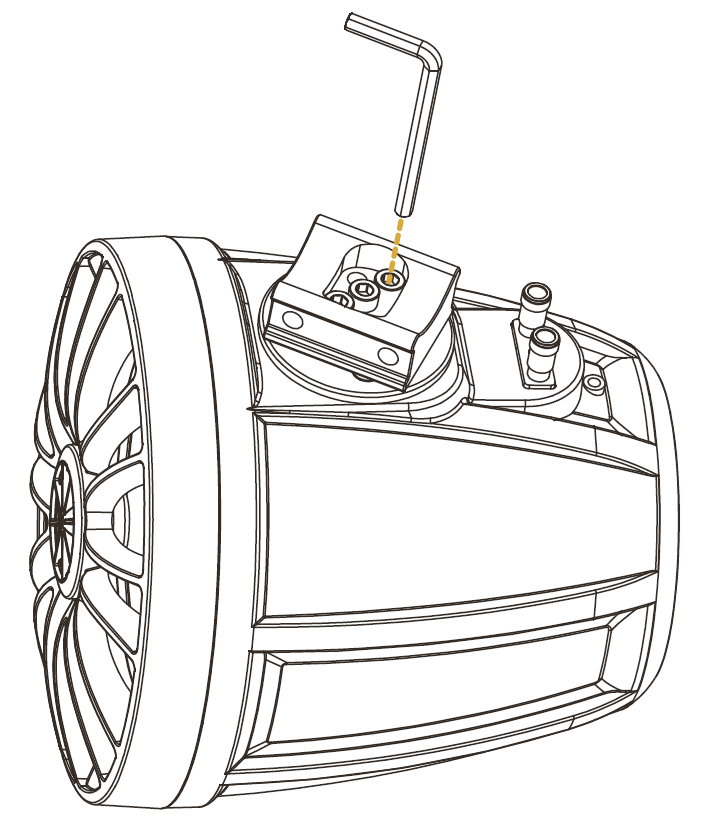

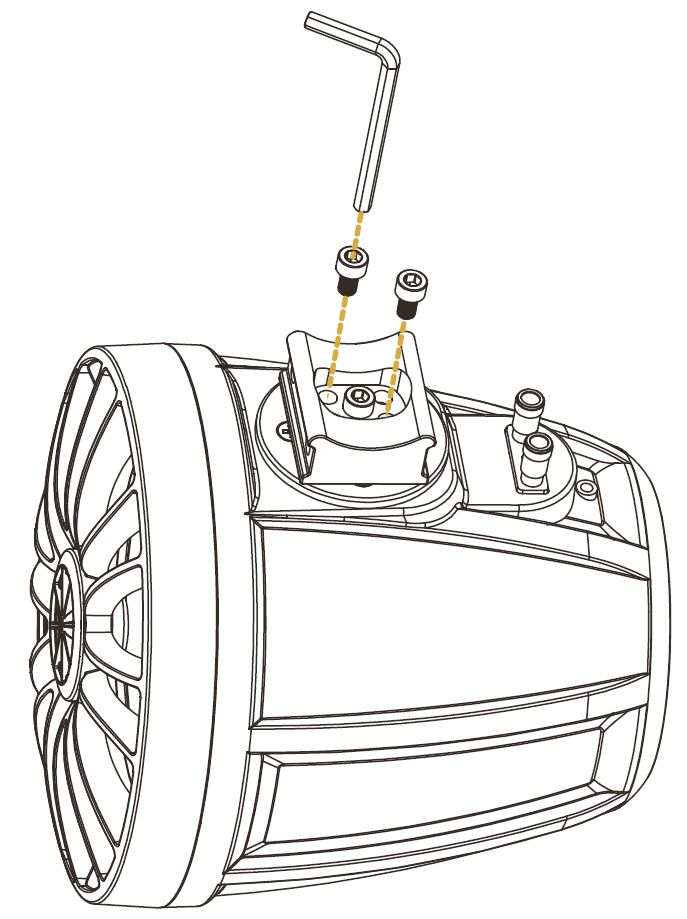

Step 1

The two screws can be unbolted to loosen the metal base of the mounting ring to adjust the mounting angle. Make sure to put all components of the mounting hardware in a safe location.

Step 2

After loosening the two screws and determining the optimal angle for your speakers on the mounting bar, tighten the two screws in place to secure the metal base of the mounting ring tightly.

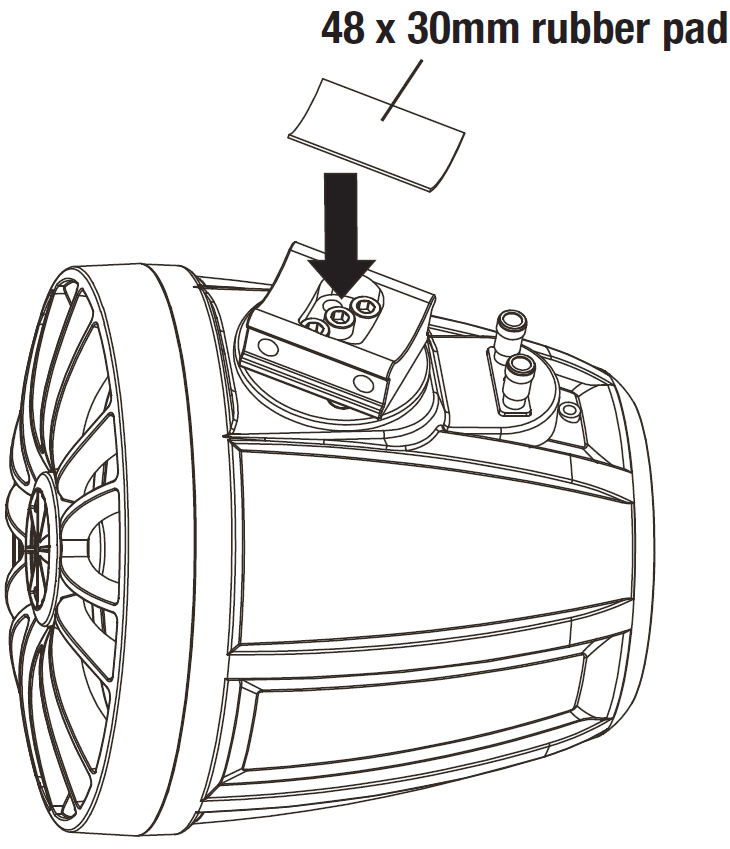

Step 3

Place the front rubber pad on the metal base of the mounting ring.

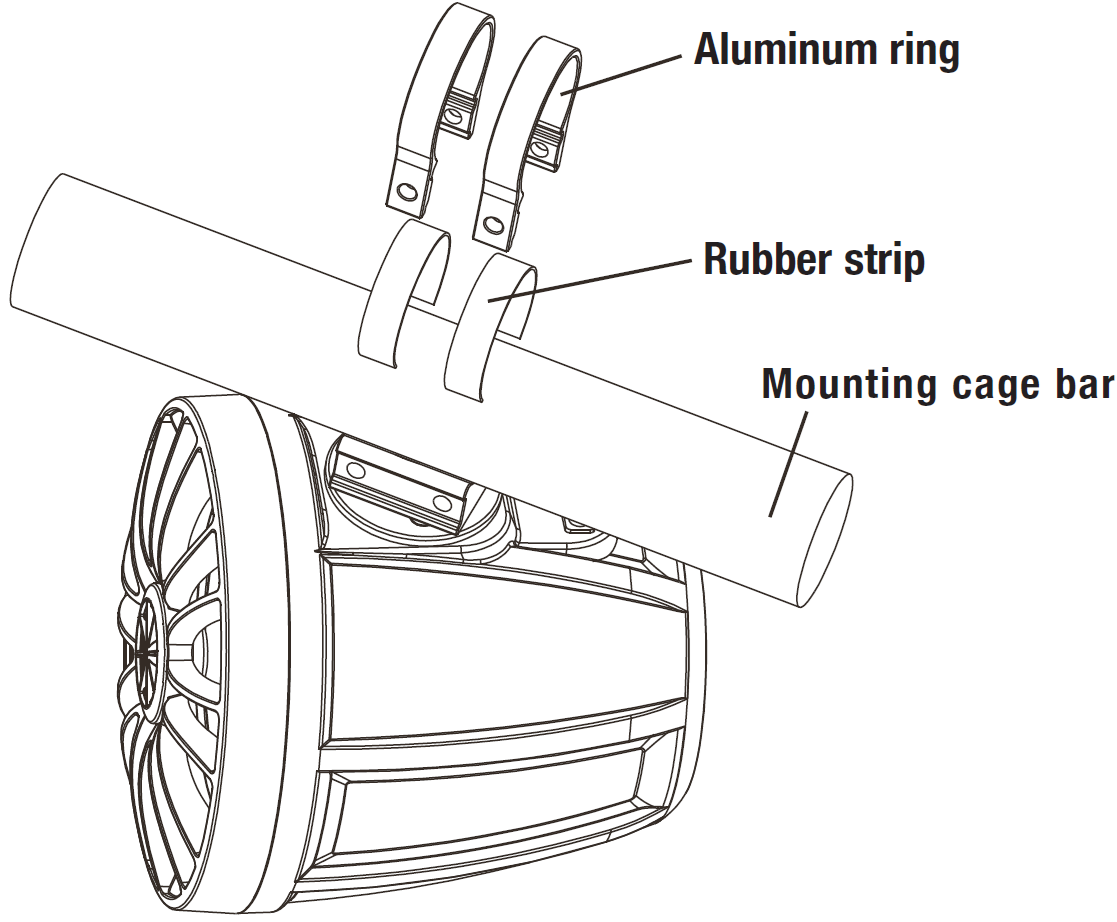

Step 4

Place the supplied rubber strip around the cage bar to prevent scratching. Push the aluminum ring over the cage bar. Align the aluminum ring over the cage bar. Align the aluminum rings with the metal base of the mounting rings on the wake tower speaker.

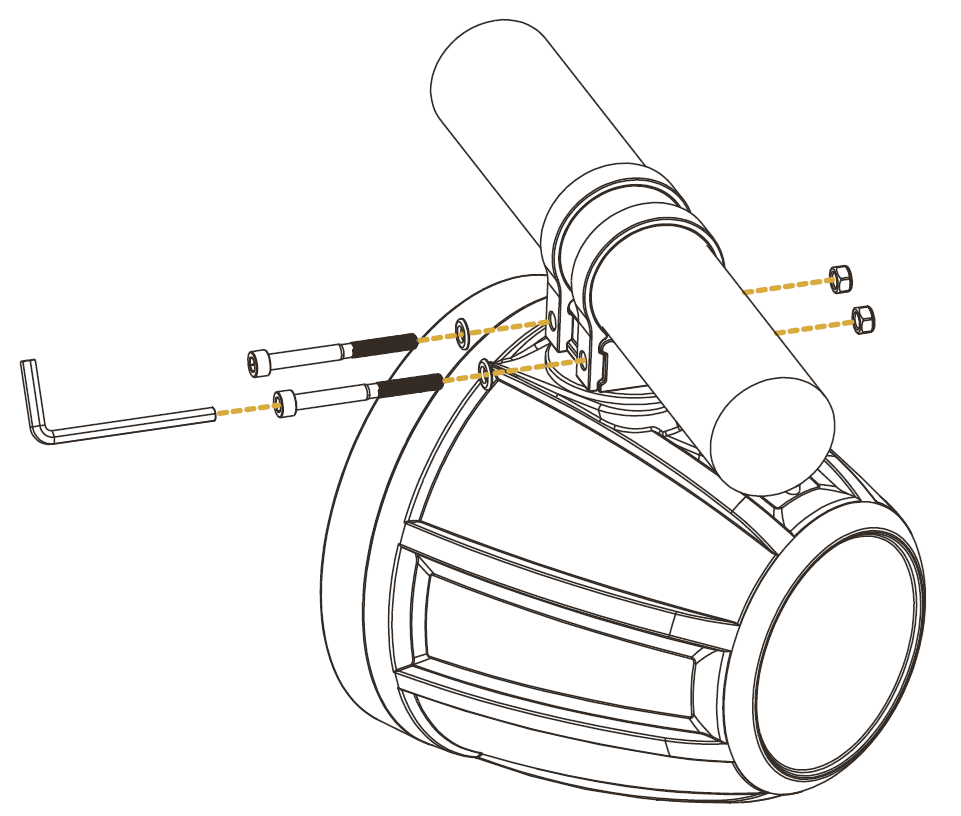

Step 5

Secure the aluminum rings to the metal base using a pair of M6 x 60mm screws, M6 flat washers, and M6 locknuts as illustrated. The locknut should be installed into the hexshaped recess on one end of each ring. Do not overtighten. To change the position of the speaker loosen the screws, adjust the speaker, then retighten the screws.

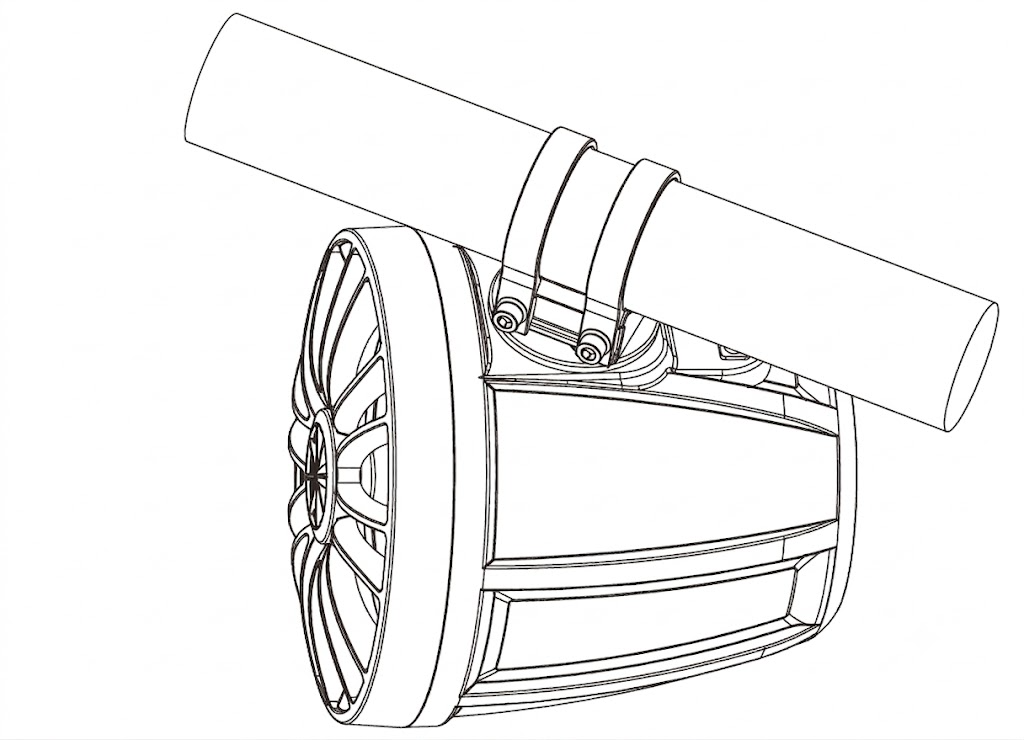

Step 6

UT65B wake tower speaker installation completed.

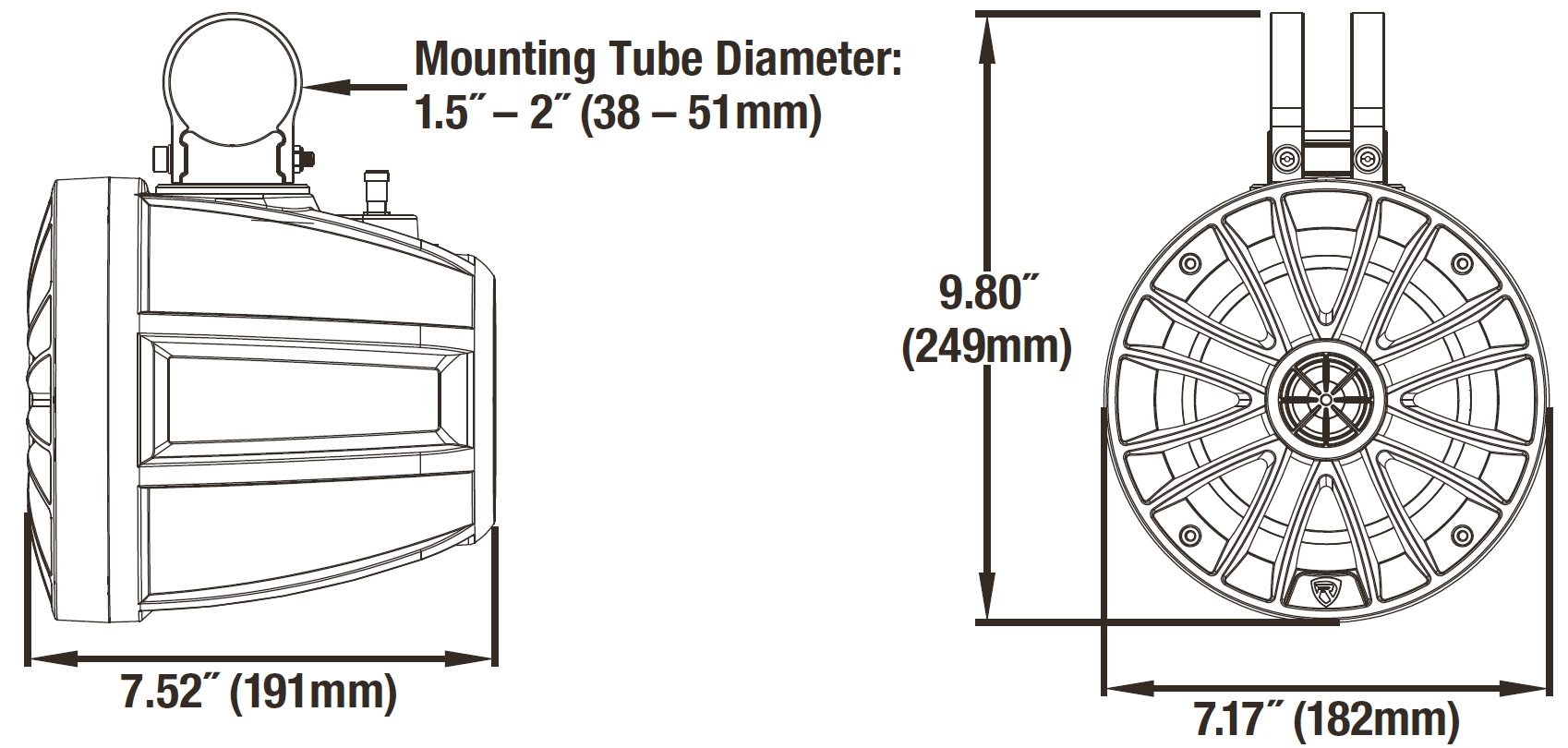

Speaker Dimensions

Mounting Tube Diameter: 1.5˝ - 2˝ (38 - 51mm)

Features:

Rockville UT65B 6.5˝ IPX6 UTV/ATV Roll Bar/wakeboard Tower Marine Swivel Mount Speakers
Peak Power Handling: 400 Watts
RMS Power Handling: 100 Watts
Heavy-duty ABS enclosure
IPX6 Water resistance rated
Marine-grade components are protected from the elements
Adjustable aluminum mounting bracket is strong and sturdy
Bracket swivels 360 degrees for quick and easy speaker angle adjustment
Bracket supports any rollbar from 1.5˝ to 2˝ thick
6.5˝ woofers with 11oz magnets and oversized 1.25˝ Kapton voice coils
1˝ PEI dome tweeters with neo magnets
Shallow enclosure design is perfect for UTV, ATV, and marine applications
Fully marinized against salt and freshwater conditions
Completely resistant to water, rust, and UV rays
Terminals are sealed with rubber gaskets
Polypropylene-mica-injected cone with butyl rubber surround
Frequency Response: 60Hz – 20kHz
SPL: 87dB @ 1w/1m
Impedance: 4 Ohms
Shockproof design
ABS weather-resistant grills and hardware
Color: Black
Dimensions (H x W x D): 9.8˝ x 7.17˝ x 7.52˝

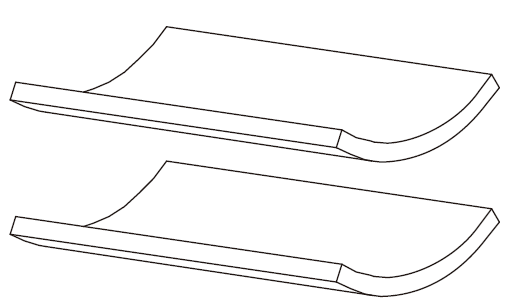

1	Non slip rubber pad (48 x 30mm)	2 Pcs

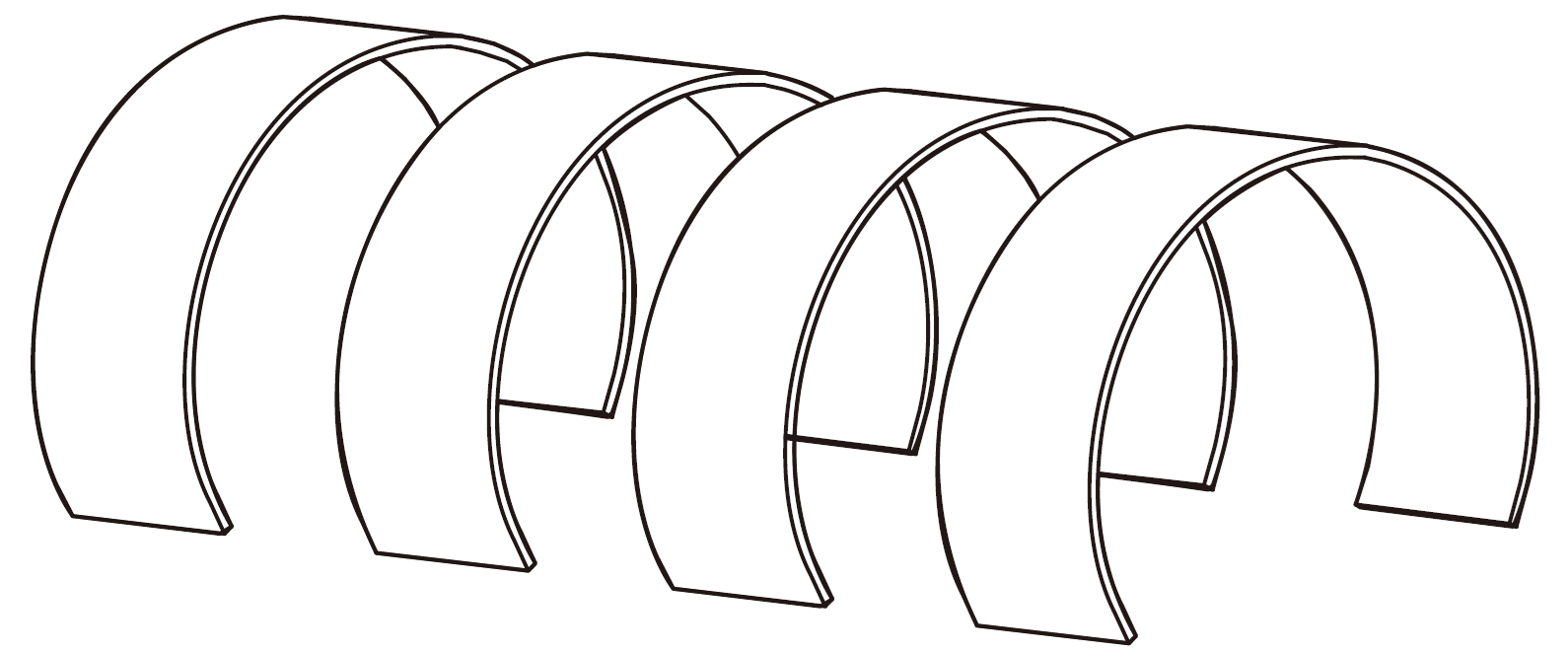

2	Non slip rubber strip (120 x 14 x 1mm)	4 Pcs
2	Non slip rubber strip (130 x 14 x 2mm)	4 Pcs

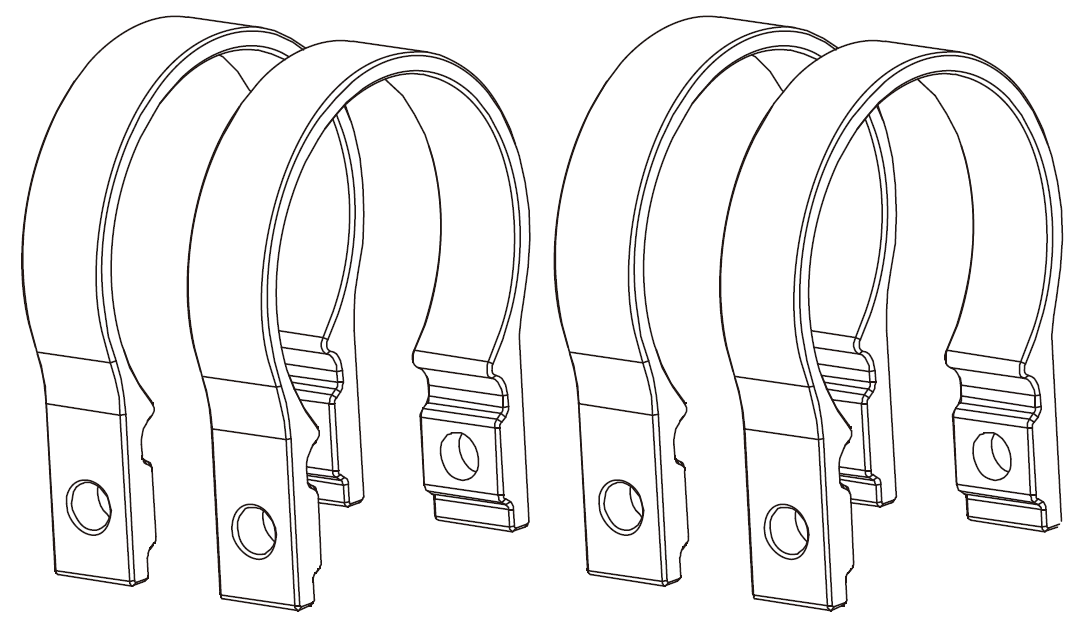

3	Aluminum ring 1.75˝	4 Pcs

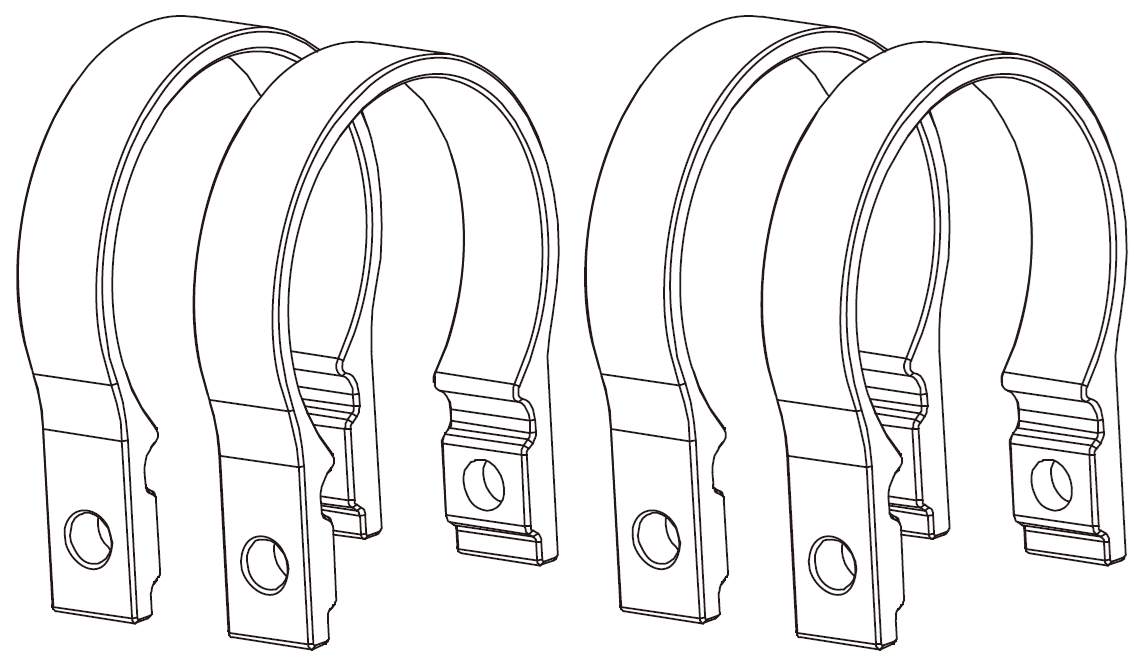

4	Aluminum ring 2˝	4 Pcs
5	Non-slip flat washer for M6 screw	4 Pcs

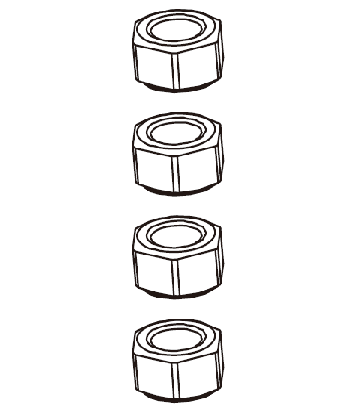

6	Non-slip nut for M6 screw	4 Pcs

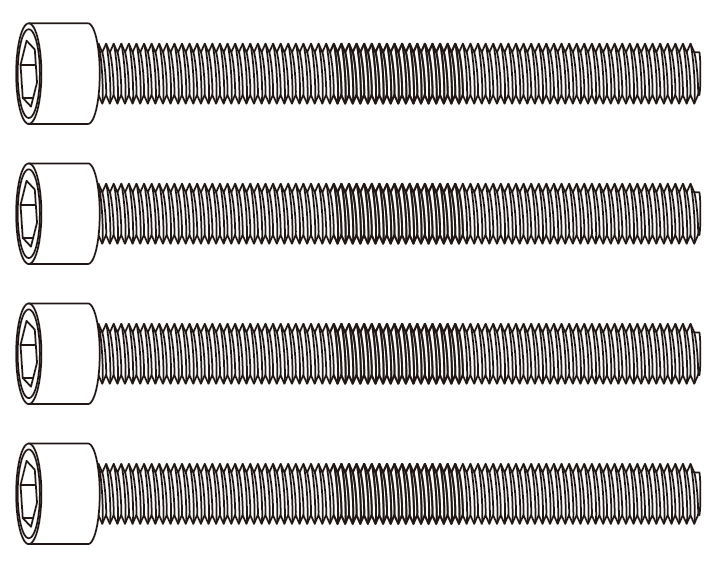

7	M6 x 60mm screw	4 Pcs
