RVSM1 Owner's Manual

Adjustable Near-Field Studio Monitor Stands

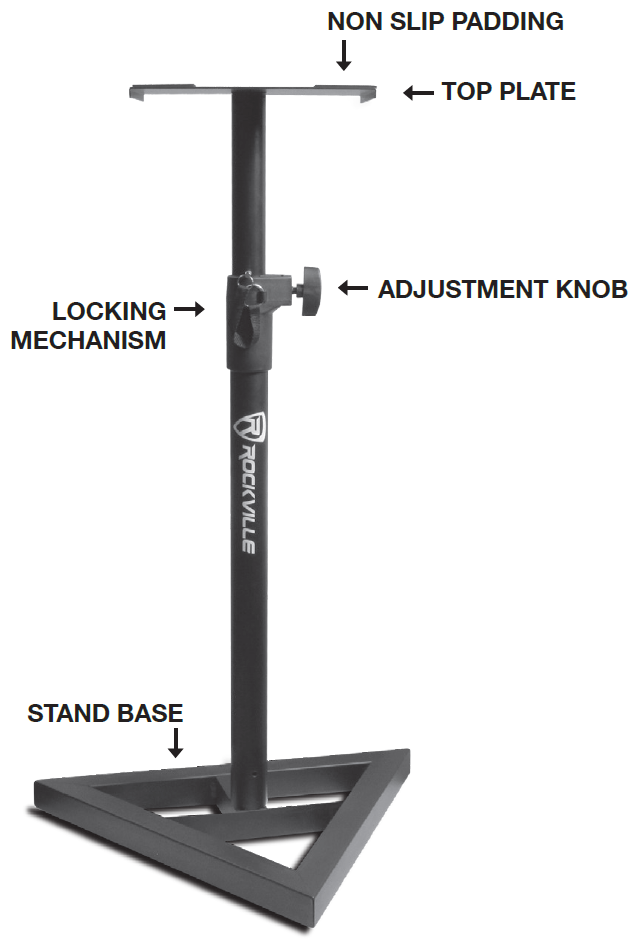

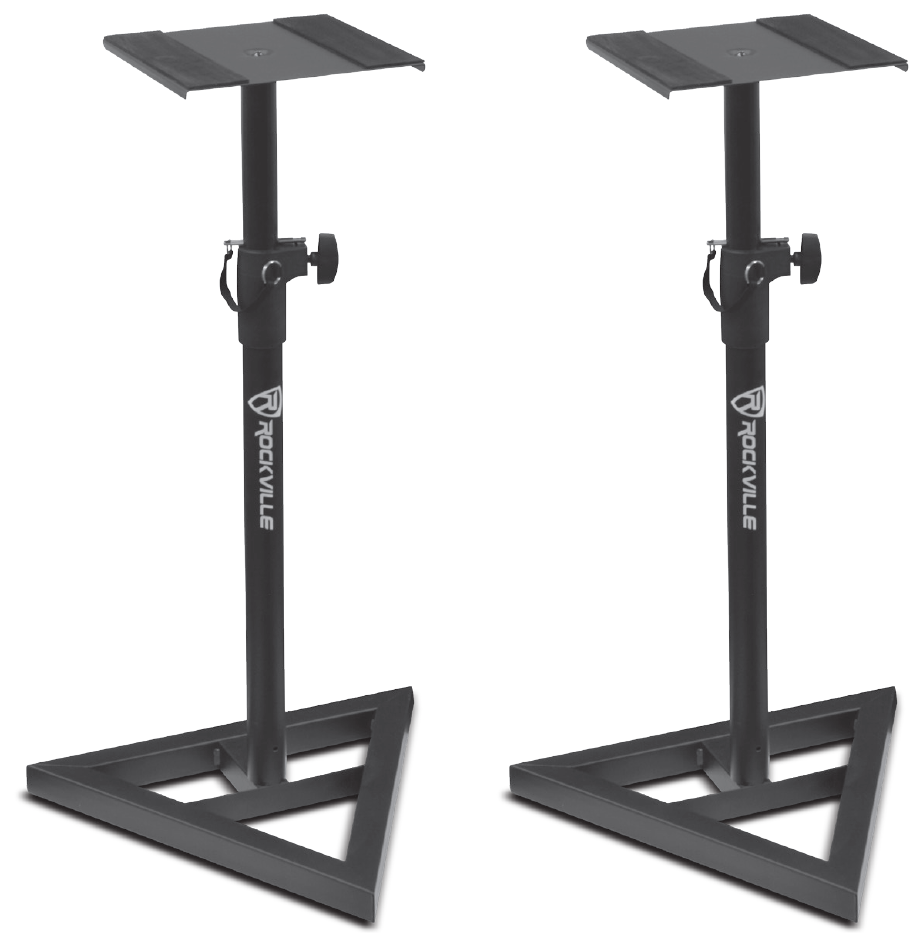

This heavy duty monitor stand is designed with home and project recording studios in mind. The height is adjustable for listening while sitting or standing, and locks in place with a security pin. Three rubber pads on the bottom of the base keep this stand stable on any surface. The entire stand breaks down into four pieces for easy storage and travel.

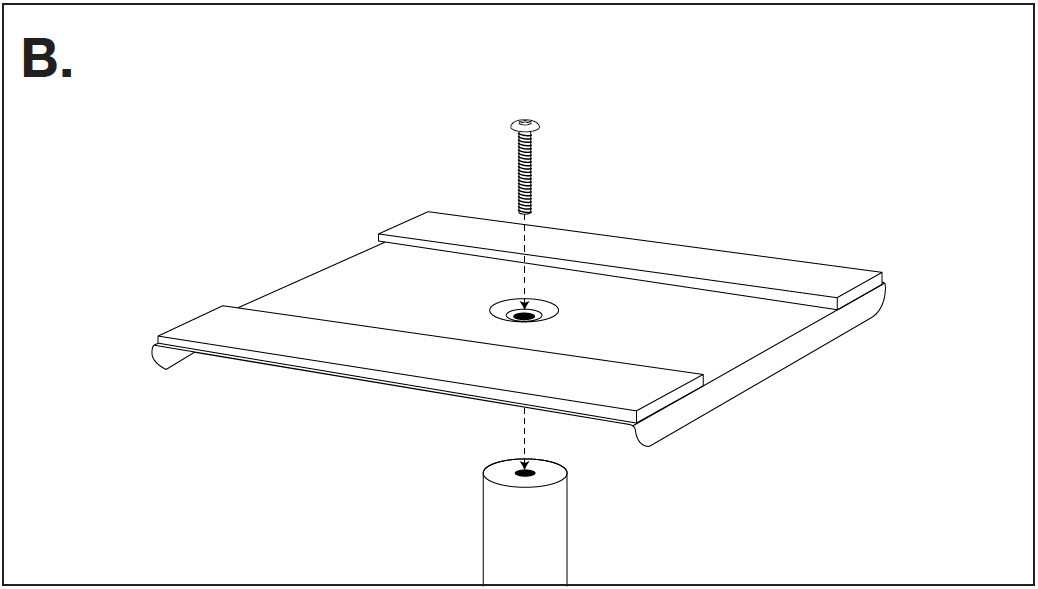

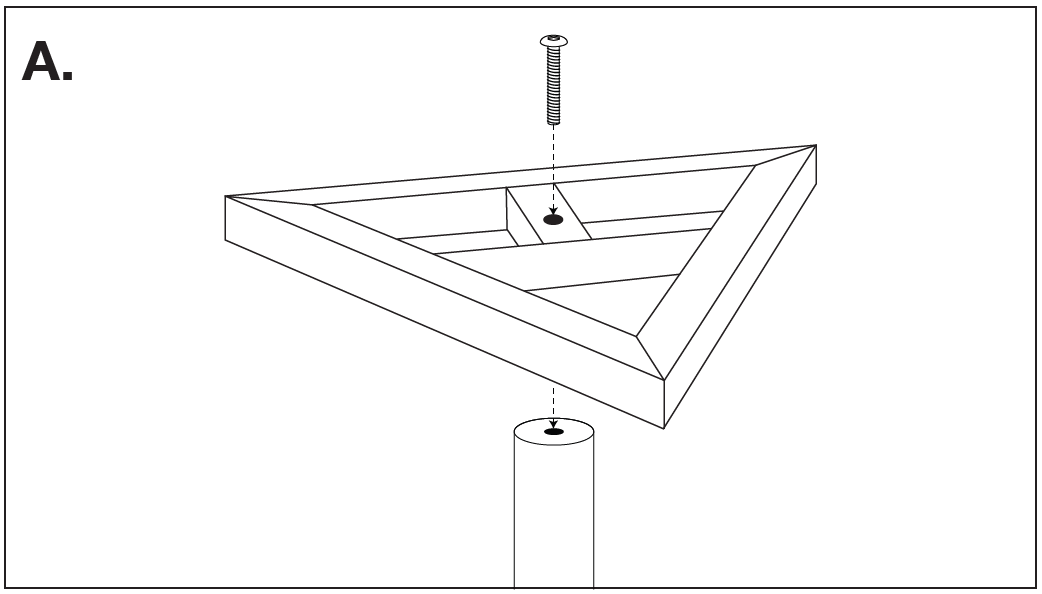

Assembly Instructions:

Using this product safely and properly

The indicator symbols shown below are used in this manual and on the stand to ensure proper and safe use of the product, to prevent injuries and avoid damage to surrounding items. Please become familiar with these symbols and their associated information before proceeding to the assembly instructions of this manual.

	This symbol indicates that death or serious injury may result from improper installation if this information is overlooked.
	This symbol indicates that injury may result or damage to property could occur from improper installation if this information is overlooked.

Warning

Do not place this stand on a tall object or high shelf. If the stand were to fall, it could cause an injury.

Do not exceed indicated maximum weight capacity.

Caution

• This stand is meant for use with lighting systems ONLY. Do not use the stand for other purposes. Improper use of the stand may result in an unstable condition with the potential to cause an injury by falling.
• Assemble the stand on a level surface. Placing the stand on an uneven surface can lead to overturning and
  result in an injury.
• Do not place the stand where people regularly move past it. Bumping into the stand can cause an injury.
• Place the stand on a solid and level floor. Installing the stand in a location that is unstable can cause it to
  fall and result in an injury.
• Do not drop or drag the stand when assembling or transporting it. Pushing over or dragging the stand can
  result in an injury or cause damage to the floor.
• Do not climb onto or hang from the stand. Be especially careful about children trying to do this. If the stand falls over it can cause an injury.
• This stand is heavy, so be sure 2 or more people cooperate in unpacking or moving it. Improper lifting can cause a back injury and dropping the stand can injure feet.

Cautions for Use:

1. This is a stand for a lighting system. Avoid using the stand for other purposes.
2. The stand is very heavy. Use caution when handling it.
3. Place the stand on a solid and level floor. Do not place the stand in an unstable location.
4. Be careful not to tip over the stand.
5. If the stand becomes dirty, clean it by lightly wiping with a soft cloth and a neutral cleaning solution. Do not use a substance like thinner or benzene.

Specifications

• Weight Capacity: 80 lbs

• Adjustable Height Range: 33 - 45 inches

• Base: 17.7 x 17.7 x 17.7 inches

• Top Plate: 7.87 x 7.87 inches

• Top Tube Diameter: 1.37 inches

• Lower Tube Diameter: 1.5 inches

• Construction: Steel

• Color: Black
