RDAC5 Owner's Manual

Digital to Analog Converter w/USB, Optical, RCA, and Headphone Amp

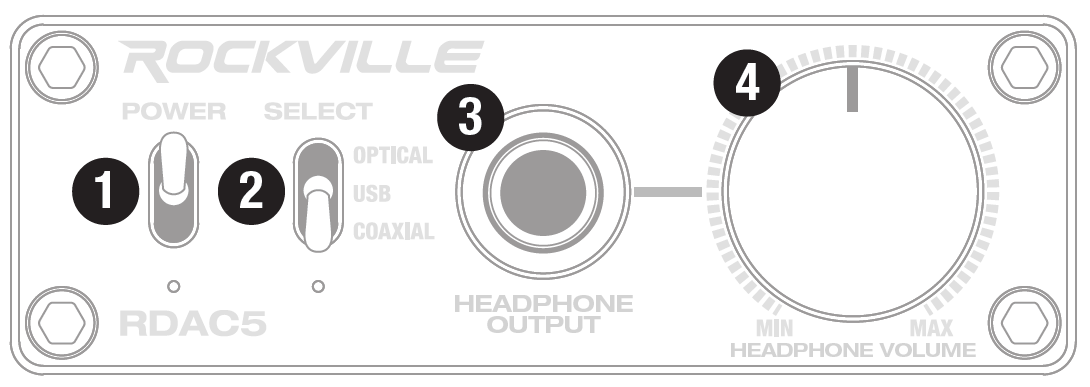

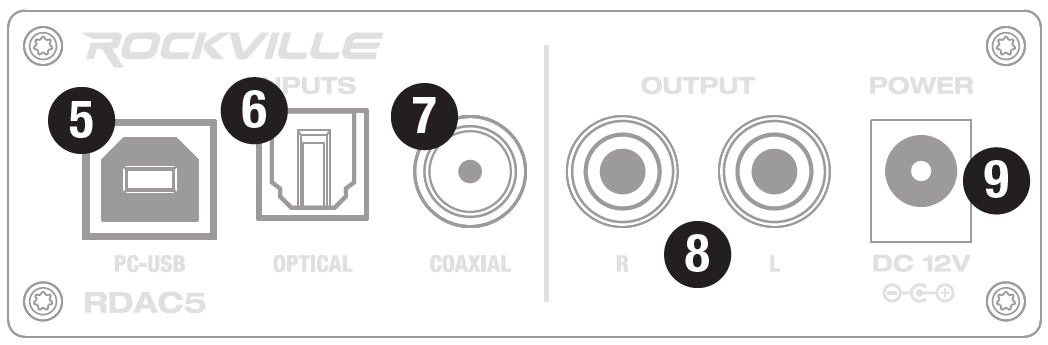

Functions

Power ON/OFF switch Input selector switch: optical/USB/coaxial ¼˝ headphone jack Headphone volume USB input Optical input Coaxial input RCA outputs 12V power input: Connect the included power supply to power on the unit.

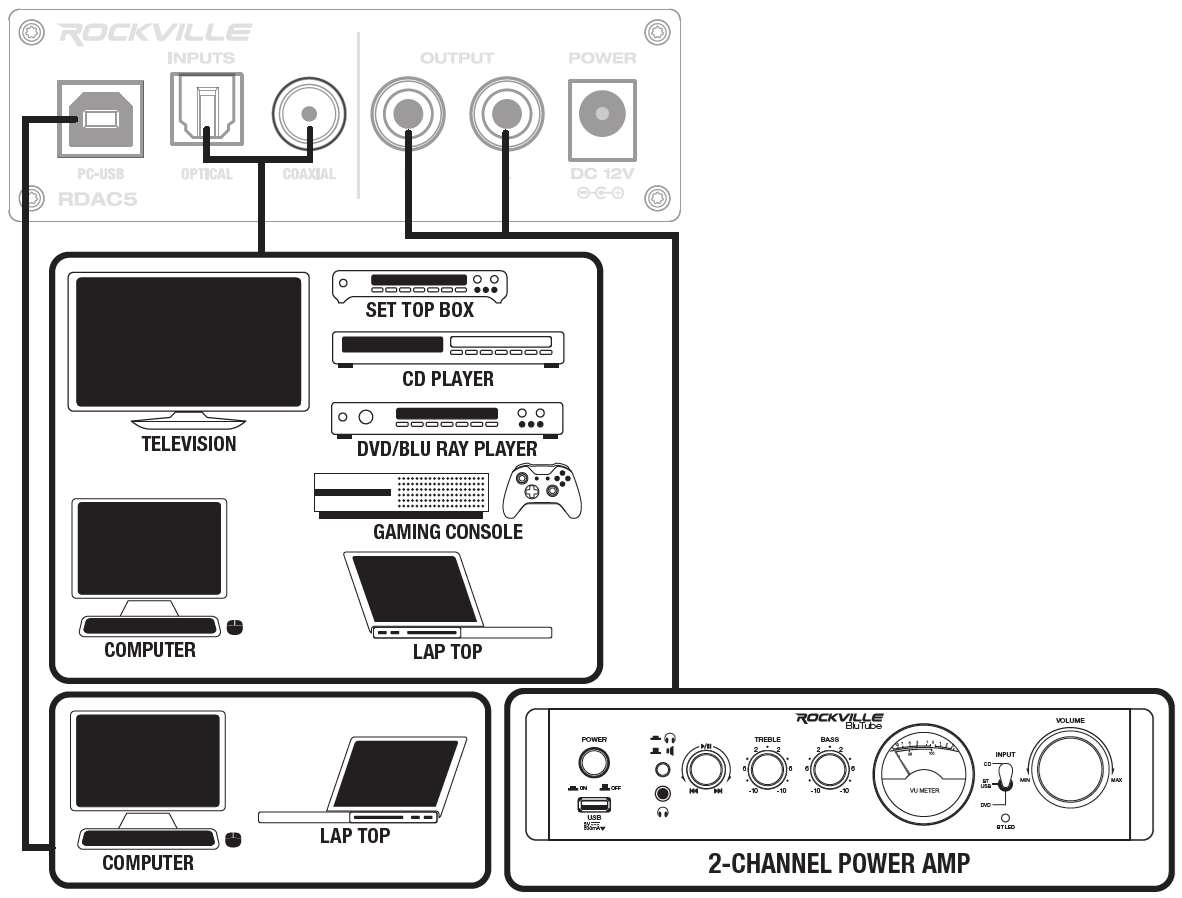

Connections

Setting Sample Rate/Bit Depth

PC

1. Connect the RDAC5 to your PC via USB.
2. Click on the Windows icon on the lower right corner of your screen, then click on SOUND SETTINGS.
3. In the SOUND SETTINGS menu click on SOUND CONTROL PANEL.
4. Find RDAC5 in the SOUND CONTROL PANEL, click on it and select PROPERTIES from the drop down menu.
5. Click on the ADVANCED tab. There you will find a drop down menu with all the available sample rate and bit depth settings.

MAC

1. Connect the RDAC5 to your Mac via USB.
2. Go to your APPLICATIONS folder, the find and open the UTILITIES folder.
3. Find and open the AUDIO MIDI SETUP app.
4. Select RDAC 5 form the panel on the left.
5. Click the OUTPUT tab on the right side panel. There you will find a drop down menu with all the available sample rate and bit depth settings.
