Dual 10 Band Graphic Equalizer

Important Safety Instructions

• To reduce risk of electric shock, never open the unit. There are no user serviceable parts, refer service to the Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

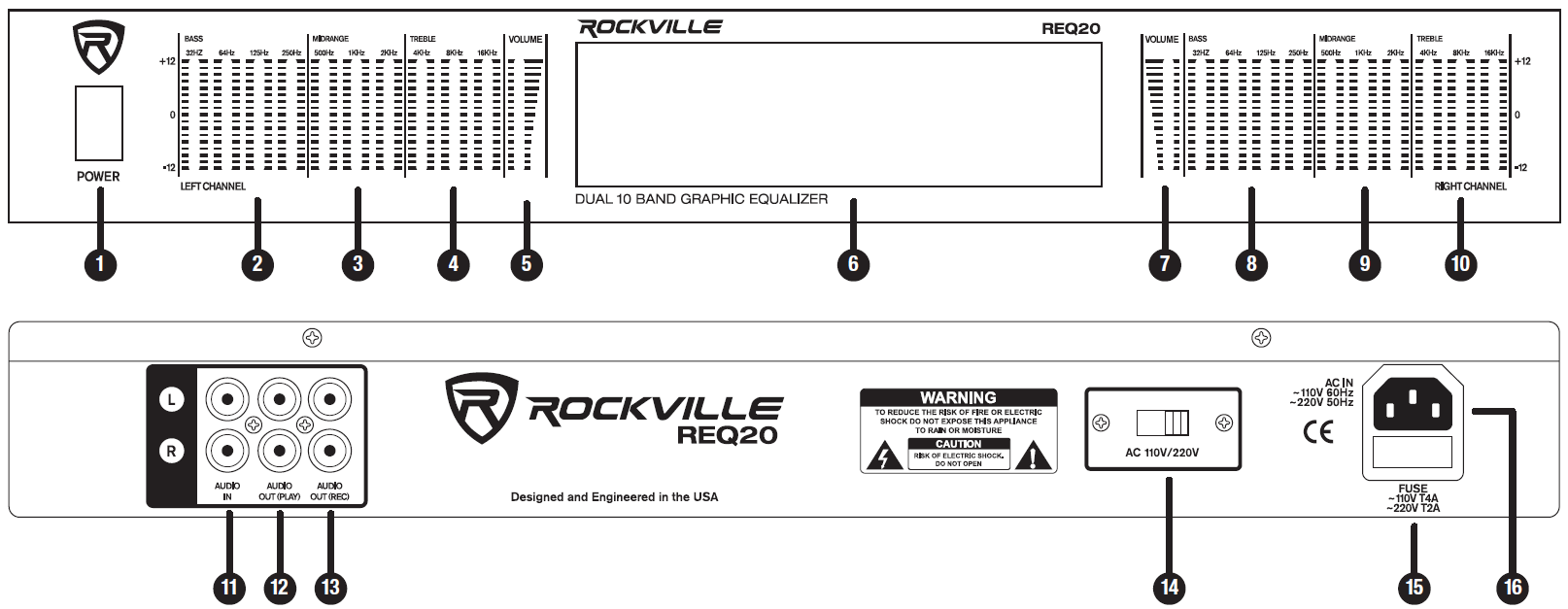

Functions

1. Power Switch
2. Left Channel Bass control
3. Left Channel Midrange control
4. Left Channel Treble control
5. Left Channel Volume control
6. Vacuum Fluorescent Display
7. Right Channel Volume control
8. Right Channel Bass control
9. Right Channel Midrange control
10. Right Channel Treble control
11. RCA Audio Input
12. RCA Audio Output (to amplifier)
13. RCA Audio Output (to recording device or mixer)
14. Voltage Selector Switch (110V / 220V AC)
15. User Serviceable Fuse
16. IEC AC Power Socket

Features/Specifications

• Dual 10 Band Graphic Equalizer (20 Bands Total)
• Frequency Response: 20Hz–20kHz
• Dual VU Meters Level Monitor
• Blue LED on each Equalizer Slide Control
• Stereo RCA Line Input
• Stereo RCA Line Output
• Stereo RCA Line Output for Record
• Vacuum Fluorescent Display
• Bass/Midrange/High EQ Controls
• Separate Left/Right Channel Volume gain control
• Signal to Noise Ratio: >88dB
• Input Power: AC ~ 110V 60H/220V 50Hz
• 110/220V Switchable
• Front Panel Power Switch
• Removable Rack Mount Brackets
• Dimensions: 17˝(19˝ w/brackets) x 9˝ x 2.2˝
• Weight: 5 lbs
