3000W Peak/800W RMS 2-Channel Power Amplifier Pro/DJ Amp
Important Safety Instructions
To reduce the risk of electrical shock, do not remove amplifier plate. No user serviceable parts inside. We recommend sending the unit to Rockville service center for any repairs.
Do not expose this unit to any kind of moisture.
Please ensure that the unit is situated in a properly ventilated area.
Make sure cooling fan vents are free of obstructions.
Replace fuse with one of the same type, size, and rating only.
Do not attempt to operate this unit if the power cord has been frayed or broken.
Do not attempt to break off or remove the ground prong. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
Do not operate this unit if it is damaged.
This unit is intended for indoor use only.
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point of exit from the unit.
To avoid unnecessary wear and to improve the unit's lifespan, unplug the unit when not in use for extended periods of time.
Features

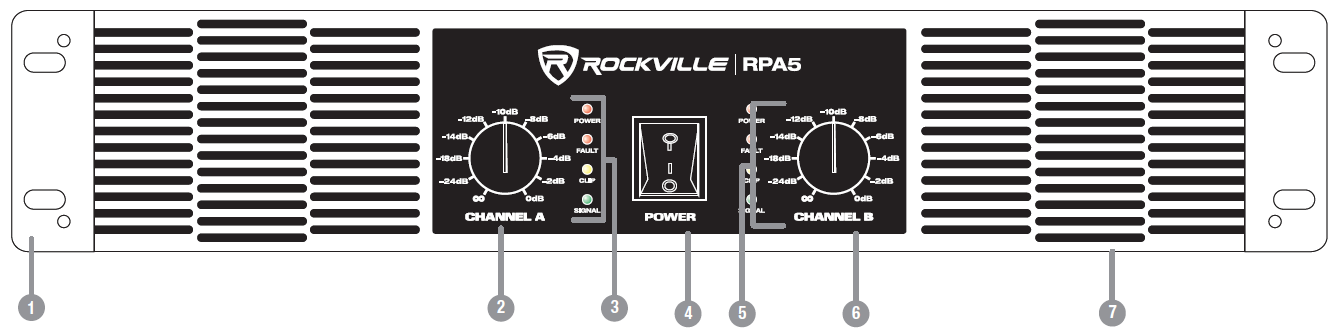

Front Panel RPA-5 / RPA-9 (Pictured RPA-5)
1. Rack Ears: Allows for unit rack mount using four attaching screws and washers (not included).
2. Channel A Signal Gain Detented Adjustment Knobs: Precisely adjust the signal input level using these knobs. Turn counter-clockwise to increase signal gain. Turn clockwise to reduce signal gain.
3. Channel A LEDs: Indicate signal level input, clipping for the corresponding channel, amp fault, and power status.
4. Power On/Off Switch.
5. Channel B LEDs: Indicate signal level input, clipping for the corresponding channel, amp fault, and power status.
6. Channel A Signal Gain Detented Adjustment Knobs: Precisely adjust the signal input level using these knobs. Turn clockwise to increase signal gain. Turn counter-clockwise to reduce signal gain.
7. Ventilation

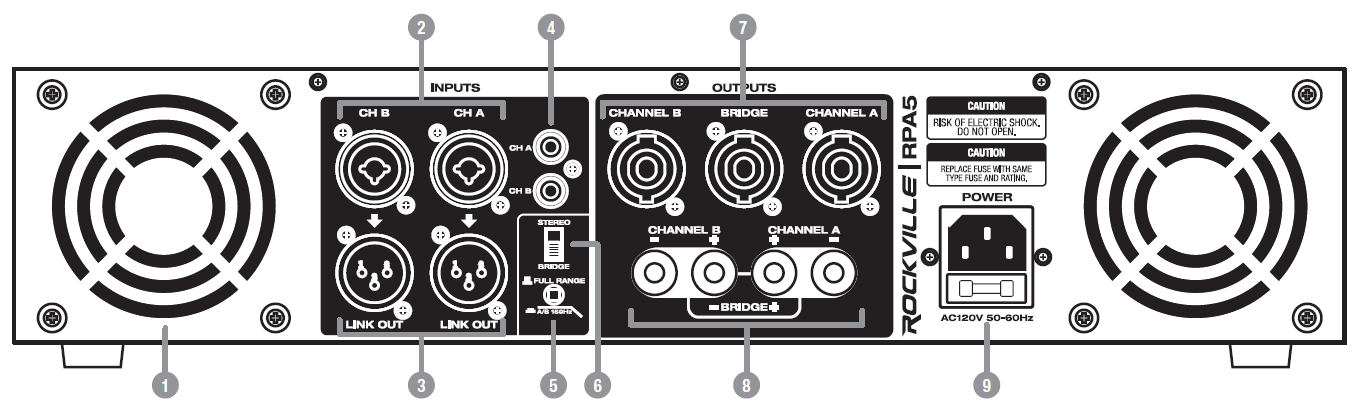

Back Panel RPA-5 / RPA-9 (pictured RPA-5)
1. Built-in dual high velocity cooling fans
2. Channel A/B XLR/¼˝ TRS/TS combo inputs
3. Channel A/B ¼˝ Link Out
4. Channel A/B RCA inputs

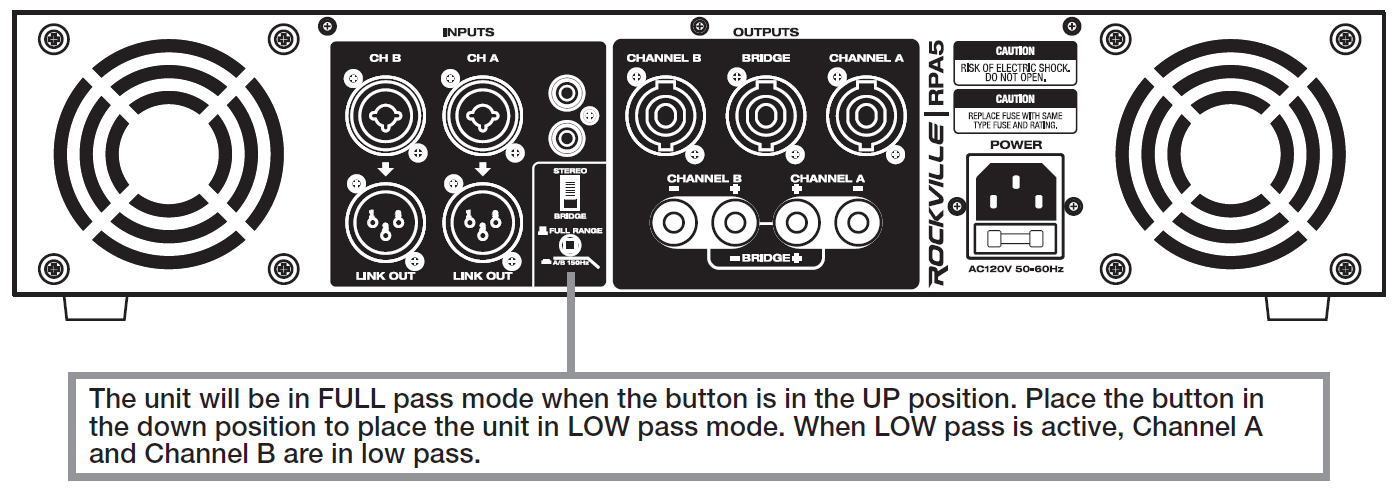

5. Full Pass/Low Pass mode button
6. Stereo/Bridged switch
7. Channel A/B SpeakON outputs and SpeakON bridged output
8. Channel A/B Binding Post outputs (also banana plugs)
9. IEC AC power socket AC Fuse compartment (RPA5: 4A, 250V fuse / RPA9: 5A, 250V fuse)
Configurations

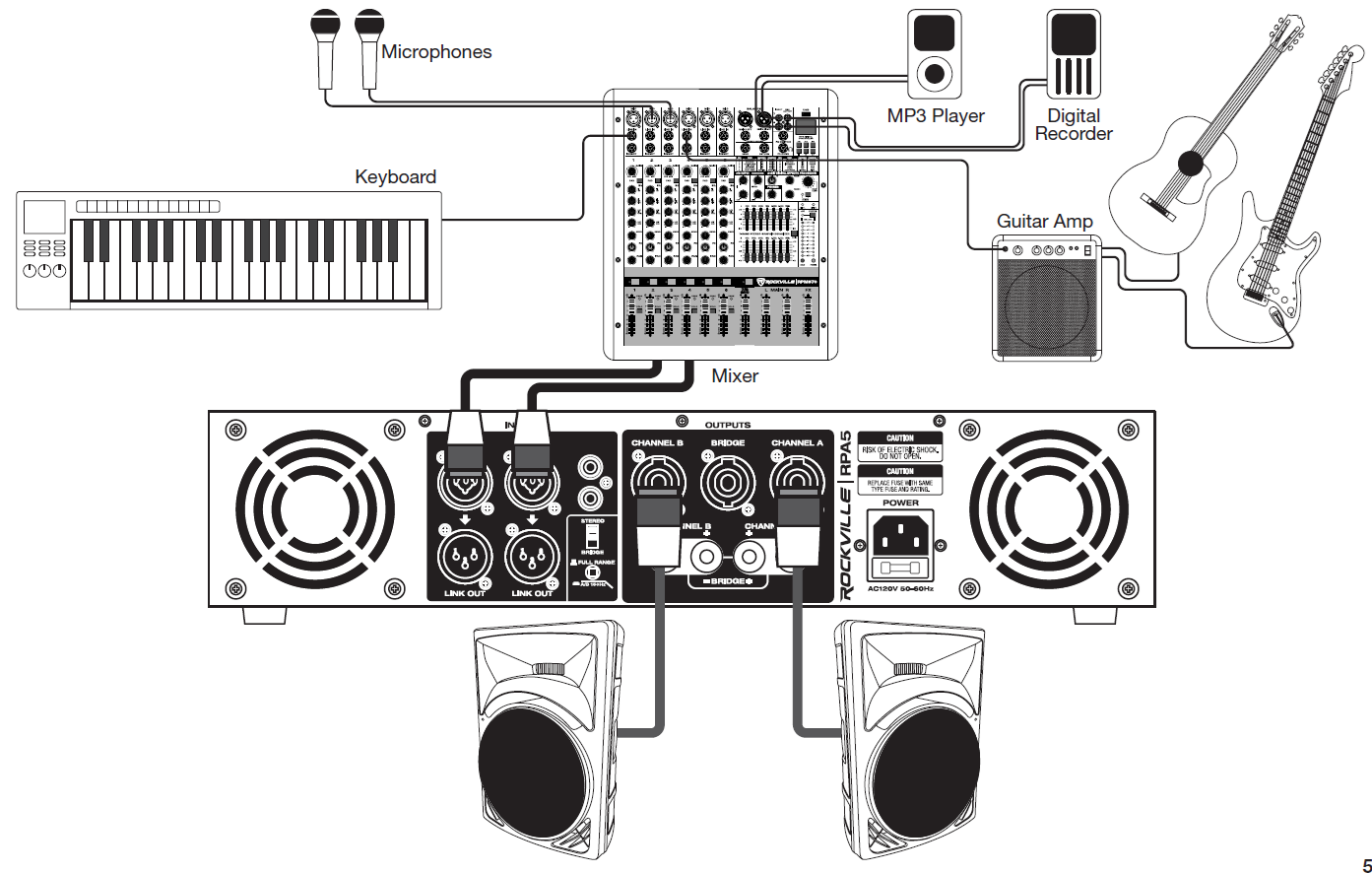

Live Music

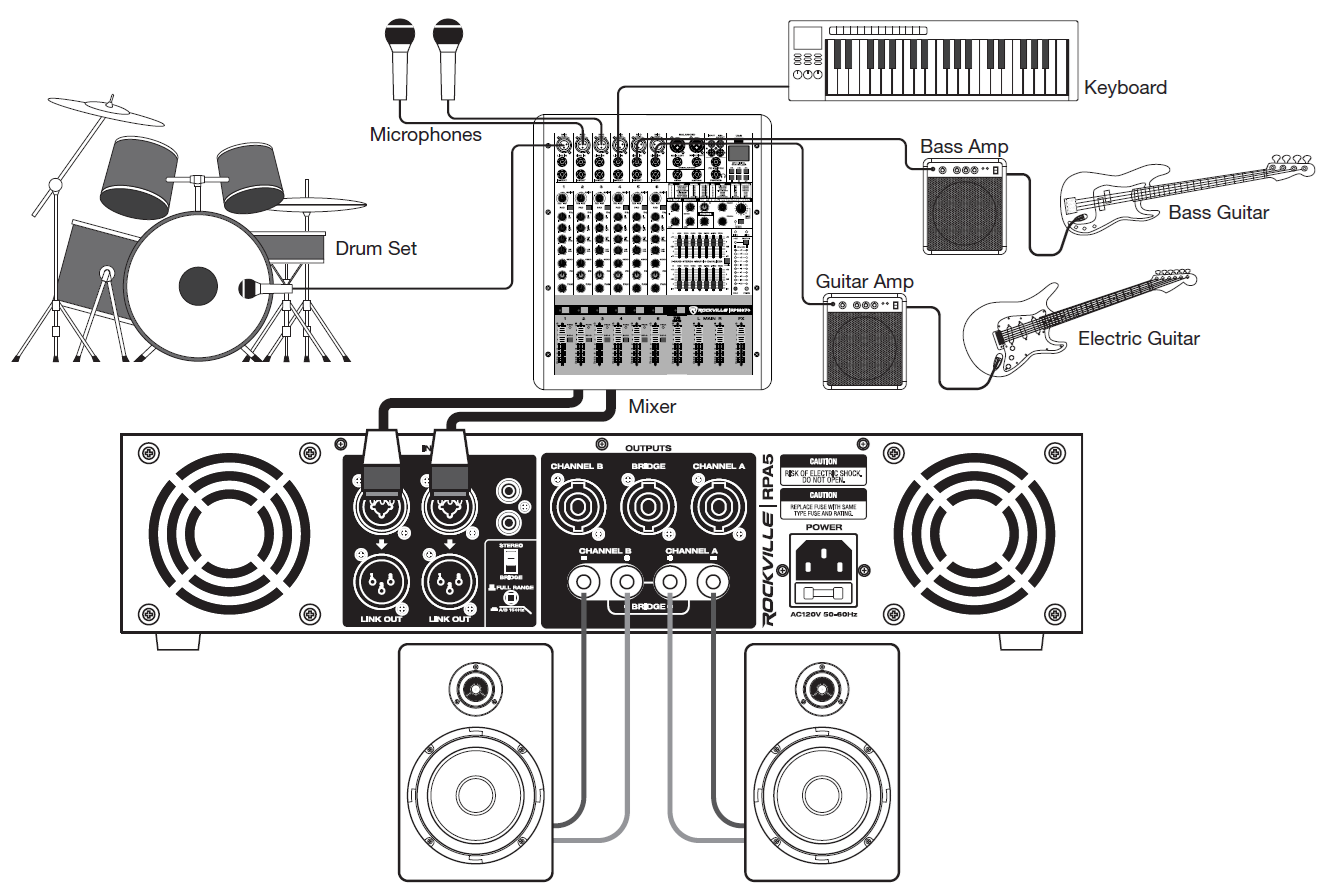

Recording Studio

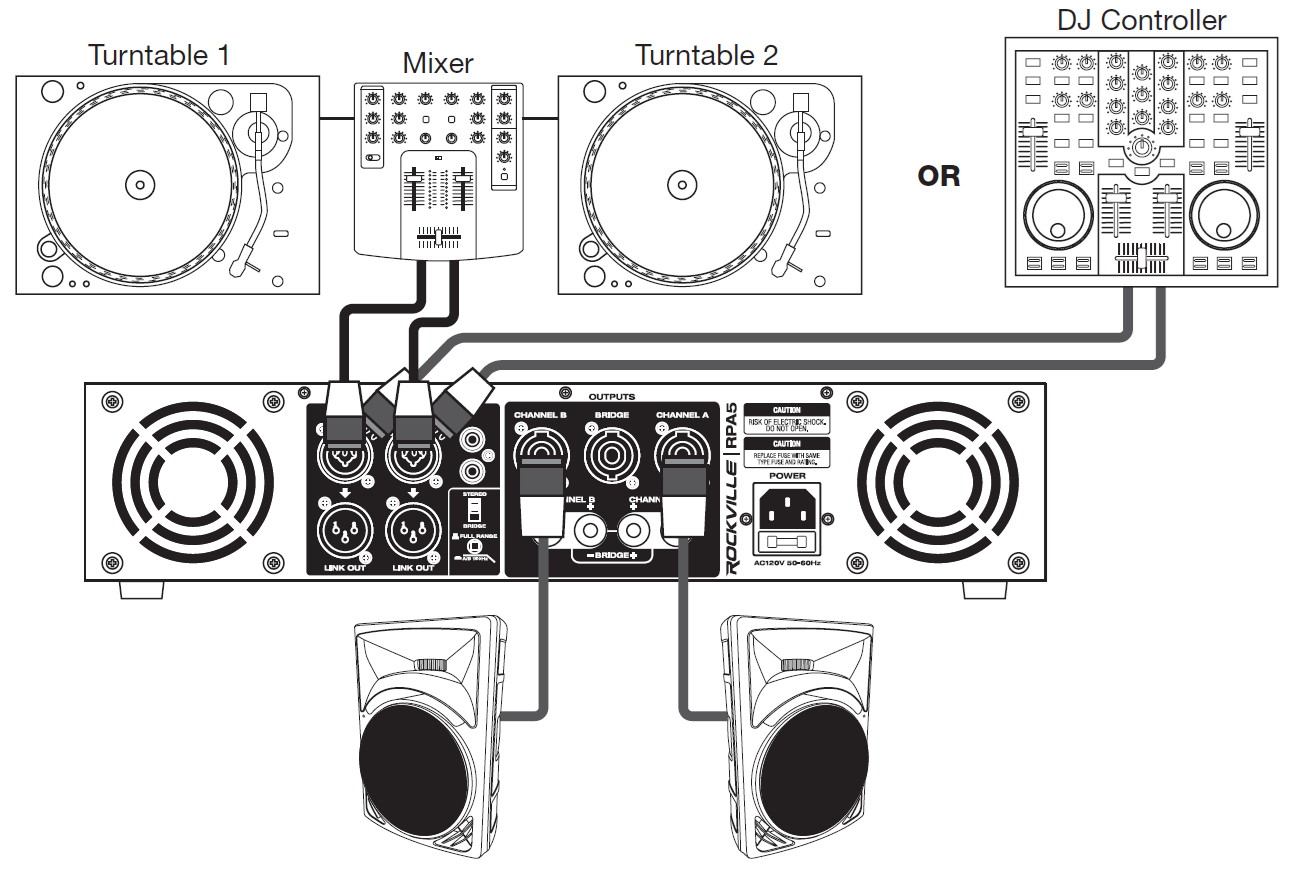

DJ Set-up
Connections

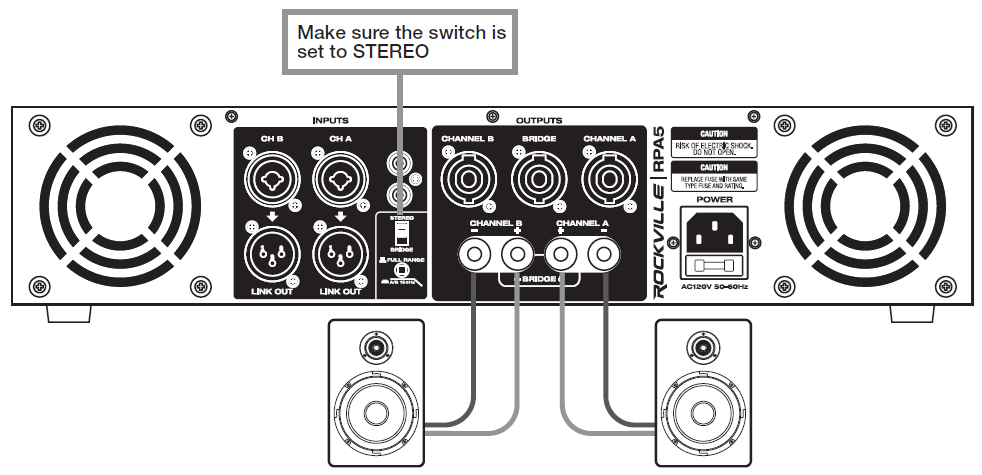

Stereo

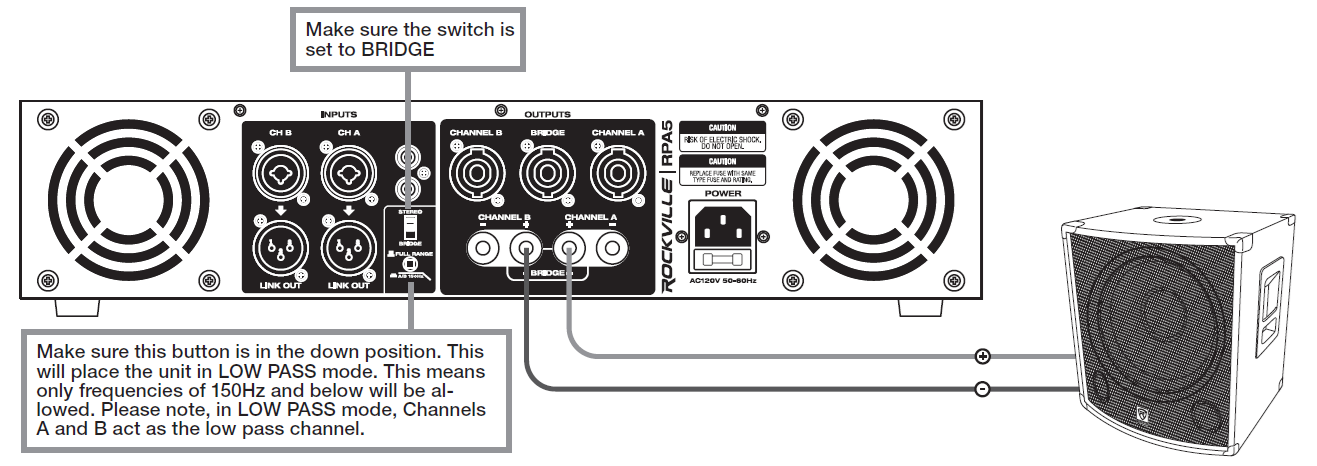

Bridged
Crossover
Features
2U rack space
Bridged and Stereo output switch makes this perfect for two subwoofers, two speakers, or four speakers.
Built-in crossover switch makes this perfect for speakers, monitors, or subwoofers.
Channel A & B clipping LED indicators
Channel A & B separate level controls
Channel A & B power, signal, overload, clipping, and protection LED indicators on front of amp.
Heavy duty rack mount ears with handles
Built-in dual high-velocity quiet cooling fans
Maximum headroom for 4-ohm and 8-ohm speakers
Level controls for precise setting and matching of sensitivity
Computer controlled IC protection circuitry protects against speaker short circuit, thermal overload, and DC overload.
Frequency Response: 20Hz – 20kHz < ±0.5dB
Distortion: <0.03%
Input Impedance: 20k ohm balanced and 10k ohm unbalanced
Signal to Noise Ratio: >102dB
Power Requirements: 120V/50 – 60Hz
User serviceable fuse (RPA5: 4A/250V, RPA9: 5A/250V)
Specifications
Model | RPA-5 RMS (PEAK) | RPA-9 RMS (MAX) |
Stereo 8 Ohm | 2 x 125W (2 x 250W) | 2 x 250W (2 x 1000W) |
Stereo 4 Ohm | 2 x 200W (2 x 400W) | 2 x 400W (2 x 1500W) |
Bridged 8 Ohm | 1 x 400W (1 x 1000W) | 1 x 800W (1 x 3000W) |
Frequency Response | 20Hz to 20kHz <±0.5dB (both models) | |
Distortion | < 0.03% (1kHz) (both models) | |
Input Impedance | 20k Ohm Balanced, 10k Ohm Unbalanced (both models) | |
Signal to Noise Ratio | >102dB (both models) | |
Power Requirements | 120V/50Hz – 60Hz (both models) | |
Weight | 13.4 lbs | 17.19 lbs |
Dimensions | 18.97˝ x 11.02˝ x 3.54˝ | 18.97˝ x 13.97˝ x 3.54˝ |
Troubleshooting
Unit Fails to Power Up
1. Make sure unit is plugged in properly to wall outlet.
2. Make sure power switch is in the ON position.
3. If system still fails to power, check the fuse. Please make sure unit is unplugged from wall before attempting to change the fuse! Be sure to use a fuse with the same rating as the old fuse.
Unit Turns On, But No Sound.
1. Check that Levels are turned up.
2. Be sure all appropriate cables are plugged in correctly.
3. If using a mixing console make sure fader and balance are set to center positions and level increased.
4. If problem persist return the unit to Rockville or contact a local, qualified pro audio technician.
