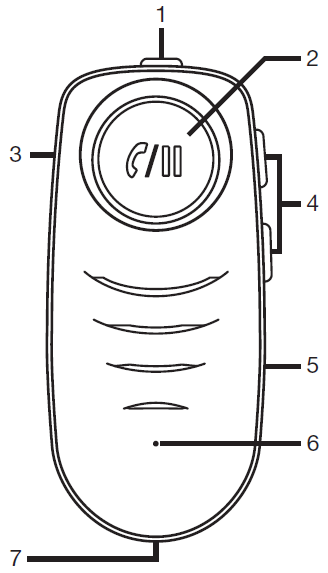

Power switch: Slide to the ON position to power the unit. Slide to the OFF position to turn it off.
Multifunction Button(MFB): Press the MFB once to begin or pause playback, answer an incoming call or end the call. Long press the MFB to reject a call. Press the MFB twice to redial the last number.
AUX port
Previous/Next Buttons: Long press to raise or lower the volume. Short press for the previous or next track.
Microphone
Bluetooth/Charging LED Indicator
DC 5V Charging Port
Operation
Bluetooth
Power on the receiver, the indicator light will ash blue and red indicating it is in pairing mode.
Turn on your device’s Bluetooth function and make sure it is discoverable. Search for A2BT in the list of available devices and connect to it.
Connect the A2BT to your device’s 3.5mm AUX input using the included 3.5mm cable or either one of the included adapters (3.5mm or ¼˝) if necessary.
The A2BT will automatically connect with the last paired device. Please note, for the auto-connect function to work, your device’s Bluetooth function must be on prior to turning on the A2BT.
You can use the A2BT to control playback and answer calls. You can also use your paired device to control playback or, if using a phone, answer calls.
Connecting a Second Device
Connect the A2BT to the rst device following the procedure above.
Once the rst device is connected, turn off its Bluetooth function. The A2BT will go into pairing mode.
Turn on the second device’s Bluetooth function and make sure it is discoverable. Search for A2BT in the list of available devices and connect to it.
Turn on the rst device’s Bluetooth function and make sure it is discoverable. Search for A2BT in the list of available devices and connect to it.
Now both devices are connected.
Charging
When the A2BT battery’s is nearly depleted, the LED indicator will intermittently flash red indicating that it needs to be charged.
Connect the unit to a DC 5V power source using the included micro USB cable. Do not use a power source higher that 5V. The LED will remain on during charging and will turn off once the unit is fully charged.
Please note: Fully charge the unit before using for the first time. If the unit will not be in for a prolonged period of time, charge it at least every three months.
Features
Add Bluetooth to any system that has a 3.5MM or ¼˝
Works with car stereos, home audio systems, and pro audio systems
Bluetooth 5.0 chipset
35 Foot Bluetooth range
Automatically pairs with your phone when turned on
Built-in Digital Signal Processor (DSP) increases the sound quality
Battery Life: around 10 Hours per charge
Charge time: around 2 Hours
Built-in microphone and multi function button to answer/redial/hang up/reject calls
Can be paired with 2 devices at the same time.
110 mAh rechargeable battery
Troubleshooting
Problem
Solution
No power
Make sure the power switch is in the ON position.
Make sure the unit is fully charged. Follow the charging procedures given above.
No sound
Make sure the unit is powered on and that it is fully charged.
Check all connections.
No Bluetooth audio or connection
Check to see that both devices are turned on and that your device is discoverable.
Turn both devices off and then on again.
Make sure you've selected the proper source (A2BT).
Make sure that the Bluetooth device is within 5 feet of the unit.
Move both devices away from other Bluetooth devices, microwaves, wireless routers, and other electronics.
The BT signal can be affected by walls or other barriers. Make sure there is a clear line of sight between the A2BT and your device.
