DCS6T Owner's Manual

Keith H
Updated

70V Commercial 6.5" 2' x 1' Drop Ceiling Tile Speaker For Office

The Rockville DCS6T is a great choice for any restaurant, office, school, retail store, or other commercial application. This speaker will sound great for all your PA announcements and background music.

Functions

  1. Full-Range Speaker
  2. Metal Grill
  3. Euroblock-Style Terminal
  4. Safety Hook: Used to attach a safety strap to secure the speaker to the ceiling.
  5. 70V/100V Wattage Tap Setting Dial

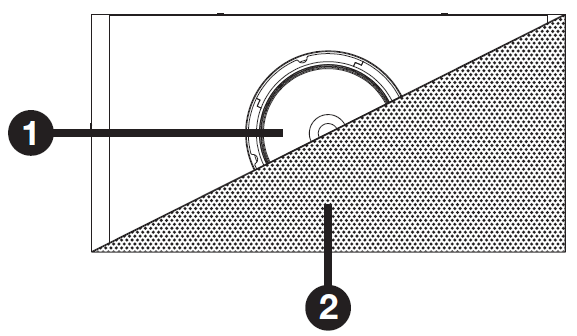

Black-and-white diagram showing a cutaway front view of a rectangular speaker cabinet with numbered callouts: * **1:** A line points to the internal speaker cone/driver located inside the enclosure behind the mesh grille. * **2:** A line points to the textured mesh grille covering the front, shown partially cut away diagonally from the bottom-left corner to the top-right corner to reveal the driver inside.

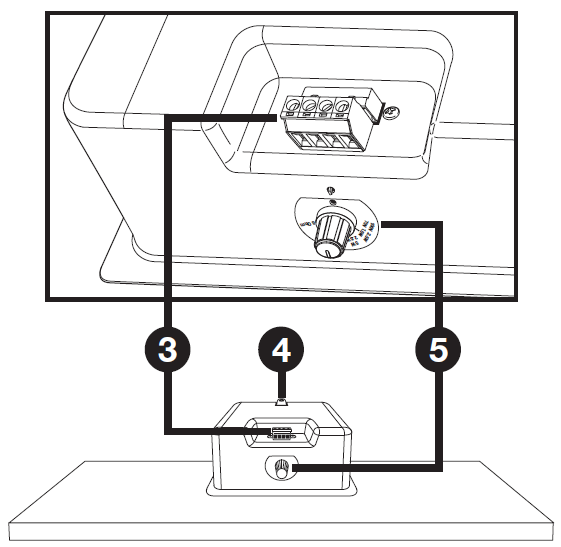

Black-and-white diagram showing close-up and full views of a speaker terminal and control panel, labeled with numbered callouts: * **3:** A line leads from the top 4-pin Euroblock (Euro-style) terminal block inside a recessed panel on the speaker down to an zoomed-out view showing its location on the back of the speaker unit. * **4:** A callout number positioned directly above the top edge of the speaker enclosure in the lower full-view illustration. * **5:** A line leads from a rotary tap selector knob on the rear panel down to its corresponding position in the lower full-view illustration. The dial face around the knob includes setting markings for wattage taps and impedance (70V/100V and 8-ohm options).

Choosing the Appropriate Tap

70-volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up the speakers with an amplifier. You always want your 70-volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at. For example, if you have a 180-watt /70-volt amplifier, you can install fifteen 70-volt speakers that are tapped at 10 watts each or thirty 70-volt speakers that are tapped at 5 watts each as long as they total close to 150 watts. When we say the word tap, what we are referring to is the selector knob on the control panel of the DCS6T speakers. It allows you to set how many watts the built-in transformer will allow the speaker to get from the amplifier. The taps set at 1.5, 2.5, 5 and 10 watts for 70-volt input and 2.5, 5 and 10 watts for 100-volt input. This range of taps allows for full customization of the sound for the space in which the speakers are installed. In a restaurant, for example, you can tap your dining room speakers at 5 watts, the speakers in the outside seating area at 10 watts, the ones in the hallway at 2.5 watts and the speakers in the bathrooms at 5 watts. Another great feature of 70-volt speakers is that you can mix and match any type whether they are ceiling speakers (such as these), wall mounted speakers, subwoofers, etc.

Another benefit of 70-volt speaker set-ups is the ability to run very long lines of speaker wire without signal loss. And, the wiring is very simple. You just connect all the positive terminals of the speakers to the positive 70-volt terminal(s) of the amplifier. The negative terminals on the speaker get connected to the negative (COM) terminal(s) of the amp. You do not have to worry about impedance as the power is constant.

Setup

70V/100V Speaker Configuration.

The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of your 70V/100V amplifier. The example on the facing page shows 4 total speakers. Using the 10W taps, you will need an amplifier with at least 40 watts (4 x 10 = 40W). A good rule of thumb is to select an amplifier with 15 to 20% greater power; in this case, an amplifier that delivers about 50W.

4 Speakers Connected in Parallel Using 10W Taps

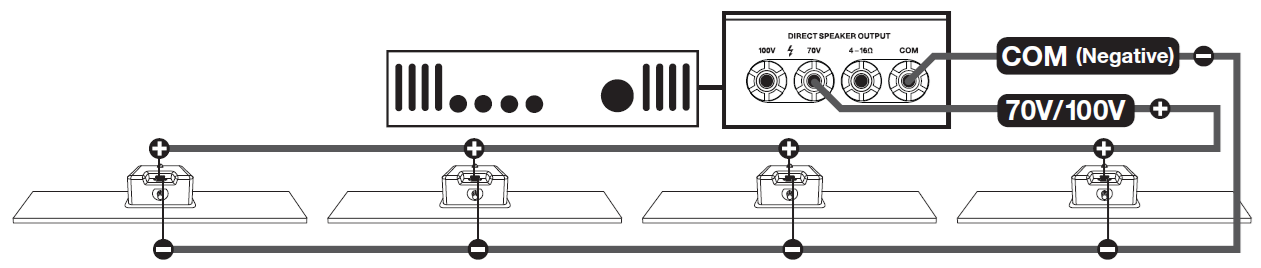

Black-and-white wiring diagram illustrating a 70V parallel speaker system connected to an amplifier: * **Amplifier Output Panel:** The top-right shows an amplifier with a panel labeled "DIRECT SPEAKER OUTPUT" containing four terminals: "100V", "70V", "4–16Ω", and "COM". * **Output Wiring:** * A wire labeled "**70V/100V**" with a plus (+) symbol connects to the **70V** terminal output. * A wire labeled "**COM (Negative)**" with a minus (-) symbol connects to the **COM** terminal output. * **Speaker Array (Parallel Connection):** Four identical ceiling or surface-mount speakers are arranged in a horizontal line below the amplifier. * The positive (**70V/100V**) line runs across the top, connecting to the positive (+) terminal of each speaker in parallel. * The negative (**COM**) line runs along the bottom, connecting to the negative (-) terminal of each speaker in parallel.

8-Ohm Speaker Configuration

2 Speakers Connected to an Amplifier With 8-Ohm Output

Black-and-white wiring diagram illustrating a 2-speaker, low-impedance (8-ohm) parallel connection setup to an amplifier: * **Amplifier Output Panel:** Centered in the diagram, an amplifier output box labeled "DIRECT SPEAKER OUTPUT" features four connection terminals: "100V", "70V", "4–16Ω", and "COM". * **Left Speaker Wiring:** * A wire labeled "**8 Ohm**" connects from the amplifier's **4–16Ω** terminal to the positive (+) terminal of the left speaker. * A wire labeled "**COM (Negative)**" connects from the amplifier's **COM** terminal to the negative (-) terminal of the left speaker. * **Right Speaker Wiring:** * A wire labeled "**8 Ohm**" connects from the same **4–16Ω** terminal on the amplifier to the positive (+) terminal of the right speaker. * A wire labeled "**COM (Negative)**" connects from the same **COM** terminal on the amplifier to the negative (-) terminal of the right speaker. * **Configuration Summary:** Both 8-ohm speakers are connected directly in parallel to the amplifier's low-impedance (4–16Ω) and COM output terminals.

Installation

Tools needed: Drywall knife, wire strippers, tape measure, ladder

2ft x 2ft Drop Ceiling Tile

1. Remove the existing tile. Measure it, then cut it in half.

Single-panel line-art installation diagram labeled "1" in the top-left corner showing the first step in preparing a drop-ceiling grid: * **Ceiling Tile Removal:** A bold black arrow points straight upward from an open square section of a drop-ceiling T-bar grid frame, indicating the removal of a flat, square ceiling tile straight up and out of the ceiling frame.

2. Insert a support rail (not included) in the center of the space.

Single-panel line-art installation diagram labeled "2" in the top-left corner showing the second step in ceiling tile installation: * **Speaker/Tile Placement:** Two bold black arrows point downward from a flat lay-in speaker tile (or replacement panel) toward the open square opening of the suspended drop-ceiling grid frame, indicating to lower the panel into place so it rests securely on the T-bar tracks.

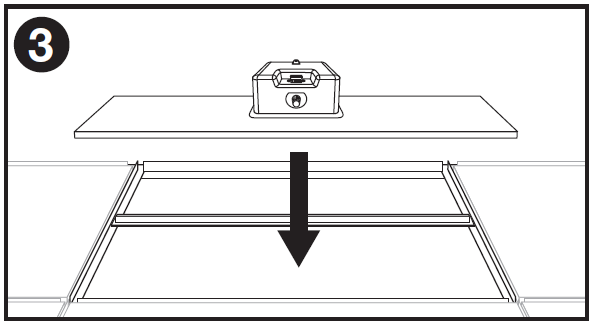

3. Carefully drop the DCS6T speaker on one side of the opening. Make sure that it is properly seated on the
ceiling grid.

Single-panel line-art installation diagram labeled "3" in the top-left corner showing the installation of a drop-in ceiling speaker tile: * **Speaker Tile Installation:** A bold black arrow points downward from a drop-in ceiling speaker assembly—featuring a rear terminal housing and tap selector knob mounted on top of a narrow rectangular tile—lowering it into an open slot within the suspended ceiling T-bar grid frame.

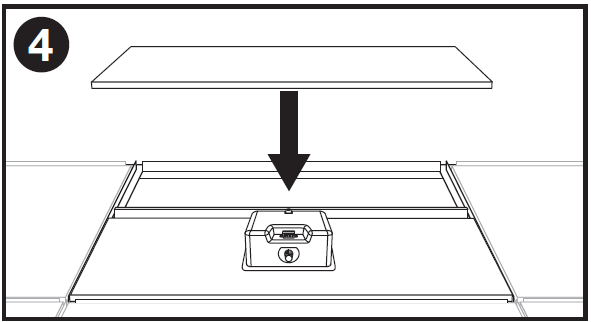

4. Place the cut half of the 2ft x 2ft ceiling tile on the other side of the opening. Make sure that it is properly seated on the ceiling grid. We recommend using a safety strap to secure the speaker to the ceiling via the safety hook.

Single-panel line-art installation diagram labeled "4" in the top-left corner showing the final step in drop-ceiling speaker installation: * **Final Tile Placement:** A bold black arrow points downward from a cut-to-size ceiling tile, showing it being lowered into the remaining open opening in the T-bar ceiling grid frame, directly behind the previously installed drop-in speaker tile assembly.

Wiring

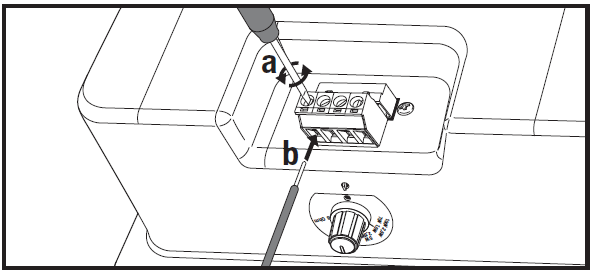

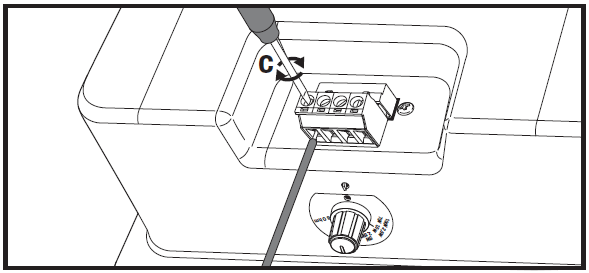

Use a small flathead screwdriver to loosen the terminal screw (fig. a). Strip 0.25˝ of sheathing from the speaker wire. Insert the wire into the terminal (fig. b) and tighten the screw (fig. c). Please note, the Euroblock terminal can be removed so you can preconnect the speaker wires prior to installing the speaker.

Black-and-white close-up line-art diagram showing how to wire a Euroblock (Euro-style) terminal block on a speaker: * **a (Tightening/Loosening Screws):** A small screwdriver is inserted into the top screw slot of a 4-pin Euroblock terminal inside a recessed panel. A curved double-headed arrow labeled "**a**" indicates turning the screw to secure or release the wire clamp. * **b (Wire Insertion):** A stripped speaker wire, pointed to by an arrow labeled "**b**", is shown inserting directly into the front wire port below the corresponding screw terminal. * **Tap Selector Dial:** The rotary tap selector knob is visible below the terminal block on the rear speaker panel.

Black-and-white close-up line-art diagram illustrating the final step of securing wire connections in a Euroblock terminal block: * **c (Securing the Connection):** A small screwdriver is placed into the top screw slot of the Euroblock terminal with a curved double-headed arrow labeled "**c**", indicating clockwise rotation to tighten the internal clamp down onto the inserted speaker wire. * **Terminal Block View:** The speaker wire is fully inserted into the front terminal port directly below the screw being tightened. * **Tap Selector Dial:** The rotary tap selector knob is visible below the recessed terminal block area on the back of the speaker.

Dimensions

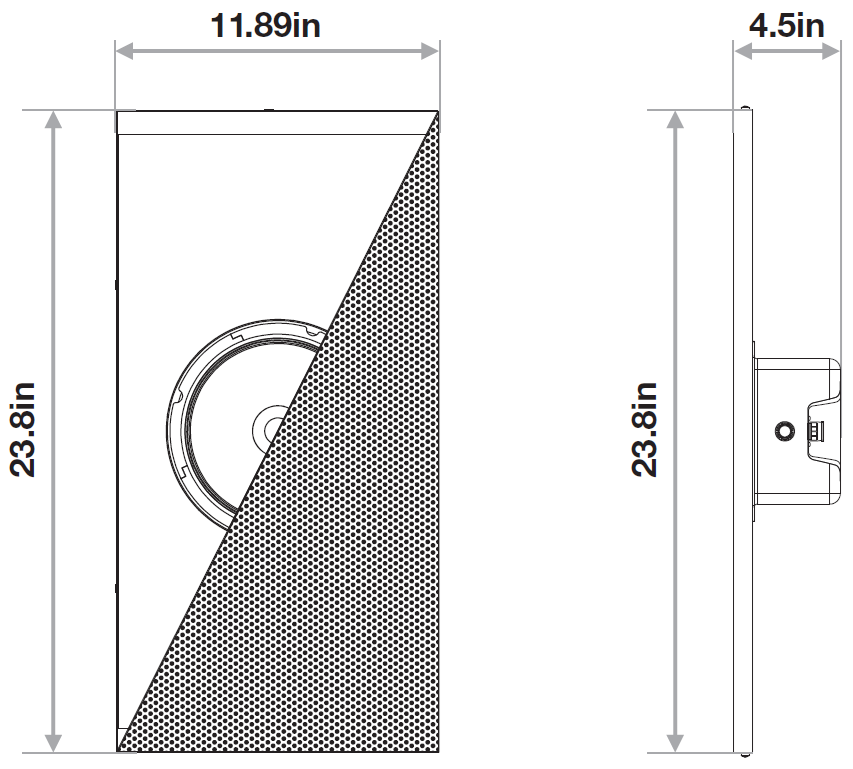

Dimensional line-art drawing showing front and side views with measurements for a rectangular drop-in ceiling speaker tile: * **Front View (Left):** * Shows a rectangular faceplate with a diagonal cutaway exposing the internal speaker cone behind a mesh grille. * **Height:** Labeled along the vertical dimension as **23.8 in**. * **Width:** Labeled across the top horizontal dimension as **11.89 in**. * **Side Profile View (Right):** * Displays the thin profile of the tile faceplate along with the rear terminal housing protruding from the back center. * **Height:** Labeled along the vertical dimension as **23.8 in**. * **Total Depth:** Labeled across the top horizontal dimension as **4.5 in** (measuring from the front faceplate to the back of the terminal housing enclosure).

Features/Specifications

  • Built-in 6.5˝ highly efficient speaker pre-mounted into a ceiling tile
  • Easy installation fits perfectly into 2ft x 1ft standard-sized US drop ceilings. Simply drop it in and
    connect the speaker wire
  • Metal Grill
  • Works for both 70 Volt and 100 Volt operation, as well as 8 Ohm
  • Wattage Tap Options:
    70V: 10W, 5W, 2.5W, 1.5W
    100V: 10W, 5W, 2.5W
    8 Ohm(Transformer Bypass)
  • 30 Watt-RMS Power Handling at 8 Ohms
  • Low profile mounting depth (3.7˝ )
  • Detachable  Euroblock-Style Terminal for easy installation
  • Sensitivity: 90dB
  • Designed to sound great for speeches, announcements, music and chimes
  • 105° Dispersion Pattern
  • Extremely efficient paper cone
  • 1˝ Voice Coil
  • Aluminum Former
  • 7oz. Ferrite Magnet
  • High temperature copper voice coil windings
  • Frequency Response (-10dB): 170Hz – 18kHz
  • Dimensions in inches: 23.8˝ x 11.89˝ x 4.5˝
  • Weight: 8.16Lbs
