MAC Series Owner's Manual – Rockville Audio

Aluminum Wakeboard Tower Speaker Pods

Includes

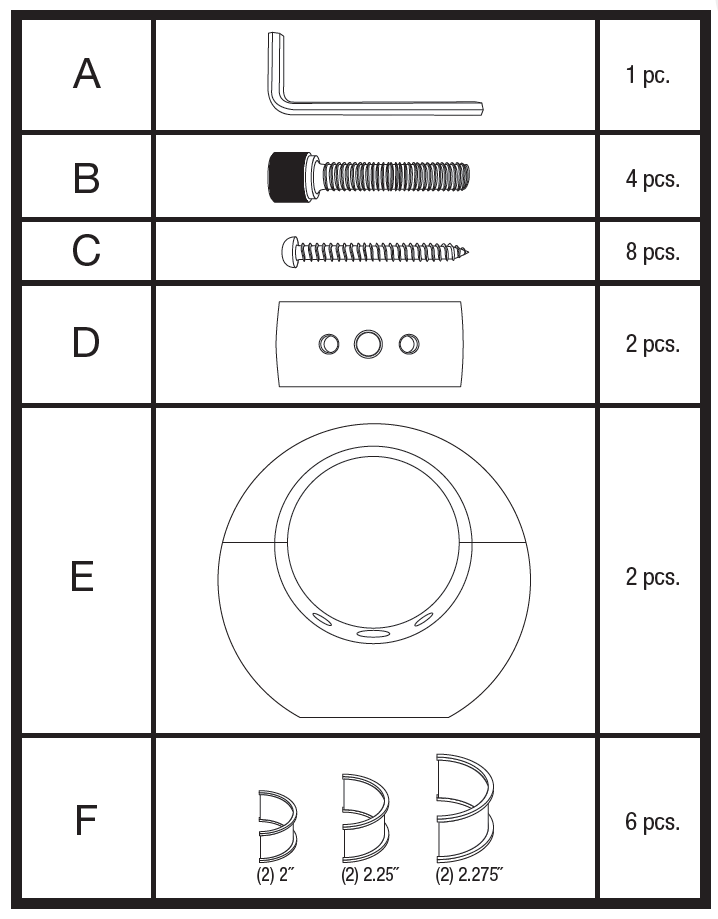

A three-column grid table listing included assembly hardware labeled from A to F, showing the letter, an line-art illustration of the item, and the quantity. Row A: An L-shaped Allen key wrench — 1 pc. Row B: A socket head machine bolt — 4 pcs. Row C: A pointed thread screw — 8 pcs. Row D: A rectangular mounting plate with three holes in a row — 2 pcs. Row E: A two-piece circular bar clamp assembly — 2 pcs. Row F: Curved collar/rubber adapters for bar fittings shown in three sizes — 6 pcs. (Includes two 2-inch adapters, two 2.25-inch adapters, and two 2.275-inch adapters).

Assembly Instructions

Step 1

Remove the top half of the clamp. Attach the bottom half of the clamp to the top of the can using the supplied bolts, washer plate, and allen wrench. Make sure that the curved side of the washer plate is facing up.

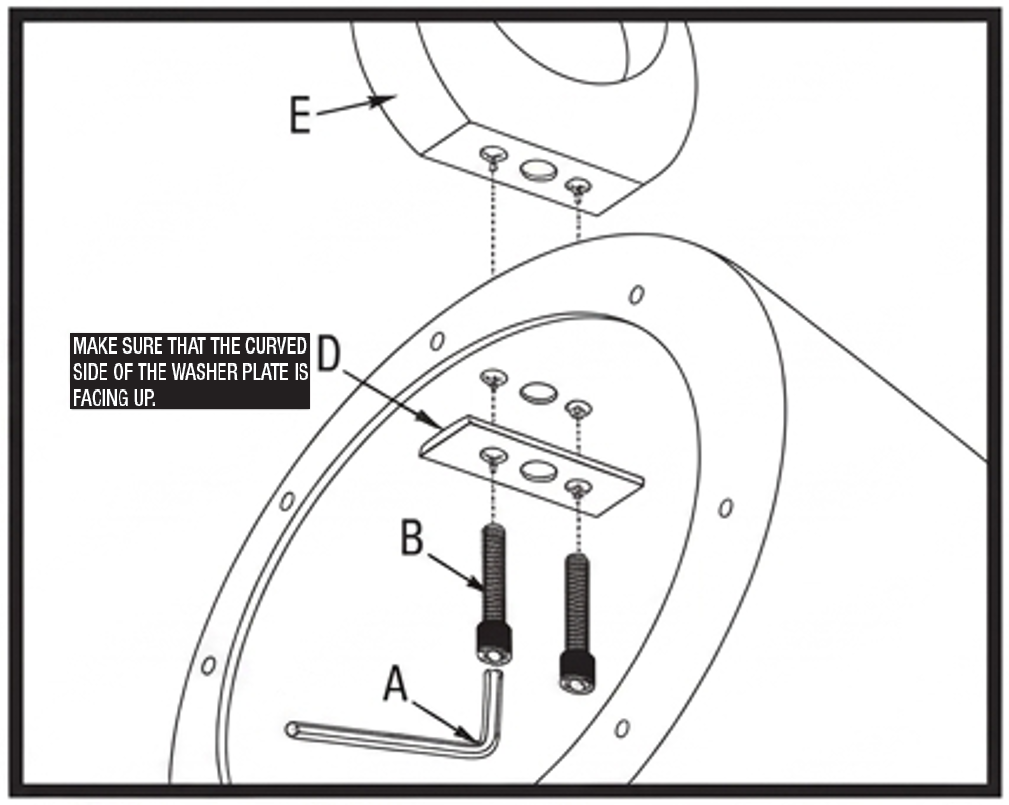

An instructional diagram illustrating the assembly of a pod speaker clamp mechanism using components labeled A, B, D, and E. Assembly View: An exploded view showing the inside of the hollow speaker enclosure. Component Placement: E: Top circular clamp piece positioned above the outside surface of the speaker body. D: Rectangular washer plate placed against the inside top wall of the speaker pod, aligning with holes that line up to clamp section E. B: Two socket-head bolts extending upwards through washer plate D into clamp E, indicated by dotted alignment lines. A: An L-shaped Allen wrench positioned below the head of bolt B to show tightening. Instructional Note: A black text box on the left reads: "MAKE SURE THAT THE CURVED SIDE OF THE WASHER PLATE IS FACING UP."

Step 2

Thread the speaker wire through the predrilled center hole as shown in the illustration.

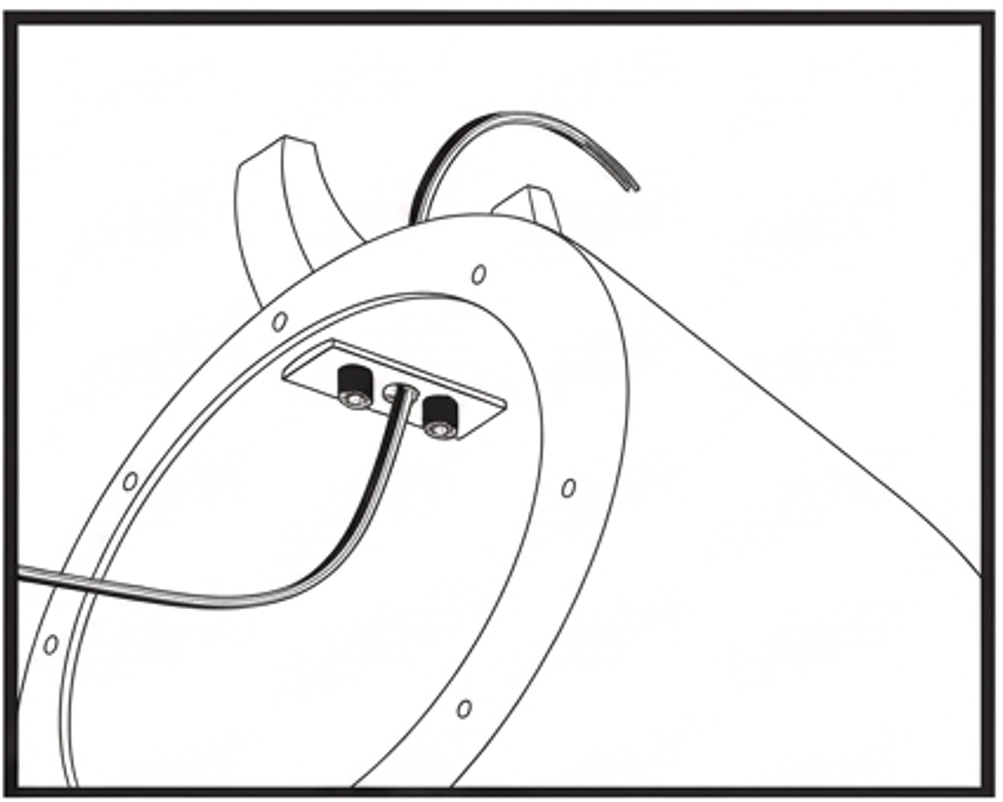

A line-art technical diagram illustrating the wire routing step inside a pod speaker enclosure. Internal Plate: The rectangular washer plate is fully secured against the inside top roof of the speaker pod with two dark socket-head bolts tightened in place on either side. Wire Path: A two-strand speaker wire enters from the open front opening of the hollow speaker pod, feeds directly up through the center hole of the mounted washer plate, and exits out through the top opening of the speaker housing near the clamp base.

Step 3

Before beginning, make sure that the speaker wires are connected to the speaker and that they have been threaded through the predrilled hole at the top of the can. Align the mounting holes on the speaker with the corresponding holes on the can. Use a Phillips head screwdriver to tighten the screws. Although the predrilled holes will accommodate most speakers on the market, there may be some that don’t fit. If that is the case, you can drill holes into lip of the can to line-up with your speaker’s mounting holes.

PLEASE NOTE: The MAC90 does not have predrilled holes. You will need to drill them based on your speakers hole pattern.

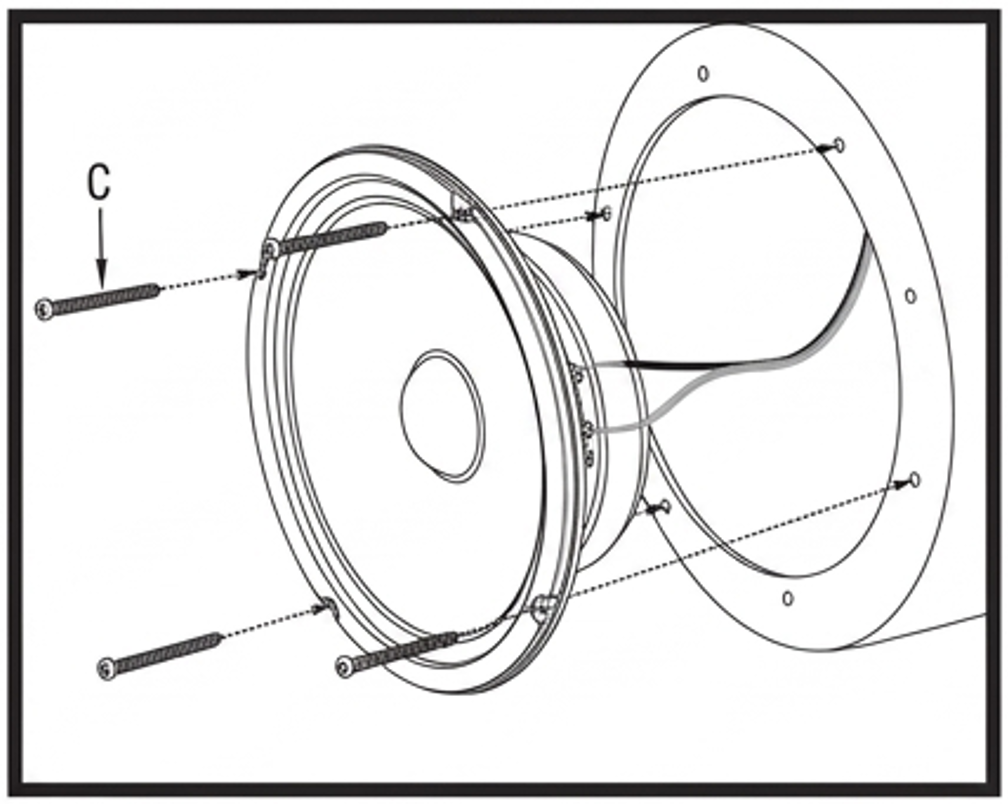

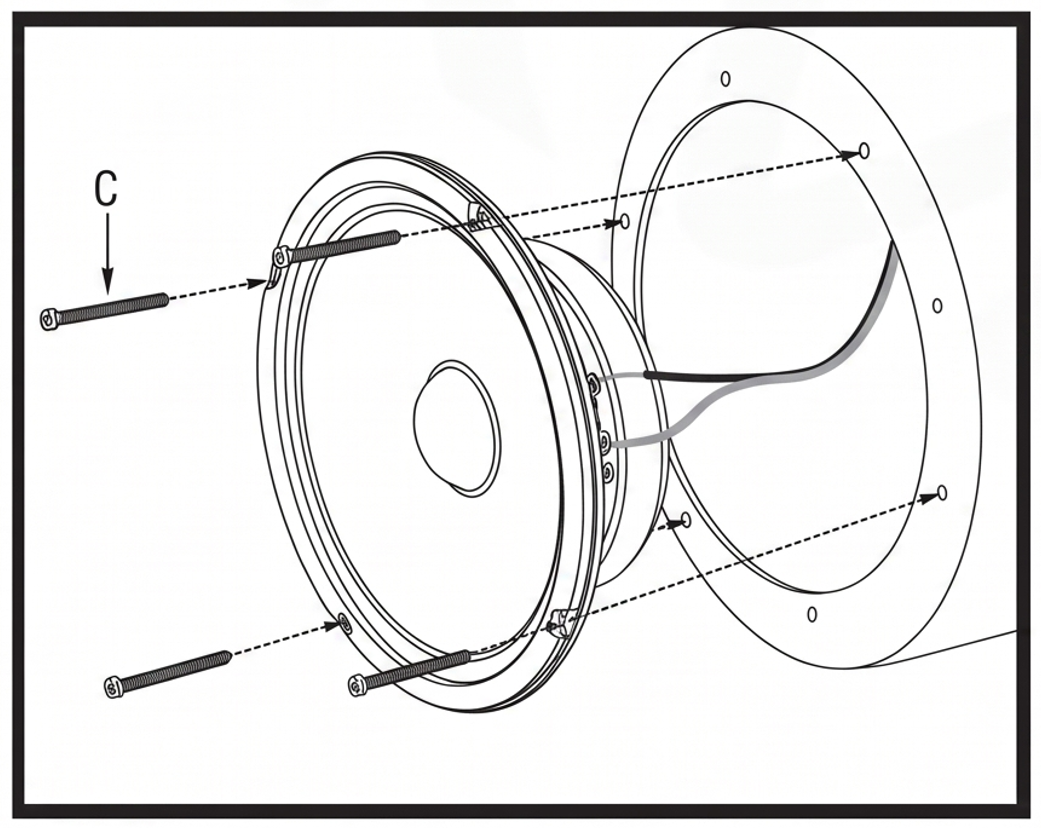

A line-art technical diagram demonstrating the final assembly step of installing the speaker driver into the pod enclosure. Speaker Driver & Wiring: A circular speaker driver is positioned directly in front of the open pod enclosure opening. Two wire leads extend from the interior of the housing and connect to the terminal terminals on the back of the speaker driver. Fasteners (C): Screws labeled with the letter "C" are shown aligned with mounting holes around the outer rim of the speaker driver frame. Alignment Lines: Dotted lines extend from each screw through the outer ring holes of the driver frame and into matching screw holes along the front rim of the pod housing, indicating where to insert and tighten the screws.

Step 4

If your wake tower has predrilled holes for routing speaker cables, insert the cables at this time. If the clamp does not fit snugly, use one of the 4 included rubber inserts. Place the top half of the clamp over the wake tower pole and attach to the lower half. Do not overtighten the screws.

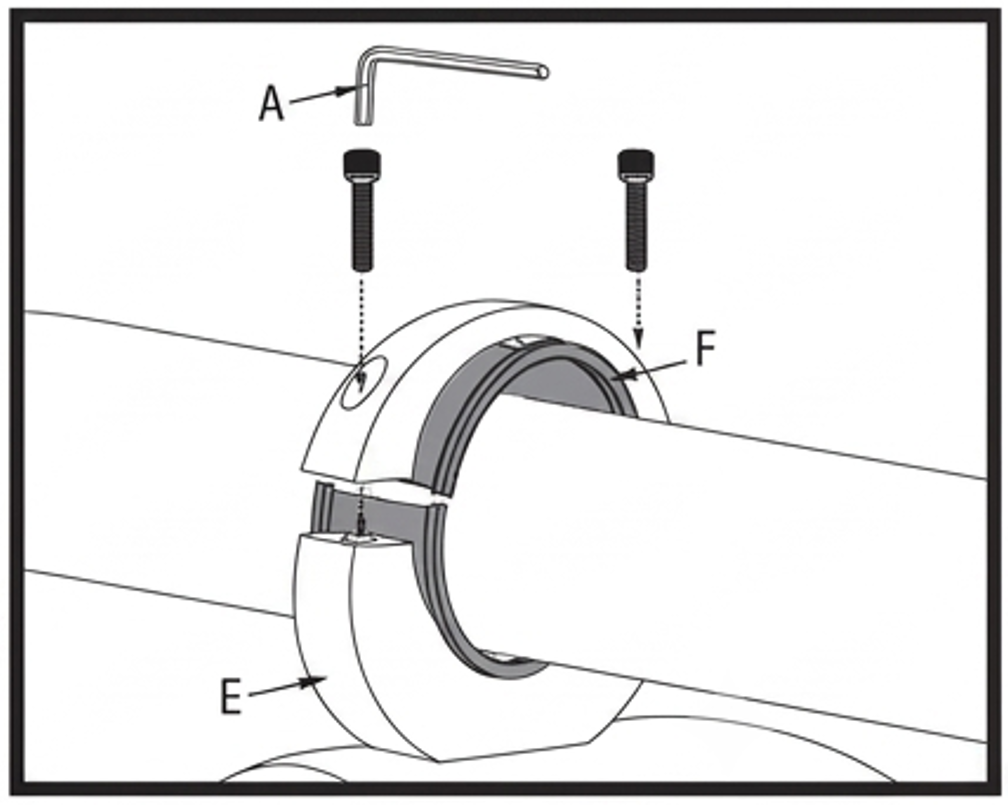

A line-art technical diagram illustrating how to attach the speaker mount to a round tower bar. Bar and Collar Assembly: A horizontal tubular bar passes through the center of a two-piece circular clamp assembly labeled E. Rubber spacer inserts labeled F are lined inside the top and bottom halves of clamp E to cushion the fit around the pipe. Fasteners: Two socket-head bolts are positioned directly above the top half of clamp E. Dotted vertical arrows indicate that each bolt drops down into recessed screw holes on the left and right sides of the upper clamp collar. Tool (A): An L-shaped Allen key wrench labeled A is positioned above the bolts to demonstrate how to tighten them down to clamp both halves around the bar.
