6.5˝ Wakeboard Tower Speakers



Wiring

  1. Amplified Audio Input Positive + (red)
  2. Amplified Audio Input Negative – (black)
  • Connect the speaker positive (1) and negative wires (2) to the corresponding output terminals on the amplifier or receiver.

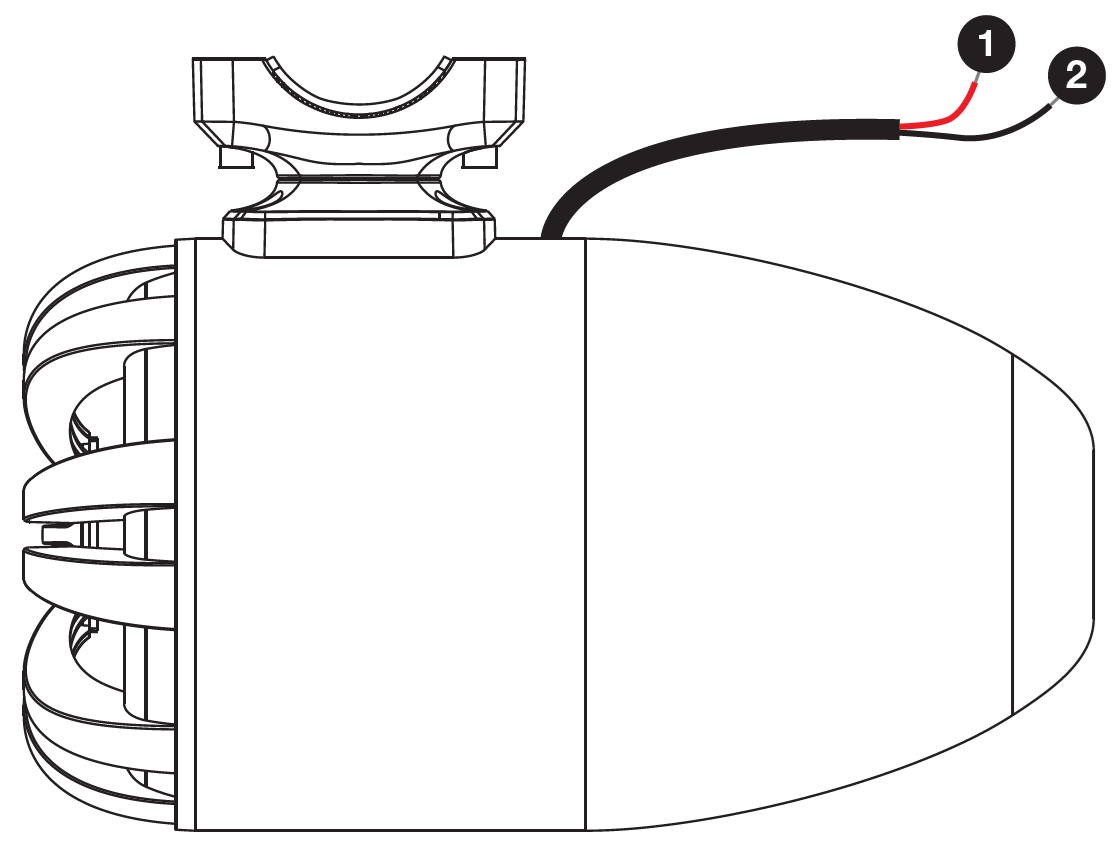

A line-art technical illustration featuring a side profile of a cylindrical, bullet-shaped pod speaker. Mounting Clamp: Attached to the top near the front is a curved mounting bracket designed to attach to a tube or rail. Wiring Harness: A black cable extends from the top surface behind the mounting bracket. The cable strips into two exposed wire leads at the end: 1: A red wire labeled with a black circled number 1. 2: A black wire labeled with a black circled number 2. Speaker Body: The left side shows the speaker grille face with ribbed vertical bars, while the main body tapers off into a rounded dome shape on the right.



360° Rotation Function

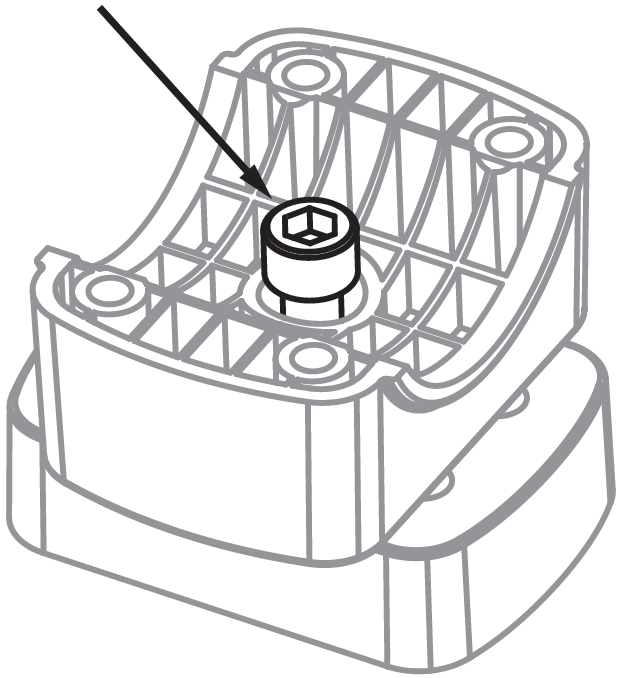

  1. Use an Allen wrench to loosen the rotation adjustment screw.Line drawing showing a black arrow pointing to an Allen socket head bolt seated inside the center recess of a curved mounting clamp base.

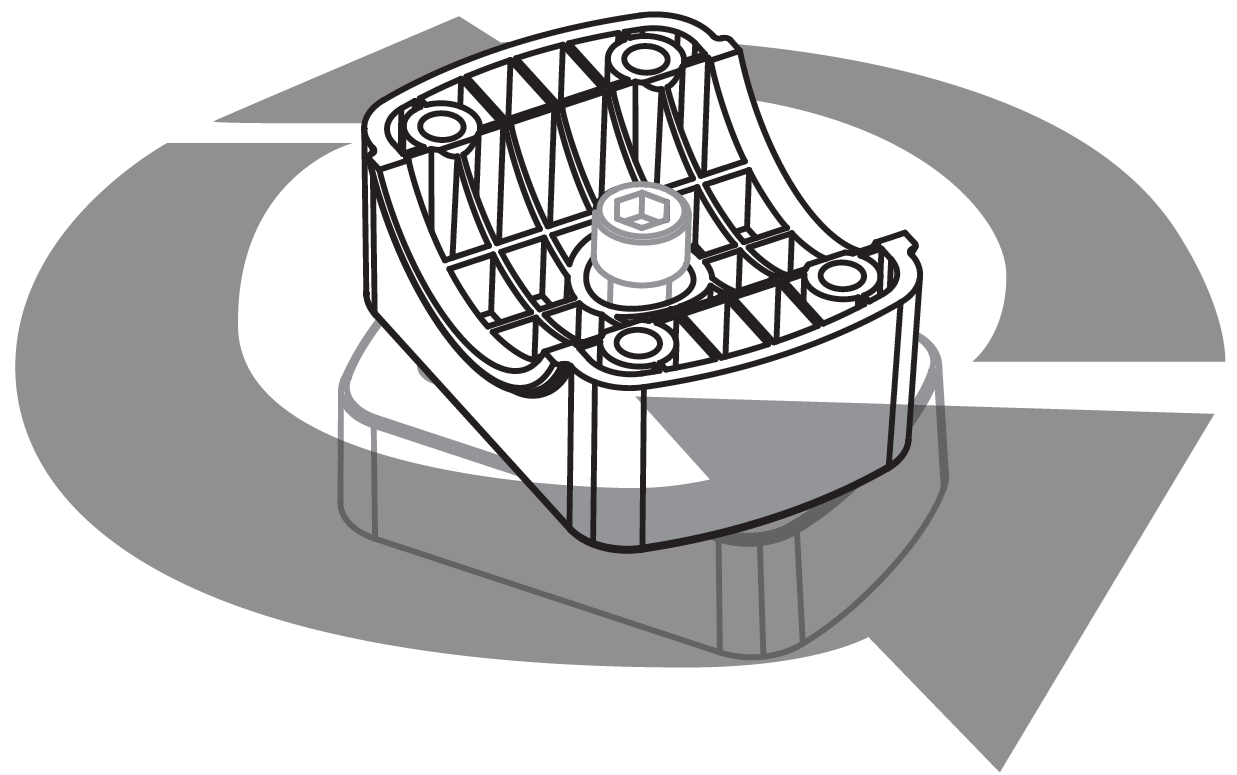

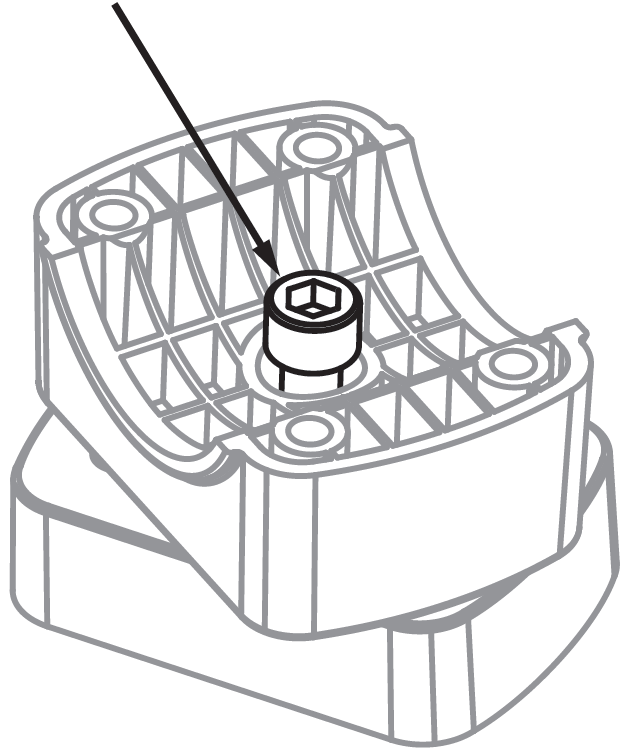

  2. Rotate the lower mounting bracket to the desired position.Line drawing showing a curved mounting clamp base being rotated relative to its underlying mount, with a large circular arrow indicating rotation.

  3. Tighten the rotation adjustment screw. Do not overtighten.mounting clamp.


Mounting Bracket

Bracket expands from 1.75˝ to 2.5˝ to fit a variety of wakeboard tower tube diameters. When making adjustments, use an Allen wrench to loosen and tighten the screws.

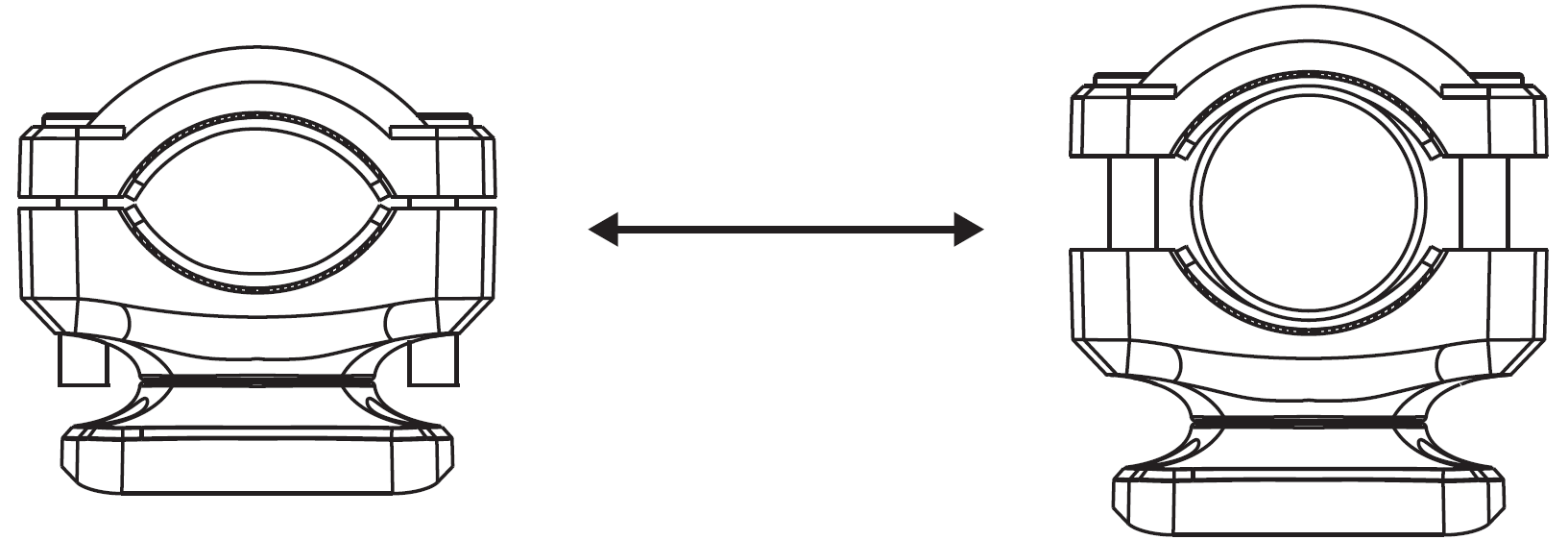

Line drawing of two mounting clamps connected by a double-headed arrow, showing an oval rubber insert setup on the left versus a circular rubber insert setup on the right.

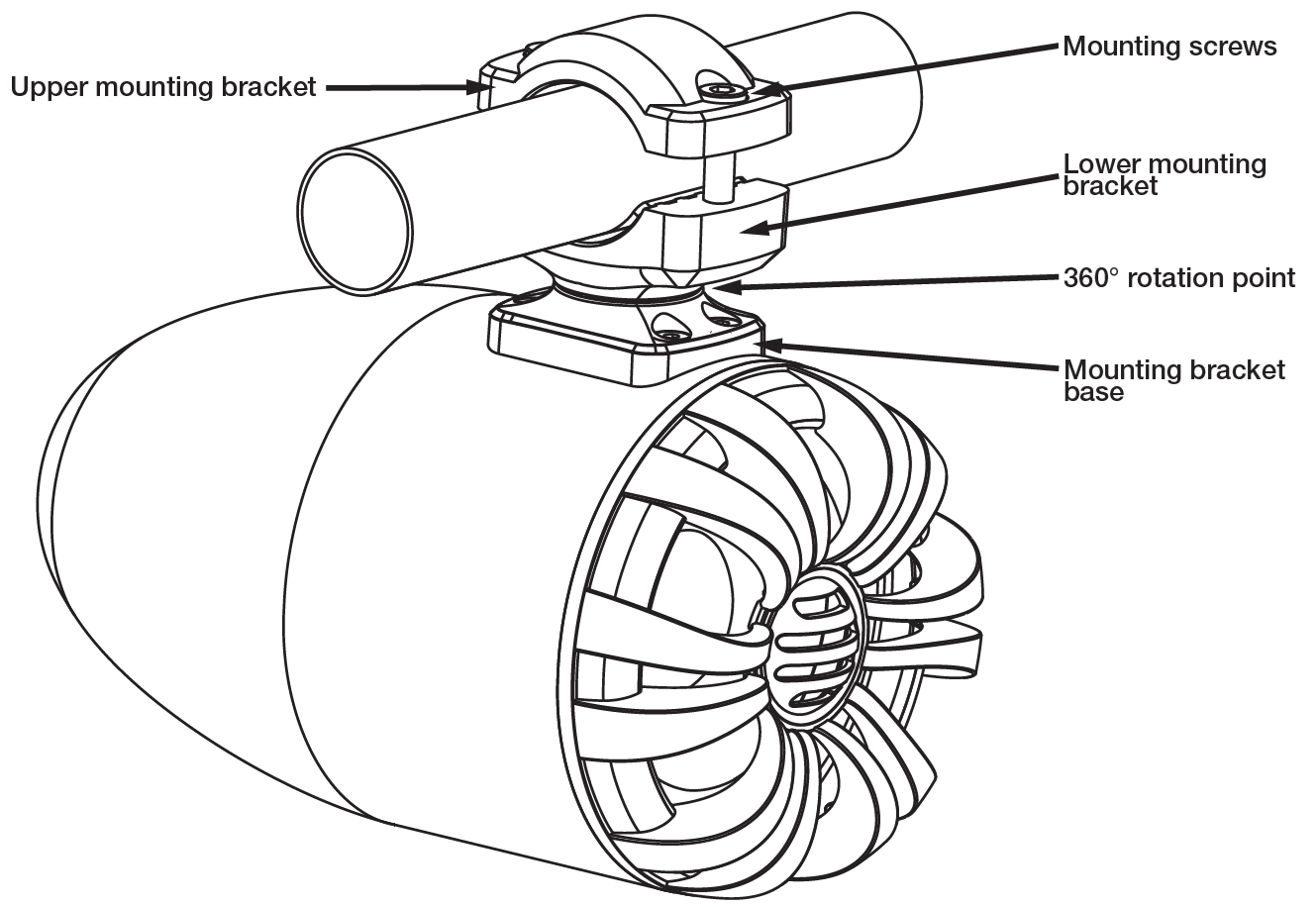

Overview: A line drawing depicting a bullet-style pod speaker clamped onto a cylindrical bar, with text callouts and arrows labeling the assembly hardware from top to bottom. Labeled Components: Upper mounting bracket: The top curved piece of the clamp resting over the horizontal bar. Mounting screws: The fastners securing the top clamp to the lower assembly. Lower mounting bracket: The bottom curved section supporting the underside of the horizontal bar. 360° rotation point: The swiveling joint connecting the lower clamp to the mounting base. Mounting bracket base: The base plate secured to the top housing of the pod speaker.



Features

  • Peak power handling per speaker: 300 Watts
  • RMS power handling per speaker: 150 Watts
  • Frequency response: 500Hz – 20KHz
  • Sound pressure level: 90dB
  • Impedance: 4 Ohms
  • Full function remote controls LED functions
  • Multi-color LEDs (blue, red, green, yellow, pink, purple, and white) with 20 static colors
  • 22 Dynamic modes
  • Steel enclosure
  • Aluminum mounting bracket
  • Quick and easy speaker angle adjustment
  • Bracket rotates 360°
  • 1˝ titanium dome tweeter
  • Fully marinized against salt & fresh water conditions
  • Completely resistant to water, rust, and UV rays
  • Polypropylene mica injected cone with rubber surround
  • 15oz high density magnet
  • 1˝ voice coil • CE and RoHS certified
  • These wakeboard speakers fit bars ranging from 1.75˝ – 2.5˝
  • Dimensions per speaker (H x W x D): 7.8˝ x 7.8˝ x 11.8˝
  • Weight per speaker: 5.3 lbs.
  • Available Colors: Polished Silver and Black
