PSP5 Owner's Manual

Keith Harris
Updated

Universal Phantom Power Supply for Condenser Microphones, 48V



Functions

  1. LED Power indicator
  2. Power Button

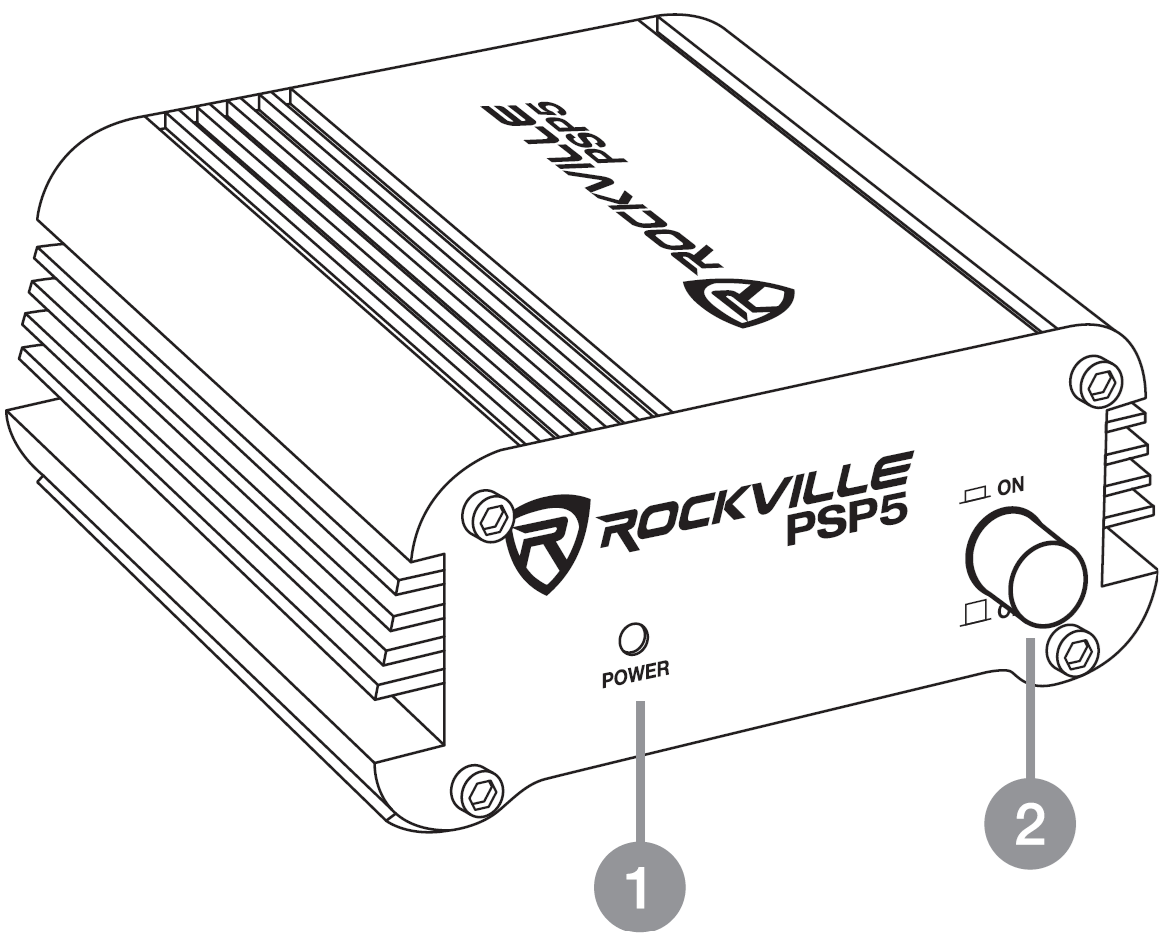

A line art illustration of the Rockville PSP5 power supply unit, viewed from a three-quarter angle. The top and sides feature heat sink fins. The front panel includes: The Rockville PSP5 logo printed at the center-top. A small circular POWER light near the bottom center, labeled with a gray callout number 1. A cylindrical power knob/switch on the right side labeled ON and OFF, indicated by a gray callout number 2.
  1. Power Input
  2. Audio Output
  3. Audio Input

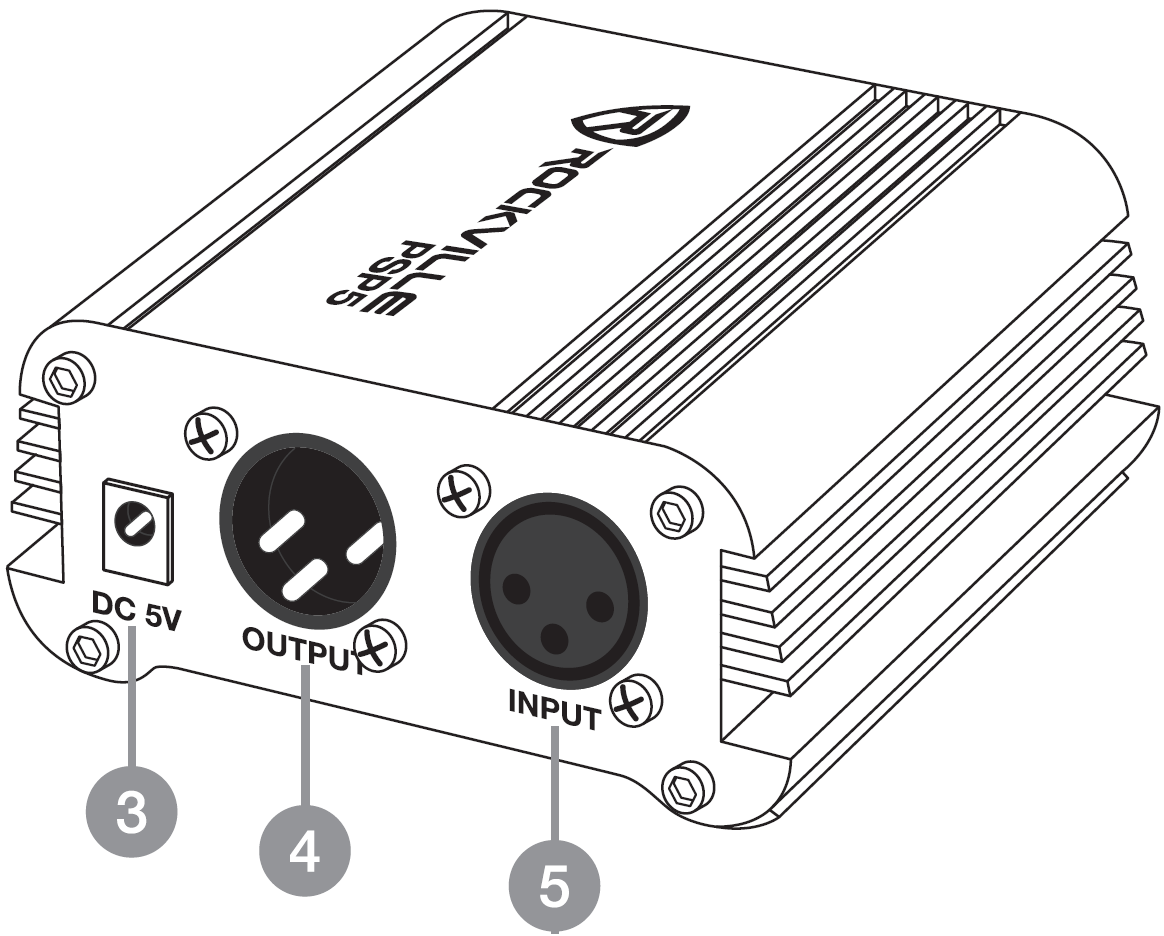

A line art illustration of the rear panel of the Rockville PSP5 power supply unit, viewed from a three-quarter angle with ribbed heat sink fins visible along the side. The back panel features three numbered connection points: 3: A small DC 5V power input port located on the far left. 4: A male XLR port labeled OUTPUT in the center. 5: A female XLR port labeled INPUT on the right.



Set-Up

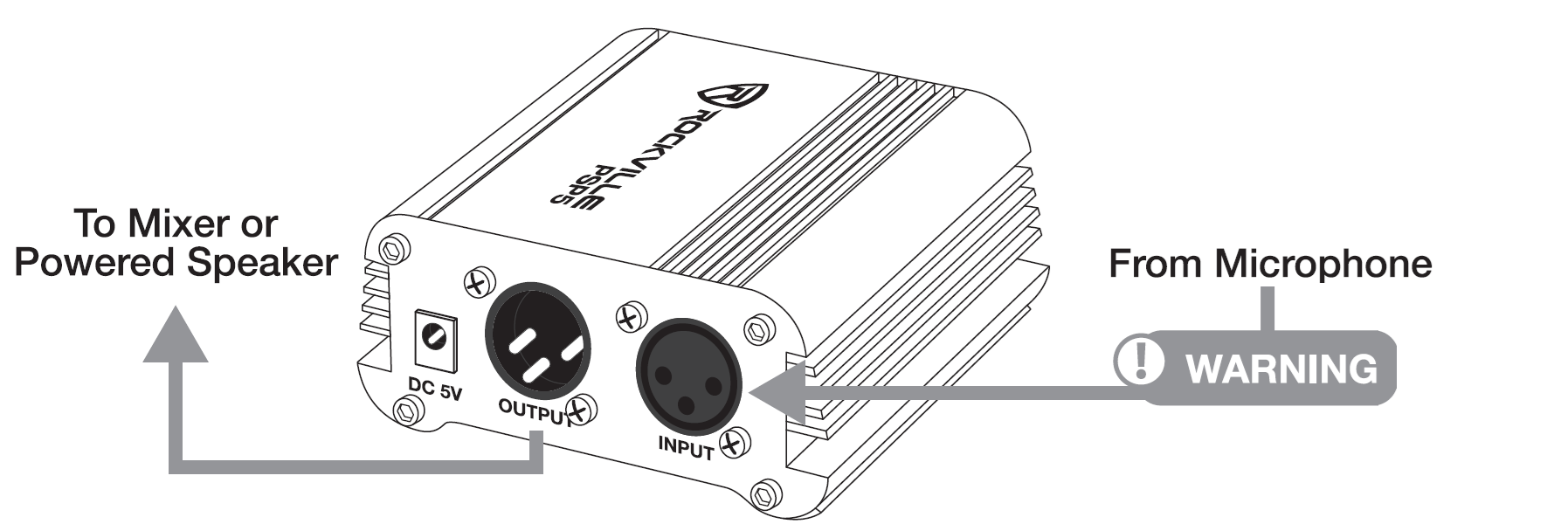

Line drawing diagram showing connection instructions for the rear panel of a Rockville PSP5: an arrow points from "To Mixer or Powered Speaker" to the OUTPUT port, and an arrow labeled "WARNING" points from "From Microphone" to the INPUT port.

⚠️Warning: Before you disconnect or connect a mic to the PSP5, be sure to turn off the power. Failure to do so could result in severe damage to the microphone.



Specifications

  • Power Supply Mode: DC 48V
  • Input Current: >200mA
  • Working Current: <100mA
  • Output Voltage: DC 48V
  • Consumption Power: <1W
  • Noise: <1uV
  • Input Port: Balanced XLR
  • Output Port: Balanced XLR
