RPW20 Owner's Manual

Keith Harris
Updated

Wall Mount PA Speaker Brackets with 110lb Capacity



Items Included w/ Wall Bracket Kit

  • 2x wall brackets
  • 6x carriage bolts
  • 6x M10 washers
  • 6x wall plugs
  • 1x 10mm masonry drill bit
  • 1x 13mm spanner



Tools Needed

  • Electric Drill
  • Level
  • Hammer



Instructions

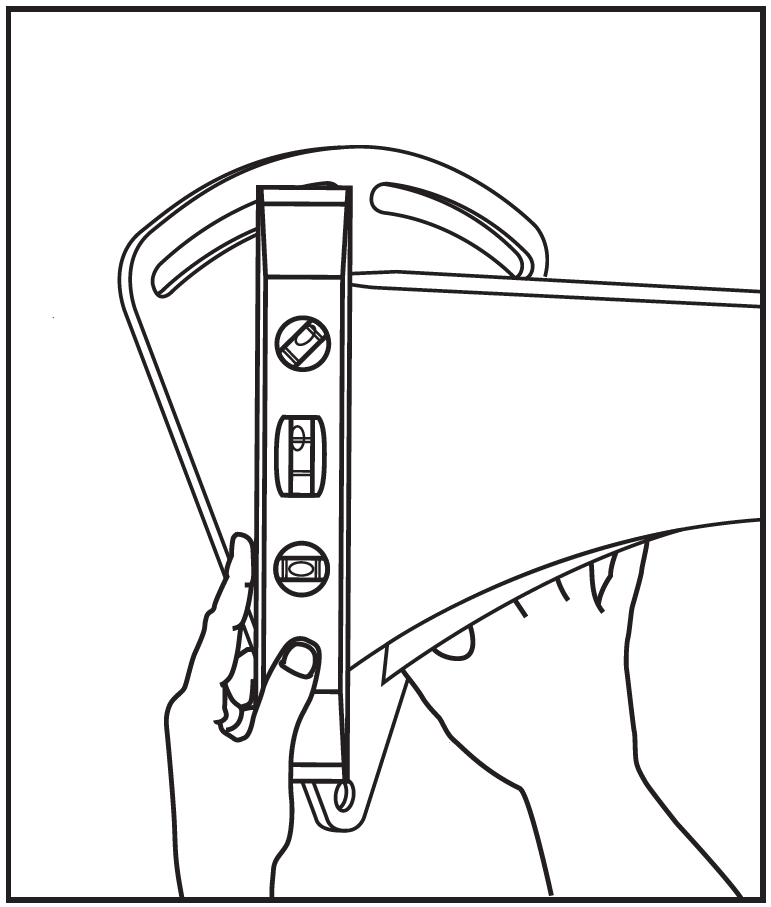

1.) Press the plate of the bracket up against the wall so that it's flush. Use small level to ensure the mount is level.
A line drawing demonstrating how to check vertical alignment during bracket installation: Level Measurement: A handheld spirit level (bubble level) is held vertically against the front flat surface of a wall-mounting bracket base. Hands Positioning: Two hands support the assembly; one hand holds the spirit level upright against the mounting bracket, while the other holds the extended arm/flange of the wall bracket to make adjustments until the bubble indicates a plumb, vertical orientation. Bracket Detail: The mounting bracket features a rounded curved top slot for tilt/swivel adjustments and lower mounting bolt holes.

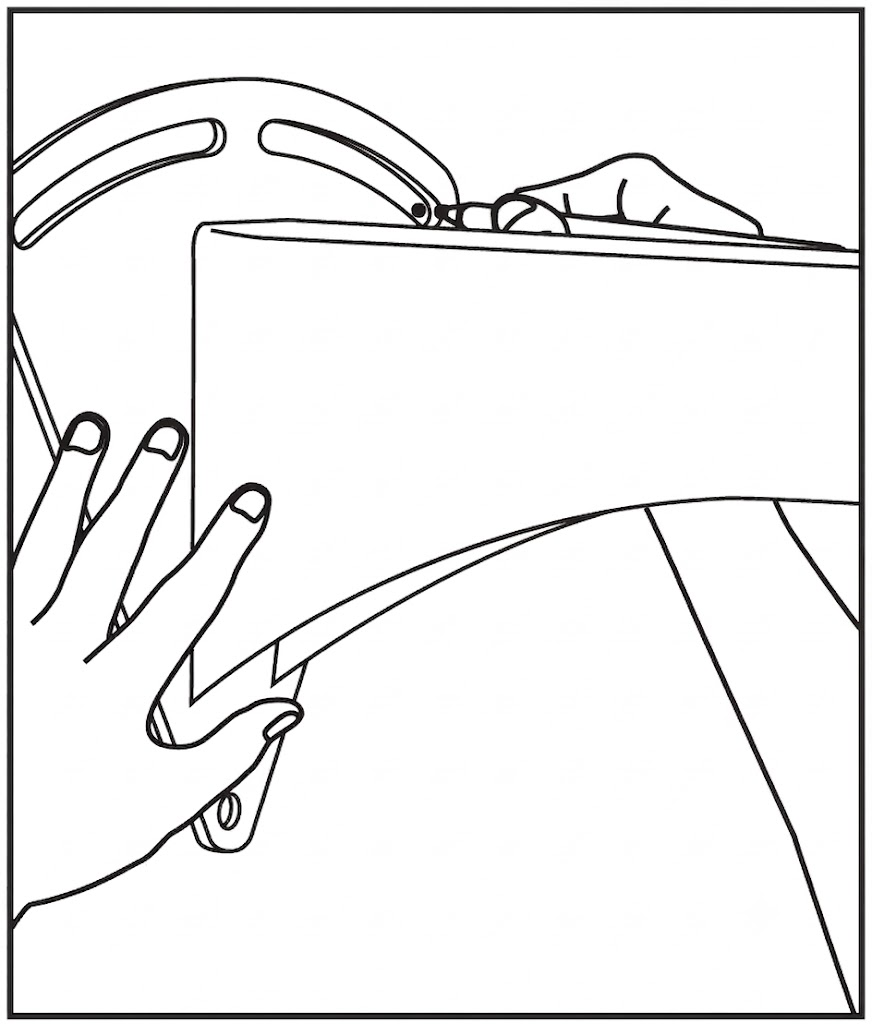

2.) Use a marker to mark a spot on the top left and top right corners (or wherever you prefer) to drill. Do the same for the bottom.
A line drawing demonstrating how to mark drilling holes for a wall-mount speaker bracket: Bracket Position: A person holds a metal mounting bracket flush against the installation surface with their left hand. The upper portion of the bracket features curved adjustment slots. Marking Action: The installer uses a pen or marker held in their right hand to trace or mark a drill point through the top curved adjustment slot on the bracket face.

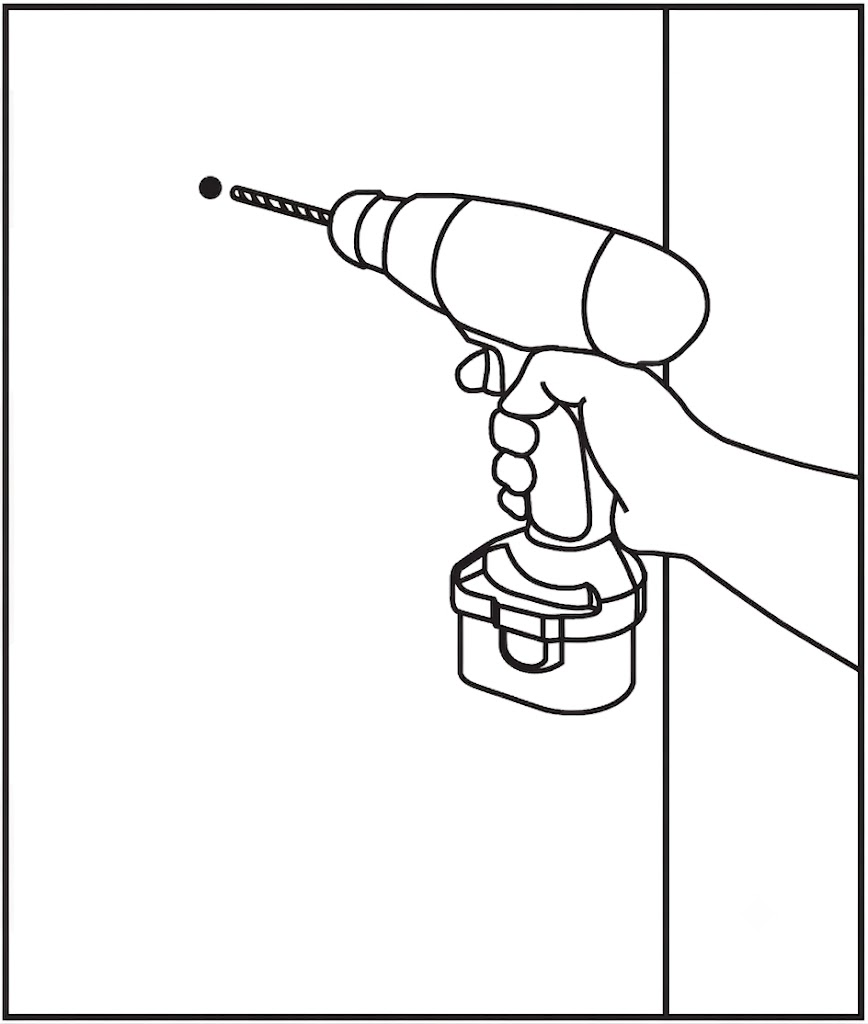

3.) Using a drill and the included bit, drill a hole where you made your first mark. Make sure the hole is deep enough to fit the included wall plugs. We recommend realigning the hole with the bracket, leveling it, and remarking it with the other side in case it moved.
A technical line drawing depicting a step in wall-mounting installation: Power Tool Action: A hand holds a cordless power drill fitted with a drill bit, pointing it directly toward a small black circular mark on a flat wall surface. Alignment: The drill bit is aligned perpendicular to the marked pilot-hole location in preparation for drilling into the wall.

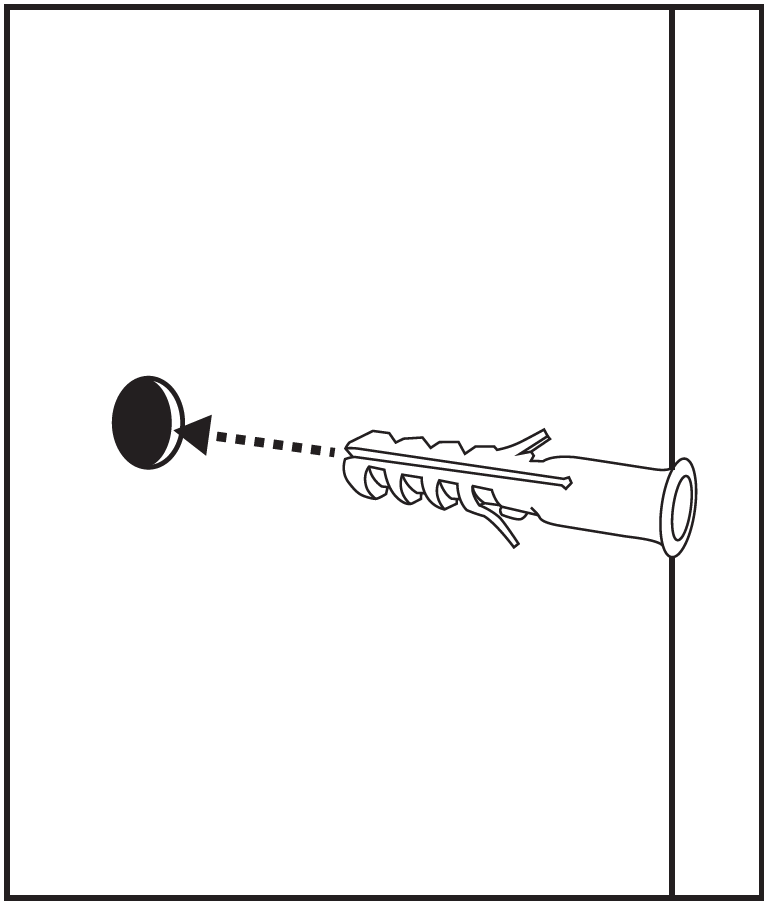

4.) Insert the plugs and tap in with hammer if needed.
A line drawing illustrating wall anchor installation: Hardware Component: A ribbed plastic wall anchor is positioned horizontally to the right of a drilled pilot hole. Insertion Direction: A black dashed arrow points left from the tip of the plastic anchor directly toward the dark pre-drilled hole in the wall, indicating that the anchor should be pressed into place flush against the surface.

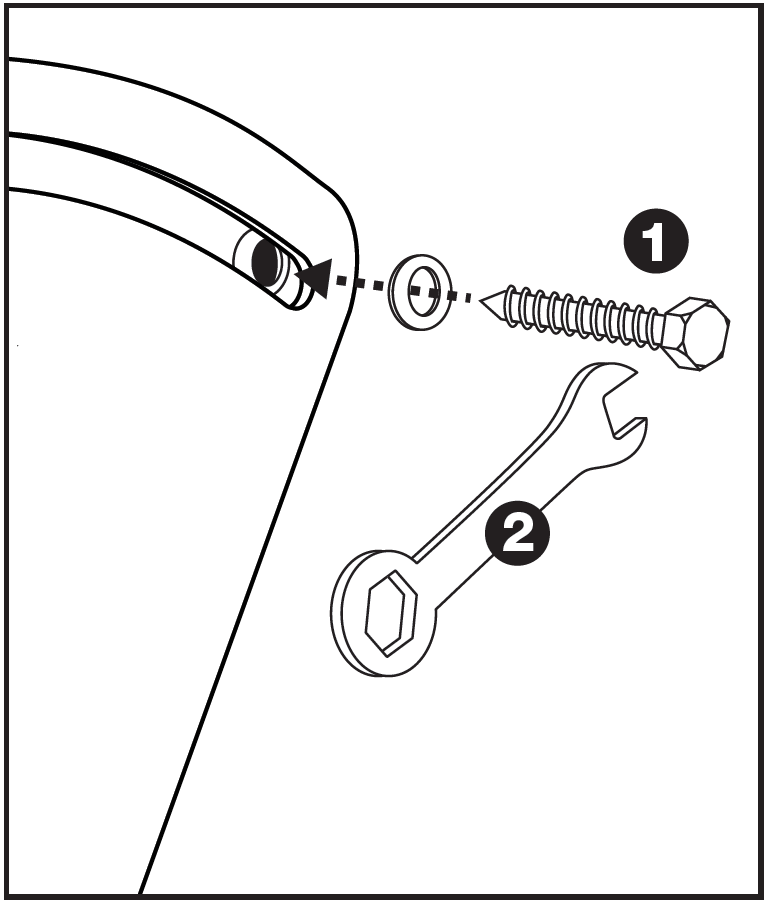

5.) Place the wall bracket into position over the holes and insert the carriage bolts with the washer (step 1). Tighten the carriage bolts with the spanner (step 2).
A line drawing illustrating bracket attachment hardware assembly: Fastener Assembly (Labeled 1): A hex-head lag screw passes through a flat washer. A dashed line with an arrow indicates inserting the screw and washer into an elongated mounting slot on the curved speaker bracket arm. Tool (Labeled 2): A dual-ended wrench (combination open-ended and box wrench) is shown below the fastener assembly to tighten the hex bolt into place.

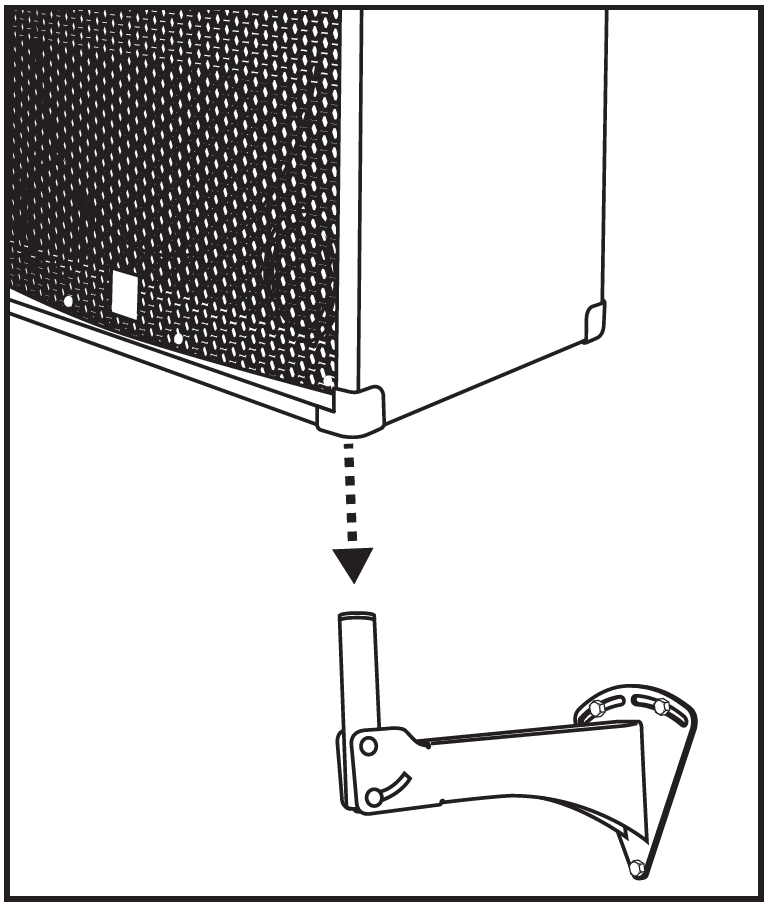

6.) Mount the speaker on to the pole section.
A line drawing illustrating how to mount a speaker cabinet onto a wall bracket: Speaker Cabinet: The bottom corner of a PA speaker cabinet with a front mesh grille is positioned above the wall mount assembly. Wall Mount Assembly: A heavy-duty wall bracket is secured to a wall with three bolts, extending horizontally into a vertical mounting pole adapter. Lowering Action: A downward-pointing dashed arrow indicates sliding the bottom pole socket of the speaker cabinet down onto the vertical post of the wall bracket.
