IPS44 Owner's Manual

Keith Harris
Updated

Smartphone/Tablet Mounting System - Clamps to Stands or Desks

The IPS44 stand/desk mount by Rockville supports most phones and tablets. This mount is made of the same quality materials as our professional microphone stands. It holds screens from 4.7˝ – 12.9˝. This means it will work with iPad, iPad mini, iPad pro, iPhone 6, iPhone 7, Samsung Galaxy, and most other tablets and phones. To check if your device is compatible, measure the screen on your device diagonally. If it is within 4.7˝ – 12.9˝ then you are good to go.

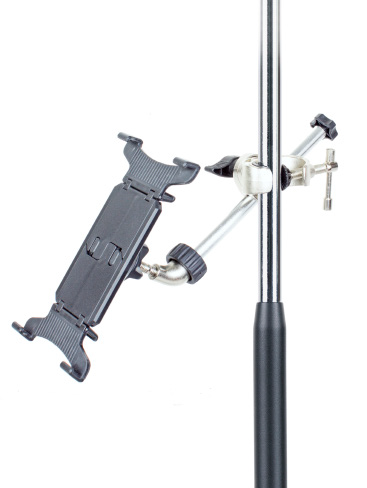

The IPS44 can be mounted directly to any microphone stand. The C shaped clamp fits anything 1˝ diameter or smaller. It is fully collapsible for travelling or easy storage. The tablet/phone holder can be oriented horizontally or vertically and it can swivel so as to achieve the best viewing angle.



Tablet/Phone Holder Functions

Retracted

Extended

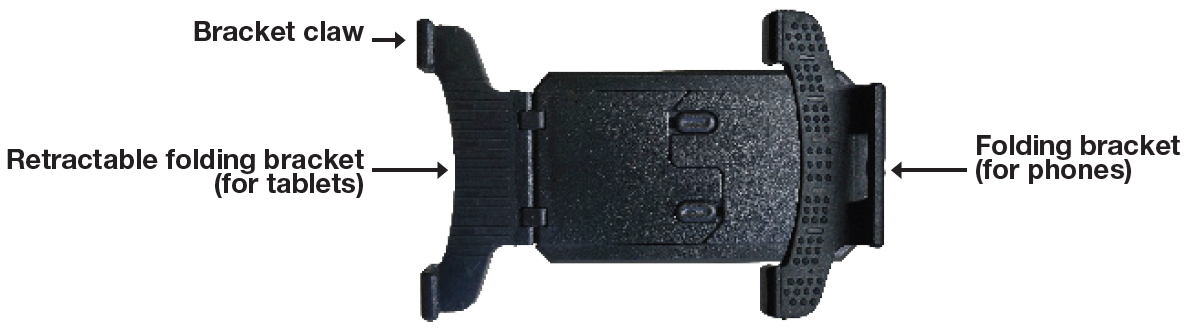

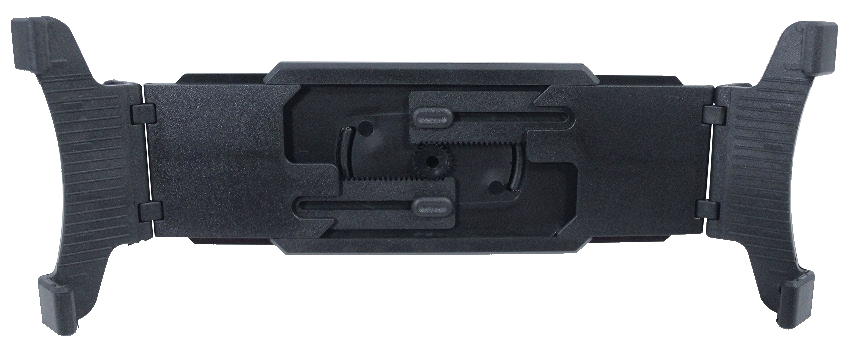

A labeled diagram of a universal black plastic device holder showing its adjustable clamping features: Bracket Claw: An arrow at the top-left points to the raised gripping edge at the tip of the left arm, labeled "Bracket claw." Retractable Folding Bracket (for tablets): An arrow on the left points to the wide, hinged extension arm on the left side, labeled "Retractable folding bracket (for tablets)." Folding Bracket (for phones): An arrow on the right points to a smaller secondary flip-out bracket on the right end, labeled "Folding bracket (for phones)." Center Base: The central body features a textured surface with mounting slots for attaching to a stand arm or swivel joint.

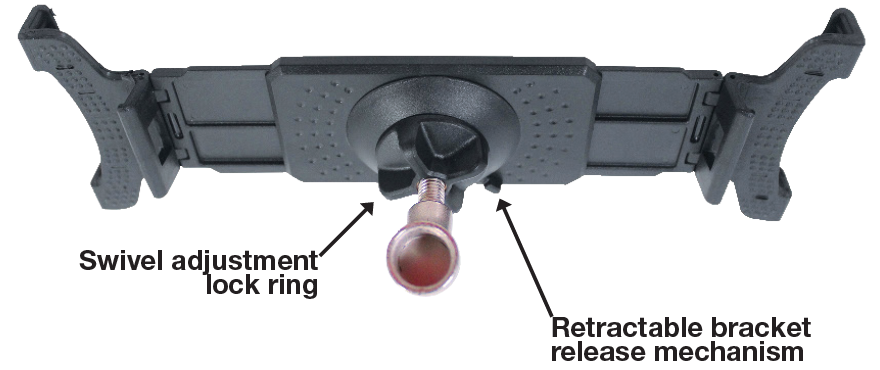

A labeled diagram showing the back side of an expanded black plastic tablet mount with a central mounting stem: Swivel Adjustment Lock Ring: An arrow on the left points to a threaded black plastic collar at the center back, labeled "Swivel adjustment lock ring," which secures a ball-and-socket joint connected to a metal mounting eyelet. Retractable Bracket Release Mechanism: An arrow on the right points to a small tab near the lower edge of the center housing, labeled "Retractable bracket release mechanism," used to unlock and adjust the expanding side arms. Structure: The two outer bracket arms extend symmetrically to the left and right, featuring textured gripping pads at each corner.



Clamp Functions

Attaching Tablet/Phone to Holder:

The clamp allows for adjustment of height and angle.

To attach the clamp and adjust the height:

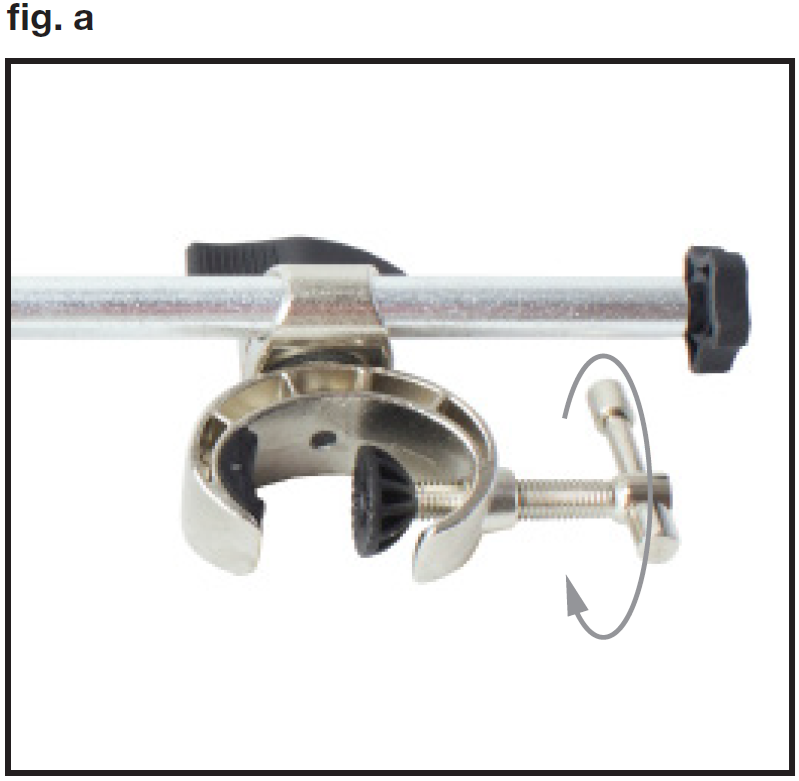

1. To loosen the clamp and open it to its widest position, turn the handle counter clockwise (fig. a).
An instructional photo labeled "fig. a" in the top-left corner demonstrates adjusting a metal pole clamp assembly: Pole and Extension Rod: A slim silver metal rod passes horizontally through a top collar secured with a black thumb knob. C-Clamp Assembly: A curved metallic C-clamp hangs vertically below the top collar, lined with a black inner protective pad. T-Bar Screw Adjustment: A threaded bolt with a black pad tip extends into the clamp jaw, controlled by a silver T-bar handle on the right. A circular grey arrow around the handle indicates turning it to tighten or loosen the clamp jaw against a support pole.

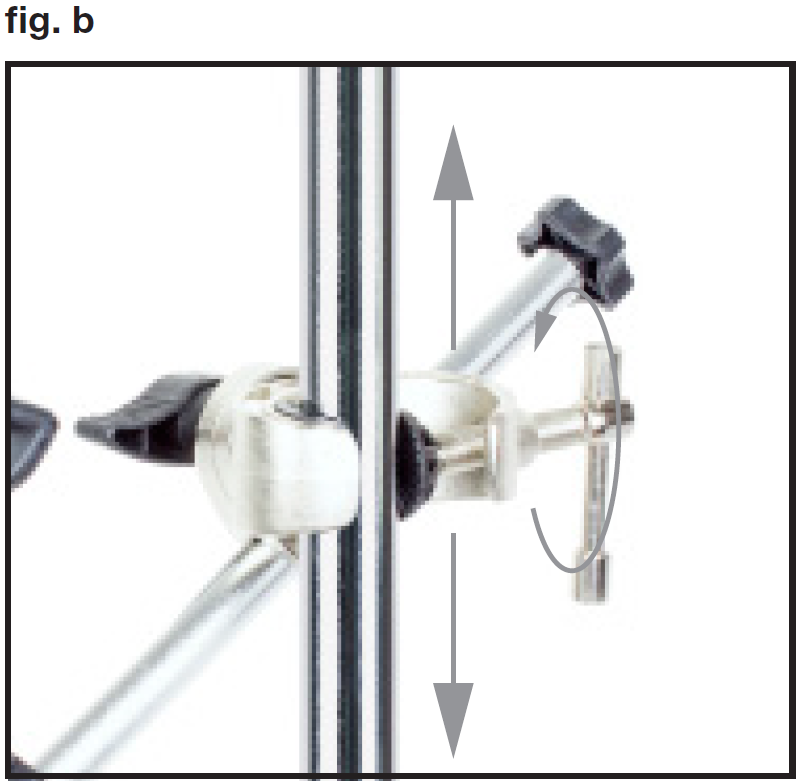

2. Place the clamp on the mic stand, set to the desired height, and secure the clamp to the mic stand by turning the handle clockwise (fig. b). Do not over tighten.
An instructional photo labeled "fig. b" in the top-left corner demonstrates attaching and adjusting the clamp on a vertical support shaft: Vertical Mounting: The metallic C-clamp is fitted around a vertical stand pole or shaft. Height Adjustment: Straight vertical arrows pointing up and down along the pole show that the assembly can slide up or down to set the desired height when loosened. Tightening Mechanism: A circular grey arrow around the silver T-bar screw handle on the right indicates rotating the handle to secure the clamp firmly in place on the vertical pole.

To adjust the angle and location of the clamp arm:

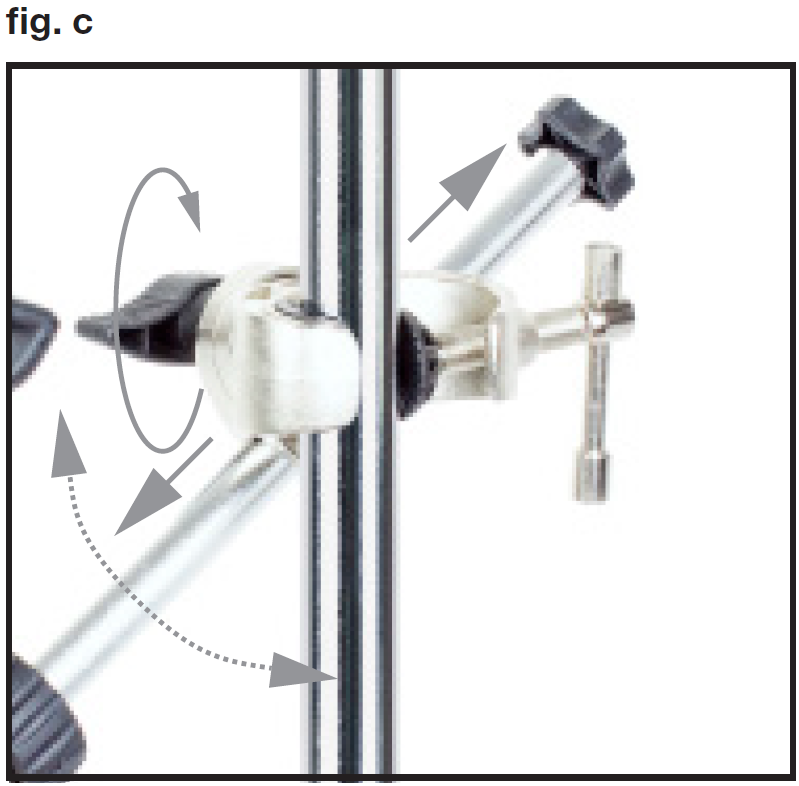

1. Loosen the locking knob by turning it counter clockwise. Adjust the angle of the arm by turning it clockwise or counter clockwise. You can also adjust the location of the arm by sliding forward or back (fig. c).
An instructional photo labeled "fig. c" in the top-left corner demonstrates the tilt, extension, and rotation adjustments for the crossbar boom assembly: Locking Knob Rotation: A circular grey arrow around the black wing-style knob on the top clamp indicates turning it to loosen or lock the extension arm position. Extension & Slide: Straight grey arrows along the length of the angled metal crossbar show that it can slide forward or backward through the collar to adjust reach. Angle Adjustment / Pivot: A curved, dashed grey arrow near the base of the crossbar indicates that the entire arm assembly can tilt up or down to set the desired angle relative to the main vertical pole.

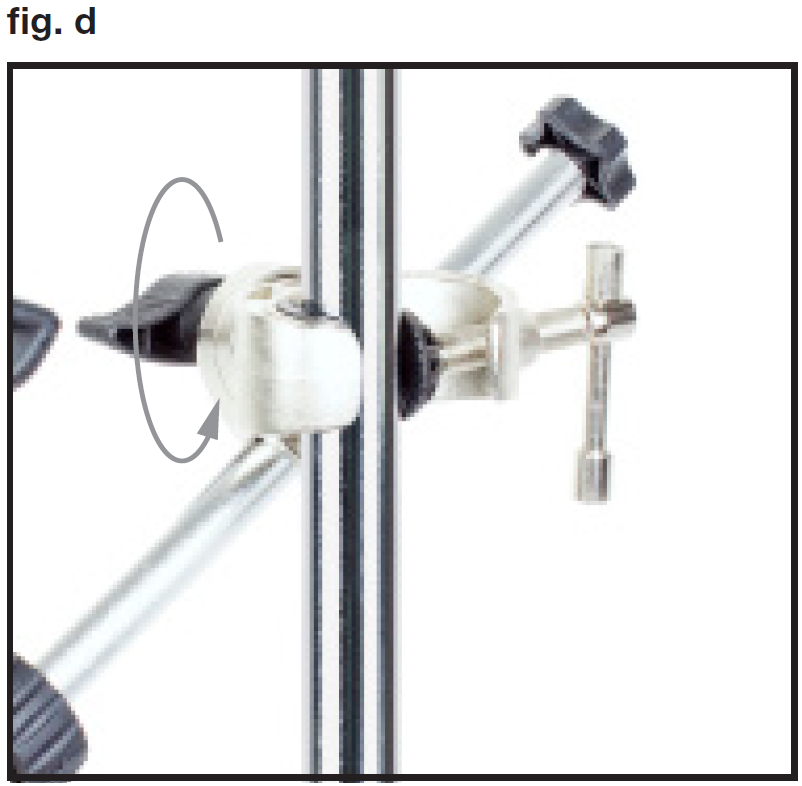

2. Once your adjustments are complete, tighten the locking knob by turning it clockwise (fig. d). Do not over tighten.
An instructional photo labeled "fig. d" in the top-left corner demonstrates securing the final adjustments on the boom clamp assembly: Locking Action: A prominent circular grey arrow wraps vertically around the black wing-style knob on the left side of the upper collar. Mechanism Details: Turning this knob tightens the collar, securing both the tilt angle and the extension length of the crossbar arm relative to the vertical pole. Overall Setup: The metallic C-clamp remains anchored to the central vertical pole on the right using the T-bar screw handle.

Attaching the Holder to the Clamp Arm:

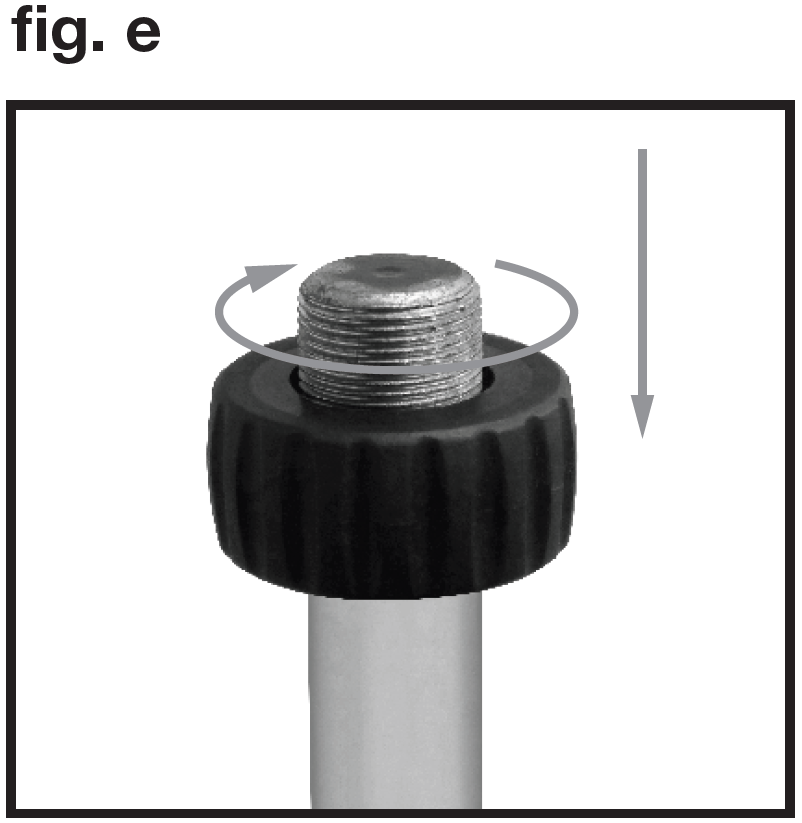

1. Tighten the knurled screw until it stops (fig. e).
An instructional photo labeled "fig. e" in the top-left corner details adjusting the base lock washer or locking ring on a microphone stand shaft: Threaded Stem: A metallic vertical extension rod features an exposed threaded male top section designed for mounting a microphone clip or accessory. Locking Ring: A knurled black plastic locking ring (or lock washer collar) is threaded onto the stem below the exposed threads. Adjustment Direction: A circular grey arrow wrapping around the top of the ring indicates rotating it clockwise. A vertical grey arrow pointing downward along the right side indicates threading the ring lower down the stem toward the smooth lower shaft.

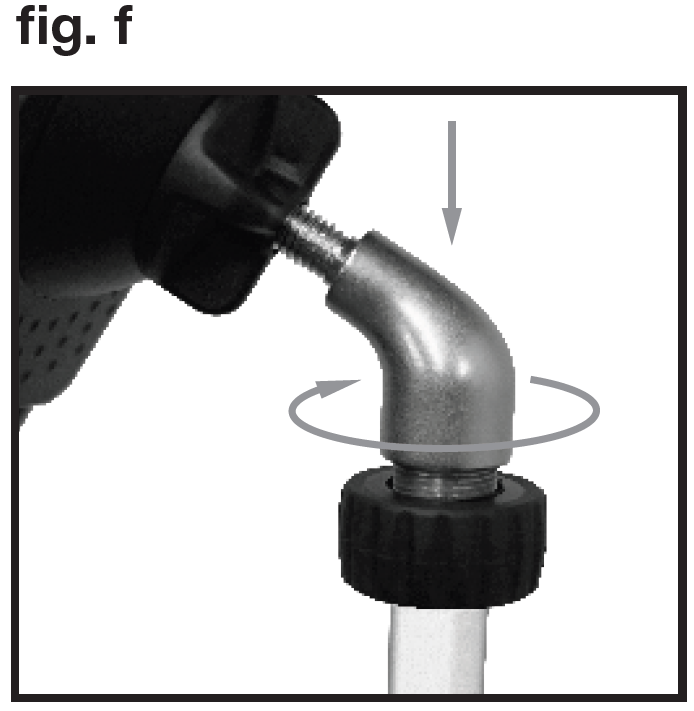

2. Screw the holder to the threaded pin (fig. f).
An instructional photo labeled "fig. f" in the top-left corner demonstrates threading a microphone clip adapter onto the stand stem: Mounting the Adapter: A curved, metallic elbow adapter (with a threaded bolt end holding a microphone clip tightening knob) is positioned above the threaded stem. Rotation & Alignment: A circular grey arrow around the elbow joint indicates screwing the adapter clockwise onto the top threads of the vertical stand. A vertical grey arrow pointing downward above the adapter indicates pressing down slightly as it threads into place above the black locking ring.

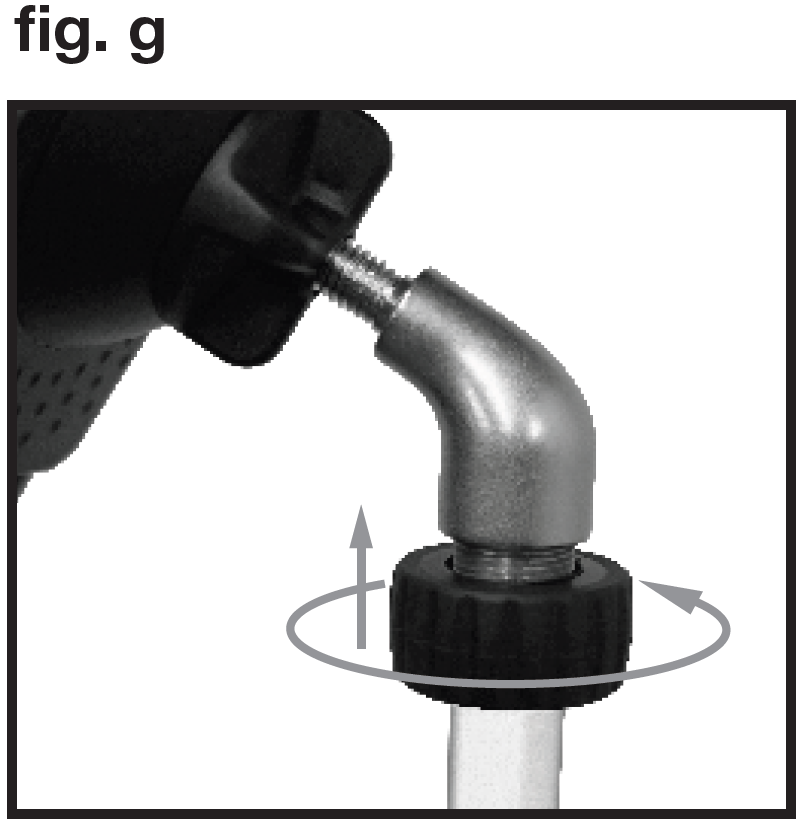

3. Now tighten the knurled screw snug to the bottom of the holder (fig. g).
An instructional photo labeled "fig. g" in the top-left corner demonstrates securing and locking the microphone adapter in place: Locking Action: A circular grey arrow wrapping around the black locking ring indicates rotating it counterclockwise. A vertical grey arrow pointing upward on the left side shows the ring moving up the threads to press firmly against the bottom of the metallic elbow adapter. Secured Assembly: Tightening the ring upward against the adapter locks the joint in place, preventing the microphone clip from loosening or spinning during use.

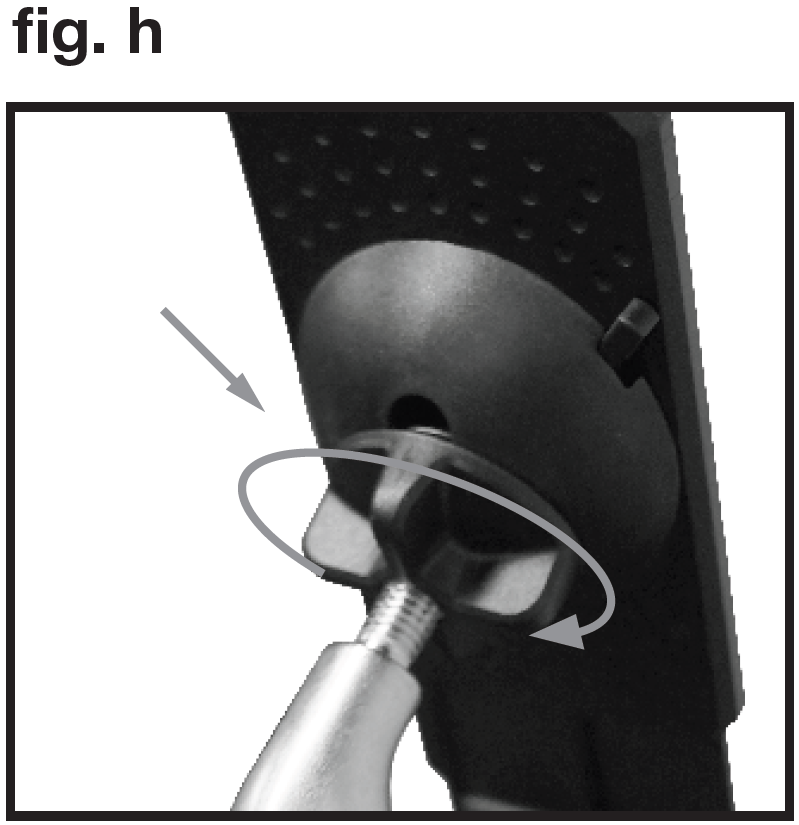

4. Tighten the wing nut at the base of the holder (fig. h). Do not over tighten.
An instructional photo labeled "fig. h" in the top-left corner demonstrates attaching and securing an equipment holder or tray to the mounting arm: Mounting Point: The threaded stud extending from the metallic adapter is inserted into the rear mounting socket of a black plastic holder/plate. Tightening Mechanism: A straight grey arrow points directly at the black three-pronged wing knob located on the back of the bracket. A circular grey arrow wrapping around the knob indicates turning it clockwise to lock the holder firmly onto the threaded mount at the desired angle.

Attaching Tablet/Phone to Holder:

This holder allows for adjustment of size, angle, and orientation. All this can be done without removing the device.

To adjust angle/orientation:

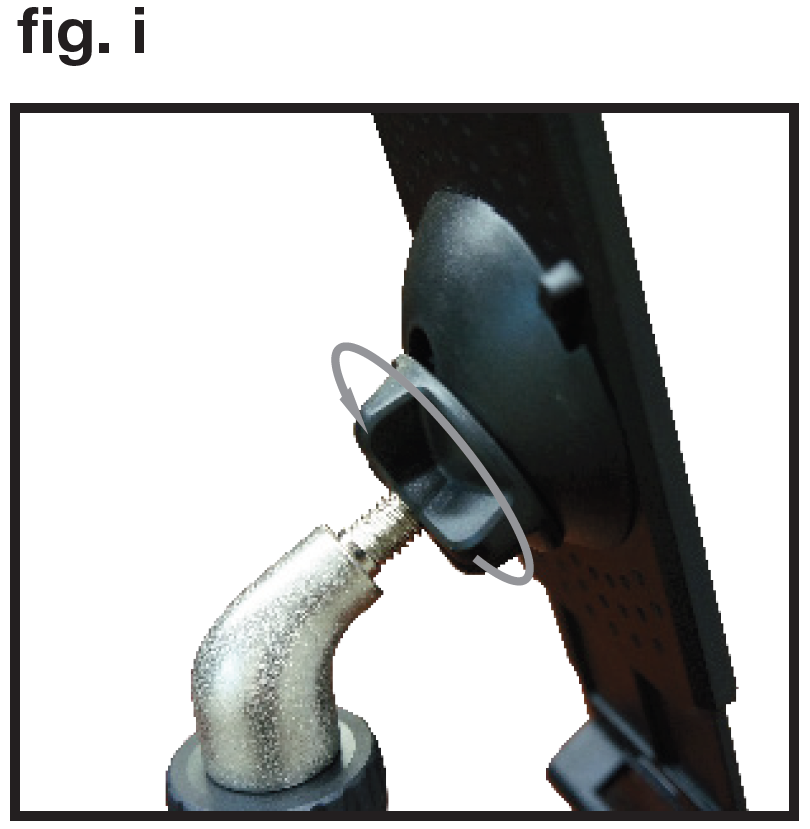

1. With one hand on the holder, loosen the wing nut (fig. i).
An instructional photo labeled "fig. i" in the top-left corner illustrates adjusting or loosening the viewing angle of the mounted device holder: Assembly View: Shows the fully assembled connection between the curved metallic elbow adapter and the rear mounting hub of the black plastic equipment holder. Adjustment Mechanism: A circular grey arrow wrapping around the rear wing knob indicates rotating it counterclockwise to loosen the tension, allowing the device holder to be swiveled, tilted, or removed from the threaded stud.

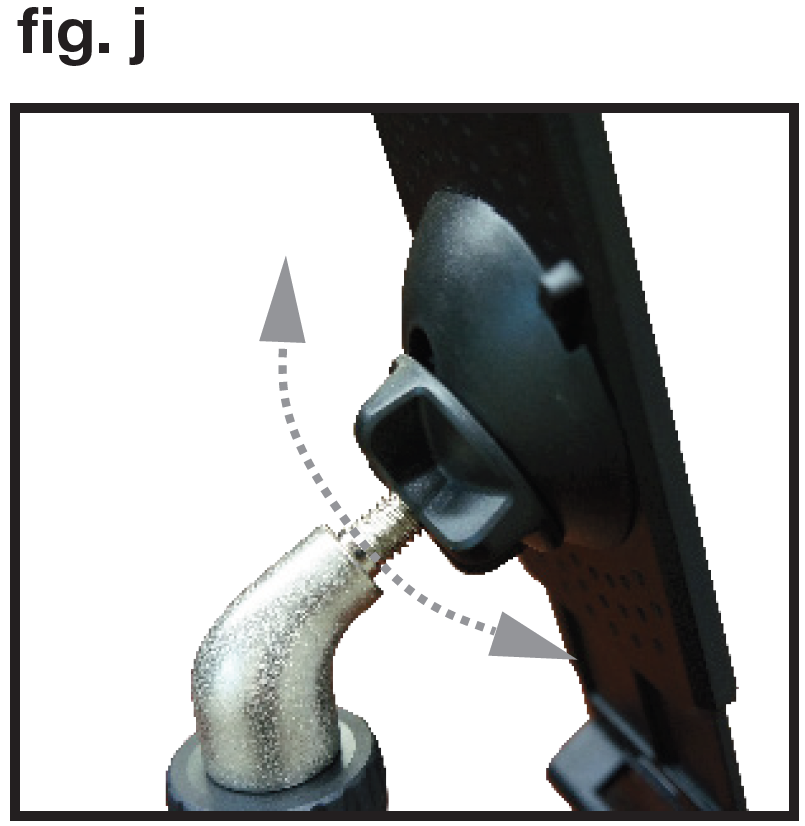

2. Tilt the holder to the desired angle (fig. j).
An instructional photo labeled "fig. j" in the top-left corner demonstrates adjusting the vertical tilt angle of the mounted equipment holder: Pivot Mechanism: The black plastic device holder is attached via a socket to the threaded neck of the metallic elbow adapter. Angle Adjustment: A double-ended curved dashed arrow with arrowhead tips pointing up and down indicates pivoting the device holder forward or backward to achieve the desired viewing angle once the locking knob is loosened.

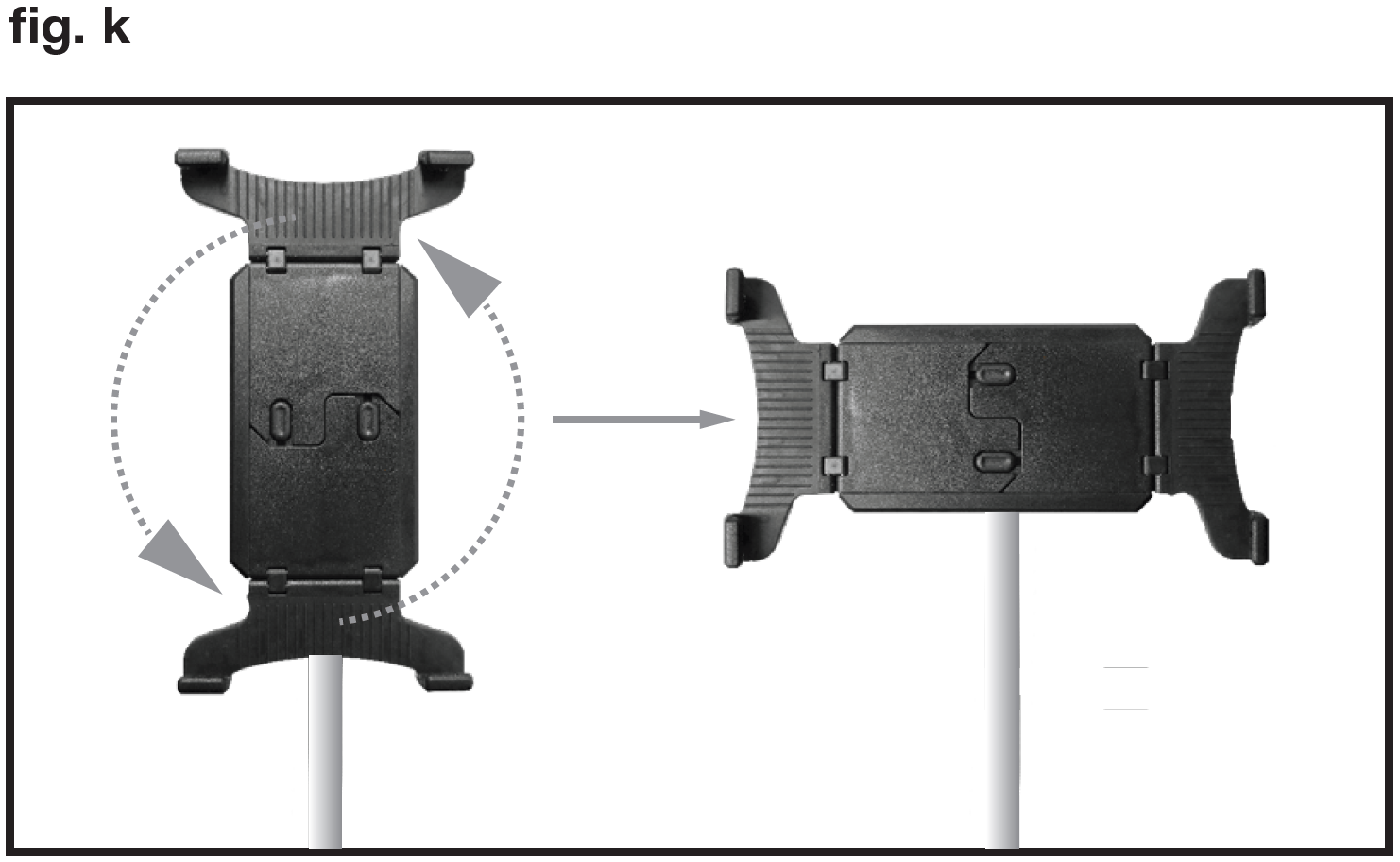

3. Turn the holder to landscape or vertical position (fig. k)
An instructional diagram labeled "fig. k" in the upper-left corner demonstrates switching the device cradle orientation between portrait and landscape modes: Portrait View (Left): The black adjustable cradle is shown vertically aligned on the mounting stand shaft. Curved dashed arrows point counterclockwise around the body to indicate rotational movement. Transition Arrow: A horizontal grey arrow in the center points from the left image to the right image. Landscape View (Right): The cradle is shown rotated 90 degrees into a horizontal orientation, clamped onto the stand shaft for widescreen device viewing.

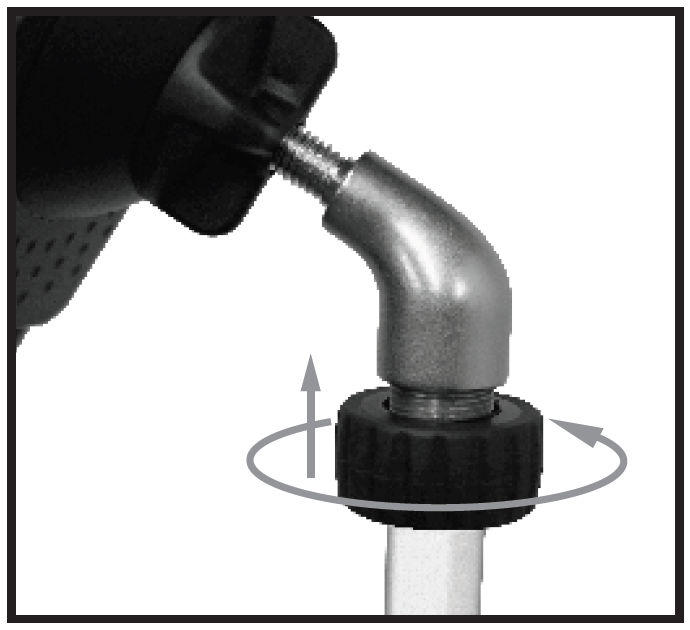

4. Tighten wing nut. Remember, do not over tighten.
An instructional closeup photo demonstrating how to attach and lock the elbow adapter assembly onto the top of a stand pole: Assembly: A metallic elbow adapter is threaded into a device holder knob at the top, while its bottom base rests over the threaded top end of a vertical silver stand shaft. Locking Collar: A textured, black plastic locking ring/collar surrounds the lower threaded section. Adjustment Indicators: A circular grey arrow wraps around the collar to show the rotational direction needed to screw it into place. A vertical grey arrow points straight upward, showing that turning the collar raises it along the threads to clamp and lock the metal elbow joint firmly onto the stand shaft.

To adjust size:

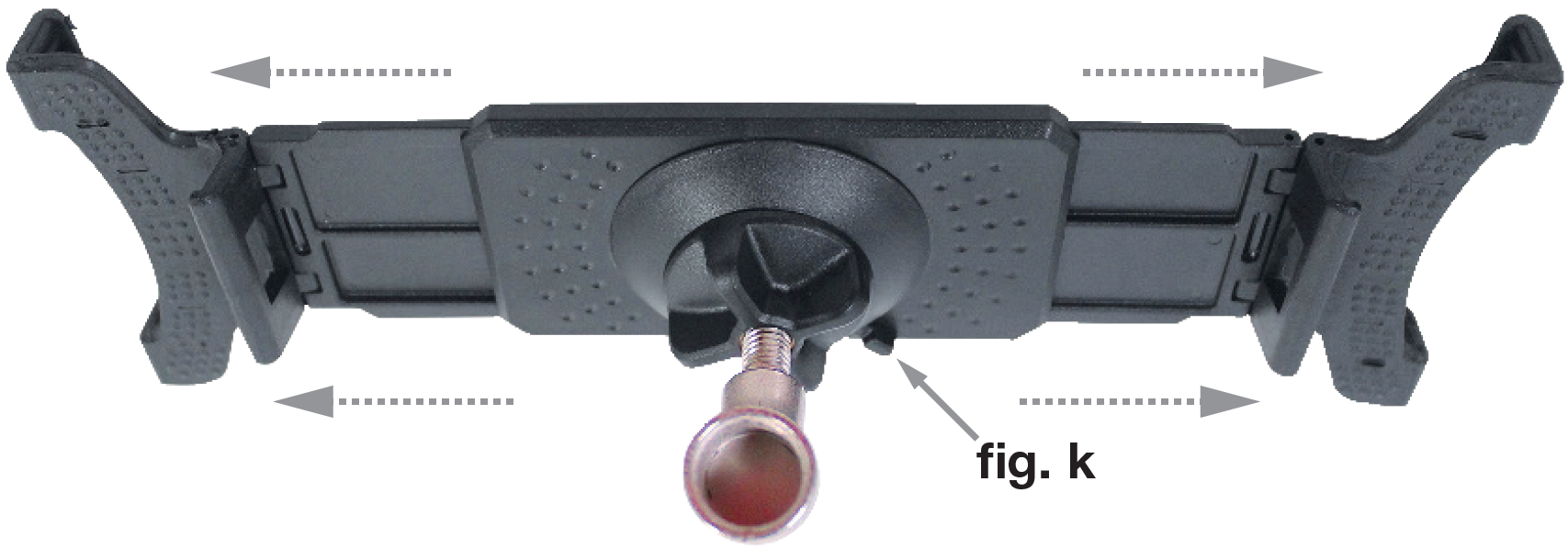

1. Locate the release button on the rear of the holder just to the right of the wing nut (fig. k).



2. Push the button down while simultaneously pulling the top and bottom parts of the bracket. Pull slowly and carefully so as not to damage the mechanism. Once you release the button, the holder will remain in the current extended position.
An instructional diagram viewed from the rear of an extended device mounting cradle, showing how to widen the grips for mounting a device: Expanding Arms: Four dashed horizontal arrows—two pointing left and two pointing right—indicate pulling the two outer clamp arms outward in opposite directions to expand the width of the cradle. Mounting Base: A central rear hub features a tightening knob mounted onto a threaded swivel stud. Label Pointer: An arrow labeled "fig. k" points to a small release tab or locking mechanism located on the lower right edge of the central hub assembly.



Features/Specifications

  • Rockville IPS44 iPad/iPhone/Smartphone/Tablet Mount - Clamps to Any Stand / Desk
  • The mounting clamp allows for mounting directly to a microphone stand
  • C-shape clamp fits anything 1˝ diameter or smaller
  • Securely holds your tablet or phone in place without scratching it
  • Multi-angle adjustment allows universal positioning of the tablet or smartphone
  • Stand for iPad, iPhone and other tablets and phones from 4.7˝ to 12.9˝ screen sizes
  • Fits any tablet with the width up to 9 inches - If the width of your tablet is 9 inches or under it fits perfectly
  • Adjustable mounting bracket to fit many devices
  • Perfect for karaoke, live performances, speeches, presentations, and more
  • Tilts +5 degree and -5 degree for different angle viewing
  • Holder material : ABS and rubber surface
