RockShelf 64 V2 / RockShelf 68 V2

6.5˝ 4-Ohm / 8-Ohm Home Bookshelf Speakers

Important Safety Instructions

• Make sure to match your speaker and amplifier power ratings. Failure to do so can result in permanent damage to your speakers.
• Distortion is an indication that amplifier or speaker is operating beyond its design limits. If you hear distortion, immediately turn down the volume to avoid permanent damage.
• Do not place these speakers on an unstable cart, stand, bracket or table. The speaker may fall, causing serious injury to a child or adult and serious damage to the unit.
• Do not use these speakers near water; for example, near a bathtub, sink, in a wet basement, or near a swimming pool.
• The speakers should be situated away from heat sources such as radiators, heat registers, stoves, or other devices that produce heat.
• Clean only with a soft damp cloth.

Connecting the Speakers

These speakers are passive and thus require an amplifier or receiver to give them power. They can be connected to any 4 or 8 ohm amplifier. When using the ROCKSHELF 4 ohm model, you can connect one speaker per amp channel. When using the 8 ohm model, you can connect up to 2 speakers per channel as long as your amp is 4 to 8 ohm capable. If your speakers are relatively close to the signal source (50 feet or less), 16 gauge wire can be used. For longer distances, 12 or 14 gauge wire is recommended. Be sure to observe proper polarity by ensuring that the wire from the red speaker terminal is connected to the red or positive terminal of the signal source and that the wire from the black speaker terminal is connected to the black or negative terminal of the signal source.

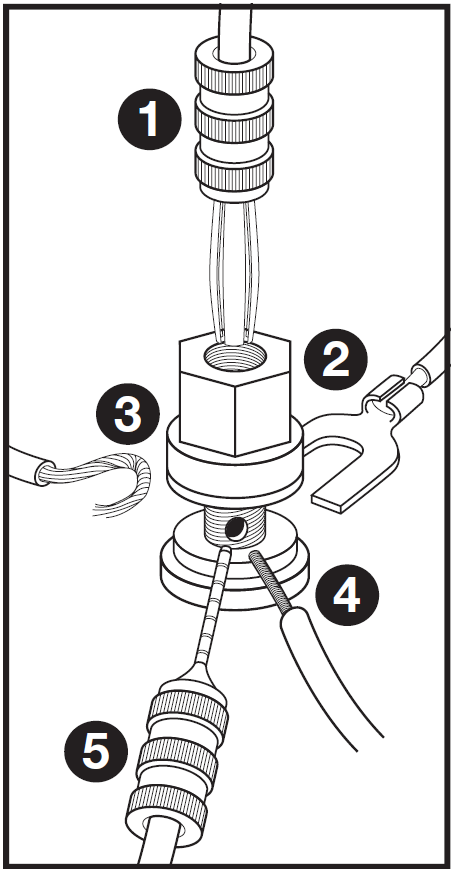

The ROCKSHELF features 5-way binding posts which can accept various types of connections:

1. Banana plugs can be inserted into the open end of the binding post.
2. Spade terminals can be placed around the metal post and clamped by the screw down cap.
3. Looped wire can be wrapped around the binding post and clamped by the screw down cap.
4. Straight wire can be inserted into the hole drilled through the bottom of the binding post and clamped down by the screw cap.
5. Pin connectors can be inserted into the hole drilled through the bottom of the binding post and clamped down by the screw cap.

Magnetic Grills

The grills included with your ROCKSHELF speakers use high strength magnets to hold them in place. They can be easily removed for cleaning or for aesthetic purposes. To remove them, place one finger on each top corner of the grill and gently pull the grill towards you. To replace, position the grill squarely over the face of the speaker and it will attach itself. Align the grill if needed.

Positioning the Speakers

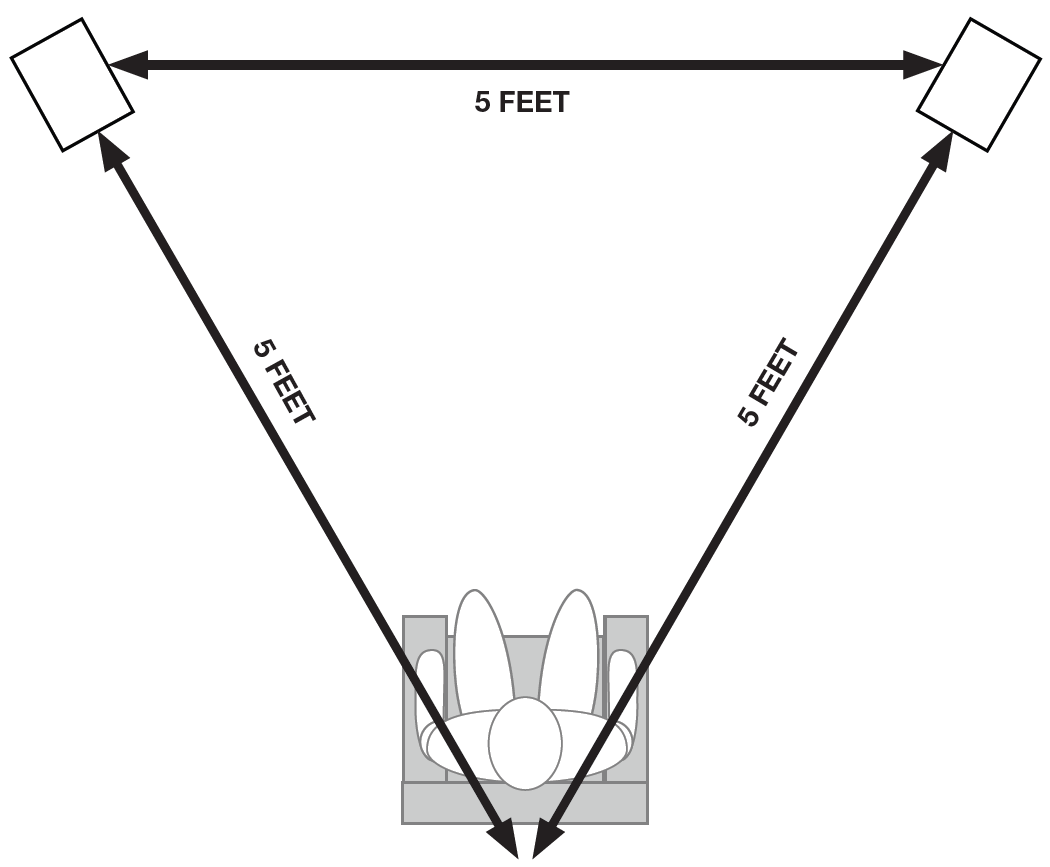

To place the speakers, start with them placed directly in front of your primary listening position. Make sure the tweeters are as close to ear level as possible. As you are listening to music, make sure to pay close attention to the quality and separation of vocals and instruments. You can move the speakers closer together or further apart to optimize your listening experience, but make sure they are set as far away from the listener as each other.

Always listen to several musical selections so that you hear lows (bass), (vocals and horns), and highs (treble) from a variety of instruments and vocalists. Allow your speakers a “breakin” period before permanently positioning them. To break-in your speakers: at a moderate to low level, play a variety of music through the speakers over a day or two. This will help to prepare them for regular use and optimal performance.

Cabinet Care

The finish of your ROCKSHELF speakers can be maintained by periodically wiping it down with a lightly dampened fiber cloth. The grills can be brushed or vacuumed to remove dust.

Features

• Audiophile-grade black Kevlar woofer cone for excellent mid and low frequency response

• Ultra-stiff Polypropylene dust cap on woofer

• Rubber surrounds on woofer

• Silk dome tweeter gives crisp and realistic sounding highs that you can’t get with any other kind of tweeter

• Gold-plated 5-way binding post terminals can accept banana, bare wire, spade terminals, and more

• Detachable magnetic grill

• Wall mount hanging bracket

• Cabinet material: Top quality MDF with beautiful wood grain finish

• Colors: black, white, classic, and dark wood

Specifications

• RMS power: 50 watts each/100 watts per pair

• Peak power: 200 watts each/400 watts per pair

• Woofer: 6.5″ Kevlar cone

• Tweeter: 1″ silk dome tweeter

• 1″ aluminum voice coils

• Frequency response (±3db): 65Hz – 20kHz

• Sensitivity: 87dB 1W/1m

• RockShelf 64 V2 impedance: 4 ohms

• RockShelf 68 V2 impedance: 8 ohms

• Dimensions of each speaker: 11.81˝(H) x 7.06˝(W) x 6.43˝(D)

• Weight per speaker: 6lbs
