Rockville RGHR-ZA

Weather Resistant Gauge-Hole Digital Media Receiver w /4 Zones and App Control

Included

• Marine Digital Media Receiver
• Wired Remote with Zone Controls
• Remote Extension Cable
• 40-inch USB Extension Cable
• Remote Control Mounting Bracket
• Mounting Screws
• Waterproof Wiring Harness
• Mounting Template
• Rockville RGHR App (available from the Apple App and Google Play stores)

Important Safety Instructions

• To reduce risk of electric shock, never open the unit. There are no user-serviceable parts; refer service to the Rockville service center.

RGHR-ZA Mobile App

Apple: Rockville RGHR-ZA App – Apple Play Store

Android: Rockville RGHR App – Google Play Store

The RGHR-ZA includes an app available for iPhone and Android phones which allows your phone to act as a wireless remote. Through the app you can adjust the main volume, zone volumes, and general sound settings, in addition to controlling playback in USB/BT modes, changing the input source, and controlling the radio. You can download the app using the appropriate link from above, as well as at the Apple App Store or Google Play Store by search for Rockville RGHR.

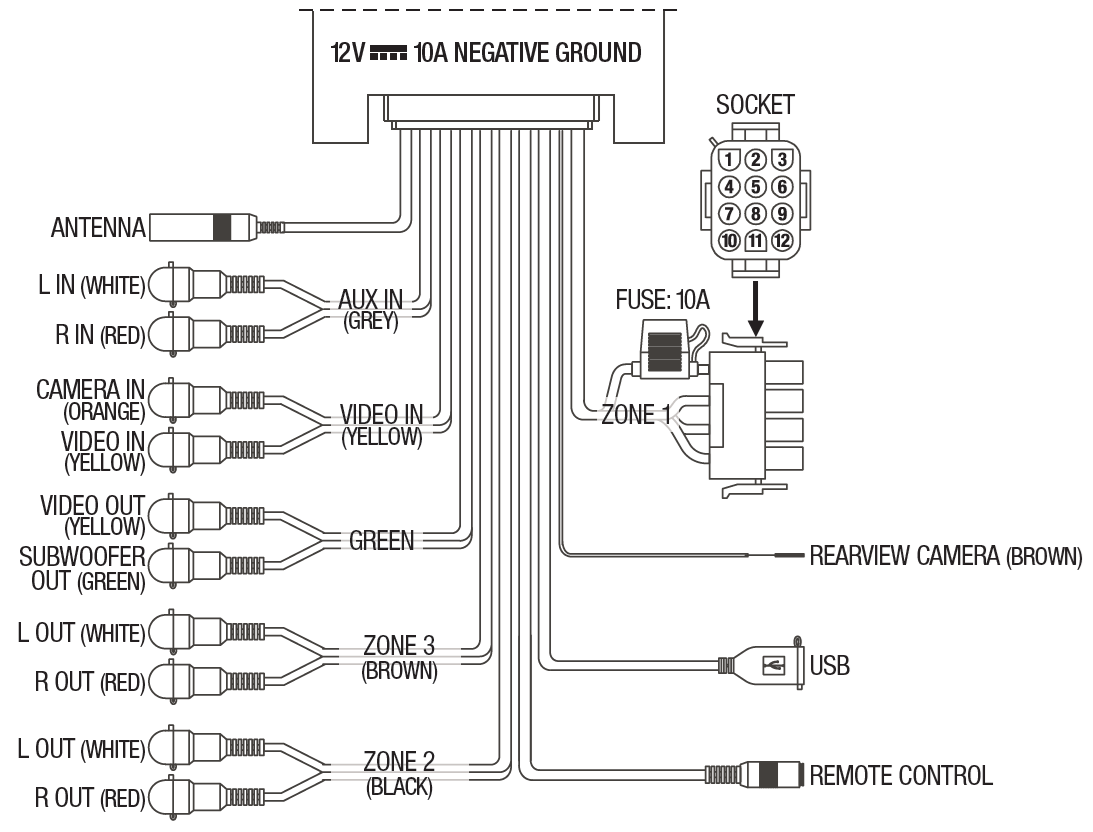

Wiring Diagram

Socket:

Please Note

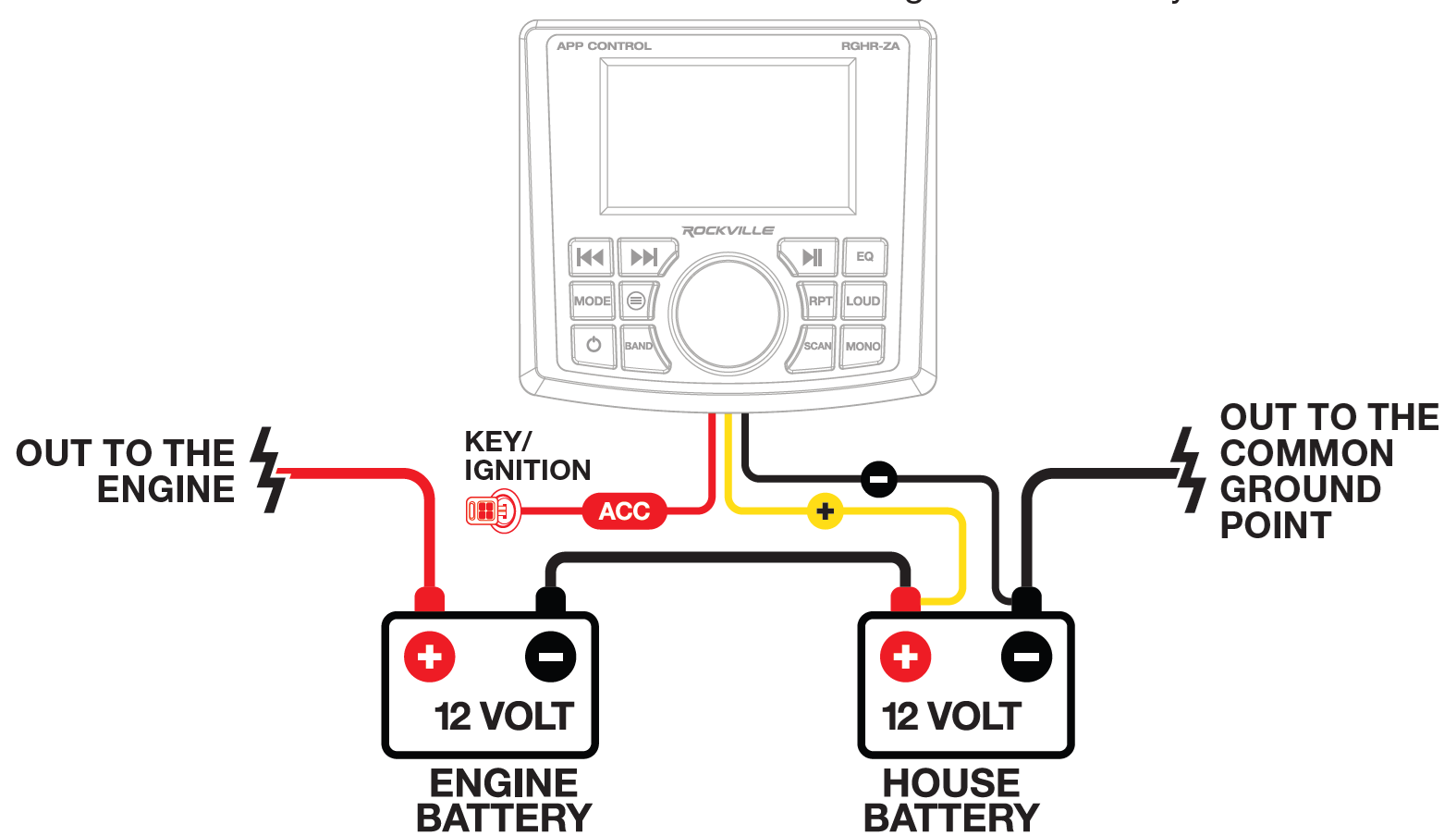

Most boats run on two batteries, each 12 volts, combined in series to provide 24 volts of power. In the diagram below, the battery on the left is the ENGINE battery. Its positive lead goes to the engine, and its negative lead is tied to the positive lead of the HOUSE battery on the right. The HOUSE battery's negative terminal provides the common ground for the boat's electrical system. The RGHR-ZA runs on 12 volts. Hence, for trouble-free performance, connect the black ground wire and yellow power wire of the RGHR-ZA to the corresponding terminals on the HOUSE battery only. If the black ground wire does not reach the battery, it can be connected elsewhere, but it may cause intermittent issues. The safest bet is to connect the ground wire directly to the negative (black) terminal of the HOUSE battery. Connect the red ACC wire to the +12V ignition accessory switch.

Installation

Receiver

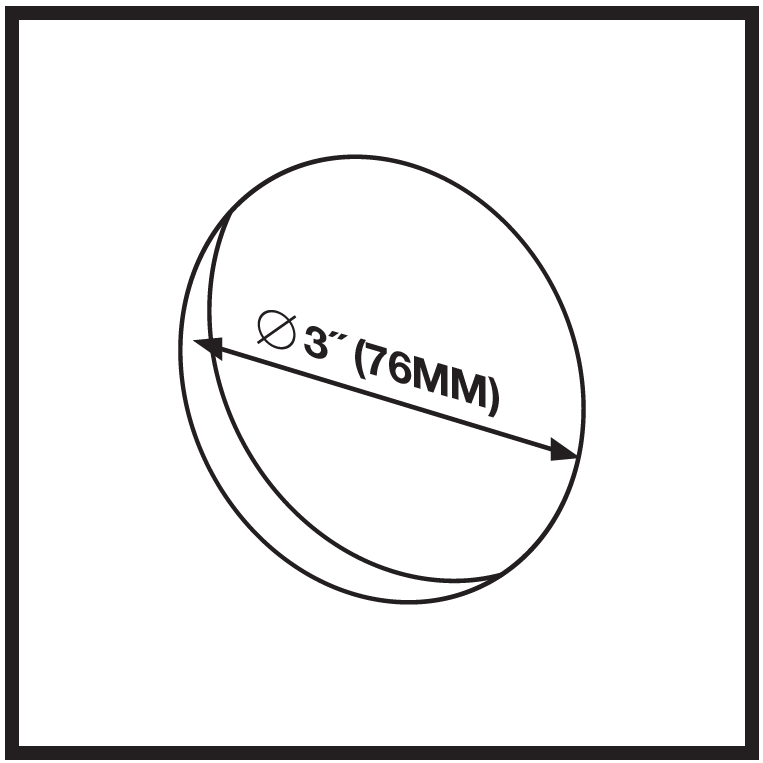

1.) Cut out a 3" diameter hole for the unit. Make sure there is at least 5–7 inches of depth so the unit can fit into the cutout. [Ø 3" (76MM)]

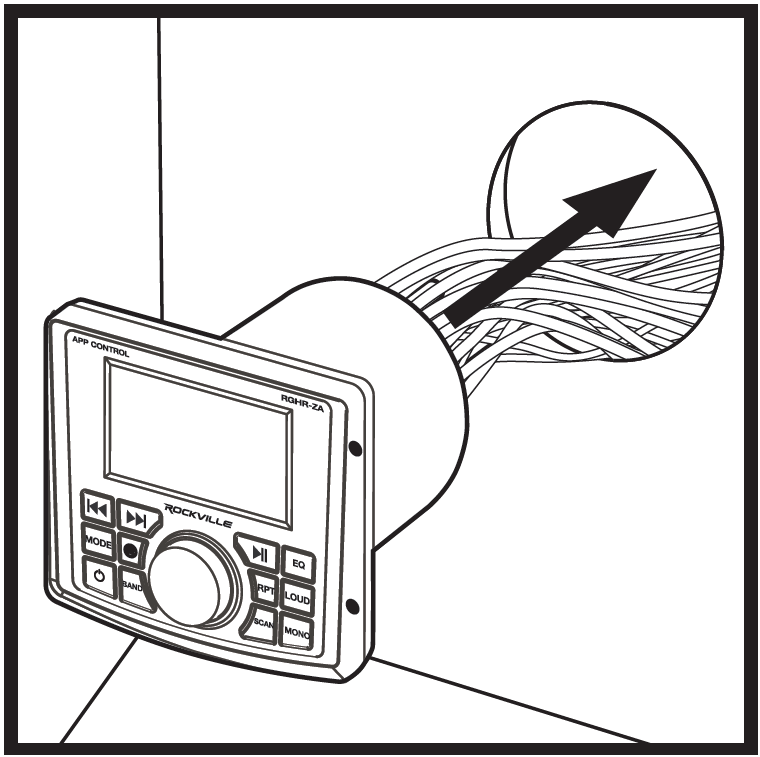

2.) Wire the unit as indicated in the wiring diagram on the facing page. Insert the RGHR-ZA into the hole until it sits firmly against the mounting surface.

3.) Using a small flathead screwdriver, carefully remove the unit's face plate as shown in the illustration.

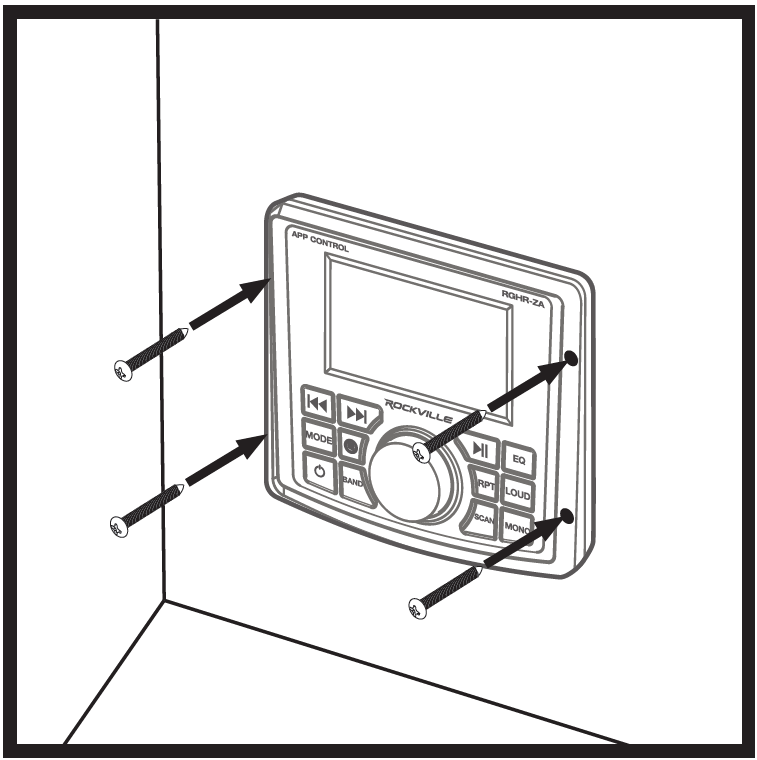

4.) Use the four included screws to secure the unit to the mounting surface. Do not overtighten the screws. Once the screws are in place, attach the faceplate to the unit.

Remote Control

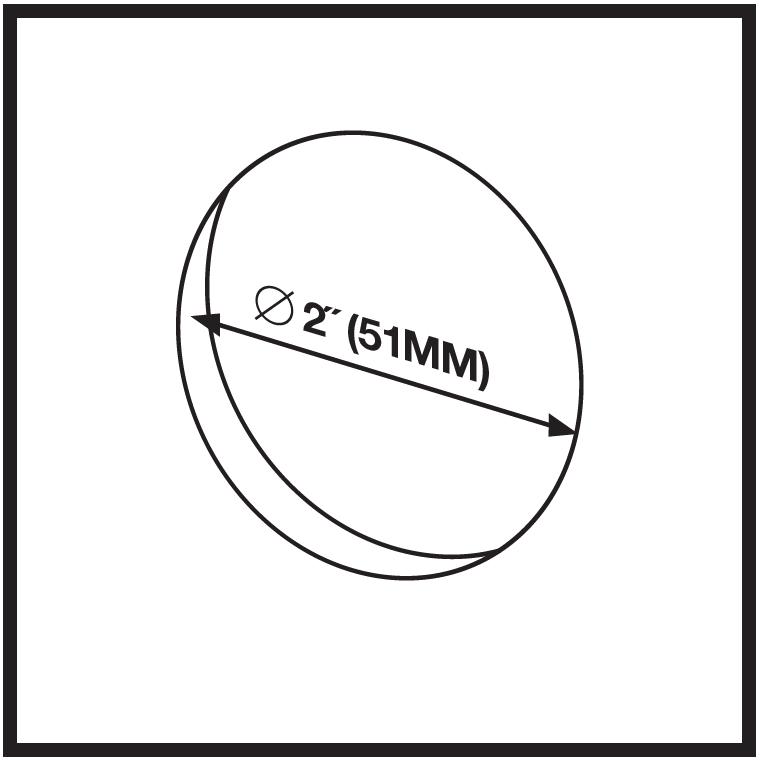

1.) Cut out a 2" diameter hole for the unit. Make sure there is at least 3 inches of depth so the back of the remote control unit can fit into the cutout. [Ø 2" (51MM)]

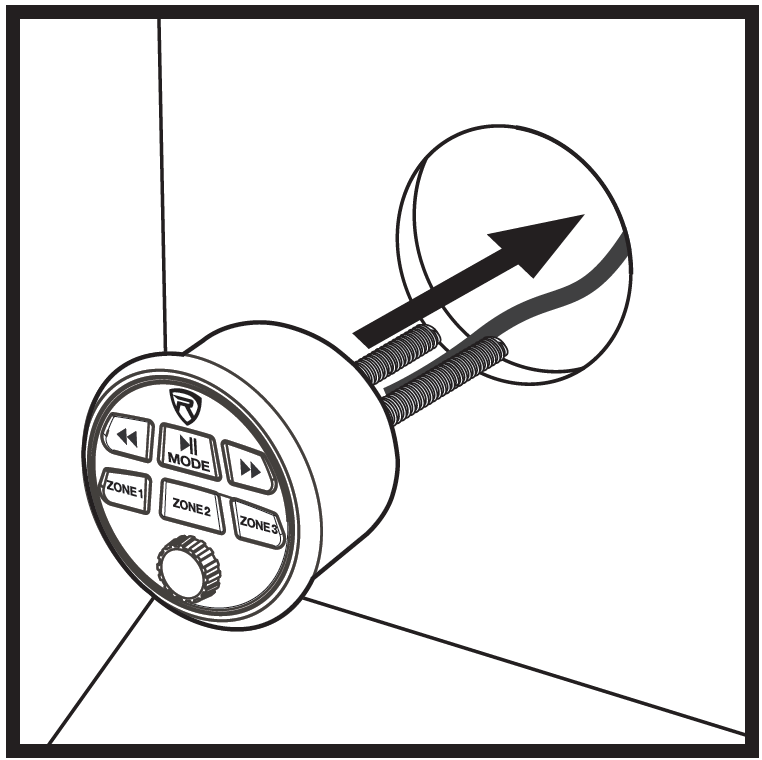

2.) Feed the remote control cable into the hole and connect it to the included remote extension cable which should be connected to the remote control input on the RGHR-ZA receiver. Now slide the remote control unit into the hole until it sits firmly against the mounting surface.

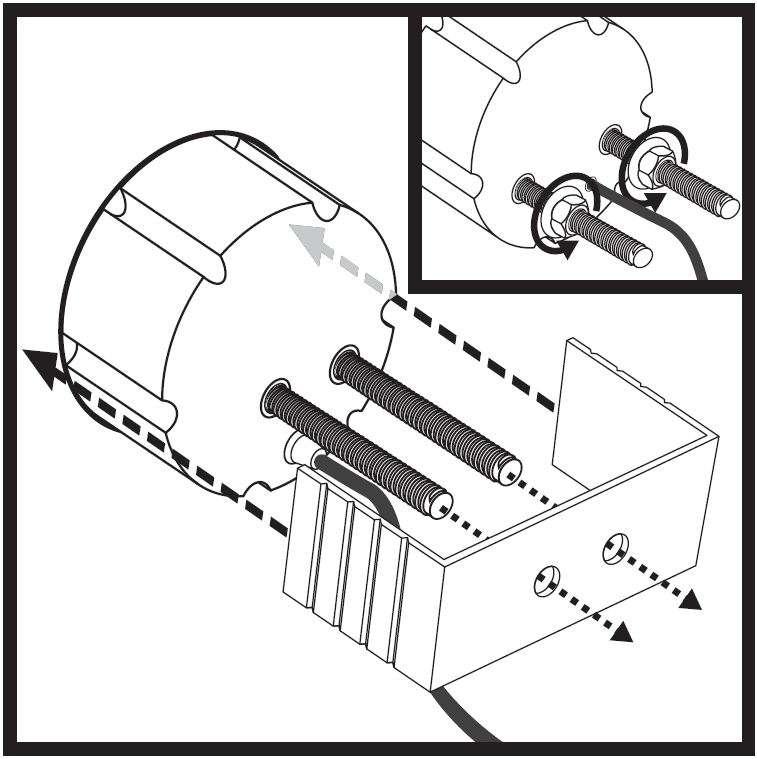

3.) Remove the nuts (see inset) then slide the mounting bracket onto the unit as shown in the illustration. The bracket should sit firmly against the back of the remote and the arms should sit firmly against the mounting surface.

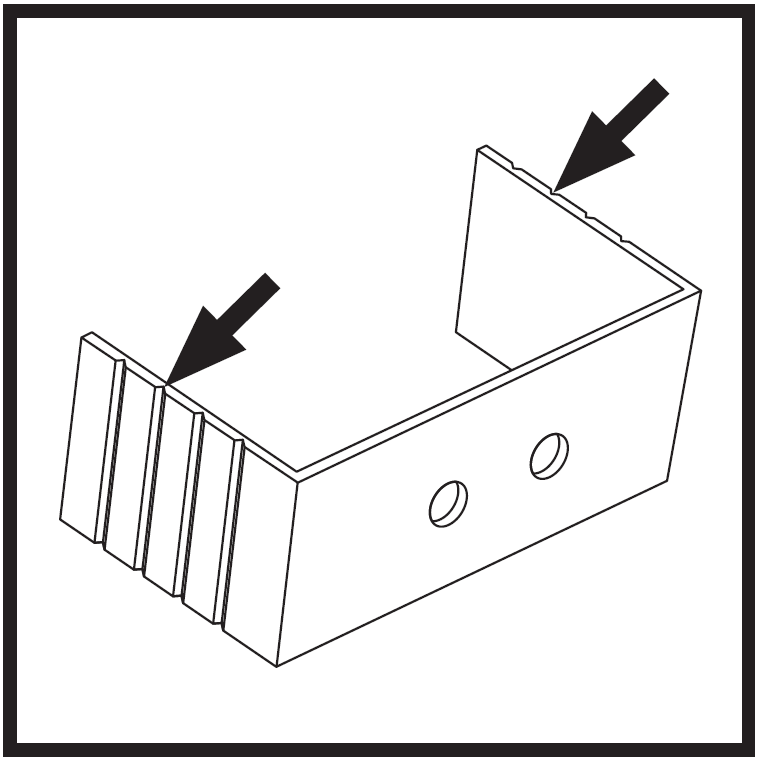

4.) If the bracket arms are too long, adjust the length by using an appropriate tool to remove the necessary amount of breakaway segments.

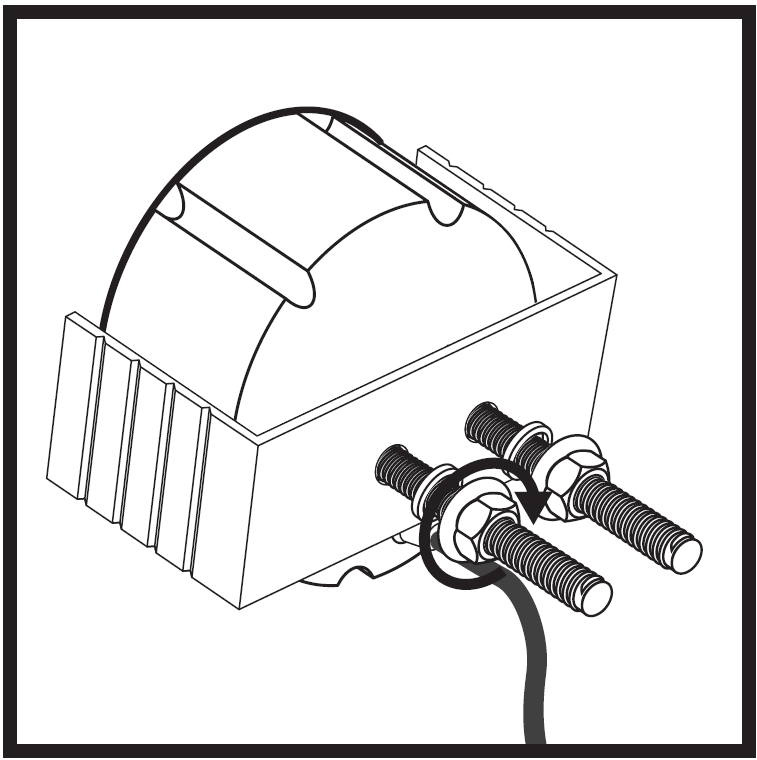

5.) Fasten the bracket to the remote control unit using the washers and bolts as shown in the illustration. Do not overtighten the bolts.

Functions

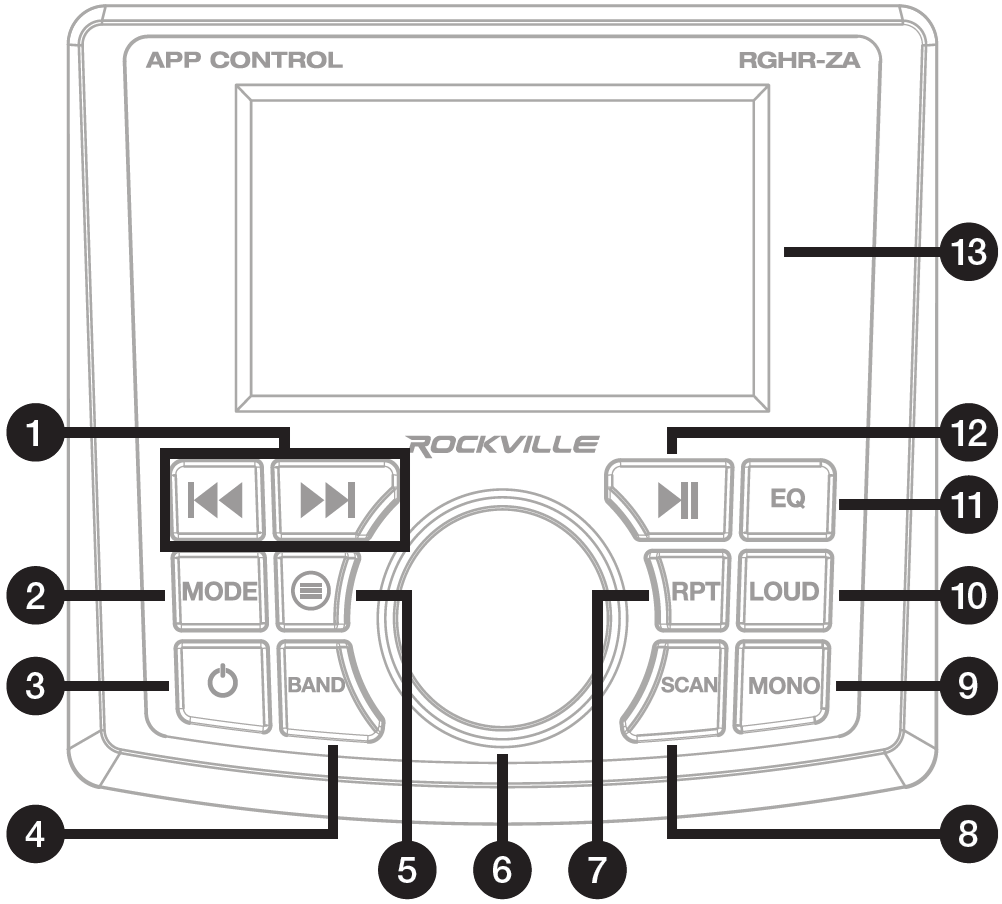

Receiver

1. Previous & Next: Press to select the previous/next track (BT and USB) modes or radio station. Press and hold to rewind or fast-forward (USB mode only).
2. MODE: Press to reach the desired mode setting (BT, AV/AUX, Radio, USB).
3. Power: Press or press and hold to turn the unit on. Press the power button while the unit is on to mute audio playback. Press and hold for 2 seconds to turn the unit off.
4. BAND: Press repeatedly to switch between AM and FM bands. In USB mode, press to cycle between file types. Please refer to the USB section on page 9 and the AM/FM Radio: Presets section on page 10 for additional functions.
5. Menu: Press to enter the general settings menu. Please refer to the Settings: General settings section on page 10 for detailed instructions.
6. Multifunction Knob: In all modes, turn counterclockwise to decrease the volume or clockwise to increase the volume.
   • Press to adjust Audio Settings.
   • Turn to scroll through the settings
   • Press to select desired setting to adjust.
   • Turn to cycle through options.
   • Press to confirm the desired option.
7. RPT (USB only): Press once to repeat the current track. Press twice to shuffle all tracks. Press again to turn the repeat function off.
8. SCAN: Press and hold to automatically program AM/FM stations. Short press the SCAN button to search for stations. See FM Radio Section for more information.
9. MONO (RADIO ONLY): Press to turn mono setting on/off.
10. LOUD: Press to turn the loudness setting on/off.
11. EQ: Press to select from preset EQ curves: Pop, Classical, Rock, Jazz, Beat, Flat and off.
12. Play/Pause & MODE: In BT and USB mode, press once to play current track; press again to pause.
13. LCD Screen

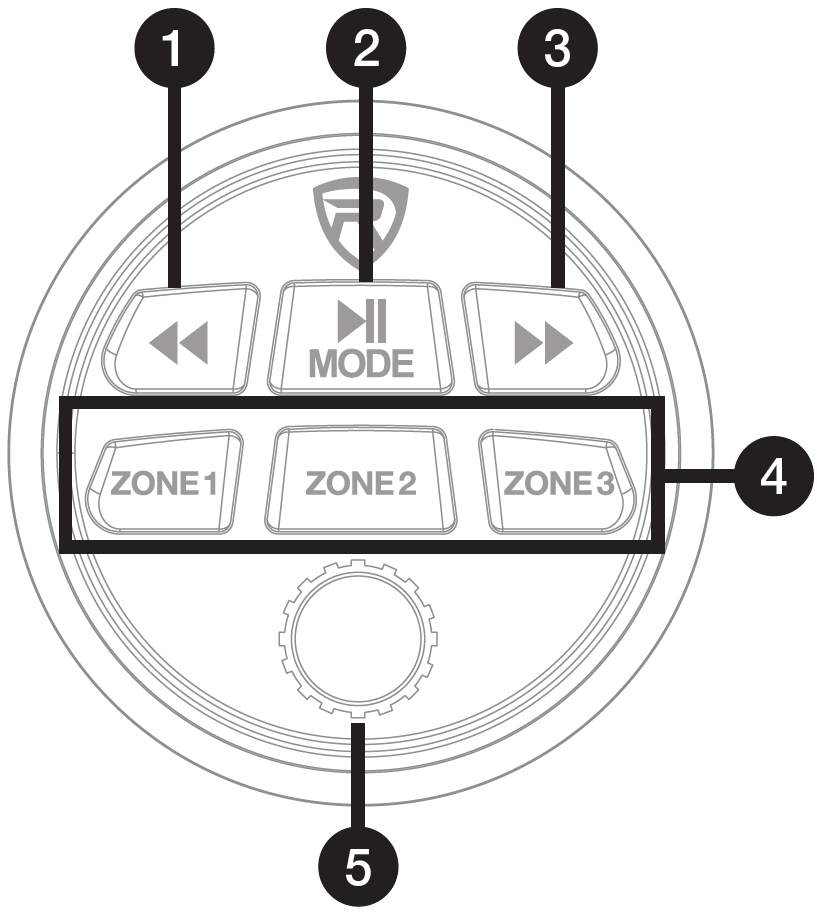

Remote

1. Previous: Press to select the previous track or radio station. Press and hold to rewind (USB mode only).
2. Play/Pause & Mode: Press to start or pause playback. Press and hold to change modes; BT/USB, RADIO and AV/AUX.
3. Next: Press to select the next track or radio station. Press and hold to fast-forward (USB mode only).
4. Speaker Zones: Press any one of these buttons to select the desired zone.
5. Volume Knob: Press to turn the unit on. Turn counterclockwise to decrease the volume or clockwise to increase the master volume. Click the knob to adjust the subwoofer output volume (turn counterclockwise to decrease or clockwise to increase volume). Press and hold for 2 seconds to turn the unit off.

Bluetooth

Pairing

1. When "NOT CONNECTED" is flashing on the screen, the unit is in pairing mode.
2. Ensure your device is in Bluetooth mode and discoverable.
3. Under list of available devices, search for and select RGHR-ZA.
4. Once connected, the paired device's name will be displayed on the screen.

Playback

• Press the Play/Pause buttons to start and stop music playback.
• Press the Previous/Next buttons to navigate through tracks.
• Turn Volume knob to decrease or increase the volume.

USB

1. While in USB mode, press the band button to cycle through music/pictures/videos. Press and hold the band button to bring up the USB home menu. Press the band button to cycle through the music, video, and photos sub menus. Use the multifunction knob or the next/previous buttons to browse the list. Press the multifunction knob or play button to confirm your selection.
2. Press the Play/Pause button to start and stop music playback.
3. Press the Previous/Next buttons to navigate through tracks, videos, or photos. Use the multifunction knob to confirm your selection.
4. Press and hold the Previous/Next buttons to rewind or fast forward (audio only).
5. Turn the Multifunction knob to decrease or increase the volume.

Supported File Formats

The following file formats are supported in USB input mode:

The video decoder does not support the following formats: WMV1, WMV2, WMV3, VC1, VP6, MS MPEG4 V1, and MS MPEG4 V2.

AUX/AV

Stereo RCA Inputs

Use these inputs to connect external audio input sources such as iPhones, iPads, iPods, MP3 players, Android phones and tablets, DVD or CD players, etc.

Please note: Some devices may require a male 3.5mm to Male RCA L/R adapter or cable (not included).

RCA Video Input

Use this input to connect an external video input source.

RCA Video Output

Use this output to send video input to an external display. Whatever is being displayed on the RGHR-ZA screen will be outputted.

ZONE 2 and ZONE 3 Stereo RCA Outputs

Use these outputs to send a full range audio signal to the ZONE 2 RCA outputs (black cable), the ZONE 3 RCA outputs (brown cable), or both. Refer to the Speaker Zones section on page 10 for more information.

AM/FM RADIO

Scan

• Short press the SCAN button to search for stations.
  • The unit will scan through all frequencies and stop at each available station for a few seconds.
  • When you reach a station you like, press the SCAN button again to stop searching.
• Press and hold the SCAN button to automatically program AM/FM stations.
  • Now the unit will go into a preview scan mode which will play 5 seconds of each preset station.
  • The unit will scan through all frequencies and save available stations to the presets.
• Press and hold the Previous or Next button for 1 second.
  • The display screen will show the word "AUTO" on the right, just above the radio icon.
  • Press the Previous or Next button again and the unit will scan through all frequencies and save available stations to the presets.

Manual Tuning

• To navigate frequencies in single increments, press and hold the Previous or Next button for 1 second.
  • The display screen will show the word "AUTO" on the right, just above the radio icon.
• Press and hold the Previous or Next button again for 1 second and the word "AUTO" will change to "MANUAL."
  • Now you can use the Previous / Next buttons to navigate the stations incrementally.

Presets

1. To save manually tuned stations to the presets, navigate to the desired station using the Manual Tuning procedure stated above. Once you've reached the station, wait until the word "MANUAL" disappears.
2. Press and hold the BAND button until the screen shows "Save to preset 1."
3. Use the Previous / Next buttons to select the preset bank to which you wish to save the station.
4. Press and hold the BAND button to save the station.
   • Upon successfully saving the station, the words "Save to preset" will disappear and the corresponding preset slot on the left-hand side of the screen will be highlighted and show the station's frequency.

Mute

To mute the radio, press the power button.

Speaker Zones

This marine receiver has 3 zones, each with independent volume control. There is 1 zone for direct speaker output and 2 zones for line level output. Here is how it works: Zone 1 is the powerful built-in 4-channel amplifier to which you connect your main speakers. Zones 2 and 3 allow you to connect up to 4 additional channels (2 channels per zone) using one or more external amplifiers. There is also a subwoofer output. You can then control the volume for each of the zones and the subwoofer from the unit as well as from the included wired remote.

Settings

Audio Settings:

1. Click the main unit's Multifunction knob to enter the audio settings menu.
2. Turn the Multifunction knob to cycle through the audio settings options.
3. To adjust the settings, click the Multifunction knob to select the desired setting, turn the knob to make adjustments, then click the knob to exit.
4. Adjustable settings are: ZONE1 VOL, ZONE 2 VOL, ZONE 3 VOL, SUB VOL, Bass, Treble, EQ, Loudness, Sub filter crossover, Beep, radio mono mode and location.

General Settings:

1. Press the (MENU) button to enter the general settings menu.
2. Turn the Multifunction knob to cycle through the audio settings options.
3. To adjust the settings, click the Multifunction knob to select the desired setting, turn the knob to make adjustments, then click the knob to exit.

Features

• Includes wired remote with the ability to control the volume in each zone
• APP control allows you to download the free app for Android or iPhone and control zone volume, song selection, source selection, and more
• Back-lit 3" TFT color display
• Built-in Bluetooth/USB/AM/FM playback
• Fits into a standard gauge-hole (tachometer) opening
• Built-in high powered amplifier
• 2 pairs of pre-amp outputs
• 1 subwoofer output
• 4 zones each with volume control:
  • zone 1: built-in amplifier
  • zone 2 and 3: are RCA outputs
  • zone 4: subwoofer output
• Built-in EQ with preset curves (Pop, Classic, Rock, Jazz, Beat, and Flat)
• IP66 waterproof certification
• USB input plays video, music, photos, supports charging (500mA/5V), accepts thumb drives up to 16GB max, and supports a variety of file formats (see page 10)
• RCA A/V input to play back a video source
• Rear camera input
• RCA Aux Input
• Built-in AM/FM radio with 18 FM and 12 AM presets + US and European tuning
• Built-in Bluetooth to stream audio from any Bluetooth enabled device
• Big easy-to-use buttons
• Meets ASTM B117 and ASTM D4329 standards
• HumiSeal-coated PCB board for waterproofing and protection from the elements
• Highly efficient even when running at 2 ohms
• Low distortion even at top volumes

Amp Specs

• TDA7850IC quad bridge power amplifier
• RMS Power:
  • 32W x 4 Channels @ 2 ohms
  • 28W x 4 Channels @ 4 ohms
• Peak Power:
  • 72W x 4 Channels @ 2 ohms
  • 48W x 4 Channels @ 4 ohms

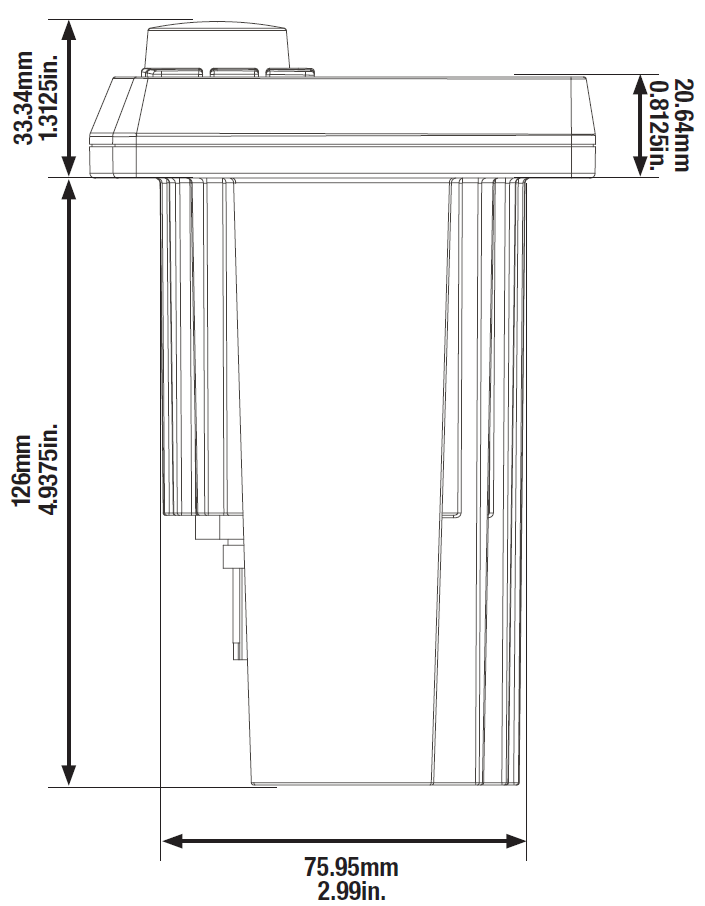

Dimensions

Receiver

• Cutout mounting diameter: 3"

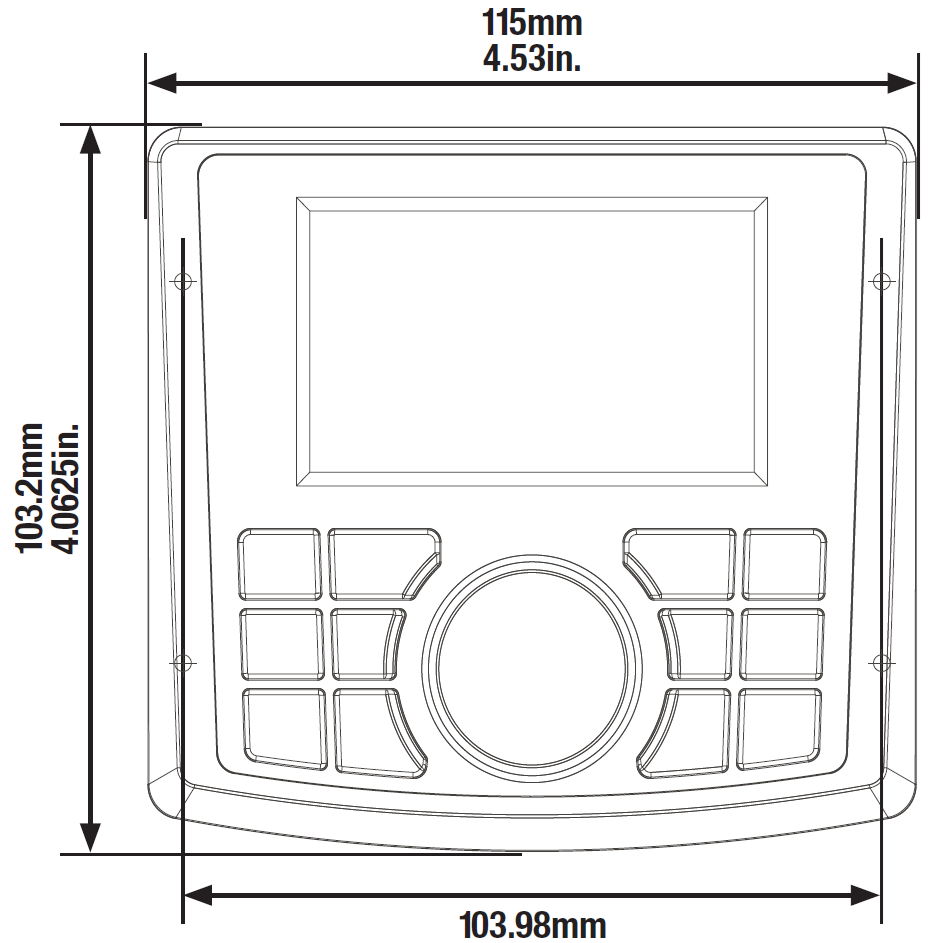

• Top plate dimensions (W x H x D): 4.5 x 4.0625 x 0.8125"
• Mounting depth (not including top plate): 4.96"
• Overall depth (including the top plate): 5.75"

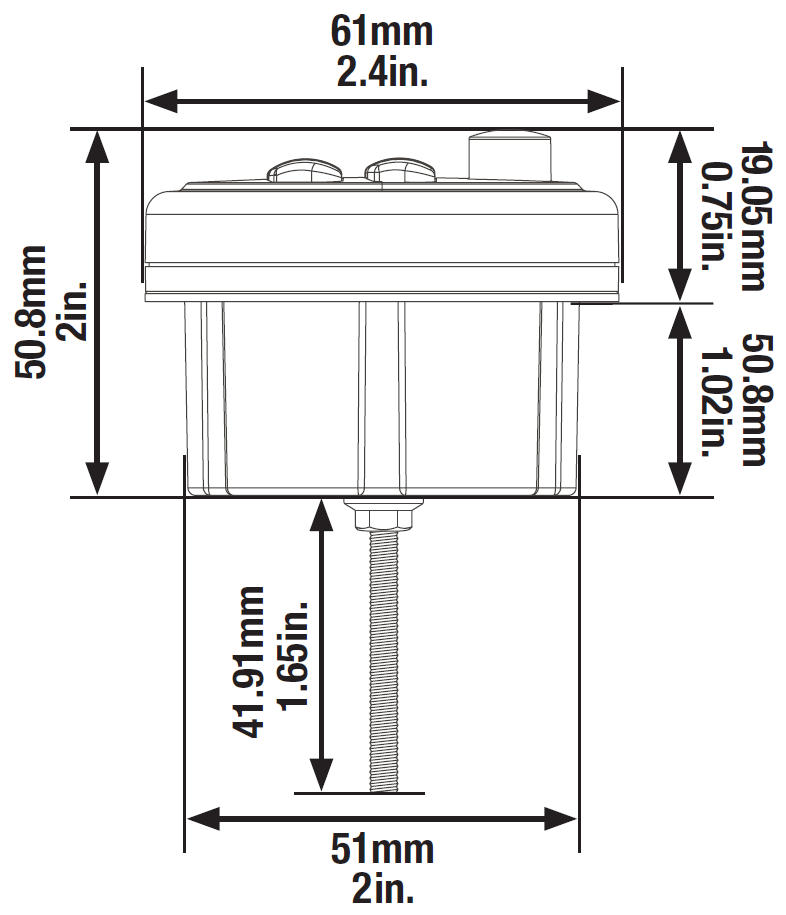

Remote

• Cutout mounting diameter: 2"
• Top plate diameter: 2.4"
• Mounting depth (not including top plate): 2.67"
• Overall depth (including the top plate and screws): 3.65"

Troubleshooting
