APP BAR 24: How To Set Up & Use

Introduction:

In this guide, we’ll walk you through the complete setup and operation of your Rockville APP BAR 24 LED Light. Whether you're using the included remote or the mobile app, these easy-to-follow steps will help you get your light up and running in no time—even if you have no technical experience.


Requirements:

• Rockville APP BAR 24 Light (included)
• Remote Control (included; for wireless control)
• 2 Hex Screws (included; for securing bracket placement)
• 5/64-inch Allen key (not included)
• iOS or Android smartphone (for app control only)
• "fi light" App (available on Apple App and Google Play Stores)

Step-by-Step Instructions:

1. Physical Setup

• Unbox the light and locate the adjustable feet.
• Move the feet outward or inward to position the light as needed.
• Use the holes on the feet to bolt the light to the floor or ceiling if desired.
• Secure the legs using the provided screws and a 5/64" Allen key.

2. Basic Control Using the Remote

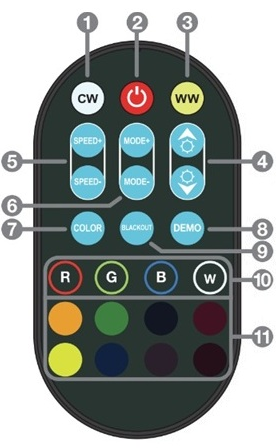

The included IR remote lets you control various features...

1	CW	Cool White. Press CW in conjunction with R, G and B buttons to combines colors.
2	Power On	Turns LED function back on after Blackout, and returns them to previous function.
3	WW	Warm White. Press WW in conjunction with R, G and B buttons to combines colors.
4	Brightness ⇧ / ⇩	Increase or decrease brightness.
5	SPEED + / -	Controls speed for selected mode.
6	MODE + / -	Scrolls through 31 available dynamic modes.
7	COLOR	Scrolls through 10 static color options.
8	DEMO	Fades smoothly between colors.
9	BLACKOUT	Turns LED function off completely. Power button resumes LED function.
10	Base Colors	Select Red, Green, Blue or White. Press R, G and B buttons at the same time combine colors. CW and WW can also be combined with R, G and B
11	Color Pallette	Orange, Yellow-Green, Turquoise, Magenta, Yellow, Deep Blue, Pink, Purple

Power:

• Use the Power button to turn the light on or off.

White Light Modes:

• Cool White (CW) and Warm White (WW) buttons adjust color temperature.
• Add color tints to whites using the Red (R), Green (G), Blue (B) buttons.

Dynamic Modes:

• Press the Mode + button to cycle through:
  • Color fade
  • Red strobe
  • Green strobe
  • And more

Adjust Mode Speed:

• Use Speed -/+ to slow down or speed up dynamic effects.

Brightness Control:

• Use Brightness -/+ to dim or brighten the light.

Blackout:

• Use the Blackout button to turn off LED light output until another mode is selected.

Demo Mode:

• Press Demo to automatically cycle through various light modes.
• Speed and Brightness controls still work during demo.

Color Selection:

• Use Color to cycle through preset colors like blue, yellow, cyan, etc.
• Use direct color buttons (Red, Green, Blue, White, Orange, Yellow, Ultraviolet, etc.) to jump to specific colors.

IR Remote Tip:

• The IR remote needs to be directed at, and within range of the light to control it... similar to a standard TV remote.
• The remote controls multiple lights simultaneously if they are in range and line of sight.

3. Controlling the Light with the Mobile App

Download the App:

• Open the Apple App or Google Play Store.
• Search for “fi light” and download the app with the matching “fi light” icon.

Pair the Light:

• Open the app and if prompted for Bluetooth permissions, be sure select Allow.
• The light will automatically pair with your phone.

Main Screen:

Style Menu:

• Choose dynamic effects like:
  • Pulsating Rainbow
  • Pulsating Red
• Adjust speed of effects.

Group Manage Menu:

• Rename lights (e.g., “Light 1”).
• Link or unlink multiple lights for grouped control.
• Disconnect/reconnect lights as needed.

Settings Menu:

• Access the User Guide, Sync Music Guide (iOS only) and firmware updates (if released).
• Please note: Full Power Mode does not apply to this model.


Troubleshooting & FAQs

Q: The app isn’t finding my light. What should I do?
A: Ensure Bluetooth is enabled and Allow permissions is selected. Make sure the light is powered on and within Bluetooth range.

Q: Can I control more than one APP BAR 24 with the app?
A: Yes. Link multiple lights in the “Group Manage” section to control them simultaneously.

Q: The power button is hidden on my phone screen. How do I turn the light on?
A: Use the IR remote to power the light on if the app interface is partially blocked.

Q: My remote doesn’t control the light. What’s wrong?
A: Make sure you’re pointing the remote directly at the light with a clear line of sight. The included IR remote functions similar to a typical TV remote; where it needs to be directed at, and within range of the light to control it.


Conclusion:

Setting up and operating your Rockville APP BAR 24 is simple using either the remote or the “fi Light” app. From color customization to music sync and scheduled timing, this light offers powerful control at your fingertips.
