Rockville SINGMIX 5 V2

2000W Professional Karaoke Receiver

Important Safety Instructions

• To reduce risk of shock, never open the unit. There are no user serviceable parts. For service, return the unit to Rockville or take it to an authorized service center.
• Do not expose this unit to any kind of moisture.
• Do not place this unit near heat sources or expose to direct sunlight.
• Do not place anything on top of the unit. Doing so will block vents and cause the unit to overheat.
• Please ensure that the unit is situated in a properly ventilated area.

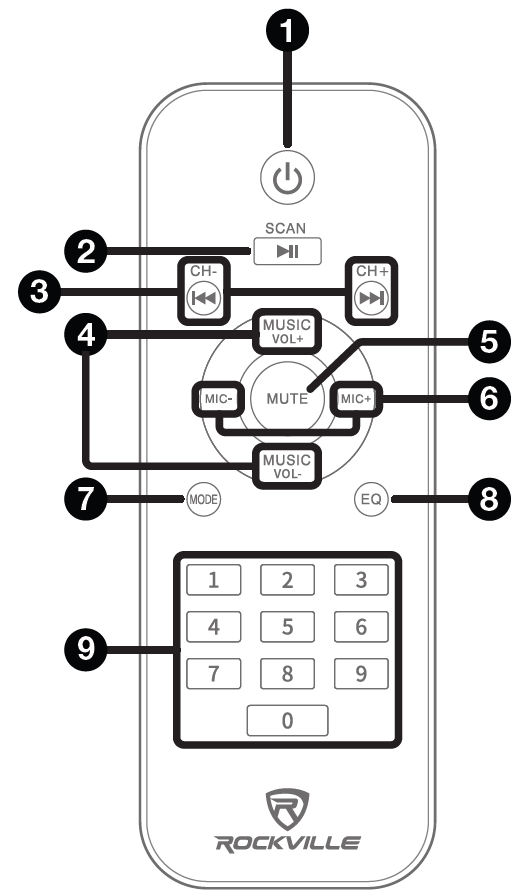

Remote Control Functions

1. Power: Press to turn the unit on or off.
2. Play/Pause: Press to start or pause audio playback. In FM mode use to auto search & save stations.
3. CH–/Previous and CH+/Next: Press to change tracks in USB and Bluetooth modes, or stations in FM mode.
4. *MUSIC VOL+/MUSIC VOL–: Press to increase or decrease music volume (USB/Bluetooth mode only).
5. MUTE
6. MIC+/MIC–: Press to increase or decrease mic volume.
7. MODE: Press to switch input modes (USB, FM, and Bluetooth).
8. EQ: Press to select one of 7 preset EQs: POP, ROCK, FLAT, CLASSIC, COUNTRY, and OFF.
9. Number Pad: Use to select tracks in USB or select stations in FM mode.

⚠️The volume buttons on the remote control are for USB and Bluetooth mode only. All other volume adjustments are made using the volume knobs on the unit.

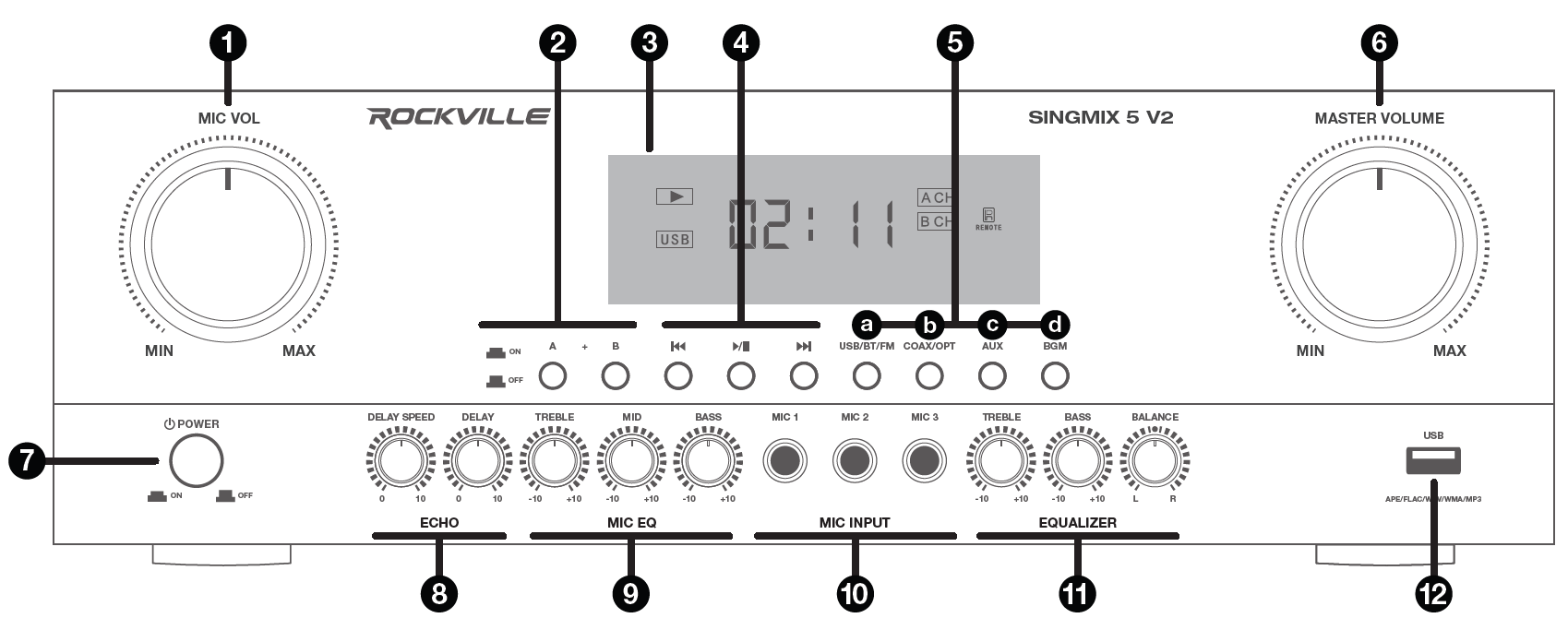

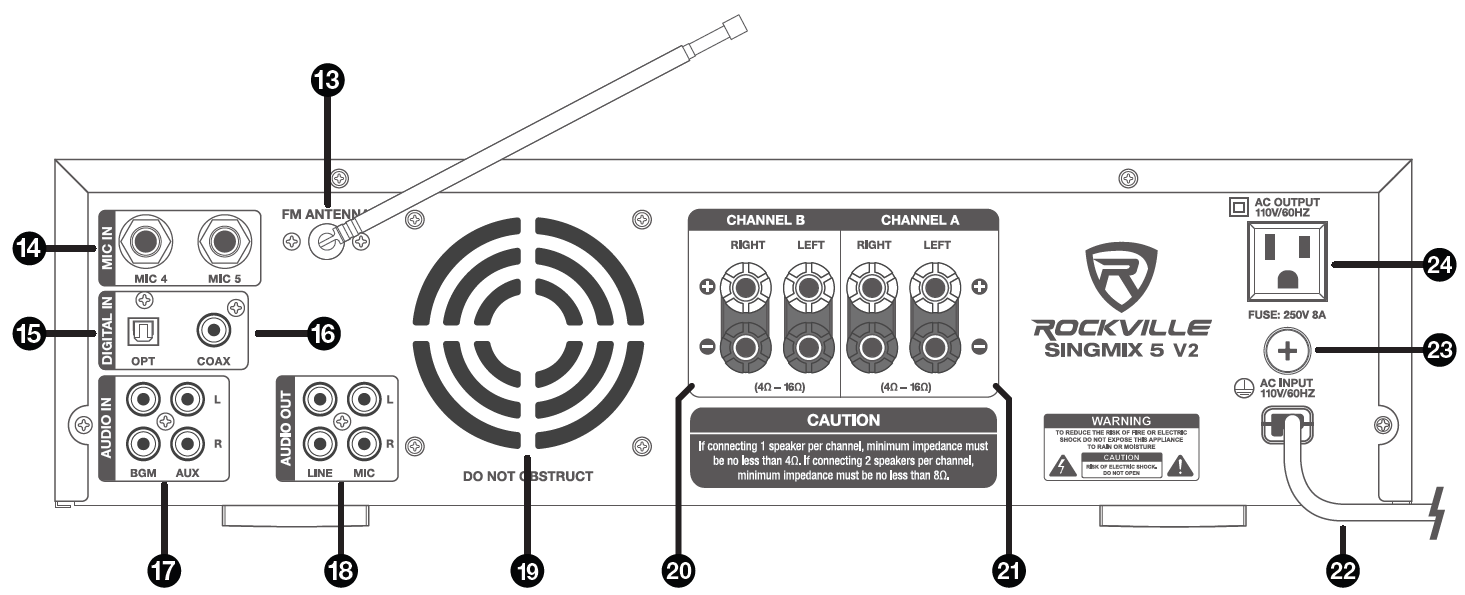

Functions

1. Microphone Volume Control
2. Speaker Output Selectors
3. LCD Display
4. Track Controls
   • Play/Pause: Press once to play current track, press again to pause.
   • Previous/Vol-: Press to return to previous track
   • Next/Vol+: Press to proceed to the next track.
5. Modes
   1. USB/Bluetooth/FM
   2. Coaxial/Optical
   3. Auxiliary
   4. BGM: Back Ground Music Mode
6. Master Volume
7. Power Button
8. Mic Echo Controls
9. Mic EQ
10. ¼˝ Mic Inputs
11. Equalizer
12. USB Port

13. FM Antenna
14. ¼˝ Mic Inputs
15. Optical Audio In
16. Coaxial Audio In
17. RCA Uudio Inputs:
    • BGM
    • Auxiliary
18. RCA Audio Outputs:
    • Line
    • Mic
19. Exhaust fan
20. Channel B Binding Post / Banana Speaker Outputs: Left and Right
21. Channel A Binding Post/Banana Speaker Outputs: Left and Right
22. AC Input Power Cord: 110V/60Hz
23. User Serviceable Fuse: 250V/8A
24. AC Output Socket: 110V/60Hz

Bluetooth

Pairing

1. Activate Bluetooth on your Smartphone, Tablet, Computer or other Bluetooth-enabled device.
2. Press the USB/BT/FM button on the SingMix or the MODE button on the remote until the display screen reads bLUE. The word will flash indicating the unit is in pairing mode.
3. In your device's Bluetooth pairing menu, look for SINGMIX 5 V2 and connect to it.
4. If pairing is successful you will hear a tone and the word bLUE will stop flashing.
   Please Note: The SingMix will remember the last paired Bluetooth device and reconnect automatically.

Playback

 Playback may also be controlled from your Bluetooth device.

• Play/Pause: Press once to play current track, press again to pause.
• Previous(Vol–): Press to return to previous track.
• Next(Vol+): Press to proceed to the next track.

USB

⚠️Connecting a USB drive card will override other MP3 input modes.

1. Connect a USB drive to the USB port on the front panel.
   • Music stored on the external device will automatically begin to play.
2. Press Play/Pause once to play the current track, and press again to pause.
3. Track Controls:
   • Press Previous/Vol- to return to previous track.
   • Press Next/Vol+ to proceed to the next track.

*Formatting the USB drive is not necessary, but if you do so, use the FAT32 format.

**Supported File Formats: MP3, WMA, MAV, FLAC, and APE.

Formatting

*For any issue issues with USB Thumb Drive or SD Card Playback...
Please follow these formatting instructions to ensure audio/device compatibility:

1. Insert your 32GB or less(may not be compatible with larger) USB Thumb Drive(available USB port needed) or SD Card(available SD slot or external card reader needed) into a computer.
2. Right-Click: USB Thumb Drive or SD Card Icon.
3. Select: Format Device
4. It will ask for Format Type...Select FAT32.

**For USB Thumb Drive or SD Playback...
Make sure all music loaded on is MP3, WMA, WAV, FLAC or APE file format.
To cover audio to MP3, WMA, WAV, FLAC or APE:

• Mac: Look for iTunes MP3 conversion option in dropdown menus.
• PC: Look for iTunes MP3 conversion software available to download or websites that allow you to upload files to be converted.
  connecting a USB drive or SD card will override other MP3 input modes.

FM Radio

1. Press the USB/BT/FM button on the SingMix or the MODE button on the remote until you enter FM radio mode with the radio station showing on the display.
2. Long press the Play/Pause button on the remote control to initiate auto scan. The unit will automatically search and store stations.
3. Short press Previous/Next buttons to manually tune stations.
4. Long press Previous/Next buttons to scan to previous/next available station with good reception.
5. Short press Previous/Next buttons on the remote control to navigate through preset stations.

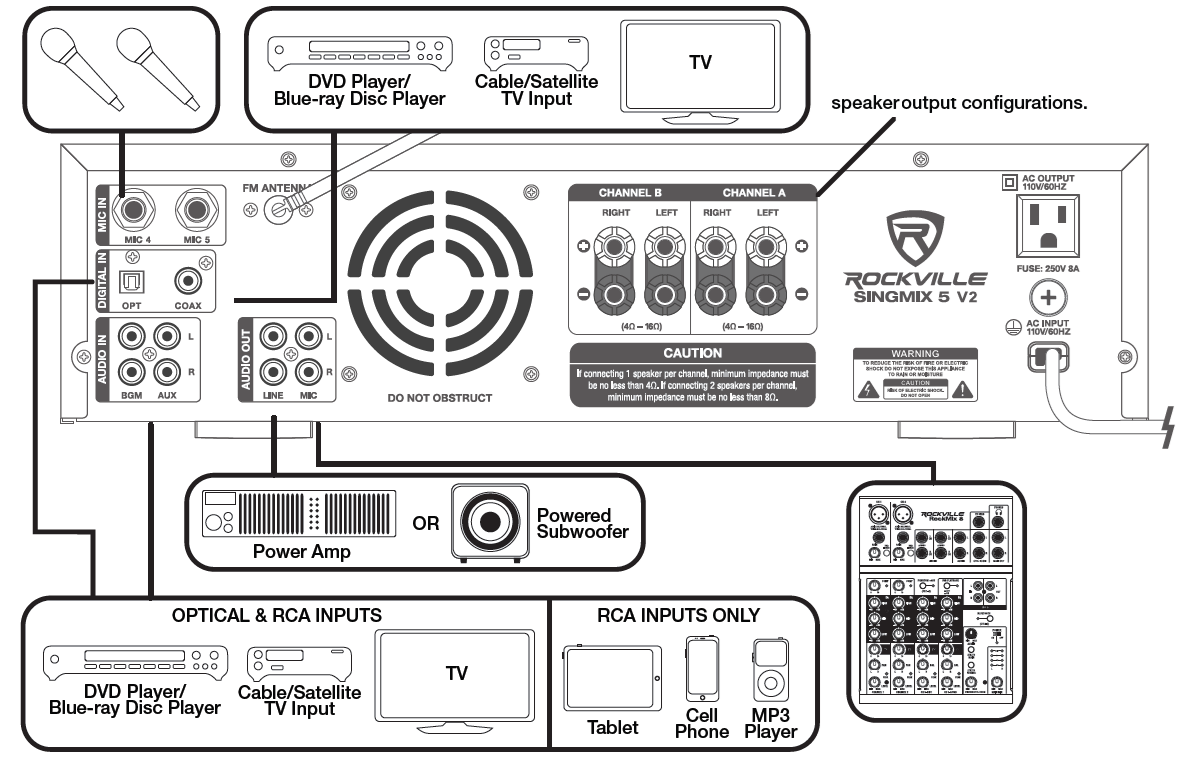

Setup Diagram

Choosing Compatible Speakers

Speaker Types

Full Range Speakers: These are speakers that can produce a full range of sound. They usually come in a 2-way configuration (woofer and tweeter) or a 3-way configuration (woofer, tweeter, and mid range driver). They can vary in size from 6.5˝ to 15˝. The quantity and type will be determined by the size of the room and the specific requirements of your karaoke set-up. We recommend our KPS or SPGN series of speakers which can be found at RockvilleAudio.com.

Matching Impedance: It's important that you match the impedance of your speakers to your amplifier. The SINGMIX 5 V2 has a minimum speaker impedance of 4 ohms, hence the total impedance of your speakers must not be less than 4 ohms.

Speaker Configurations

The SINGMIX 5 V2's speaker outputs are divided into two zones, Zone A (CHANNEL A) and Zone B (CHANNEL B). The RIGHT outputs of Zone A and Zone B are wired in parallel and the LEFT outputs of Zone A and Zone B are wired in parallel. Below are the two most common speaker configurations.

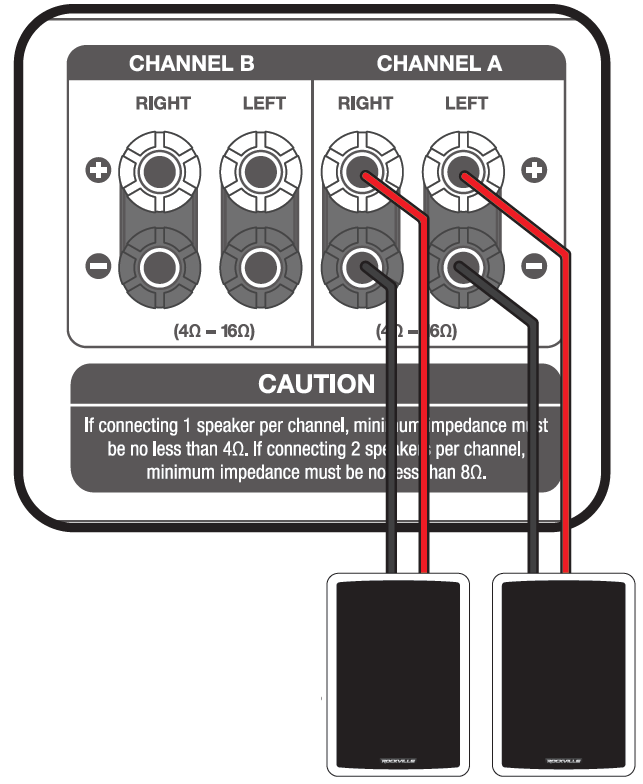

1. Two 4 ohm or two 8 ohm speakers attached to ZONE A (CHANNEL A) or you can attach them to ZONE B (CHANNEL B). Either 4 ohm or 8 ohm speakers can be used in this configuration.

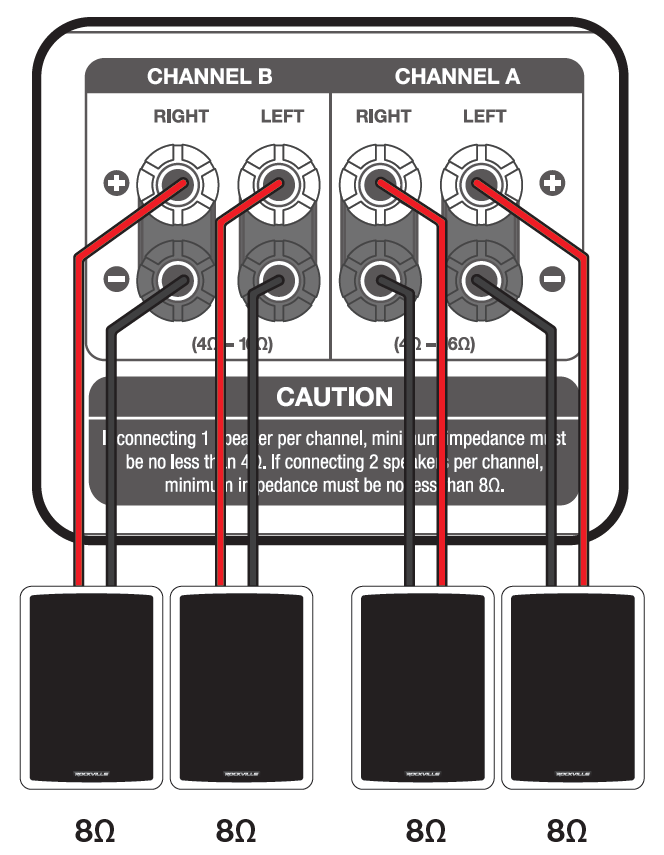

2. Two 8 ohm speakers attached to ZONE A (CHANNEL A) & two 8 ohm speakers attached to ZONE B (CHANNEL B).

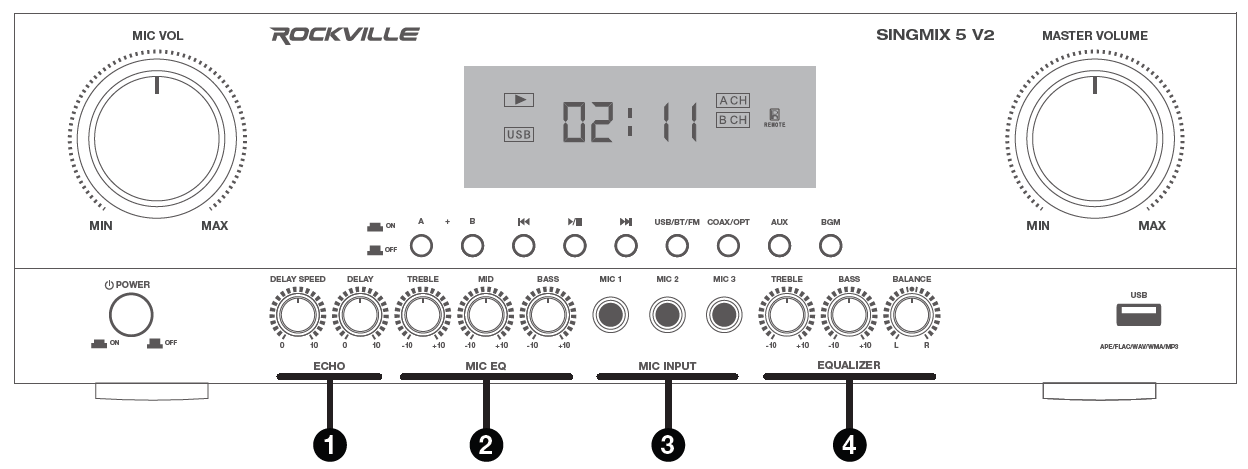

Mic Connections, Echo, Mic EQ, and EQ

1. Echo: This vocal effect adds a series of reverbs and delays (repeated, decaying echoes) to the voice / microphone.
   • Delay: Determines how much of the effect will be applied to the mic input signal.
   • Delay Speed: Specifies the number of milliseconds, beats or samples between each echo.
     • Example: a lower setting will give you a faster reverb/delay effect, while a higher setting slower reverb/delay effect.
2. Mic EQ: The mic EQ section allows you to independently control the treble, mid, and bass levels of all mic inputs.
3. Mic Inputs: Connect wired microphones (not included) or wireless mic receivers (not included) to the three ¼˝ mic jacks located at the front of the unit.
4. Equalizer: The bass and treble controls allow the user to make adjustments to the overall sound output.
   Balance: Controls the volume offset between left and right speaker outputs. This can restore the stereo image when not centered between the two speakers. Since rooms are not always symmetrical and furniture placement dictates the position of the speaker system, it is not always possible to arrange for the listening position to be centered exactly between the two main channels. Balance control can be used to correct this.

Using Your Bluetooth Enabled Device for Karaoke

1. Decide which device you would like to use as your karaoke viewing screen (iPad, iPhone, Android, tablet, or Laptop. We recommend using the Rockville IPS20 Tablet/Smartphone/iPhone/iPad Tripod Stand.
2. Turn on your device and the SINGMIX 5 V2.
3. Pair the two using the Bluetooth feature (see Bluetooth section).
4. Go to youtube.com or open the YouTube app.
5. Type the name of the song you would like to sing + the word karaoke into the YouTube search field (i.e. Don't Stop Believin' karaoke).
6. Adjust the volume of the SINGMIX  V2 and microphones as you see fit. Now you're ready to sing!

Features/Specifications

• Rockville SINGMIX 5 V2 2000W Bluetooth Amplifier/Mixer/Receiver

• RMS @ 4 Ohm less than 1% THD: 600 Watts RMS (300 x 2)

• RMS @ 8 Ohm less than 1% THD: 400 Watts RMS (200 x 2)

• Peak @ 4 Ohm at 10% THD: 2,000 Watts Peak (1000 x 2)

• Peak @ 8 Ohm at 10% THD: 1,500 Watts Peak (750 x 2)

• A and B speaker selector options, allows you to split the speakers to 2 zones and turn each zone on or off. When both zones are playing it WILL play in stereo

• Built-in Bluetooth with 35 Foot range

• USB input will play music files from a thumb drive or hard drive

• Precision tuning with metal knobs

• Mic mixer: 3 front microphone inputs with volume, tone, and echo control

• Adjustable bass and treble music control

• Adjustable bass, mid, and treble mic controls

• Delay and repeat effect controls

• Removable 19” Rack mount brackets make this perfect for tabletop use or for rack mount applications

• Full function remote gives you easy access to all the important features

• Built-in preamplifier

• Built-in FM radio with manual tuning, and auto-scan

• Built-in quiet cooling fan

• Bright blue LED display

• Perfect for karaoke, DJ, KJ, home, and commercial applications

• Rugged metal housing

• 110V voltage power

• 110V use only

• 110V output socket

• THD: less than 0.5%

• Input sensitivity: 250mv/47K ohm

• Frequency response: (20Hz – 20kHz) ±2dB

• Signal to noise ratio: >85db

• Tone characteristic (100Hz – 10kHz) ±12dB

• Unit weight: 17.6 lbs. (8 kg)

• Unit dimensions: 16.9” x 13” x 5.1”

Inputs/Outputs

• Front: (3) ¼” mic inputs (additional 2 mic inputs on the rear)
• Front: USB Inputs, built-in Bluetooth, FM radio
• Rear: (2) RCA Inputs
• Rear: (2) MIC inputs (there are also 3 mic inputs on the front)
• (1) optical input
• (1) Coaxial input
• (2) RCA Outputs (1 master line out and one mic out)
• (4) Speaker outputs supports 4 speaker or 2 speaker setups (banana or bare wire)

Fuse Replacement

The SingMIx 5 V2 features a user-serviceable fuse compartment. Follow the steps below to replace a blown fuse. Make sure to replace the current fuse with one of the same 250V/8A 5x20mm Fast Blow Fuse.

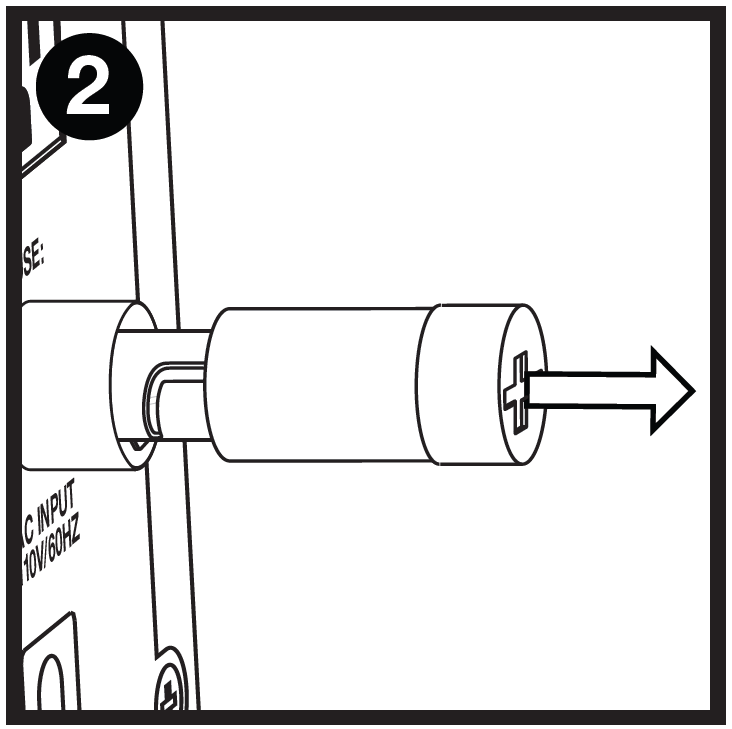

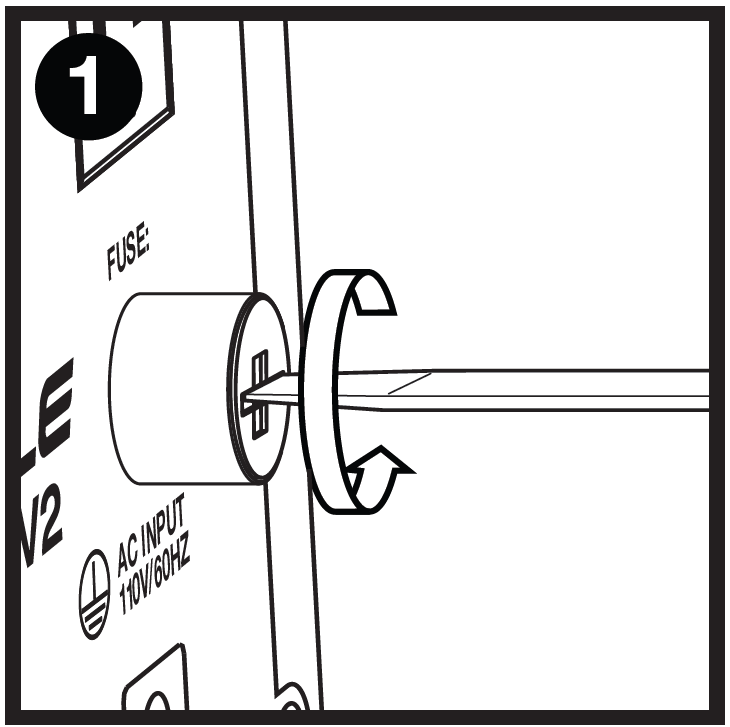

1. Use a screwdriver to release the fuse holder.

2. Remove the fuse holder.

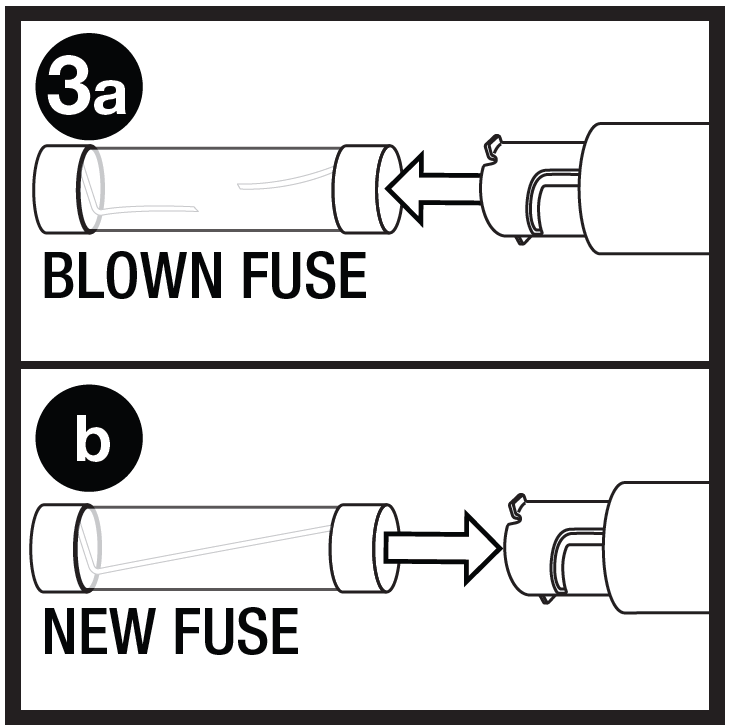

3. Remove the blown fuse (a). Insert a new fuse fuse (b).

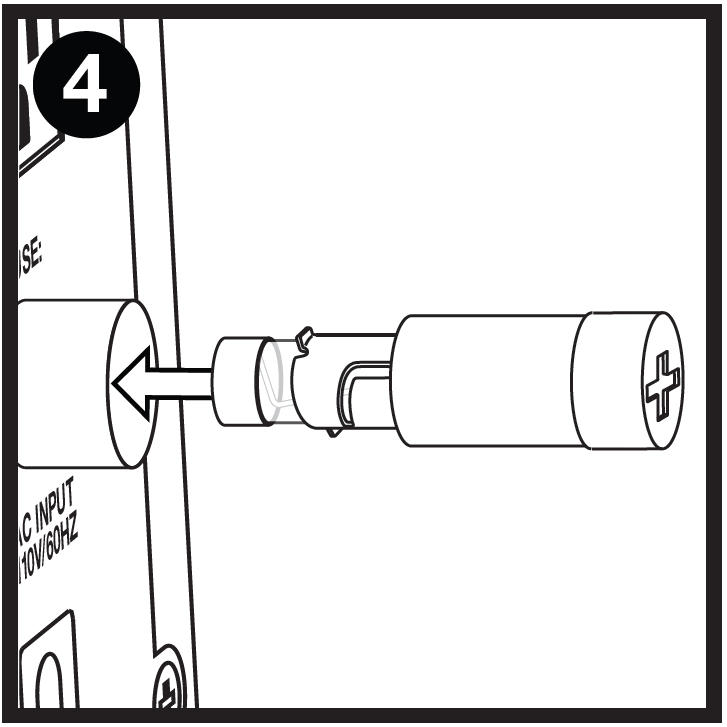

4. Carefully re-insert the fuse holder. Ensure that it is properly seated.

5. Use a screwdriver to secure the fuse holder
