RWM1203VH Owner's Manual

VHF Wireless Dual Handheld Microphone System w/ Digital Display

Important Safety Instructions

• To reduce risk of electric shock, never open the unit. There are no serviceable parts; refer service to Rockville Audio.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

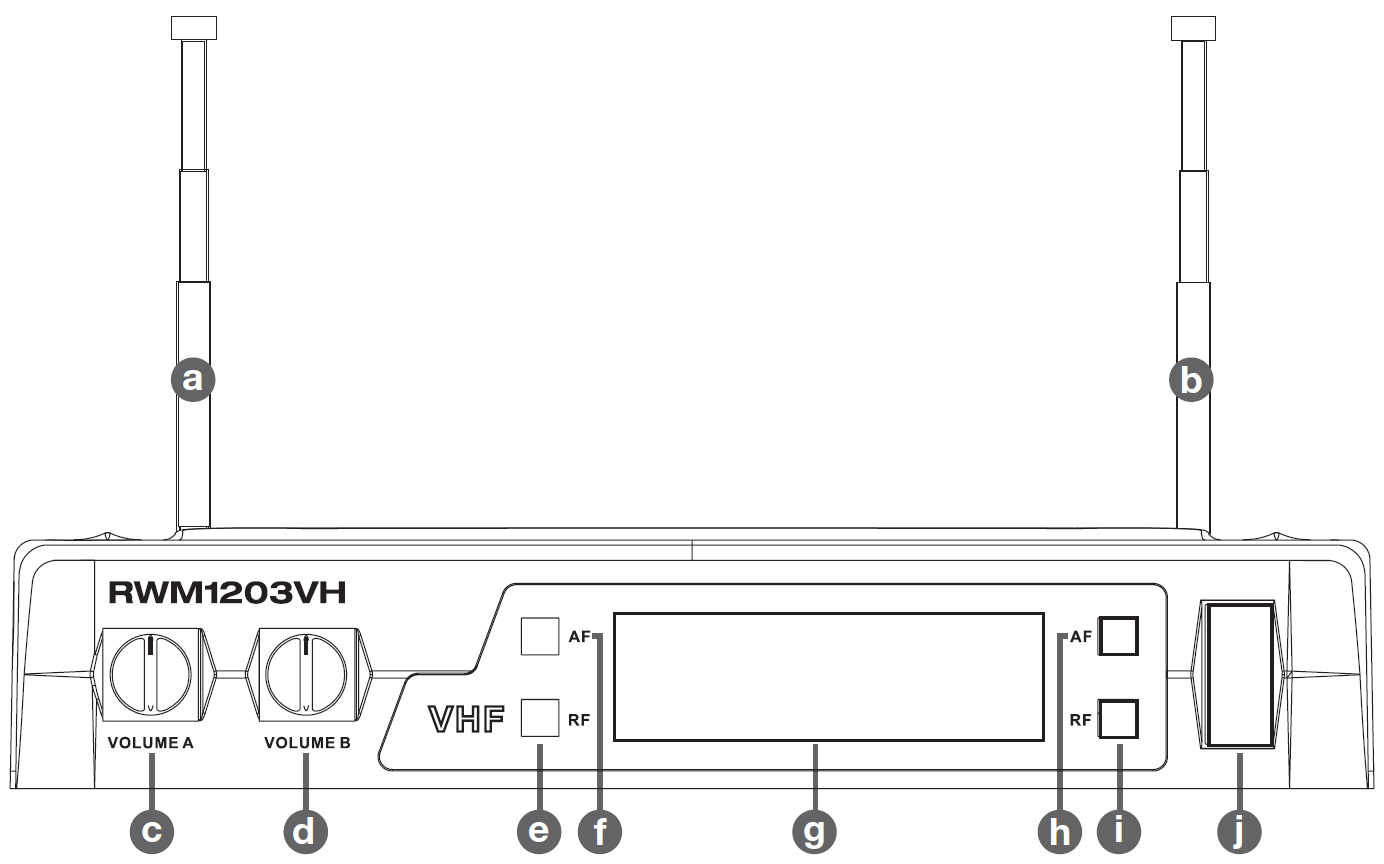

Receiver (Front)

a. Antenna A

b. Antenna B

c. MIC A Volume adjustment knob

d. MIC B Volume adjustment knob

e. MIC A RF signal LED indicator

f. MIC A AF signal LED indicator

g. LCD screen

h. MIC B AF signal LED indicator

i. MIC B RF signal LED indicator

j. Power on/off switch

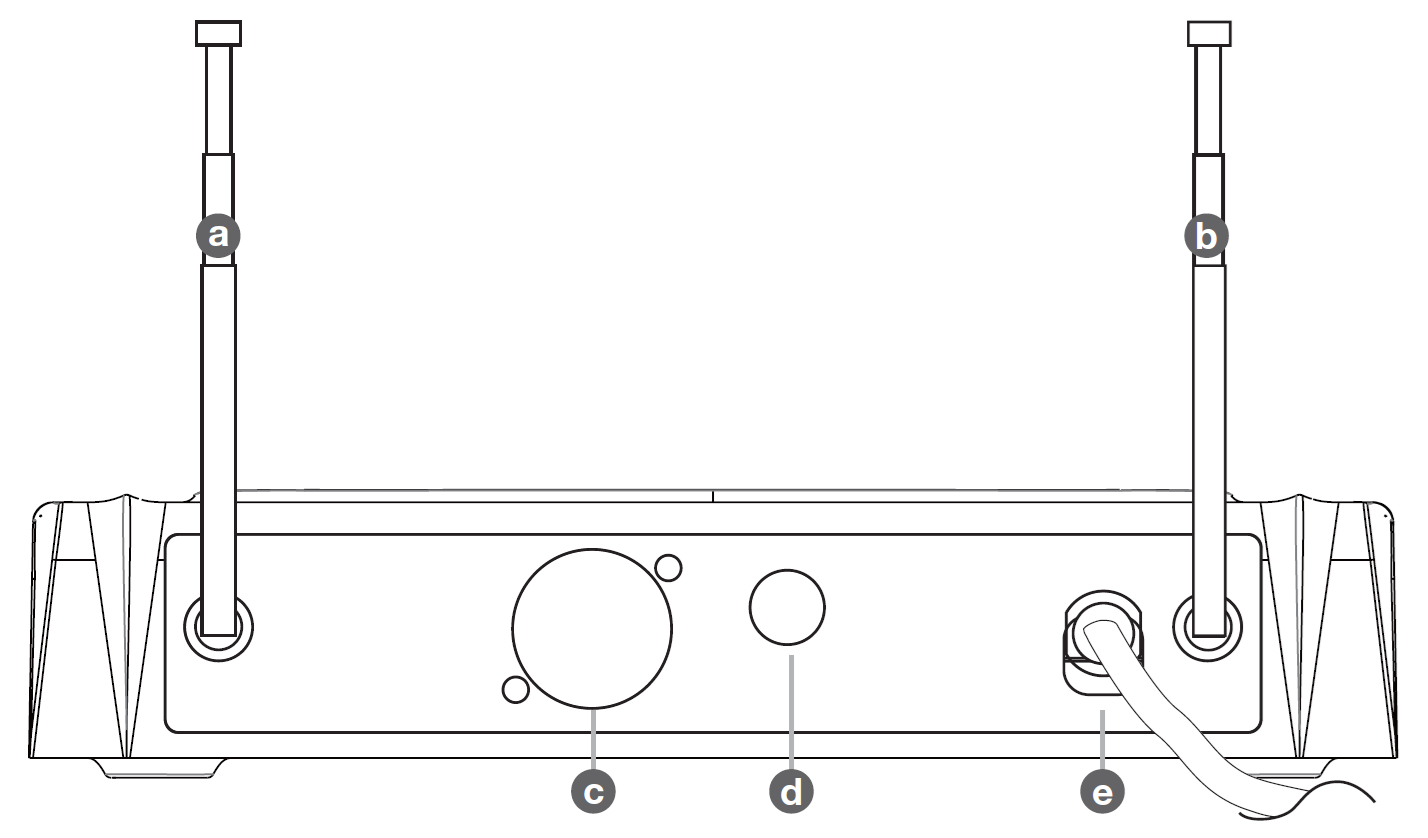

Receiver (Back)

a. Antenna B

b. Antenna A

c. XLR out

d. 1/4" Unbalanced mix out

e. Power plug

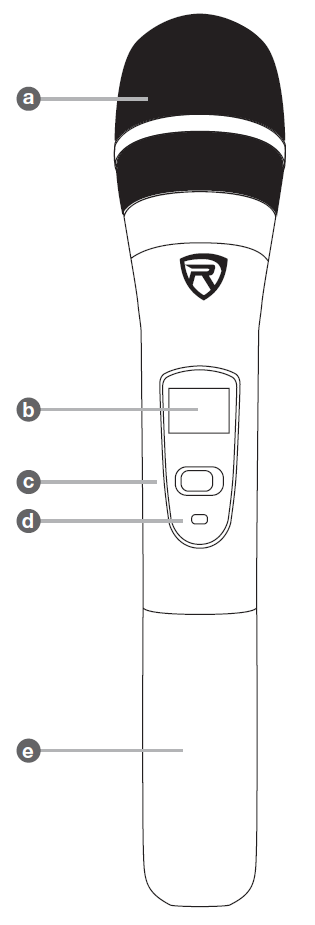

Microphones

a. Microphone windscreen

b. Power LED indicator

c. Power on/off switch

d. Low battery indicator

e. Battery compartment

Setup and Operation

Most mixers and powered speakers have both a Microphone input and a line level input. For best performance of the wireless microphone system you should make sure that you run the cable from one of the receiver outputs (XLR, 1/4" output) into the line input of the powered speaker or mixing board.

• The receiver should be placed in an area that is stable and least likely to shake the unit.
• The receiver should be at least 3' off the ground for optimal transmission.
• Connect the antenna, balanced cable AF line, and power supply provided.
• The antenna should extend vertically.
• Switch on the receiver.
• While the receiver is in stand-by, switch on the microphones.
• Adjust volume as necessary.

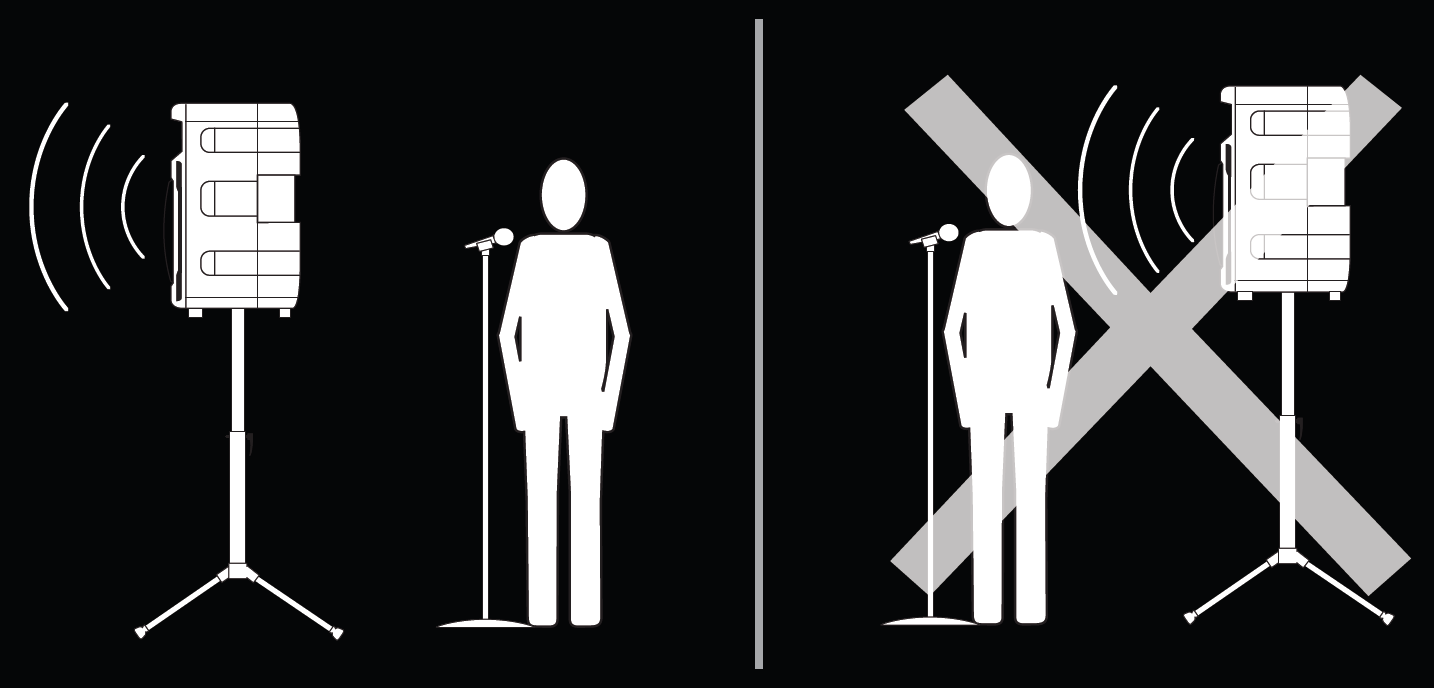

Tip: To minimize feedback avoid operating the microphones in close proximity of or in front of speakers.

Features

• VHF Dual Channel Handheld Wireless Microphone System
• Large display on receiver + digital display on each mic
• Each mic is large and solid with a nice weighted feel
• Improved high performance wireless handheld microphone capsule
• Includes transmitter with two handheld, high sensitivity, unidirectional, wireless cardioid microphones
• Featuring a dual filter design to limit feedback and interference
• Ultra signal stability eliminates unwanted distortion
• Transmitter automatically links to receiver for ease of use
• Use two handheld mics at once
• Individual microphone volume controls
• Low power consumption for longer battery life

Specifications

System

• Operating Range: 150 feet or more*
• Channel: Two Channel
• Frequency Range: 210MHz - 270MHz
• Frequency Response: 40Hz-18KHz
• S/N.: >103dB (1KHz-A)
• Operating Temp: 14°F - 122°F
• Oscillation Mode: Quartz Crystal
• Frequency Stability: ±0.005%
• Modulation Mode: VHF
• Harmonic Radiation: < 63dBm
• RF Output Power: 10mW
• Power Voltage: AC110V-60Hz
• Mic Battery: AA × 2

Receiver

• Sensitivity: (S/N=30dB) >2mV
• Audio Output Impedance: 600Ω
• Audio Output Level: 0-0.5V
• Power Supply: AC110V 60Hz
• Current Consumption: ≤50mA
• Audio Out Connector: 1/4" unbalanced

Transmitter

• Frequency Stability: ±0.005%
• RF Output Power: ≤10mW
• Modulation Mode: VHF
• Maximum Deviation Range: ±50KHz
• Microphone Mode: Fixed
• Power Supply: AA/1.5V × 2
• Current Consumption: ≤35mA

*Operating range is subject to environmental conditions. Results may vary.
