RPM109 V2 Owner's Manual

Keith Harris
Updated

Rockville RPM109 V2

12 Channel 4800W Powered Mixer w/7 Band EQ, Effects, USB, and 48V



Important Safety Instructions

A standard electrical safety warning label enclosed in a rounded rectangular border: Left Icon: A black triangle containing a white lightning bolt symbol indicating high-voltage electrical hazard. Center Text Box: A central box with a black top banner reading "CAUTION" in white uppercase text. The white lower box reads "RISK OF ELECTRIC SHOCK. DO NOT OPEN" in black uppercase text. Right Icon: A black triangle containing a white exclamation point symbol indicating a general safety hazard alert.
  • To reduce risk of electric shock, never open the unit. There are no user serviceable parts, refer service to the Rockville service center.
  • Do not expose this unit to any kind of moisture.
  • Please ensure that the unit is situated in a properly ventilated area.
  • Make sure the unit is placed on a level and stable surface.



Functions

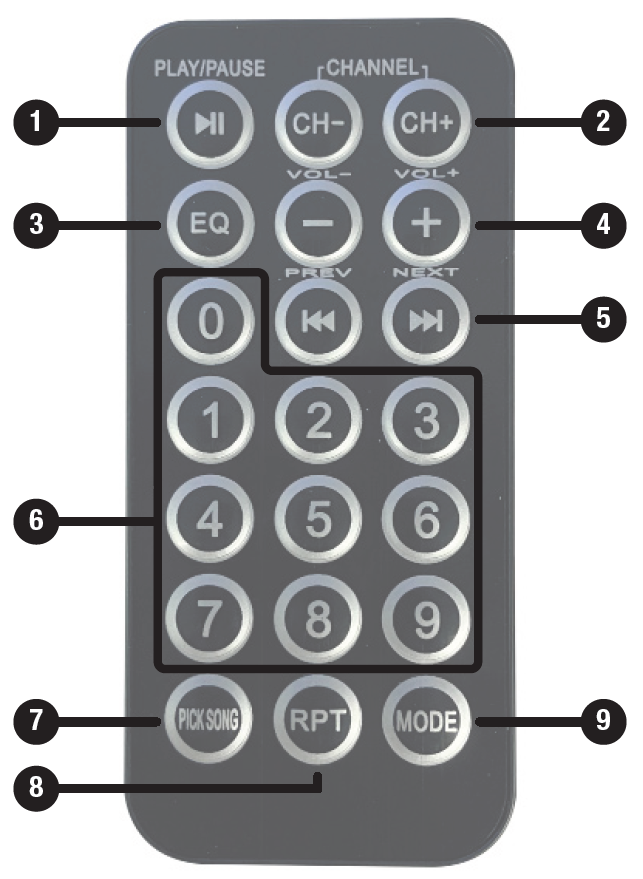

Numbered diagram of an infrared wireless remote control unit showing playback, channel selection, volume adjusters, numeric keypad, and mode buttons



  1. Play/Pause: Play/pause current song.
  2. VOL- & VOL+: Press to decrease or increase volume.
    CH- & CH+: Press and hold to quickly decrease or increase channel setting by 1.
  3. EQ: Press to cycle through preset EQs: NORMAL, POP, ROCK, CLASSIC and COUNTRY.
  4. PREV(-) & NEXT(+): Select previous or next song.
  5. |<< & >>|: Function unavailable for this unit.
  6. Number Pad: Directly select music track.
  7. PICK SONG: Function unavailable for this unit.
  8. RPT: Press to cycle through repeat modes: SINGLE, RANDOM, ALL and FOLDER.
  9. MODE: Press to switch between BT and USB mode.

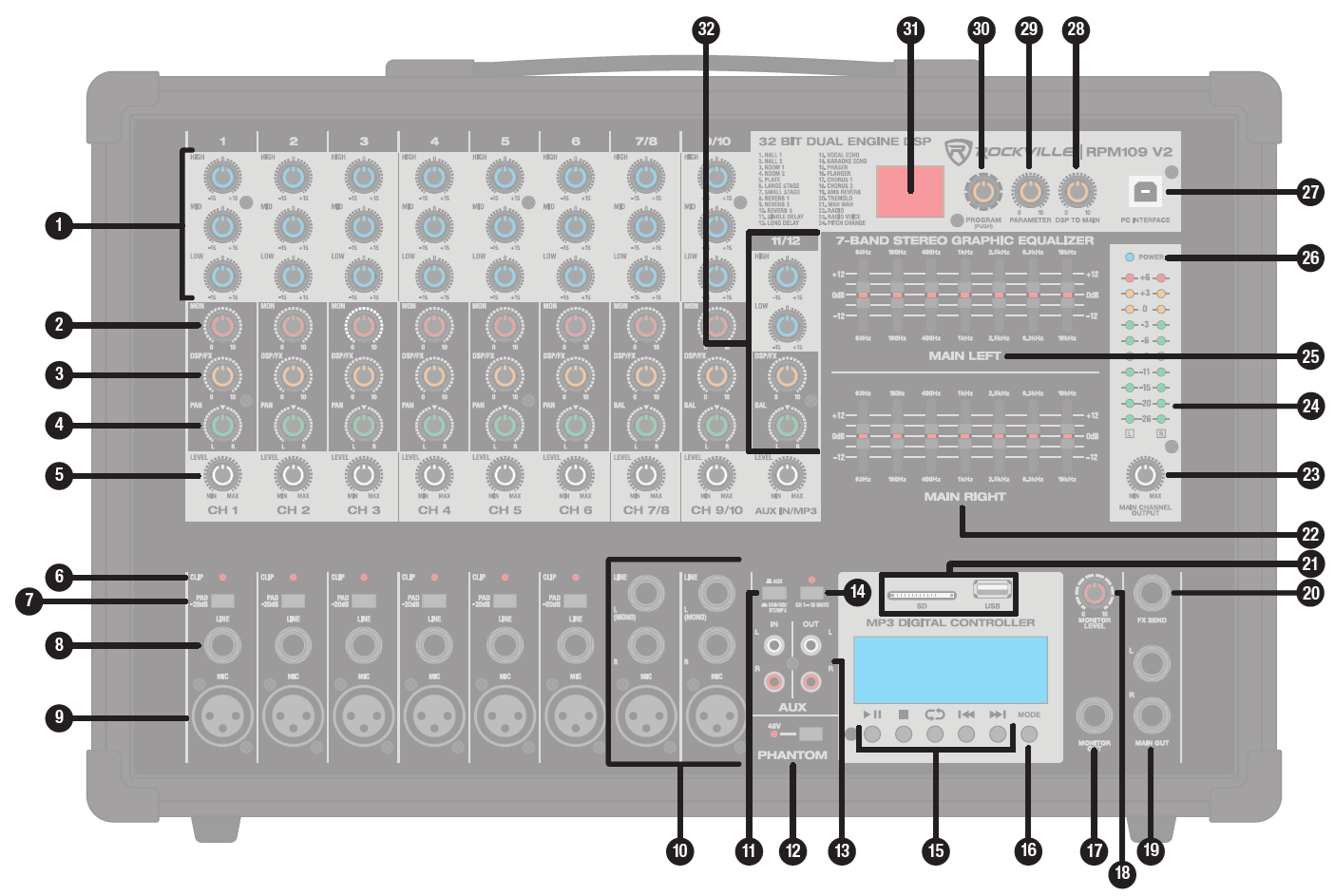

  1. Input Channel Equalizers (Ch1-10): 3-band EQs on each channel that adjust high, mid and low frequencies.
    • High: 12KHz ±15dB
    • Mid: 2.5KHz ±15dB
    • Bass: 80Hz ±15dB
  2. Channel Monitor Out Level (Ch1-10): Controls the amount of signal for that channel sent to the MONITOR bus.
    Please note: This is a pre-fader, post-EQ output. The only things that affect the signal output to the MONITOR bus are High/Mid/Low Channel EQ controls and the Pad button. Anything else in the channel path does not affect this signal, including the 7-band EQ.
  3. Channel FX Level (Ch1-12): Controls the amount of signal for that channel sent to the built-in DSP effects (or to the FX send output if in use).
    Please note: This is a pre-fader, post-EQ output. The only things that affect this FX signal output are High/Mid/Low Channel EQ controls and the Pad button. Anything else in the channel path does not affect this signal, including the 7-band EQ.
  4. L/R Pan (Ch1-12): Determines the position of the channel signal within the stereo image. It features a constant-power characteristic, which means the signal is always maintained at a constant level, irrespective of position in the stereo panorama.
  5. Level (Ch1-12): Controls the volume output (or "fader" level) per individual channel.
  6. Clip LED (Ch1-6): Indicates that the input signal is too high and distorting.
  7. PAD Buttons (Ch1-6): Attenuates the input signal by -20dB. Use this feature when connecting a line level device or if the Mic input is hot/distorted even with mini.
  8. 1/4" Balanced TRS Line Inputs (Ch1-6): This input may be used as either a high-impedance microphone input or for line-level devices such as a keyboard, cassette player, CD player, video projector or laptop.
    • It may also allow connection from an electric guitar or bass.
    • It is a three-conductor input with an impedance of 10K ohms.
  9. XLR Mic Input (Ch1-10): Connect microphones using balanced XLR audio cable (mic cable).
    • Input Impedance of 1K ohms
    • PIN 1 = Shield / Ground
    • PIN 2 = Positive (+hot)
    • PIN 3 = Negative (-cold)
      WARNING: When using condenser microphones, make sure that Phantom Power (item 12) is on.
  10. Stereo Channel Inputs (Ch7/8 & 9/10): These are stereo L/R 1/4" unbalanced (TS) inputs featuring a balanced XLR input.
    • Please note: When the Left 1/4" jack is used alone, or the XLR input is used, the signal input is mono, meaning the signal plays in both the left and right channels.
  11. AUX/BT/USB/SD Button: Allows you to select between the AUX input and the MP3 module (BT, USB, and SD).
  12. Phantom Power Button (red LED indicates power on): When activated, this allows condenser microphones to function, while not affecting dynamic microphones. Please advise certain (ribbon) microphones can be damaged if used with phantom power.
    ⚠️Never unplug or plug in microphones while phantom power is on. It can cause severe damage to the mic. When phantom power is turned off, it is recommended you wait approximately 7 seconds so as to allow time for the voltage to completely dissipate.
  13. L/R RCA AUX In & Out (Ch11/12): These are stereo RCA inputs and outputs.
    • Aux Inputs: For connecting an MP3 player, laptop or any other device with a line level output.
    • Aux Outputs: The outputs allow you to send the signal to a recorder (-10dB output level), or any other line level L/R device.
  14. Mic MUTE Button: Mutes the signals of channels 1 to 10.
  15. USB/SD/Bluetooth MP3 DIGITAL CONTROLLER:
    • Play button: Press during playback to pause, press button again to resume play.
    • Stop (USB/SD only): Stop playback. Press and hold to enter folder selection mode. Use the Prev/Next buttons to select folder.
    • Repeat button: Press the button to cycle through the available repeat modes (in this order): folder, single, random, all.
    • Previous button (USB/SD/BT): Press to go to the previous track. Press and hold to raise the module's volume.
    • Next button (USB/SD/BT): Press to go to the next track. Press and hold to lower the module's volume.
  16. MODE: Press to switch between modes (USB/SD/Bluetooth). Press and hold to turn off the MP3 module.
  17. MONITOR OUT: This 1/4" TS jack provides and unbalanced output signal from the monitor signal path.
  18. MONITOR LEVEL: Controls the level/amount of the overall signal being sent from ch 1-10 from the monitor knob to each channel together. This can be used to send signal to stage monitors.
  19. MAIN OUT: These L/R 1/4" TS jacks provide unbalanced output. Its the line level of the main mix which can be sent to other devices.
  20. FX SEND: Sends a stereo line level signal to an external effects processor. This signal can be returned on any of the mixer's other line inputs on an unused channel.
  21. SD/USB Inputs: Accepts standard windows (FAT or FAT32) formatted* 32GB or less SD Cards / USB Thumb Drives.
    *The RPM109 V2 will not recognize drives formatted in the NTFS format; only the FAT or FAT32 formats.
  22. MAIN RIGHT Graphic EQ: 7 band equalizer allows you to adjust the frequency response (±12dB) of the right mains' signal.
  23. MAIN CHANNEL OUTPUT: Controls the overall output to the Main Output (front jacks) and Power Output (rear speaker outputs).
  24. Output Level Indicator: This peak level meter is made up of 20 LEDs (10 for the each cannel) with 3 colors to indicate the different ranges of signal level. You want your average level to be at 0dB for optimal output and sound clarity.
  25. MAIN LEFT Graphic EQ: 7 band equalizer allows you to adjust the frequency response (±12dB) of the right mains' signal.
  26. POWER: LED indicates unit power status.
  27. PC INTERFACE USB port: Use this type B USB port to send audio data between the mixer and a computer. This can be controlled by the computer for playback and recording. The signal recorded would be affected by the 7-band stereo graphic EQ and all channel controls, but not the Main Channel Output.
  28. DSP TO MAIN: Controls the overall level/amount of the effects sound (from Ch 1-12) heard in the Main Outputs.
  29. PARAMETER: Changes the character of the effect selected (i.e. delay time, room size).
  30. PROGRAM (PUSH): This allows you to select any one of the 24 preprogrammed digital effects.
    • Rotate to scroll through the effects.
    • Push to confirm your selection.
  31. FX Display: Shows the number associated with the current digital Digital Stereo Effect selected.
  32. Channel 11/12: These controls are used to adjust the signal from the Stereo AUX Inputs or from the USB/SD/Bluetooth MP3 DIGITAL CONTROLLER.
    • To switch between Stereo AUX Inputs and USB/SD/Bluetooth, use the AUX/BT/USB/SD button (see item 11).

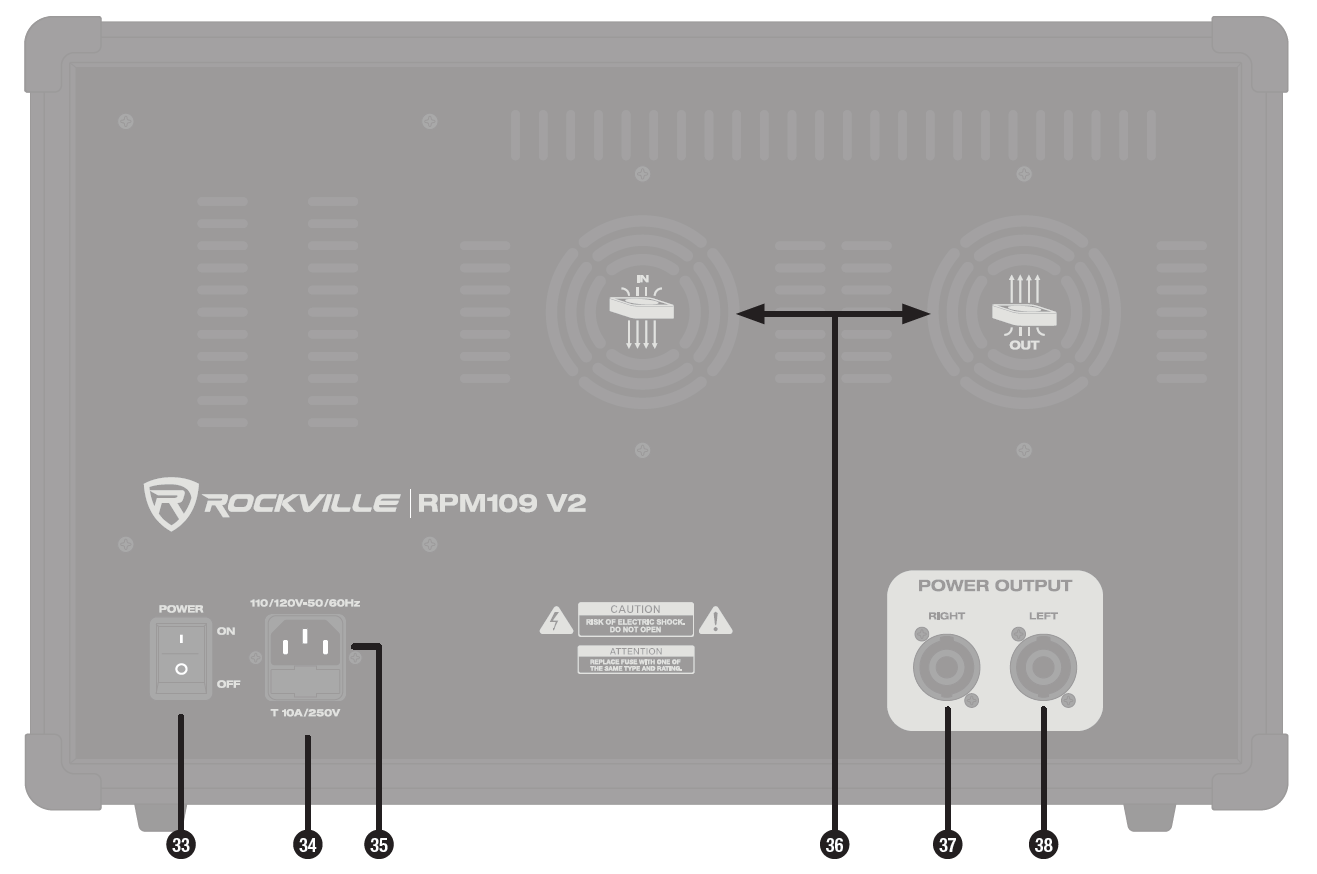

Diagram of the rear panel of a Rockville RPM109 V2 audio powered mixer, featuring numbered labels pointing to the power switch (33), IEC power socket (34), fuse compartment (35), cooling fan vents indicating air IN and OUT flow (36), and Right (37) and Left (38) power output connectors.
  1. POWER: ON/OFF Switch
  2. User Serviceable T 10A/250V Fuse (10 Amp 250 Volt 5x20mm Fast Blow Fuse)
  3. IEC AC Power Socket: 110-120V 50-60Hz AC voltage required.
  4. Dual Vent Fan Cooling System
  5. POWER OUTPUT RIGHT: Right main powered output speakON jack (4 ohm MINIMUM impedance).
  6. POWER OUTPUT LEFT: Left main output speakON jack (4 ohm MINIMUM impedance).



Operation

Bluetooth Pairing and Operation:

Please note: input from the USB or SD port will override Bluetooth input.

  1. Press the MODE button until you see the Bluetooth logo followed by "Bluetooth Disconnected" on the display. The unit will automatically enter into pairing mode.
  2. Ensure that your device is in Bluetooth mode and discoverable.
  3. Find "ROCKVILLE" on your device's list of available Bluetooth connections and select it.
  4. Once successfully paired, you will see the Bluetooth logo followed by "Bluetooth Connected" flashing on the display.
  5. You can control playback from your device or you can use the MP3 controls.

USB/SD Operation:

Inserting a USB flash drive or an SD card into the corresponding port/slot will set the RPM109 V2 to USB/SD mode and it will automatically begin to play music.
Please note: The RPM109 V2 will not recognize USB drives formatted in the NTFS format. Drives must be formatted in the FAT or FAT32 formats. Recognized file formats are MP3, WAV, and WMA.

Music Playback (BT/USB/SD):

  • Play button: Quickly press to play/pause current track.
  • Stop button (USB/SD only): Quickly press to stop current track.
  • Next button: Quickly press to go to next track. Press and hold to raise volume.
  • Previous button: Quickly press to go to previous track. Press and hold to lower volume.
  • Repeat button: Press the button to cycle through the available repeat modes (in this order): folder, single, random, all.

Folder Selection (USB/SD only):

  • Play button: Quickly press to play songs in the selected folder.
  • Stop button: Press and hold to enter folder selection mode. Use the Prev/Next buttons to cycle through folders. The display will show the name of the folders as you scroll. Pausing on a folder will preview it and start playing the first song. To select a folder, press the button for 1 second. Playback will begin immediately.
  • Next button: Quickly press to go to next folder.
  • Previous button: Quickly press to go to previous folder.

Formatting:

*For any issue issues with USB Thumb Drive or SD Card Playback/Recording...
Please follow these formatting instructions to ensure audio/device compatibility:

  1. Insert your 32GB or less(may not be compatible with larger) USB Thumb Drive(available USB port needed) or SD Card(available SD slot or external card reader needed) into a computer.
  2. Right-Click: USB Thumb Drive or SD Card Icon.
  3. Select: Format Device
  4. It will ask for Format Type...Select FAT32.

**For USB Thumb Drive or SD Playback...
Make sure all music loaded on is MP3, WMA, WAV, FLAC or APE file format.
To cover audio to MP3, WMA, WAV, FLAC or APE:

  • Mac: Look for iTunes MP3 conversion option in dropdown menus.
  • PC: Look for iTunes MP3 conversion software available to download or websites that allow you to upload files to be converted.
    connecting a USB drive or SD card will override other MP3 input modes.



Replacing the Fuse

The RPM109 V2 features an IEC power socket with a user-serviceable fuse compartment. Follow the steps below to replace a blown fuse. Make sure to replace the current fuse with one of the same value.

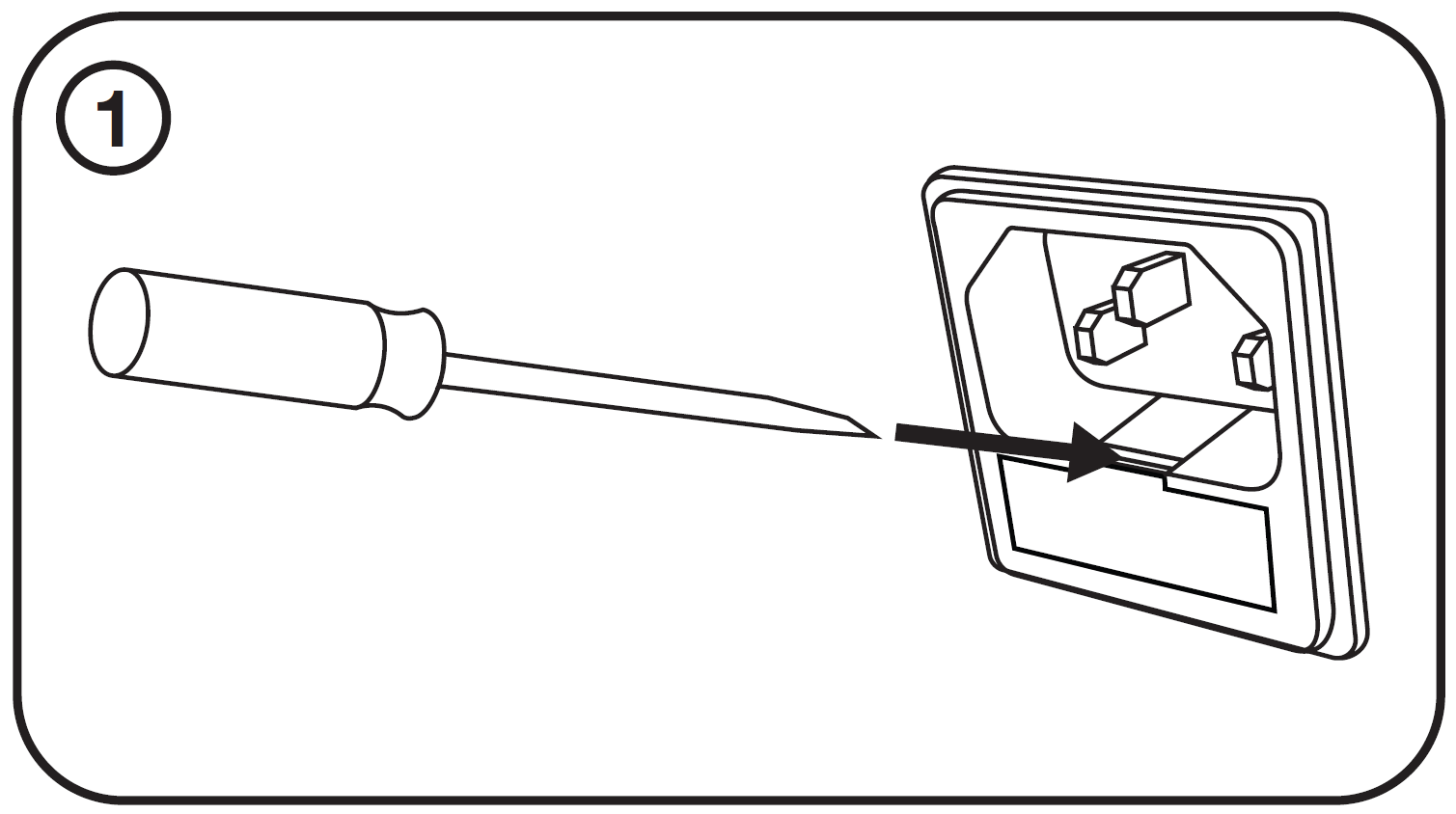

1.) Use a screwdriver to release the fuse holder.
A line-art diagram showing a small flat-head screwdriver being inserted into the slot of an IEC power socket's fuse drawer to pry it open.

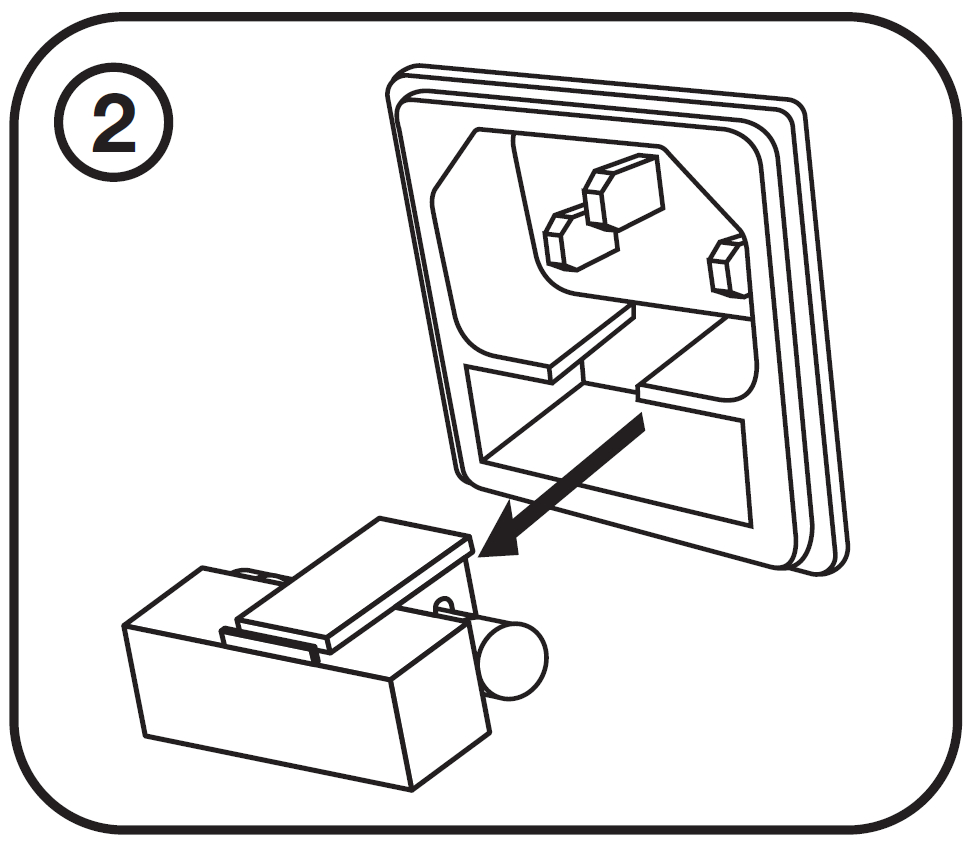

3.) Remove the fuse holder.
A diagram showing the second step of replacing a fuse: sliding/removing the fuse holder tray out from the IEC power socket to reveal the fuse.

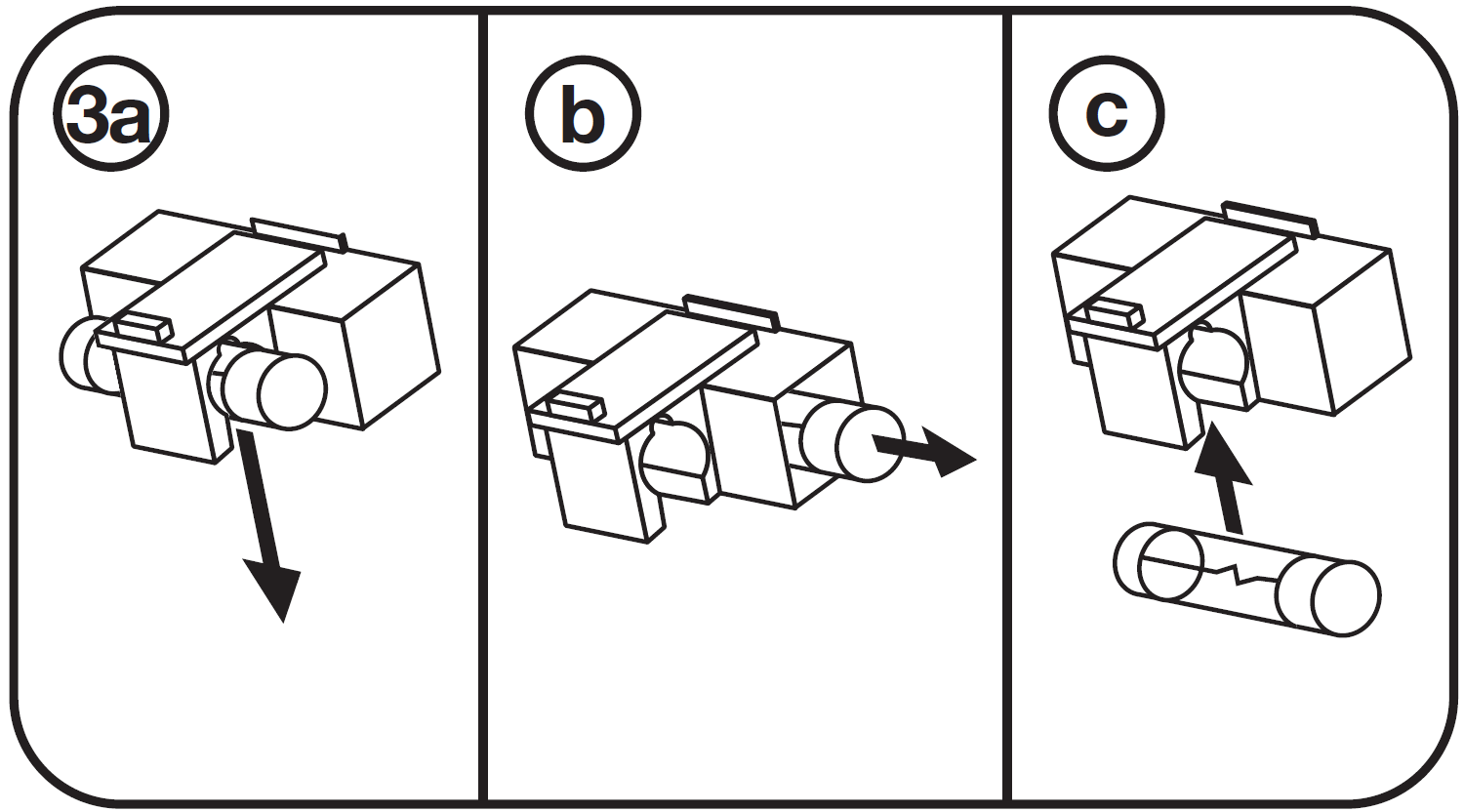

3.) Remove the blown fuse (a). Extract the spare fuse (b) and replace in the fuse holder (c).
An illustration split into three panels showing fuse replacement steps: 3a b c

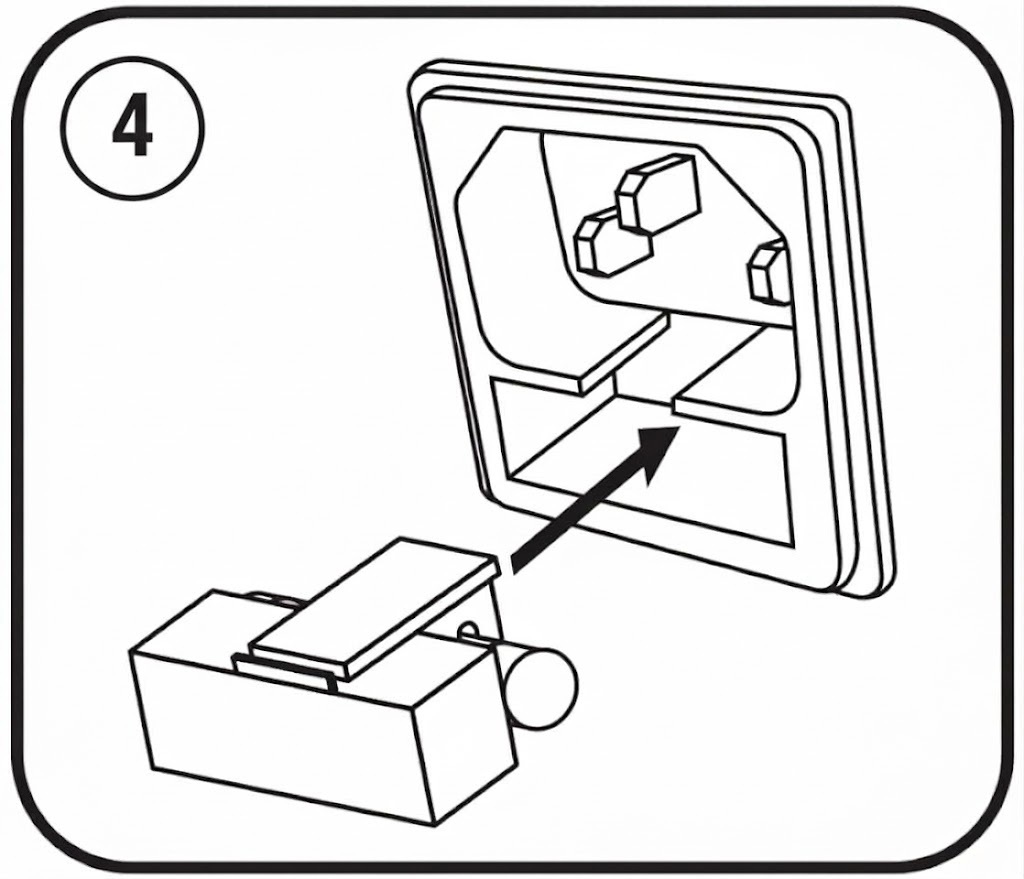

4.) Carefully re-insert the fuse holder and ensure that it is properly seated.
A diagram showing step 4 of replacing a fuse: sliding the fuse holder tray back into the IEC power socket.

Features/Specifications

  • 12 Channel mixer section: 6 mono channels, 3 stereo channels, 1 dedicated USB/SD channel
  • USB Interface for playback or to record your performance in your DAW
  • Mute button for channels 1-10 which enables you Switch between all the channels accept the AUX/MP3 channels.
  • Built-in Bluetooth playback
  • Studio-grade stereo FX processor with 24 digital effects including reverb, chorus, plate, delay, chorus and various multi-effects
  • 8 high-quality mic preamps with switchable +48 V phantom power for condenser microphones
  • Pad Switch on each mono channel
  • Clip LEDs on each mono channel
  • Dual Stereo 7-band Graphic EQ allows for precise frequency correction of main outputs
  • Monitor Level Knob
  • Main Level Knob with 2x10 LED Level Meter
  • Dual RCA Aux Input with Independent Level Knob for External Signal Sources
  • Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
  • Dual RCA Output
  • Dual Speak-ON jacks for speaker Output
  • RMS Power Output: 600w x 2 @ 4 Ohm / 450w x 2 @ 8 Ohm / 1200w x 1 @ 8 Ohm
  • Program Power Output: 1200w x 2 @ 4 Ohm / 900w x 2 @ 8 Ohm / 2400w x 1 @ 8 Ohm
  • Peak Power Output: 2400w x 2 @ 4 Ohm / 1800w x 2 @ 8 Ohm / 4800w x 1 @ 8 Ohm
  • Dual Fan vent Cooling System
  • 110-120V power supply
  • Dimensions: 18" x 11.22" x 11.41"

  • Weight: 30.9 Lbs.



Troubleshooting

Problem

Solution

No power

  • Make sure the unit is plugged in and the power switch is in the ON position.
  • Check that the power cable is plugged in tightly to the unit.
  • Check and replace the fuse if necessary. See fuse replacement diagram on the next page.

No sound

  • Check that all appropriate cables are plugged in correctly.
  • Check the Main Channel Output settings.
  • Check the individual level control of each channel. Make sure the Ch1-10 mute switch is not pressed.
  • Make sure you've selected the right input input source (AUX/BT/USB/SD) for the appropriate channel.
  • Make sure your microphone is on. If using a condenser mic, make sure phantom power is on.

Noise

  • Turn down the channel levels one by one. If you don't hear the sound, then the problem is either with the channel or whatever device is plugged into it.
  • Unplug the device(s) to see if the sound disappears.
  • Make sure you are using the proper cables. For 1/4" cables, there are 3 types: speaker, TS line/instrument (unbalanced), and TRS line (balanced). Check the requirements of the connected gear and make sure you are using the appropriate cable.
  • Check EQ settings. Boosting EQ can potentially lead to distortion at a much earlier point or may sound too loud or harsh. To alleviate that, lower your EQ settings.

Buzzing sound

  • Make sure you are using a proper cable and that it is plugged in completely.
  • For 1/4" cables, there are 3 types: instrument, TS (unbalanced), and TRS (balanced). Check the requirements of the connected gear and make sure you are using the appropriate cable.

Bad Channel

  • Check that the EQ is set up properly.
  • Check channel level.
  • Check that the channel pan is set to the 12 o'clock position.
  • Try setting up the same source signal on a different channel. Make sure to use the same settings as the suspect channel.
  • If using a microphone, make sure that it does not require phantom power.

Bad Output

  • Make sure the main level is turned up.
  • Check that the EQ is set up properly.
  • Unplug devices from other line level outputs just in case one of the devices has a problem.

Bluetooth Pairing Fails

  • Check to see that both devices are turned on and that your Bluetooth device is discoverable.
  • Turn both devices off and then on again.
  • Make sure you've selected the proper source. Check that the AUX-USB/SD/BT selector button is pressed.
  • Make sure that the Bluetooth device is within 5 feet of the unit.
  • Move both devices away from other Bluetooth devices, microwaves, wireless routers, and other electronics.
  • Make sure that all volume controls are set properly (Main Channel volume control as well as Ch11/12 volume control).
  • Make sure that the unit is not paired to a previously paired device.

No USB playback

  • Make sure your SD card or USB flash drive is not damaged.
  • Make sure the SD card or USB drive is formatted as FAT or FAT32. Cards and drives formatted as NTFS are not recognized.
  • Check that the files on the media device are not corrupt.
  • Make sure the files are properly formatted (WAV, MP3, WMA).
