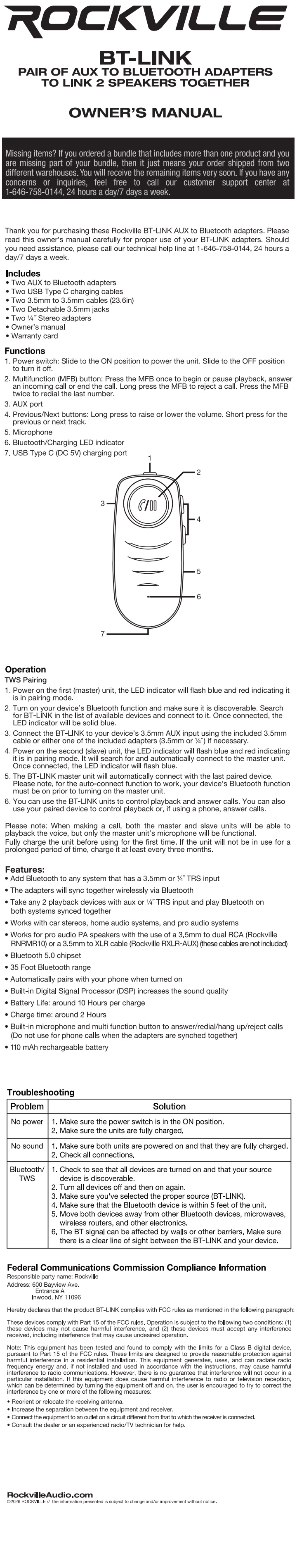

BT-LINK Owner's Manual

Pair of Aux to Bluetooth Adapters to Link 2 Speakers Together

Includes

• Two AUX to Bluetooth adapters
• Two USB Type C charging cables
• Two 3.5mm to 3.5mm cables (23.6in)
• Two Detachable 3.5mm jacks
• Two ¼˝ Stereo adapters
• Owner’s manual
• Warranty card

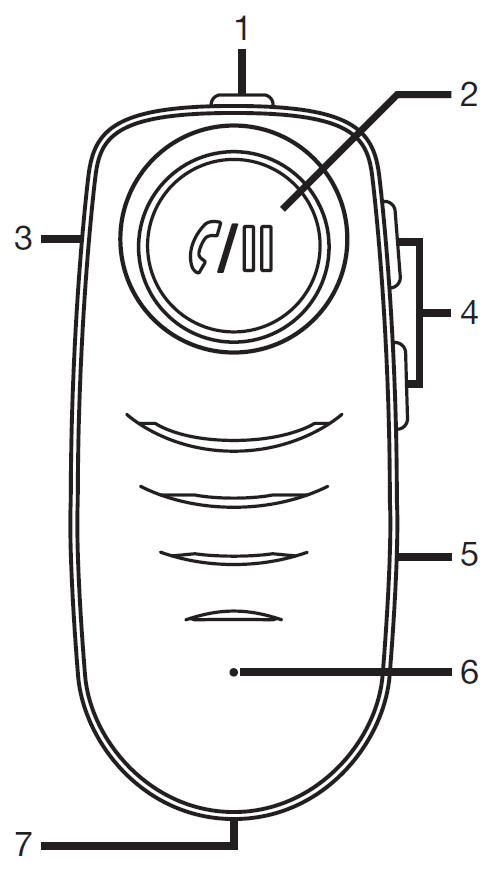

Functions

Power switch: Slide to the ON position to power the unit. Slide to the OFF position to turn it off. Multifunction (MFB) button: Press the MFB once to begin or pause playback, answer an incoming call or end the call. Long press the MFB to reject a call. Press the MFB twice to redial the last number. AUX port Previous/Next buttons: Long press to raise or lower the volume. Short press for the previous or next track. Microphone Bluetooth/Charging LED indicator USB Type C (DC 5V) charging port

Operation

TWS Pairing

1. Power on the first (master) unit, the LED indicator will ash blue and red indicating it is in pairing mode.
2. Turn on your device’s Bluetooth function and make sure it is discoverable. Search for BT-LINK in the list of available devices and connect to it. Once connected, the LED indicator will be solid blue.
3. Connect the BT-LINK to your device’s 3.5mm AUX input using the included 3.5mm cable or either one of the included adapters (3.5mm or ¼˝) if necessary.
4. Power on the second (slave) unit, the LED indicator will ash blue and red indicating it is in pairing mode. It will search for and automatically connect to the master unit. Once connected, the LED indicator will ash blue.
5. The BT-LINK master unit will automatically connect with the last paired device. Please note, for the auto-connect function to work, your device’s Bluetooth function must be on prior to turning on the master unit.

6. You can use the BT-LINK units to control playback and answer calls. You can also use your paired device to control playback or, if using a phone, answer calls.

   Please note: When making a call, both the master and slave units will be able to playback the voice, but only the master unit’s microphone will be functional. Fully charge the unit before using for the rst time. If the unit will not be in use for a prolonged period of time, charge it at least every three months.

Features

• Add Bluetooth to any system that has a 3.5mm or ¼˝ TRS input
• The adapters will sync together wirelessly via Bluetooth
• Take any 2 playback devices with aux or ¼˝ TRS input and play Bluetooth on both systems synced together
• Works with car stereos, home audio systems, and pro audio systems
• Works for pro audio PA speakers with the use of a 3.5mm to dual RCA (Rockville RNRMR10) or a 3.5mm to XLR cable (Rockville RXLR-AUX) (these cables are not included)
• Bluetooth 5.0 chipset
• 35 Foot Bluetooth range
• Automatically pairs with your phone when turned on
• Built-in Digital Signal Processor (DSP) increases the sound quality
• Battery Life: around 10 Hours per charge
• Charge time: around 2 Hours
• Built-in microphone and multi function button to answer/redial/hang up/reject calls (Do not use for phone calls when the adapters are synched together)
• 110 mAh rechargeable battery

Troubleshooting
