Spyder LED Owner's Manual

Ira - Zendesk Admin
Updated

8 Beam Moving Head Motorized DMX Pro Light

Includes

  • Spyder LED light

  • IEC Power wire

  • DMX cable

  • Mounting bracket

  • Owners manual

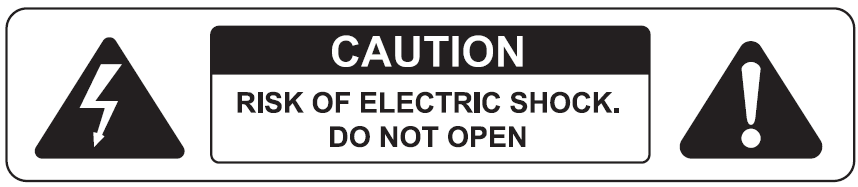

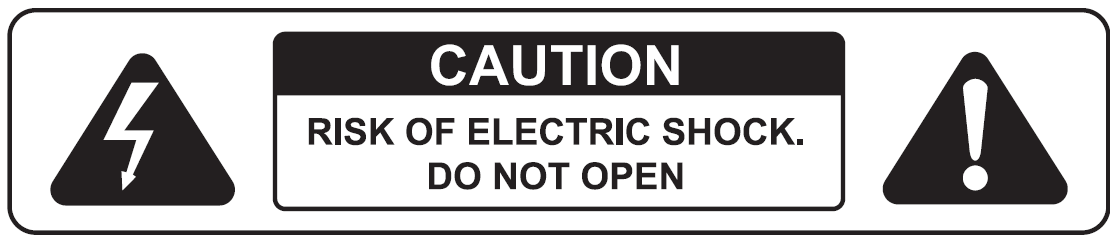

Important Safety Instructions

No user serviceable parts inside. Refer service to the Rockville service center.

  • Avoid looking directly into the lights.

  • Do not expose this unit to any kind of moisture.

  • The products housing may become hot during operation. Do not touch.

  • Please ensure that the unit is situated in a properly ventilated area. Allow at least 20 inches between this device and a wall.

  • This device has an IP20 rating and is intended for indoor use only.

  • Maximum operating temperature is 104°F (40°C).

  • Do not operate this unit when the cover is open.

  • Do not attempt to operate this unit if the power cord has been frayed or broken.

  • Do not attempt to break off or remove the ground prong. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.

  • Never plug this unit into a dimmer pack.

  • Do not operate this unit if it is damaged.

  • This unit is intended for indoor use only.

  • During long periods of non-use, disconnect the unit from power source.

  • Always mount this unit in a safe and stable matter.

  • Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point of exit from the unit.

  • To avoid unnecessary wear and to improve the unit's lifespan, unplug the unit when not in use for extended periods of time.

Functions

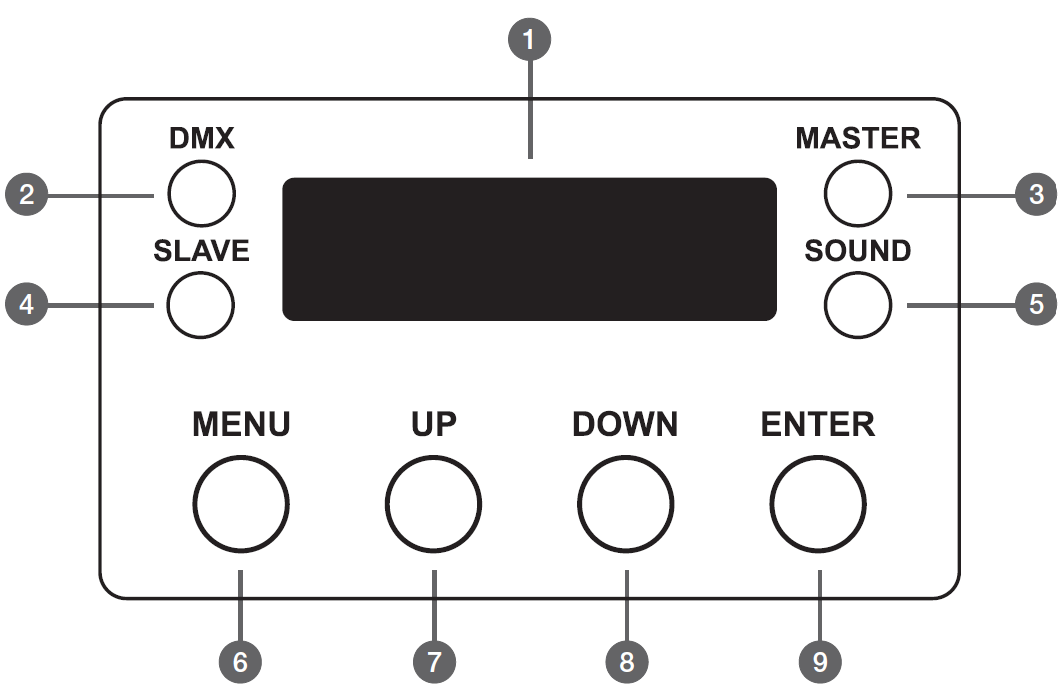

  1. LCD display: Shows unit status

  2. DMX mode LED indicator

  3. Primary mode LED indicator

  4. Secondary mode LED indicator

  5. SOUND mode LED indicator

  6. MENU: Enter settings menu

  7. UP: Scroll up through menu items

  8. DOWN: Scroll down through menu items

  9. ENTER: Confirm and save selection

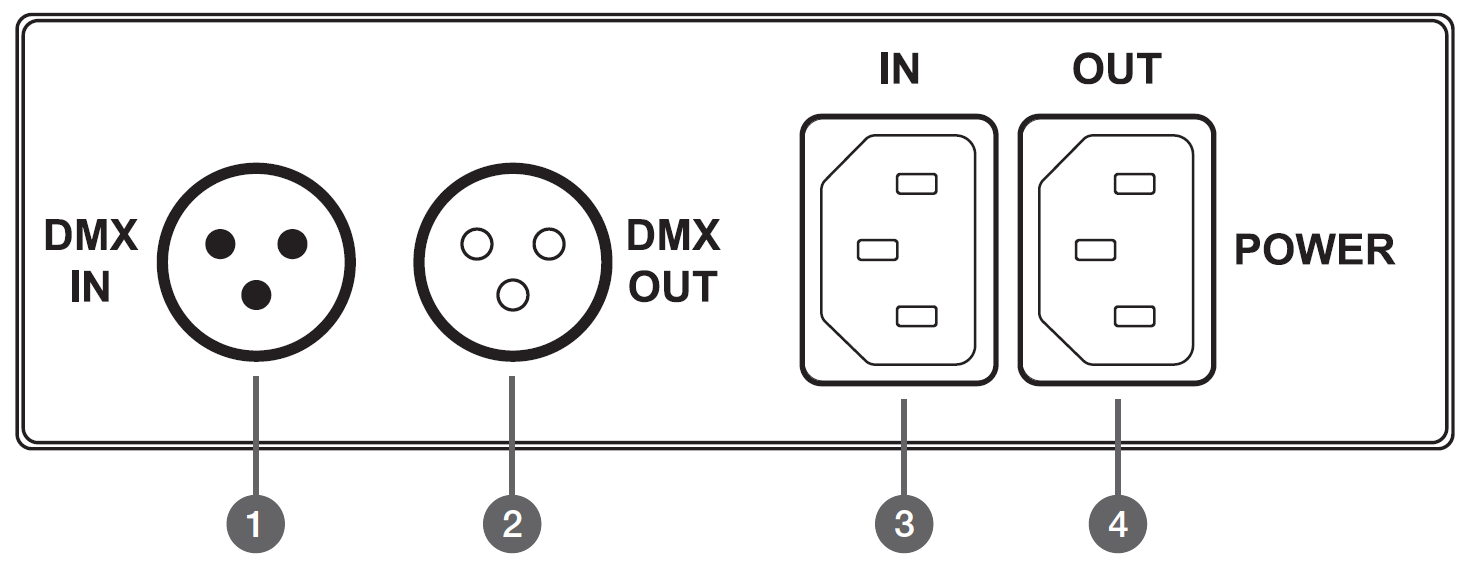

  1. DMX In

  2. DMX Out

  3. POWER In

  4. POWER Out

Multi Fixture Use

Primary/Secondary

  1. Hang all the fixtures.

  2. Connect all fixtures via the DMX IN/DMX OUT ports.

  3. Connect to power source and turn-on all fixtures.

  4. Adjust as DMX mode (d001) on the panel display.

  5. Choose one fixture and press any button to set it as the primary fixture. Once the primary has been chosen, all other fixtures become secondaries.

  6. The current primary fixture will always be the primary for future use. To choose another fixture as the primary, change the DMX mode to d001 on the current primary fixture. Now repeat step 5 to set the desired fixture as the primary.

Synchronous Mode

  1. Hang all the fixtures.

  2. Connect all fixtures via the DMX IN/DMX OUT ports.

  3. Connect to power source and turn-on all fixtures.

  4. Set any fixture to Ch5 (7 channel mode) or Ch13 (15 channel mode), set the DMX value (237-246), and wait for 1 to 2 seconds.

  5. Set the value back to 0 and wait 1 to 2 seconds. Repeat for all fixtures.

  6. Now all fixtures should be in synchronous mode.

  7. To add more fixtures, simply repeat the steps above.

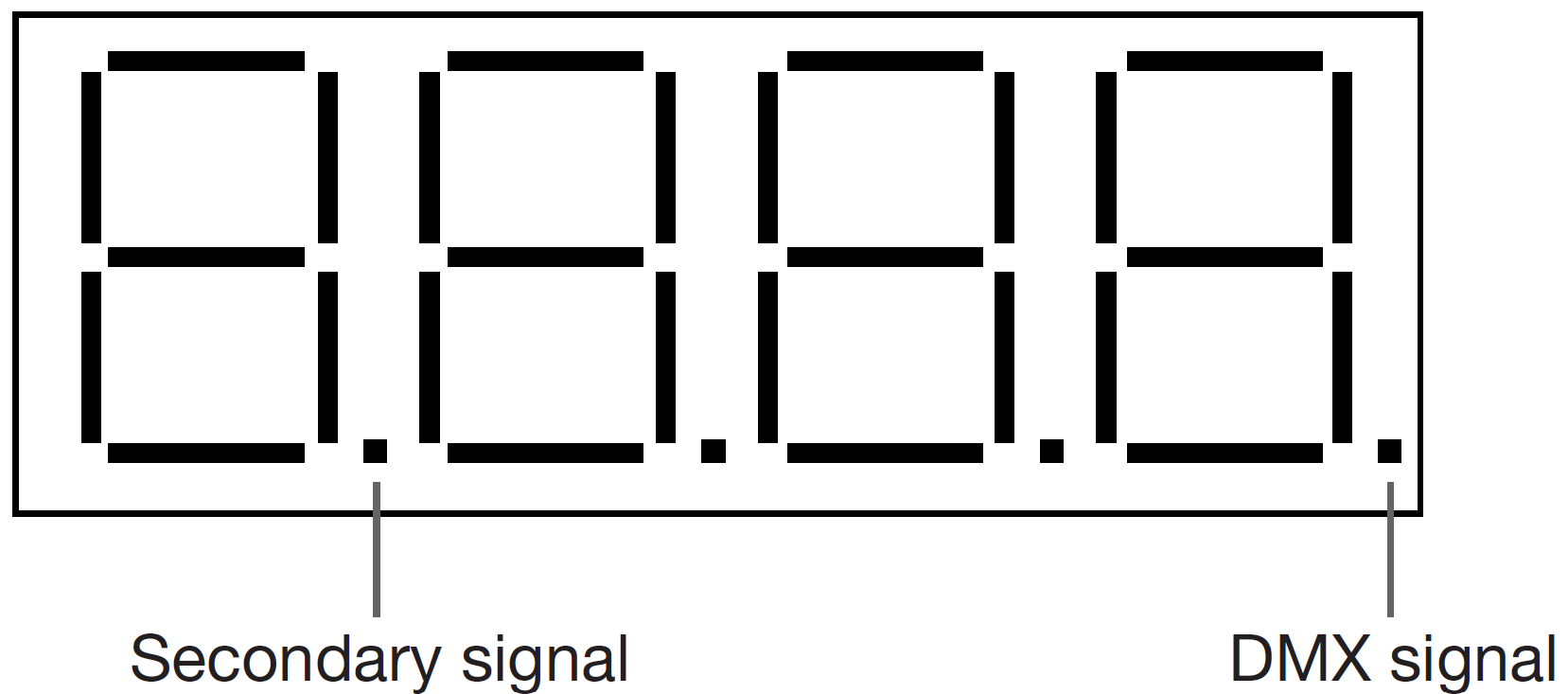

Operation

Use the MENU button to enter the settings menu. Use the UP and DOWN buttons to select the desired setting and set their values. Press ENTER button to save your selection. Please note that the unit can automatically identify DMX mode and Primary/Secondary mode.

ADDR

A001 – A512

Address Setting

CHND

7CH

7 Channel mode

15CH

15 Channel mode

SLND

MAST

Auto mode (self-propelled)

SOUN

Sound control mode

SLAV

Primary/Secondary mode

SHND

SH1 – SH24

SH1 – SH2: No speed

When you use SHND, first chose SLND: MAST, then press enter

SHND: SH3, then chose SPED: 01 – 08 (slow to fast)

SOUD

ON/OFF

Turn sound control on or off

SOEN

0 – 100

Adjust sound control sensitivity.

TEST

YES

Test unit

DISP

NO

Reverse display

YES

LED

OFF

Turn background light on or off

ON

1TIL

NO

Reverse Y1 motor

YES

2 TIL

NO

Reverse Y2 motor

YES

RSET

NO

Reset unit to factory settings

YES

DMX

The first time you use the console to control the fixtures, they need to be set to synchronous state.

  1. Connect the DMX IN, DMX OUT, and power cord.

  2. Please set the value of the synchronous channel (CH5 in 7 channel mode / CH13 in 15 channel mode) to 237-246, then wait for 1 to 2 seconds.

  3. Set the value back to 0 and wait another 1-2 seconds. Now all the fixtures will be in synchronous mode.

  4. If you add more fixtures, repeat the steps above.

7 Channel Mode

Channel

Value

Function

CH1

0–255

Pan, 0°–135°

CH2

0–255

Tilt, 0°–135°

CH3

0–255

Dimmer, 0–100%

CH4

0 – 9

No strobe

10 – 255

Strobe speed, slow to fast

CH5

0 – 7

No effect

8 – 17

Effect 1

18 – 27

Effect 2

28 – 37

Effect 3

38 – 47

Effect 4

48 – 57

Effect 5

58 – 67

Effect 6

68 – 77

Effect 7

78 – 87

Effect 8

88 – 97

Effect 9

98 – 107

Effect 10

108 – 117

Effect 11

118 – 127

Effect 12

128 – 136

Effect 13

137 – 146

Effect 14

147 – 156

Effect 15

157 – 166

Effect 16

167 – 176

Effect 17

177 – 186

Effect 18

187 – 196

Effect 19

197 – 206

Effect 20

207 – 216

Effect 21

217 – 226

Effect 22

227 – 236

Effect 23

237 – 246

Effect 24: Self-propelled multi-effects

247 – 255

Effect 25: Sound

CH6

0 – 255

Effect speed, slow to fast

CH7

241 – 250

Reset effect settings

15 Channel Mode

Channel

Value

Function

CH1

0–255

Pan, 0°–135°

CH2

0–255

Tilt, 0°–135°

CH3

0–255

Dimmer, 0–100%

CH4

0–9

No strobe

10–255

Strobe speed, slow to fast

CH5

0 – 255

LED1 Dimmer, 0 – 100°

CH6

0 – 255

LED2 Dimmer, 0 – 100°

CH7

0 – 255

LED3 Dimmer, 0 – 100°

CH8

0 – 255

LED4 Dimmer, 0 – 100°

CH9

0 – 255

LED5 Dimmer, 0 – 100°

CH10

0 – 255

LED6 Dimmer, 0 – 100°

CH11

0 – 255

LED7 Dimmer, 0 – 100°

CH12

0 – 255

LED8 Dimmer, 0 – 100°

CH13

0 – 7

No Effect

8 – 17

Effect 1

18 – 27

Effect 2

28 – 37

Effect 3

38 – 47

Effect 4

48 – 57

Effect 5

58 – 67

Effect 6

68 – 77

Effect 7

78 – 87

Effect 8

88 – 97

Effect 9

98 – 107

Effect 10

108 – 117

Effect 11

118 – 127

Effect 12

128 – 136

Effect 13

137 – 146

Effect 14

147 – 156

Effect 15

157 – 166

Effect 16

167 – 176

Effect 17

177 – 186

Effect 18

187 – 196

Effect 19

197 – 206

Effect 21

207 – 216

Effect 20

217 – 226

Effect 22

227 – 236

Effect 23

237 – 246

Effect 24: Self-propelled multi-effects

247 – 255

Effect 25: Sound

CH14

0 – 255

Effect speed, slow to fast

CH15

241 – 250

Reset effect settings

Installation

Please follow the directions below for safely hanging the Spyder LED on a truss. You will need a 5mm Allen wrench, an adjustable wrench, and pliers. Please use a safety cable when hanging the fixture. This will prevent any injuries in the event that the fixture falls.

STEP 1

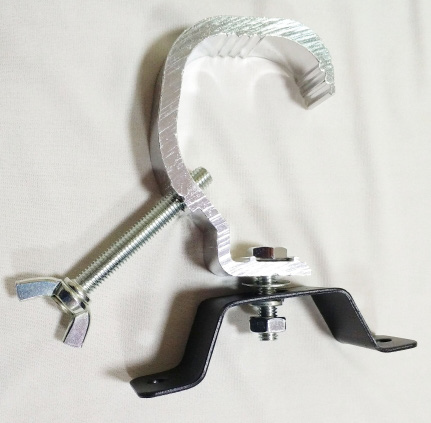

Attach the black mounting bracket (A) to your mounting clamp.

*PLEASE NOTE: Your mounting clamp may differ from the one used in our installation instructions. Make sure to refer to your clamp's specific mounting instructions for proper use.

STEP 2

Attach the bracket to the bottom of the unit using the included Allen bolts (B).

STEP 3

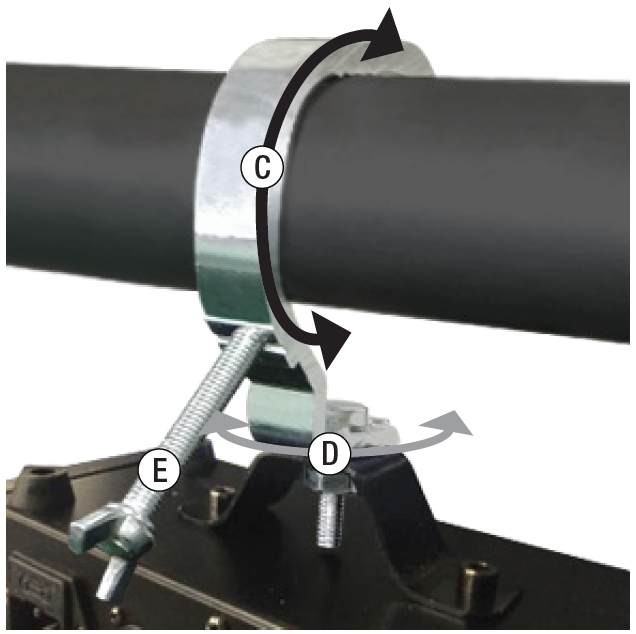

Attach the clamp to a truss. Adjust the angle (C) and direction (D) as needed. Next, tighten the wing nut (E) to secure the clamp in place.

Features

  • Rockville Spyder LED Feature-packed moving head light fitted with (8) moving LED beams

  • Power Input and power output for easy daisy chaining of multiple lights

  • DMX 512 controls (7 or 15 channels)

  • Create spectacular aerial light shows using extremely fast tilt, strobe, and pulse effects

  • Strong power arm for fast and precise movement

  • Strobe effect with adjustable speed

  • Modes: DMX, master/slave, sound/beat activated, auto mode, strobe, color change, Background Static Light, dimmer, ID address

  • Can also be used as a static wash light

  • Project light where you want it with user adjustable motorized control

  • Increase effects with electronic linear dimming and strobe features

  • Master/Slave capabilities so you can run the same program on multiple lights

  • Built-in sound-activated programs dance to the beat of the music

  • The constant current feature helps ensure LED longevity

  • An IP20 rating makes this unit rugged and tough

  • Hanging bracket included

  • Suitable for DJs, Discos, Ballrooms, Karaoke, Stage productions, Bars, Clubs, and parties

Specifications

  • 8 Super-Bright LEDs with Sharp Beams

  • Rated Power Consumption: 40W

  • Light Source: 8 (Red: 2 / Green: 2 / Blue: 2 / White: 2) 3W LEDs

  • LED Life Expectancy: 60,000Hrs

  • Control Modes: Automatic, Sound, DMX512, Strobe, Color Change, Background Static Light, Dimmer, ID Address

  • Dimming: 0–100% linear dimming

  • DMX Channels: 7 or 15

  • DMX Connectors: 3-pin

  • TIL1: 150°

  • TIL2: 150°

  • Strobe Rate: 0–25Hz

  • Beam Angle: 6°

  • Input Voltage: Auto-ranging AC 110–240V / 50–60Hz

  • IP Rating: IP20

  • Weight: 4.32 Lbs (1.95Kg)

  • Size: 11 × 5.9 × 3.9 inches (280 × 160 × 125mm)
