Portable Bluetooth Speaker
Included
- RPB25 Bluetooth Speaker
- 3.5mm MP3 Cable
- Micro USB Charging Cable
- Lanyard
- Owner’s Manual
- Warranty card
Important Safety Instructions
- To reduce risk of electric shock, never open the unit.
- Do not expose this unit to any kind of moisture.
- Please ensure that the unit is situated in a properly ventilated area.
- Make sure the unit is placed on a level and stable surface.

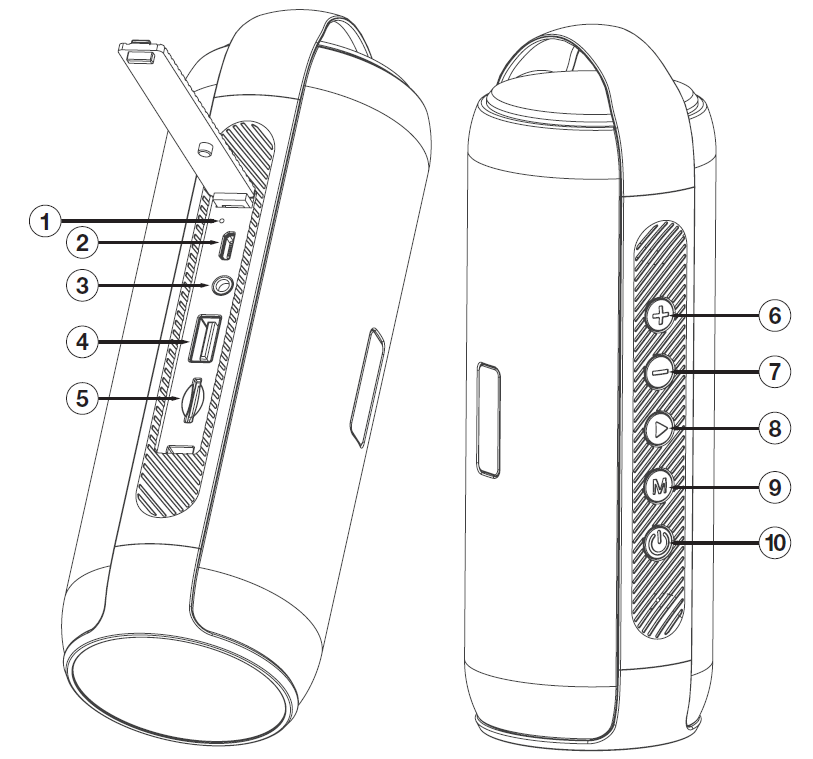

Functions
1. LED indicator: blue = power on/red = charging
2. Power input port, DC 5V: used to recharge internal battery
3. 3.5mm Aux input
4. USB port (supports flash drives up to 32GB)
5. Micro SD port (supports cards up to 32Gb)
6. Next/Volume +
7. Previous/Volume -
8. Play/Pause/Hands free calling
9. Mode
10. Power On/Off. If unit is inactive for 15 minutes, it will automatically power off.
Attention: If you turn the unit off and then on again, it will remember the last volume setting.
Bluetooth Pairing
1. Ensure your device is in Bluetooth mode and discoverable.
2. Under list of available devices search for RPB25.
3. Select RPB25.
Attention: When pairing your Bluetooth device, please make sure the volume on the device is turned up.
Bluetooth Music
Press the -/+ buttons on the side of the unit to raise or lower the volume. Press and hold -/+ buttons for 5 seconds to navigate through tracks.
Bluetooth Hands-Free
1. To answer a call press the PLAY button.
2. Press the PLAY button for 5 seconds to end a call.
3. Double click the PLAY button to dial last called number.
True Wireless Stereo (TWS)
1. Turn both speakers on.
2. While in Bluetooth mode, double click the power button on one of the speakers. This will be the primary speaker. You will hear a prompt tone when the unit enters pairing mode. Upon successful pairing, you will hear a second prompt tone.
3. Search for and select RPB25 on your device’s list of available Bluetooth devices. Both speakers will automatically connect to your device. The primary speaker will control all play back functions.
USB/SD Mode
1. Insert Micro SD card or USB flash drive (up to 32Gb supported) into the corresponding port at the rear of the unit.
2. Micro SD card/USB input should be automatically recognized and music will begin to play.
3. Press the -/+ buttons on the side of the unit to raise or lower the volume. Press and hold -/+ buttons for 5 seconds to navigate through tracks.
Aux Mode
1. Upon plugging in a 3.5mm jack, the unit will automatically switch to that AUX input regardless of current mode. To switch back to previous mode, use the MODE button.
2. Press the -/+ buttons for to raise or lower the volume.
FM Radio
1. Connect the micro USB cable which doubles as an antenna.
2. Press the MODE button to enter into FM mode.
3. Press the PLAY button for 5 seconds to search for available stations.
4. Once the search is completed, it will automatically play the first found station.
5. Use the + and - keys to browse and select stations.
Attention: If you turn the unit off and then on again, it will remember the last volume setting.
Control Lock Function
1. Press the MODE button for 5 seconds to lock the control buttons.
2. Press the MODE button again for 5 seconds to unlock the control buttons.
Charging
1. Plug the included micro USB cable into the port marked DC5V.
2. Charge time is 2.5 hours.
3. If the unit is inactive for 15 minutes, it will automatically power off.
Features and Specifications
Rockville RPB25 multi-purpose portable rechargeable Bluetooth speaker system with TWS Stereo Linking
40W Peak Power / 15W RMS Power
360-degree sound dispersion technology
True Wireless Stereo linking (TWS)
Rechargeable 2000mAH/3.7V battery supports 10 hours of playback at 70% volume
Charge time: 2.5 Hours
Dual 2″ long excursion drivers built-in
Bluetooth version 5.0 with EDR (enhanced data rate)
Bluetooth quick-connect technology pairs with your phone in 5 seconds
A2DP audio streaming with 32 foot max Bluetooth range
Automatically remembers and syncs with previously synced devices
Playback Controls - Play, Pause, Skip Forward, Skip Back, Volume Up, Volume Down
Will control next song, pause, play on popular apps like Pandora, Spotify, Youtube, and others
The built-in mic allows you to speak through the device so you can make and receive phone calls hands-free
Compatible with any Bluetooth devices such as iPad, iPhone, Laptops, Android phone, other cell phones, iPods, other Bluetooth MP3 Players
Material: ABS, Rubber + Metal grill
Power Input: DC5V/500mA
Plays back SD cards up to 32 GB
Plays USB thumb drives up to 32GB
3.5mm aux input (aux cable included)
Built in FM radio with auto scan
Handle enables you to carry the speaker easily
No distortion can be heard even at top volume
Distortion: Less than 1%
Professional voice conformations
Frequency Response: 150HZ – 20KHZ
Signal to noise ratio: 85dB
Unit dimensions in inches: 2.76″ L x 2.68″ W x 7.76″ H
Unit Weight: 0.84 lbs
Troubleshooting
Problem | Solution |
No Power | 1. Make sure the unit is on. 2. Make sure the unit is charged. |
Bluetooth/TWS pairing fails | 1. Check to see that both devices are turned on and that your Bluetooth device is discoverable. 2. Make sure you've selected the proper source. 3. Make sure that the Bluetooth device is within 5 feet of the unit. 4. Check the speaker and input source volume settings. 5. Move both devices away from other Bluetooth devices, micro-waves, wireless routers, and other electronics. 6. Make sure that the unit is not paired to a previously paired device. |
No USB/SD playback | 1. Make sure you've selected the proper source. 2. Check that the SD card or USB flash drive is not damaged. 3. Make sure that the SD card’s or USB flash drive’s capacity is no more than 32Gb. |
