RVSS2-XLR Owner's Manual

Keith Harris
Updated

Heavy-Duty Adjustable Pro PA Speaker Stands and XLR Cable Kit

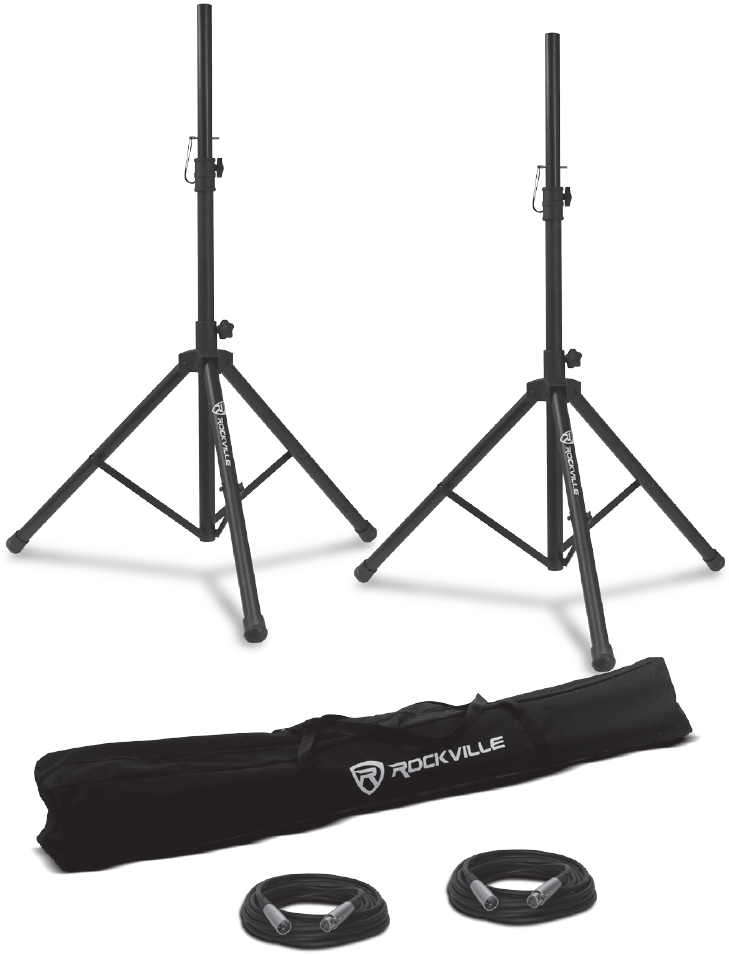

A product photograph displaying an audio equipment accessory bundle on a white background: Speaker Stands: Two black metal tripod speaker stands standing fully deployed side-by-side. Each features extendable center poles with safety locking pins and tightening knobs, rubber feet, and "ROCKVILLE" printed vertically along one of the tripod leg supports. Carrying Case: A long, black fabric zippered carrying bag laid horizontally below the stands, featuring the white Rockville logo and text on the side. Cables: Two black coiled XLR audio cables placed side-by-side in front of the carrying bag, each equipped with silver metal connectors.

This heavy-duty universal stand can be used as a Speaker Stand or a Lighting Stand! It’s sturdy steel construction and custom carrying case add to the quality and support this stand gives. The sturdy and expandable long tripod legs ensure that your speakers will be stable in any environment. This package also comes with two 20 foot XLR cables!

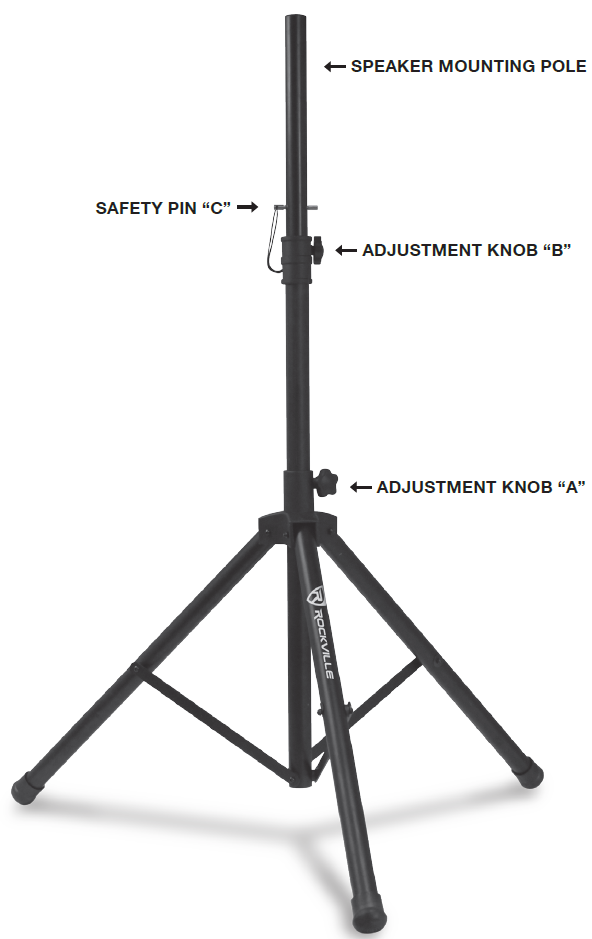

A technical product diagram illustrating the components of a black metal Rockville tripod speaker stand against a white background, labeled with directional arrows: SPEAKER MOUNTING POLE: Points to the uppermost vertical tube where a speaker mounts. SAFETY PIN “C”: Points to the metal security pin inserted horizontally through a hole near the top collar to prevent height slippage. ADJUSTMENT KNOB “B”: Points to the rotary hand knob located on the upper collar directly below the safety pin, used for securing vertical pole height. ADJUSTMENT KNOB “A”: Points to the lower rotary knob positioned just above the tripod leg hub, used to secure the tripod leg base in place. Base: Three tripod legs spread wide with rubber feet, featuring "ROCKVILLE" branding printed vertically along one leg support.



To ensure proper use of this product, please carefully read the following instructions.

Setting up your Rockville speaker stand:

  1. Unpack the stand and all accessories.
  2. Loosen up adjustment knob A and spread the legs to the desired width (we re- commend spreading the legs to the point that the support bars are parallel with floor).
  3. Re-tighten leg adjustment knob so that the legs are securely positioned.

To mount a speaker:

  1. Loosen the adjustment knob (see Adjustment Knob “B”, facing diagram) and lower the mounting pole until the desired height has been reached.
  2. Carefully place speaker onto the mounting pole.
  3. Make sure the silver safety pin (see Safety Pin “C”, facing diagram) is removed from the mounting pole and raise the pole to the desired height.
  4. Tighten adjustment knob “B” at the base of the speaker mounting pole.
  5. Insert safety pin “C” into its slot to secure desired speaker height.

To remove a speaker:

  1. Remove safety pin “C”.
  2. Loosen adjustment knob “B”.
  3. Lower the pole to its lowest position.
  4. Re-tighten adjustment knob “B”.
  5. Carefully remove the speaker from the mounting pole.

Using this product safely and properly

The indicator symbols shown below are used in this manual and on the stand to ensure proper and safe use of the product, to prevent injuries and avoid damage to surrounding items. Please become familiar with these symbols and their associated information before proceeding to the assembly instructions of this manual.

A safety warning header graphic: Icon: On the left, an equilateral triangle with rounded corners outlined in black, containing a prominent black exclamation mark in the center. Text: To the right of the triangle icon, the word "WARNING" is rendered in large, bold, sans-serif uppercase letters.
This symbol indicates that death or serious injury may result from improper installation if this information is overlooked.
A safety caution header graphic: Icon: On the left, an equilateral triangle with rounded corners outlined in black, containing a prominent black exclamation mark in the center. Text: To the right of the triangle icon, the word "CAUTION" is rendered in large, bold, sans-serif uppercase letters.
This symbol indicates that injury may result or damage to property could occur from improper installation if this information is overlooked.

Warning

Do not place this stand on a tall object or high shelf. If the stand were to fall, it could cause an injury.

Do not exceed indicated maximum weight capacity.

Caution

  • This stand is meant for use with lighting systems ONLY. Do not use the stand for other purposes. Improper use of the stand may result in an unstable condition with the potential to cause an injury by falling.
  • Assemble the stand on a level surface. Placing the stand on an uneven surface can lead to overturning and
    result in an injury.
  • Do not place the stand where people regularly move past it. Bumping into the stand can cause an injury.
  • Place the stand on a solid and level floor. Installing the stand in a location that is unstable can cause it to
    fall and result in an injury.
  • Do not drop or drag the stand when assembling or transporting it. Pushing over or dragging the stand can
    result in an injury or cause damage to the floor.
  • Do not climb onto or hang from the stand. Be especially careful about children trying to do this. If the stand falls over it can cause an injury.
  • This stand is heavy, so be sure 2 or more people cooperate in unpacking or moving it. Improper lifting can cause a back injury and dropping the stand can injure feet.

Cautions for Use:

  1. This is a stand for a lighting system. Avoid using the stand for other purposes.
  2. The stand is very heavy. Use caution when handling it.
  3. Place the stand on a solid and level floor. Do not place the stand in an unstable location.
  4. Be careful not to tip over the stand.
  5. If the stand becomes dirty, clean it by lightly wiping with a soft cloth and a neutral cleaning solution. Do not use a substance like thinner or benzene.

Specifications

  • Weight Capacity: 100 lbs

  • Adjustable Height Range: 47 - 79 inches

  • Base Spread: 15 - 40 inches

  • Top Tube Diameter: 1.37 inches

  • Lower Tube Diameter: 1.5 inches

  • Leg Diameter: 1.37 inches

  • Construction: Steel

  • Color: Black

  • XLR Cable Length: 20 feet
