RockZR V2 Owner's Manual

Keith Harris
Updated

6.5˝ Kick Panel Speaker Pods



Includes

RockZR V2 Enclosure

1 pair

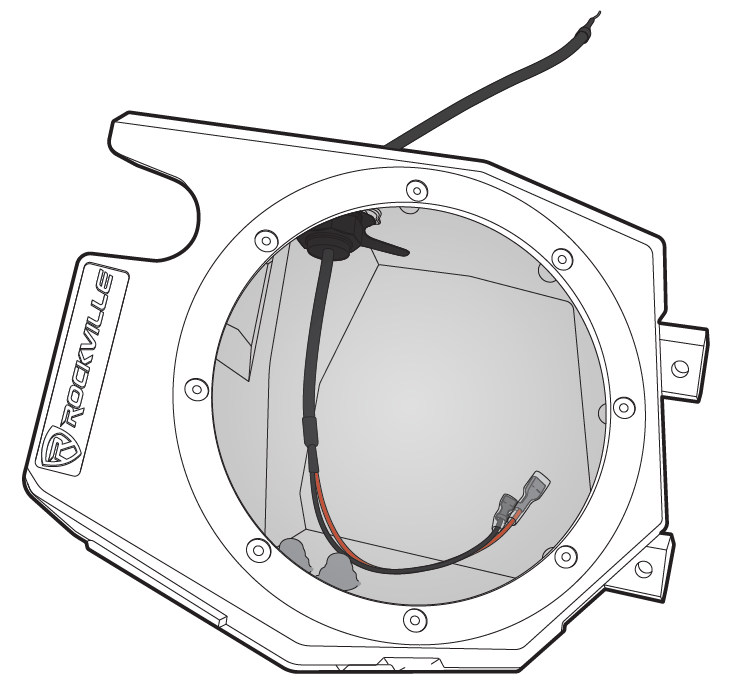

A line drawing illustrating an empty custom speaker enclosure with internal wiring routed through a pass-through grommet: Outer Housing: A custom-shaped speaker pod enclosure featuring the "ROCKVILLE" logo badge on the left side, circular screw mounting holes surrounding the main speaker cutout ring, and mounting tabs on the outer right edge. Internal Wiring: A main wiring cable enters through a sealed grommet at the top inside of the housing cavity. One end extends outward from the top of the enclosure, while the inner end connects to red and black lead wires with spade quick-connect terminals resting inside the open chamber.

M6 Enclosure Mounting Screws

6 pieces

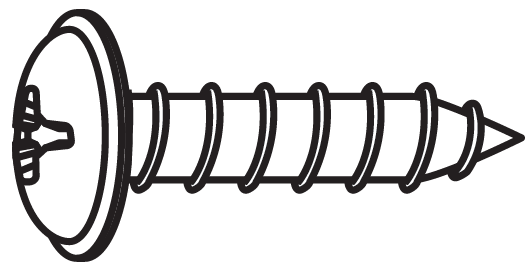

A black-and-white line drawing depicting a single fastener shown from a side perspective: Head: A wide, low-profile dome (truss or washer-head style) with a visible Phillips-drive slot on the left edge. Shank: A cylindrical threaded body featuring coarse, sharp self-tapping threads running along its full length. Tip: A sharp, pointed tip on the right end for piercing and driving into material.

M4 Speaker Mounting Screws

6 pieces

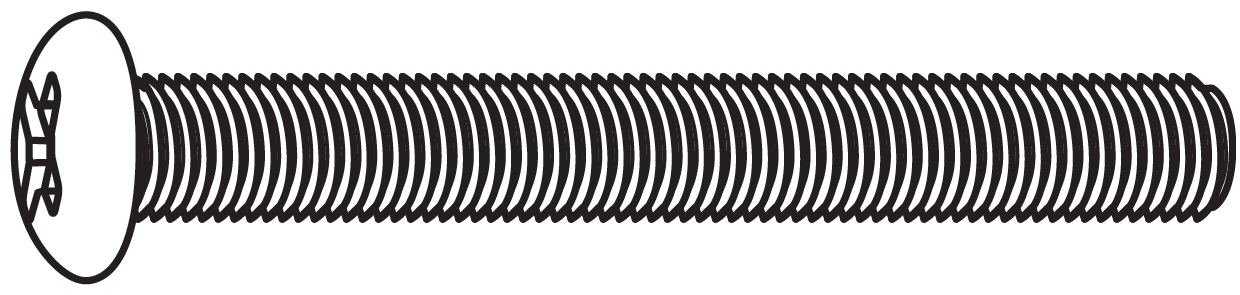

A black-and-white line illustration depicting a single machine screw oriented horizontally: Head: A rounded pan-style head on the left end with a visible cross-shaped Phillips drive slot. Shank: A long, straight cylindrical shaft fully threaded with fine, evenly spaced machine threads running from the base of the head to the tip. Tip: A flat, blunt-ended tip on the far right end, designed for use with a pre-threaded hole or nut.



Tools Needed

  • T-40 Torx Driver
  • #2 Phillips-head Screwdriver



Installing the Speaker

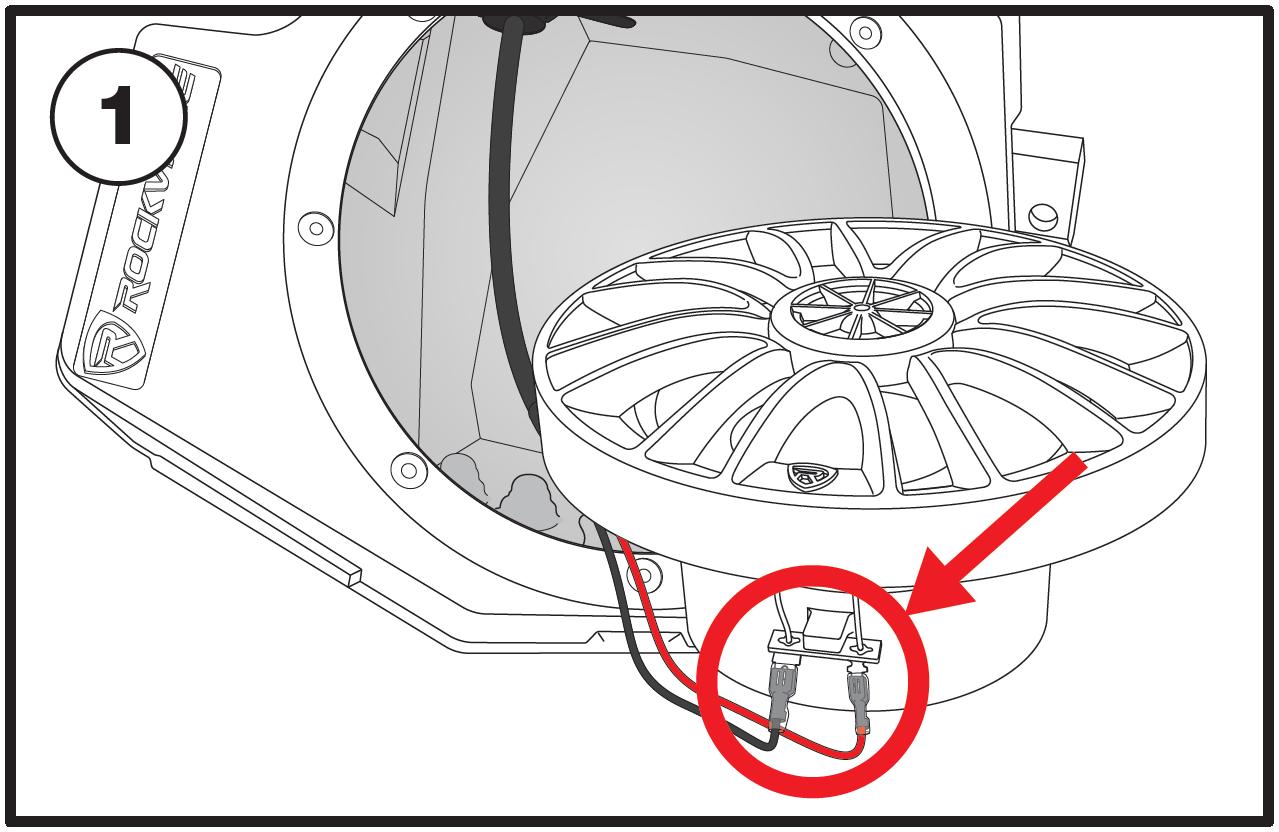

  1. Use the internal wires to connect the speaker. Be sure to observe proper polarity.A technical line drawing labeled with the number 1 in the upper-left corner illustrates connecting speaker wires prior to installation: Speaker Unit: A round Rockville speaker grille and driver assembly sits tilted just outside the mounting opening of the Rockville enclosure pod. Wiring Connection: Black and red lead wires extend from inside the enclosure chamber and attach via spade connectors to the speaker's terminal block on its rear rim. Focus Callout: A red circle and pointing arrow highlight the spade connectors attached to the positive and negative terminal tabs at the base of the speaker driver.

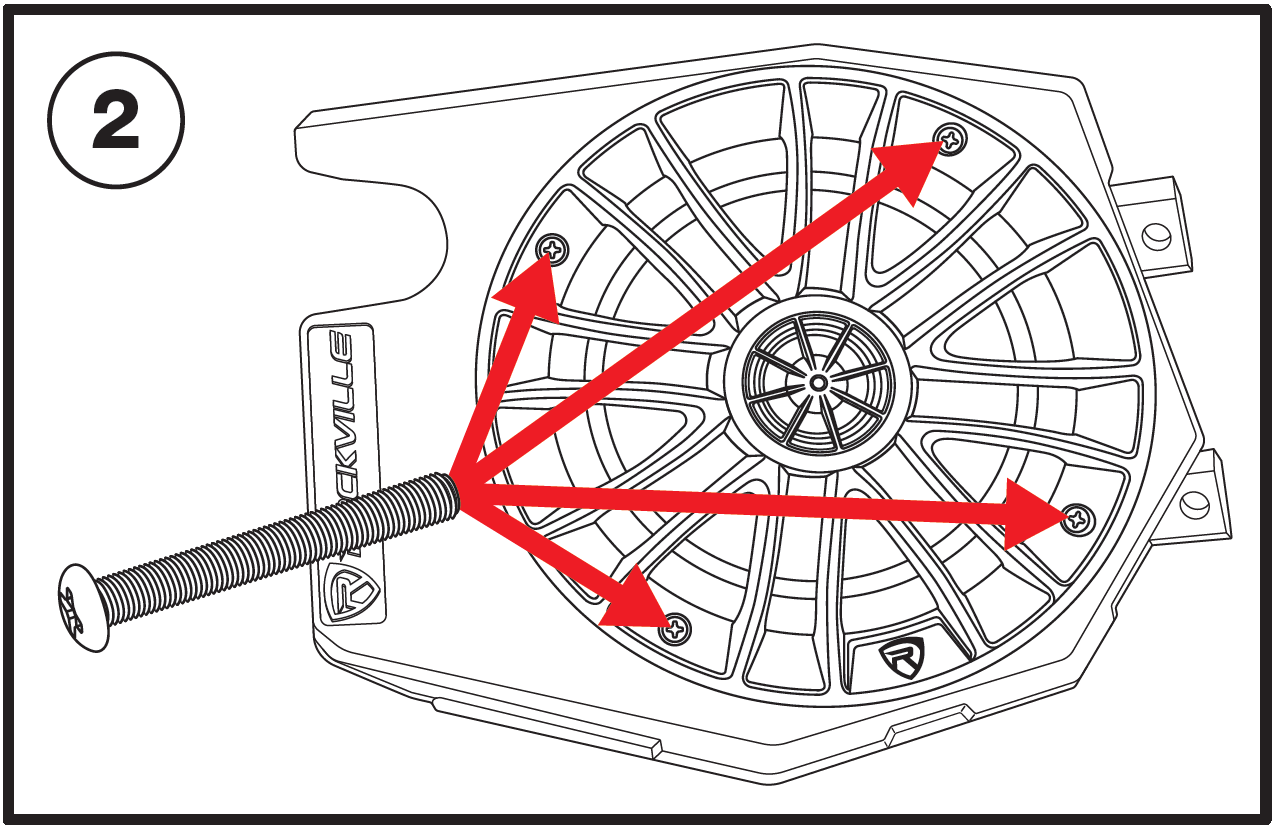

  2. Tuck the wires in, then drop the speaker into the pod. Ensure that the speaker’s mounting holes align with the pod’s mounting holes. Use four of the included M4 screws to secure the speaker. Do not overtighten. A technical line drawing labeled with the number 2 in the upper-left corner illustrates mounting the speaker into the enclosure pod: Speaker Assembly: The Rockville speaker is flush-mounted inside the opening of the custom enclosure pod. Hardware & Mounting Points: A single long Phillips pan-head machine screw is shown on the left. Four red arrows extend from the screw tip to point at four corresponding screw head locations along the circular rim of the speaker grille (top right, top left, bottom left, and bottom right).

  3. Repeat steps 1 & 2 to install the passenger side pod.



Installing the Kick Pod

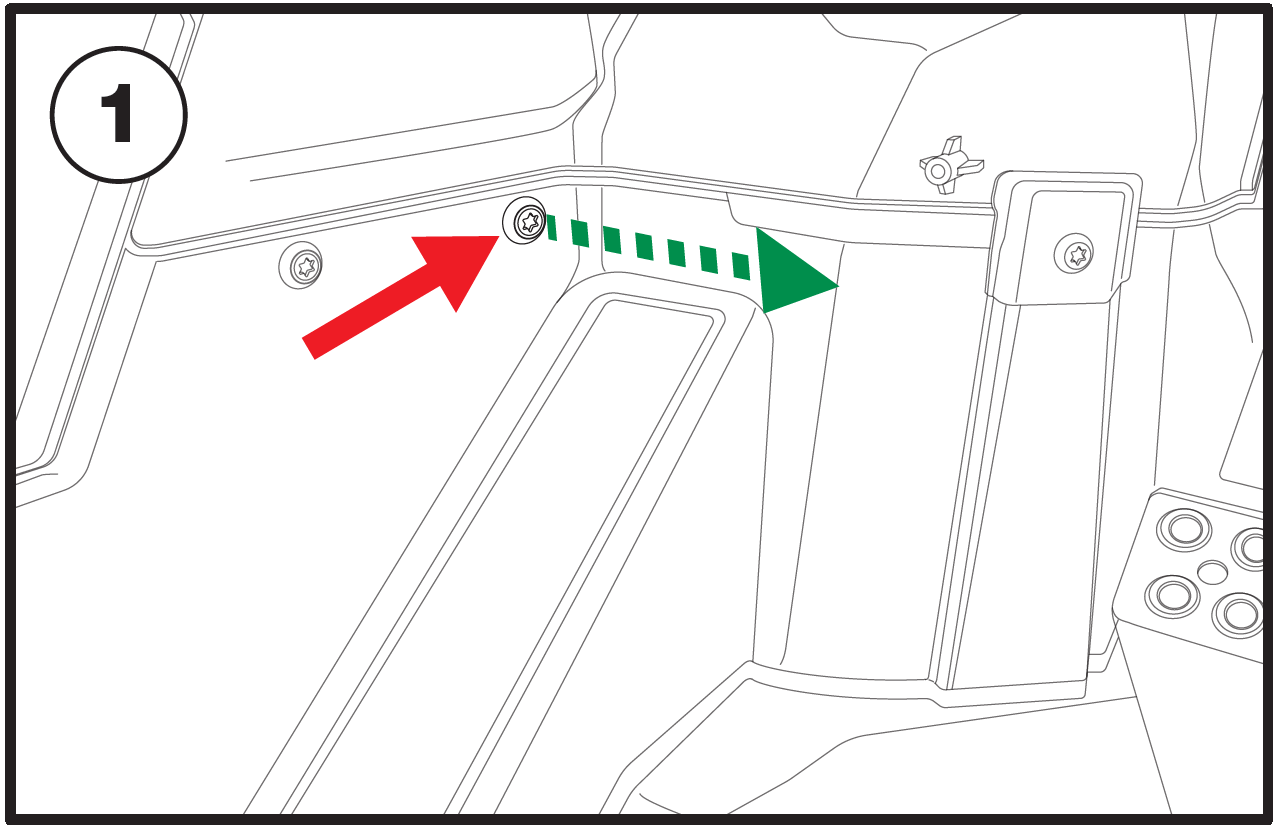

  1. Starting at the driver side footwell, remove the factory T40 Torx screw. Save this screw and do not lose it as you will need later in the installation process.A technical line drawing labeled with the number 1 in a circle in the top-left corner illustrates a panel disassembly step inside a vehicle cargo area or side compartment: Location & Hardware: A interior panel wall features Torx-head fasteners installed along its upper seam. Focus & Action: A solid red arrow points directly at one specific Torx screw. A dashed green arrow extends horizontally to the right from this screw toward a vertical trim pillar, indicating the direction of fastener removal or panel detachment.

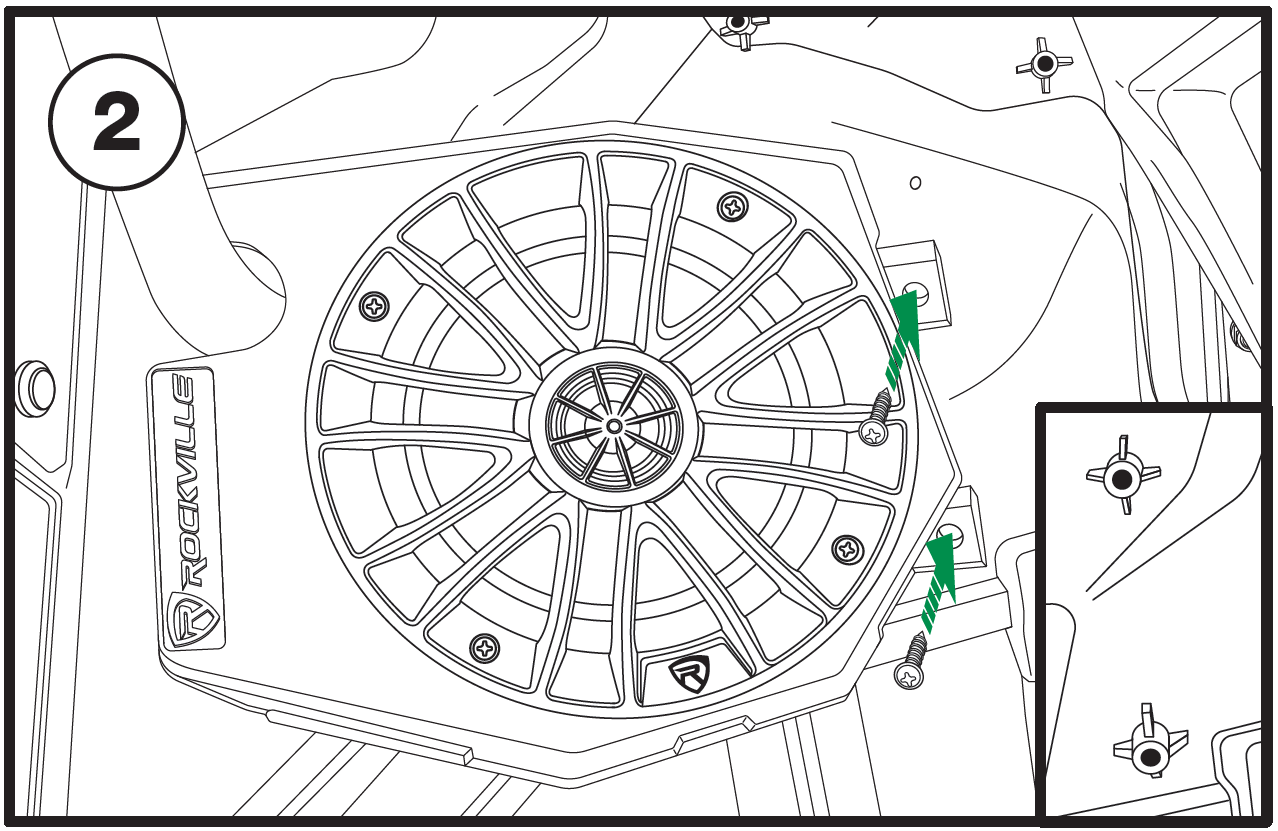

  2. Place the driver kick pod into location so that the cutout sits properly around the frame tube and both vehicle screw bosses (inset) line up with the kick pod’s mounting brackets. Use two of the included M6 screws to loosely secure the pod.A technical line drawing labeled with the number 2 in a circle in the upper-left corner details mounting a speaker pod inside a vehicle frame: Installed Speaker Pod: The assembled Rockville speaker pod is positioned in the vehicle wall cavity. Fasteners: Two screws are positioned along the right flange of the pod housing. Dashed green arrows point upward from each screw into corresponding mounting holes on metal frame tabs. Inset Graphic: A rectangular inset box in the bottom-right corner shows a zoomed-in detail view of two cross-shaped plastic/metal anchor clips located on the vehicle wall structure.

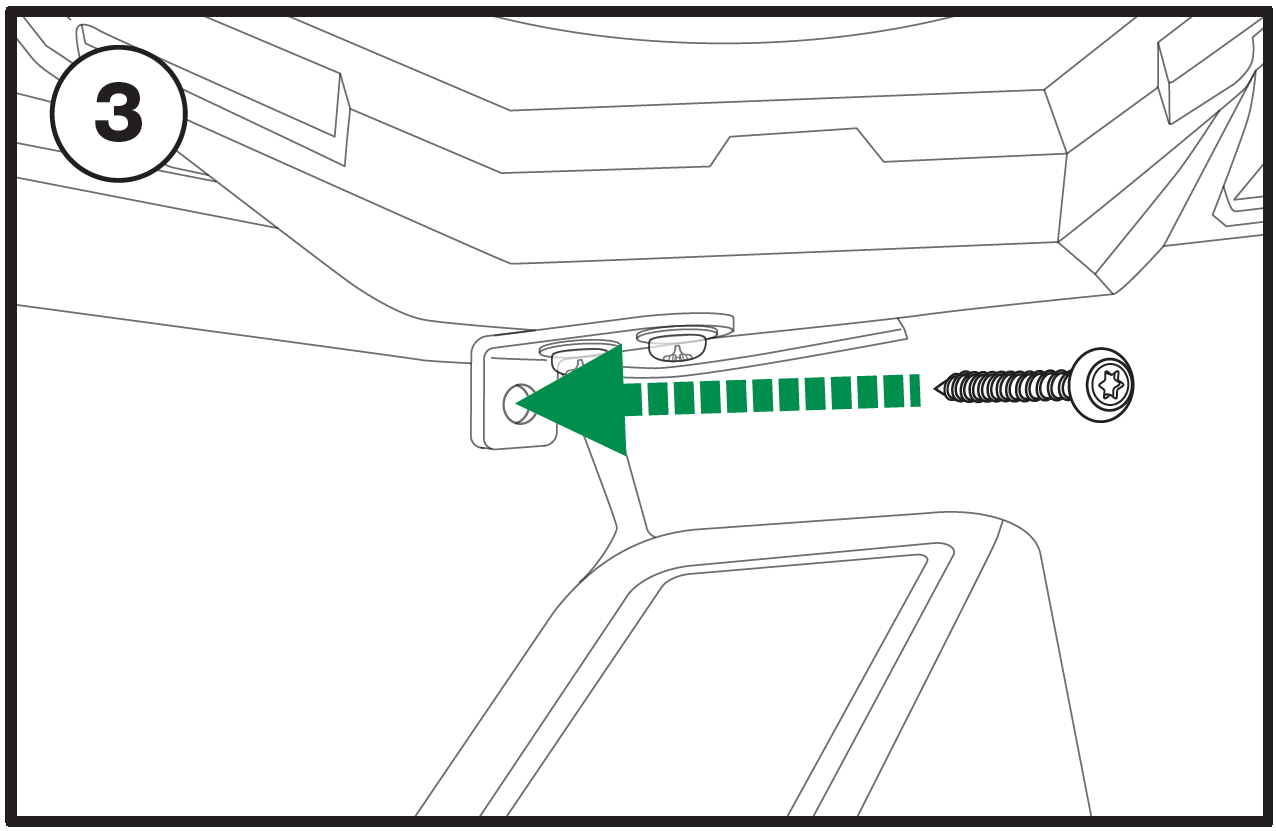

  3. Locate the T40 torx screw previously removed in Step 1. Slide it through the lower kick pod bracket to vehicle panel. Loosely screw into place. Go back and fully tighten the M6 screw you installed in step 2. Now fully tighten the T40 Torx screw.A technical line drawing labeled with the number 3 in a circle in the top-left corner illustrates securing a bottom mounting bracket: Bracket & Housing: A metal L-bracket is secured to the underside of a large plastic housing or enclosure. Hardware & Insertion: A Torx pan-head screw is shown on the right. A dashed green arrow points horizontally left, indicating the screw being driven into the outer side hole of the L-bracket.

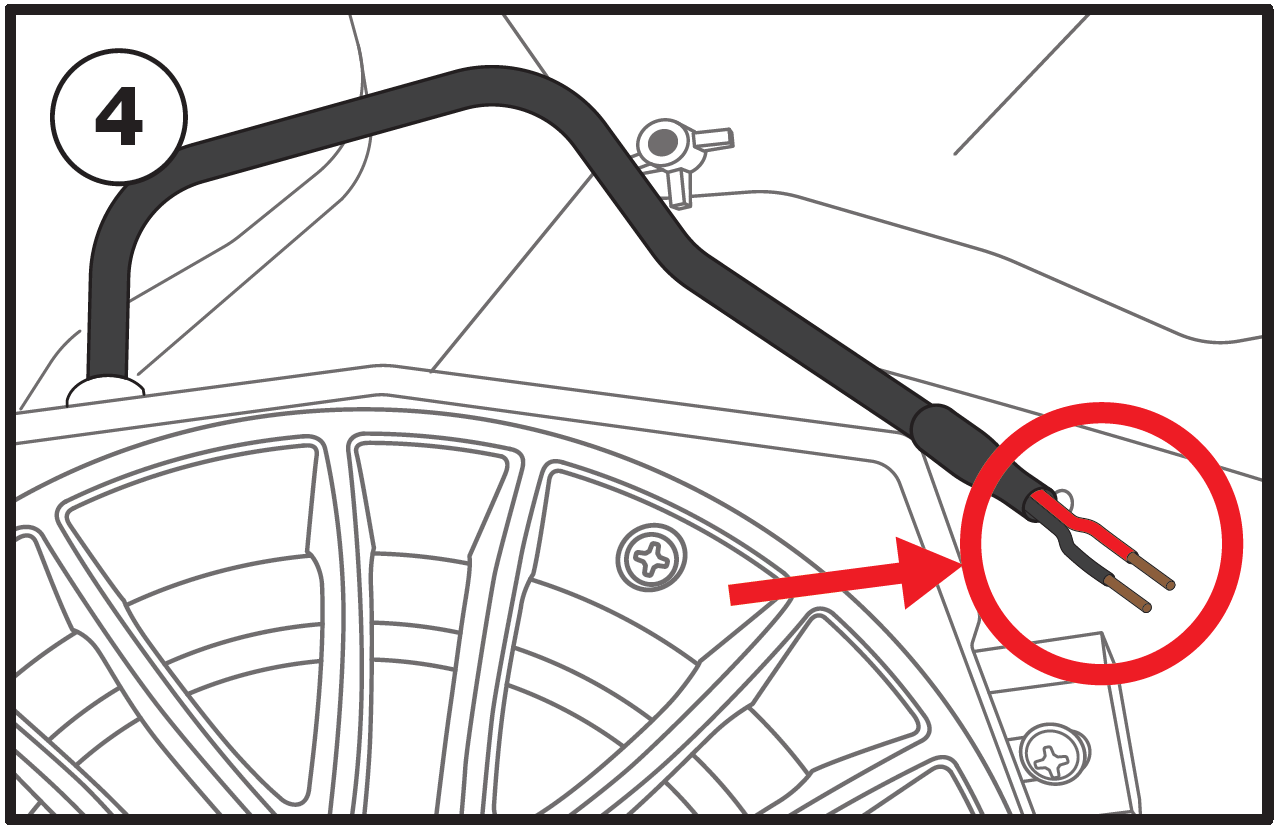

  4. Connect the radio-style shaved wires to the corresponding speaker outputs of your amplifier using a butt connector with heat shrink or whichever method works best for your install.A technical line drawing labeled with the number 4 in a circle in the top-left corner illustrates speaker wire preparation: Speaker Housing: A partial view of the installed speaker grille and pod housing is shown at the bottom. Wiring Harness: A thick black insulated cable extends outward from a port near the top of the speaker housing. Stripped Ends: A solid red arrow points to a red circle encircling the end of the cable, where the outer jacket is stripped back to expose two individual wires with bare metallic tips—one with red insulation (positive) and one with black insulation (negative).

  5. Repeat steps 1 – 4 to install the passenger side pod.



Specifications

  • Speaker Size: 6.5˝
  • Cutout Diameter: 5.77˝
  • Mounting Depth: 3˝
  • Length: 10.5˝
  • Width: 8˝
  • Height: 5.6˝
  • Weight: 1.85 lb
