Rockville RPM47

1800W Powered 5-Channel Mixer/Amplifier w/ Bluetooth and USB Interface

Includes

• Powered Mixer
• Power Cable
• Owner's Manual
• 1-Year Manufacturer's Warranty

Important Safety Instructions

• To reduce risk of electric shock, never open the unit. There are no serviceable parts, refer service to the Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

Functions

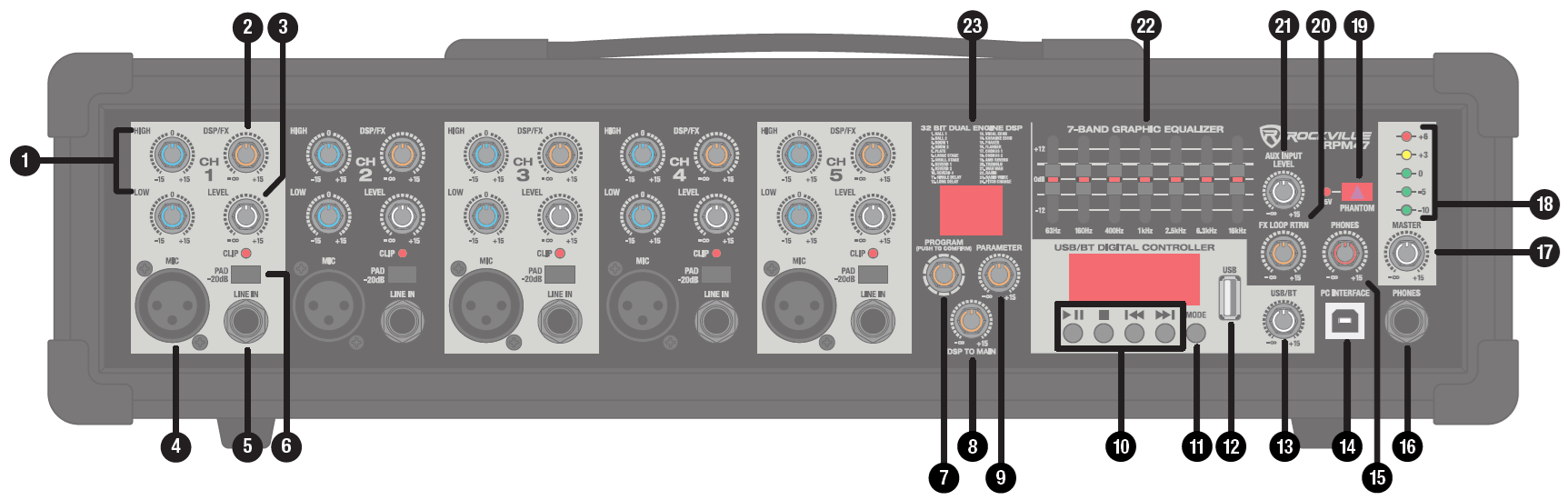

1. Channel HIGH & LOW EQ Controls: 2-band equalizer that adjusts high and low frequencies.
   • High / Treble: 12kHz ± 15dB
   • Low / Bass: 80Hz ± 15dB
2. Channel DSP/FX Controls: Controls the amount of signal sent to the built in DSP effects and the EXTERNAL FX LOOP SEND (item 28A).
3. Channel Level Controls: This acts as a preamp gain control. Level should be lower than the Master Volume (Item 17).
4. Balanced XLR Mic Inputs: Connect a microphone via 3-pin XLR cable.
   ⚠️ When using condenser microphones, make sure that Phantom power (item 24) is switched on.
5. ¼˝ Balanced (TRS) Line/High Impedance Input: Used to connect either a high-impedance instrument input or for an electric bass or guitar. It will also allow connection from a mixer, interface or keyboard, as well as other line-level devices such as a cassette player, CD player, video projector or laptop.
6. PAD Buttons: Attenuates the input signal by -20dB. Should be used if the incoming input signal is too hot.
7. PROGRAM Control: This control allows you to select any one of the 24 preprogrammed digital effects. Rotate to scroll through the effects, push to confirm your selection.
8. DSP TO MAIN Control: Controls the level/amount of the effected sound (being sent from ch 1-5 together) that gets blended in the Main Output.
9. PARAMETER Control: Adjusts a certain characteristic / variable setting for the selected effect.
10. USB/BT DIGITAL CONTROLLER:
    • Play/Pause Button: Press during playback to pause, press button again to resume play.
    • Stop Button (USB only): Stop playback
    • Previous Button: Press to go to the previous track. Press and hold to raise the module's volume.
    • Next Button: Press to go to the next track. Press and hold to lower the module's volume.
11. MODE Button: Push to switch between modes (USB/Bluetooth).
12. USB Port: Inserting a 32GB or less, FAT or FAT32 formatted USB thumb drive will set the RPM47 to USB mode and it will automatically begin to play music.
13. USB/BT Level Control: Controls level for digital audio sources.
14. PC INTERFACE Port: Use this type B USB port to send audio data between the mixer and a computer or tablet device.
15. PHONES Control: Headphone output level control.
16. PHONES Output: Connect headphones to this Stereo ¼˝ (TRS) output to monitor the master signal.
17. MASTER Volume: Controls overall volume of the mixer.
18. Output Level Indicator: This peak level meter is made up of 5 LEDs with 3 colors to indicate the different ranges of signal level. You want your average level to be at 0dB for optimal output and sound clarity.
19. Phantom Power ON/OFF Button (red LED indicates power on): When activated, phantom power provides 15 volts DC to power condenser microphones, allowing them to function (while not affecting dynamic microphones). Please advise certain (ribbon) microphones can be damaged if used with phantom power.
20. FX LOOP RETURN control: This knob will allow you to adjust the incoming signal from the EXTERNAL FX LOOP RETURN ¼˝ jack on the back of the unit. If you are using external gear, this will allow the adjustment of the signal being returned to blend in with you main mix.
21. AUX INPUT LEVEL control
22. 7-Band equalizer: Adjusts frequencies ±12dB.
23. 32-Bit Dual Engine DSP display: Shows the current digital effect.

⚠️Never unplug or plug in any microphones while phantom power is on. It can cause severe damage to the mic. When phantom power is turned off, it is recommended you wait approximately 7 seconds so as to allow time for the voltage to completely dissipate.

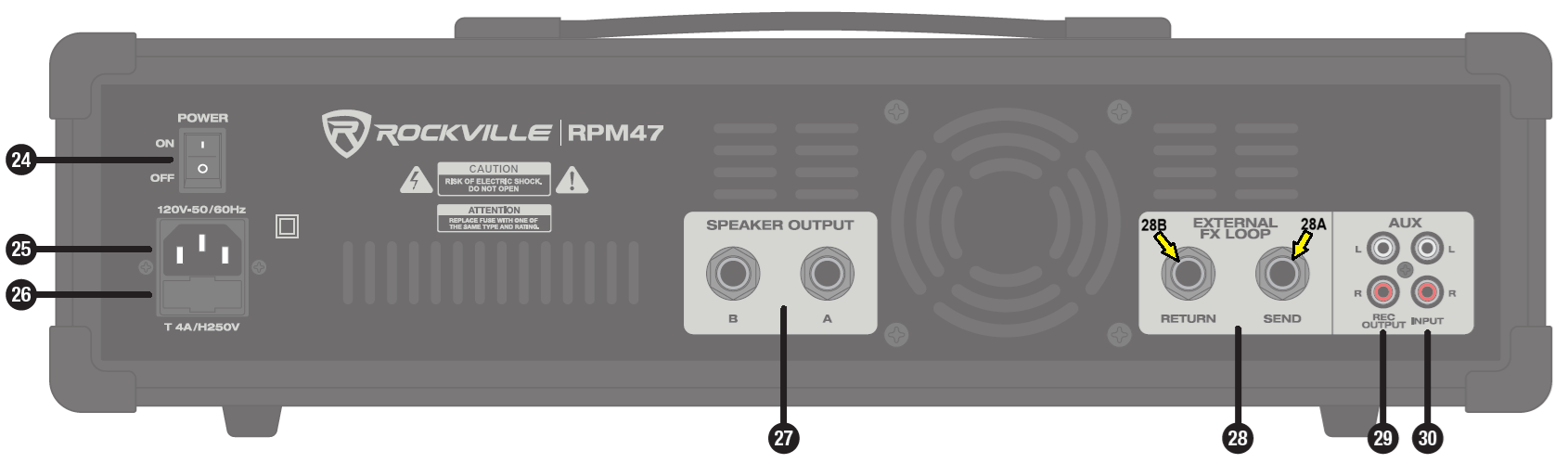

24. POWER: ON/OFF Switch
25. IEC AC Power Socket: 110-120V 50-60Hz AC voltage required.
26. User Serviceable T 4A/250V Fuse (4 Amp 250 Volt 5x20mm Fast Blow Fuse)
27. SPEAKER OUTPUT: ¼˝ TS Jacks supports up to two 8-ohm speakers, or a single 4-ohm speaker.
    ⚠️ Do not operate below rated minimum impedance (i.e. using two 4-ohm speakers).
28. EXTERNAL FX LOOP SEND/RETURN:
    1. SEND: This ¼˝ line output allow you to connect a processor like a Gate or compressor or other signal processor to the main mix. You can send the signal from the SEND jack out to the input of the processor device, controlling the amount of signal sent per channel using the channel's individual DSP/FX knob (Item 2). It may also be used connect a powered subwoofer or to send the line signal to another external audio device.
    2. RETURN: You can then send that signal from the output of the processor device back to the mixer via the 2-conductor ¼˝ line input RETURN jack. For the returns, you can adjust the incoming level with the FX LOOP RTRN knob (Item 20).
29. REC OUTPUT: These stereo unbalanced RCA outputs allow you to record the main stereo mix onto a hard disk recorder or CD burner. The rec output is the stereo main mix, and it is not affected by the main mix fader. This output can also be used as an extra set of main outputs for feeding another amplifier.
30. AUX INPUT: These stereo unbalanced RCA inputs allow you to connect a CD player, MP3 player, or other line-level source.

Operation

Bluetooth Pairing and Operation

1. Press the MODE button until you see BT flashing on the display indicating that the unit is in pairing mode.
2. Ensure that your device is in Bluetooth mode and discoverable.
3. Find "ROCKVILLE" on your device's list of available Bluetooth connections and select it.
4. Once successfully paired, the RPM47's LCD display will show "BT".
5. You can control playback from your device or you can use the MP3 control panel.

USB Operation

Connecting a USB thumb drive to the USB port will set the RPM47 to USB mode and it will automatically begin to play music. This will override Bluetooth playback. You can switch back to Bluetooth by using the MODE button.

Please note: 32GB or less USB thumb drives are recommended for compatibility. The RPM47 will not recognize USB drives formatted in the NTFS format. Drives must be formatted* in the FAT or FAT32 formats. Music file formats accepted are MP3, WAV, and WMA. Files must be properly formatted; simply changing the file extension to one of the specified file formats will not work.

Music Playback (USB and Bluetooth)

• Play button: Press during playback to pause, press button again to resume play.
• Stop (USB only): Stop playback
• Previous button (USB and BT): Press to go to the previous track. Press and hold to raise the module's volume.
• Next button (USB and BT): Press to go to the next track. Press and hold to lower the module's volume.

*Formatting: For any issue issues with USB Thumb Drive Playback...
Please follow these formatting instructions to ensure audio/device compatibility:

• Insert your 32GB or less USB Thumb Drive (may not be compatible with larger sizes) into a computer (available USB port needed).
• Right-Click: USB Thumb Drive
• Select: Format Device
• It will ask for Format Type...Select FAT32.

Fuse Replacement

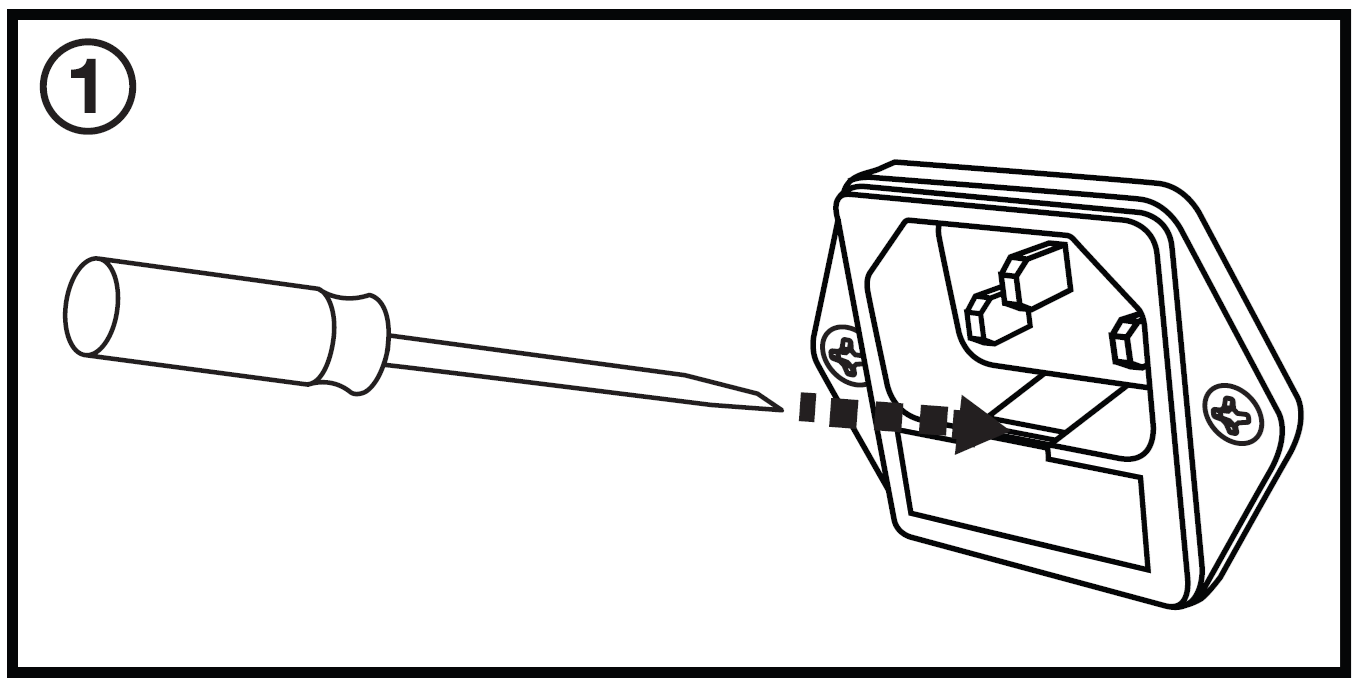

1.) Use a screwdriver to release the fuse holder.

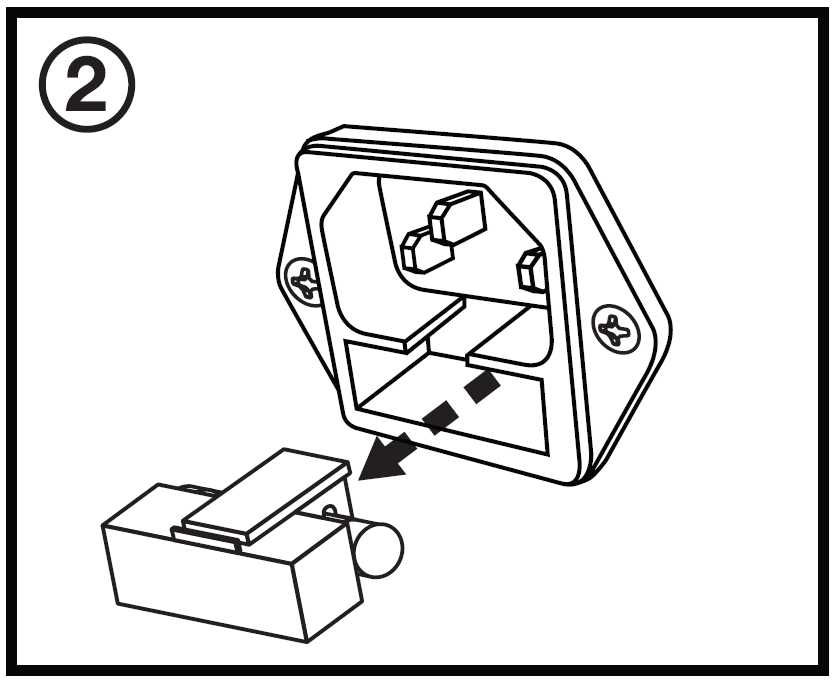

2.) Remove the fuse holder.

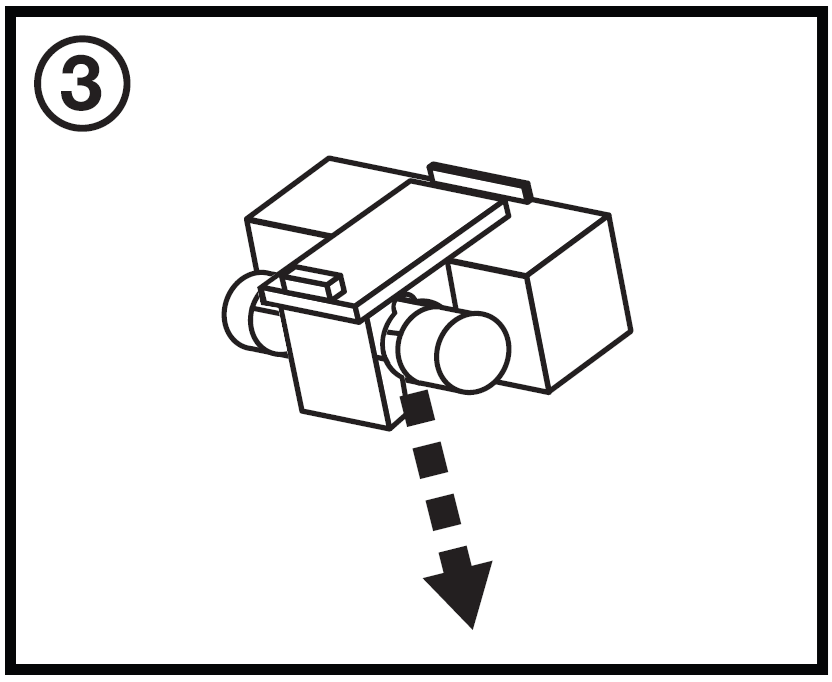

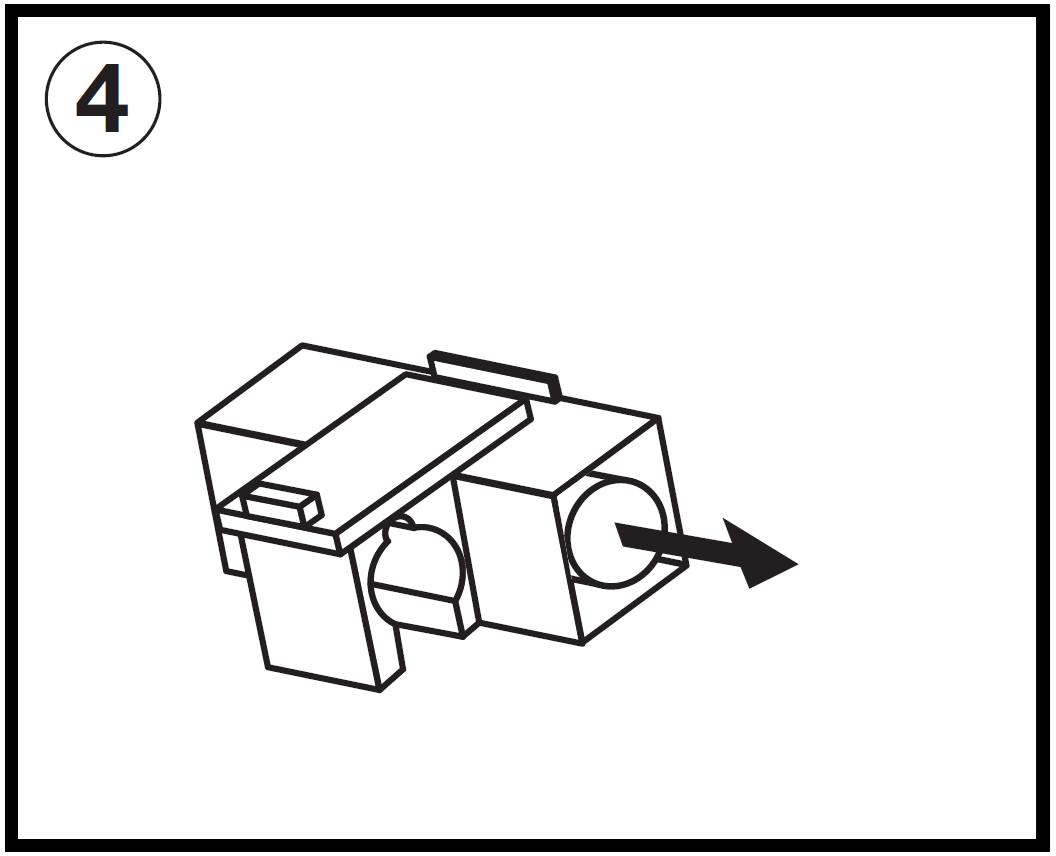

3.) Remove the fuse.

4.) Remove the new fuse from the compartment.

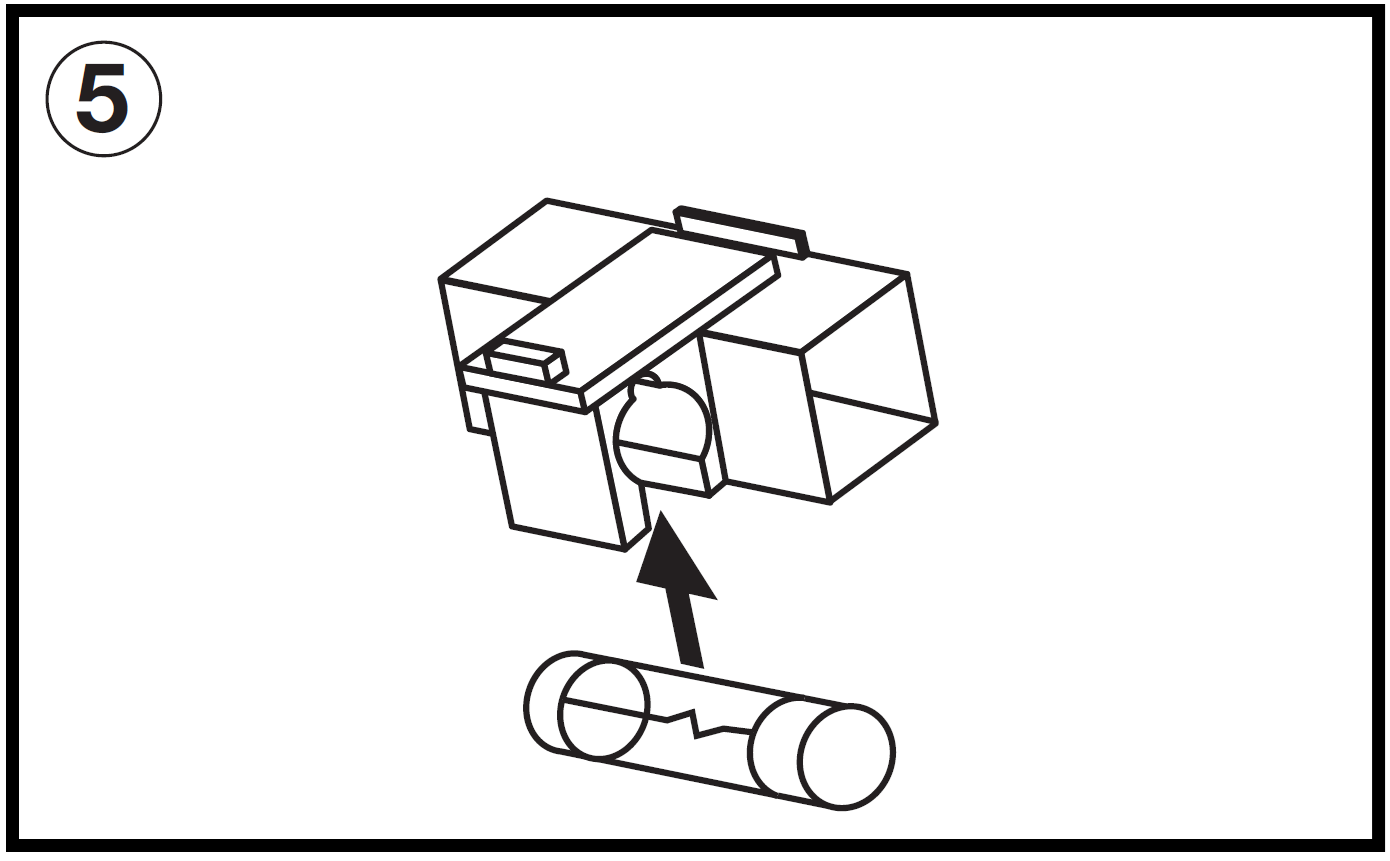

5.) Place the new fuse into the fuse holder.

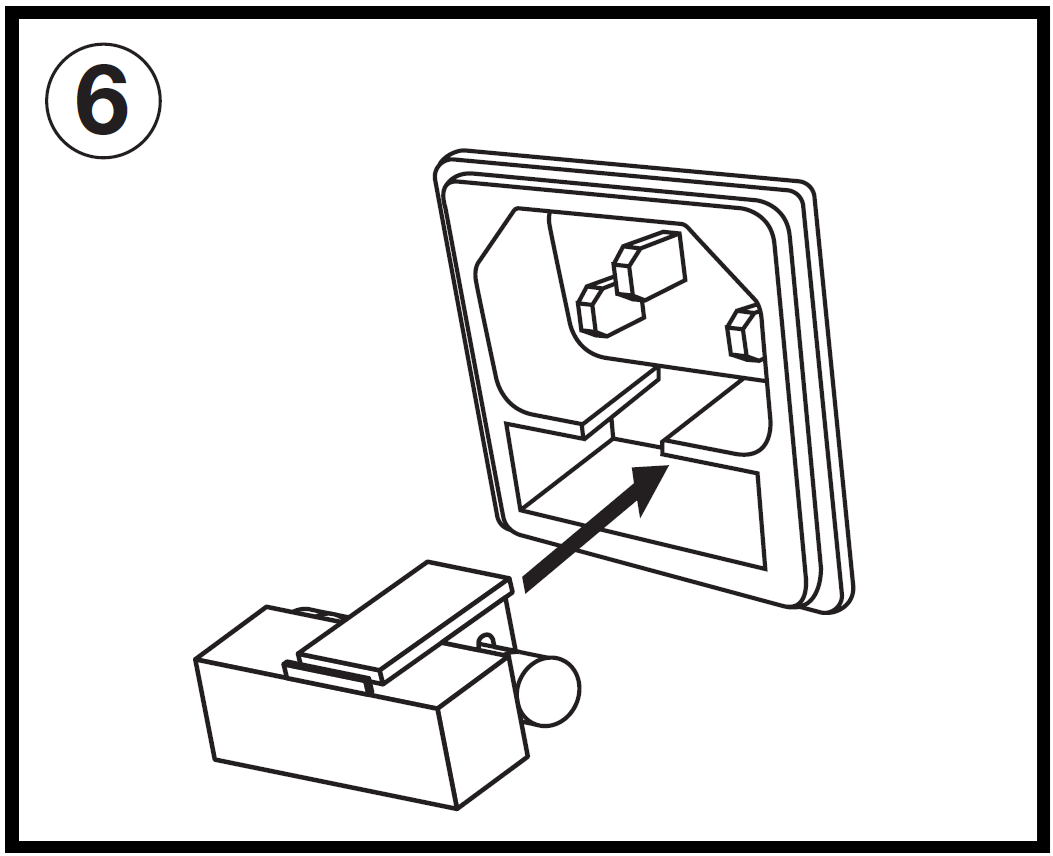

6.) Re-insert the fuse holder.

Features/Specifications

• RMS Power Output: 225w x 2 @ 8 Ohm (Parallel mono)
• Program Power Output: 450w x 2 @ 8 Ohm (Parallel mono)
• Peak Power Output: 900w x 2 @ 8 Ohm (Parallel mono)
• 5-Channel Wood Cabinet Powered Mixer with USB
• Individual Volume, Bass, Treble, and FX controls
• 24 DSP digital effect module with FX knob on each channel
• Bluetooth playback with 35 foot range
• USB Input to play thumb drives
• USB Interface for playback from your computer or to record your performance in your DAW
• 7 Band master equalizer
• USB/BT Volume control
• AUX volume control
• Master volume control
• FX Return level control
• Five balanced XLR inputs
• Five 1/4" TRS inputs
• One RCA L/R AUX input with volume control
• One RCA L/R Rec output
• Headphone output with volume control
• One 1/4" Effect send and return
• 8-ohm dual 1/4" speaker outputs
• +15V phantom power
• Fan Vent Cooling System
• 120V power supply
• Dimensions: 5.75" x 19.44" x 9.5"
• Weight: 18Lbs

Troubleshooting
