Rockville BATTERY PAR 61
Rechargeable RGBWA+UV DMX DJ STAGE Wash Light w/ Remote
Settings
- Use the MODE button to enter the settings menu.
- Use the UP and DOWN buttons to select the desired setting and set their values.
- Press and hold the UP and DOWN buttons to scroll quickly through the menu options.
- Press the ENTER button to save your selection.
- If you power off your unit, upon being powered on, it will remember your previous settings.
- Press MODE to exit.
Display Mode | Value | Description |
A001 | A001–A512 | Set DMX address |
Chnd | 6.ch / 10.ch | Set DMX channel mode (6 channel or 10 channel) |
CL01 | CL01–CL32 | Single color mode |
CC99 | CC01–CC99 | Automatically cycle through colors |
EE99 | EE01–EE99 | Color pulse mode |
FF99 | FF01–FF99 | Color fade mode |
ST99 | ST01–ST99 | Set strobe speed/set strobe color. Press the ENTER button to toggle between ST (strobe speed) or Co (strobe color), then use the UP or DOWN buttons to make adjustments as necessary. |
Co01 | Co01–Co32 | |
SoU1 | SoU1–SoU4 | Select sound control mode |
IRCL | ON / OFF | Turn remote control function on or off. Factory default is off. |
r255 | r000–r255 | Red dimmer |
g255 | g000–g255 | Green dimmer |
b255 | b000–b255 | Blue dimmer |
u255 | u000–u255 | White dimmer |
y255 | y000–y255 | Yellow (amber) dimmer |
P255 | P000–P255 | Ultraviolet (UV) dimmer |
| SoU1: Color cycle sound mode |
| SoU2: Color fade sound mode |
| SoU3: Color strobe sound mode |
| SoU4: SoU1, SoU2, and SoU3 combined |
DMX Controller Functions
When using a DMX controller, use the charts below to reference each channel's function.
6-Channel Mode
Channel | Function | Value | Description |
1 | Red | 0–255 | Adjust individual color brightness |
2 | Green | 0–255 | |
3 | Blue | 0–255 | |
4 | White | 0–255 | |
5 | Yellow (amber) | 0–255 | |
6 | Ultraviolet (UV) | 0–255 |
10-Channel Mode
Channel | Function | Value | Description |
1 | Master dimmer | 0 – 255 | Adjust overall brightness |
2 | Red | 0 – 255 | Adjust individual color brightness |
3 | Green | 0 – 255 | |
4 | Blue | 0 – 255 | |
5 | White | 0 – 255 | |
6 | Yellow (amber) | 0 – 255 | |
7 | Ultraviolet (UV) | 0 – 255 | |
8 | Strobe | 0 – 10 | Strobe off |
11 – 255 | Set strobe speed | ||
9 | Manual dimming (CH1 – CH8 valid) | 0 – 9 | Adjust function settings |
Stationary colors
(use CH10 fader to change colors) | 10 – 50 | ||
Color change mode | 51 – 100 | ||
Color fade mode | 101 – 150 | ||
Color pulse mode | 151 – 200 | ||
Sound mode: fade | 201 – 220 | ||
Sound mode: strobe | 221 – 240 | ||
Sound mode: pulse | 240 – 255 | ||
10 | Color speed | 0 – 255 | Adjust color change speed for CH9 modes |

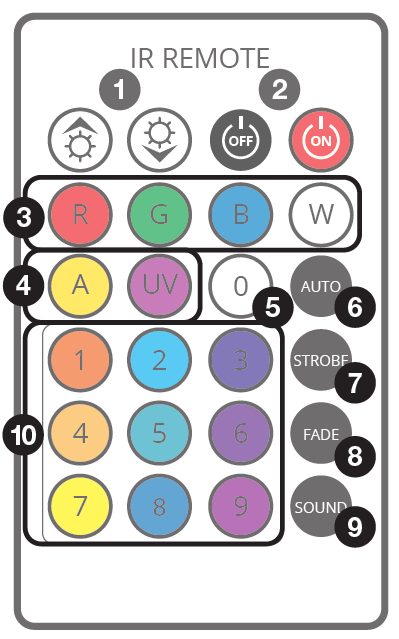

Remote Control Functions
Dimming/Speed: Adjusts the brightness of the fixture when manually adjusting colors (custom color dimming mode). In all other modes, they are used to adjust speed.
- ON/OFF: Please note, these buttons will turn off the bulbs, but the unit will remain on.
- Red, Green, Blue and White: Activate static colors.
- Amber and UV: Activate static colors.
- 0: Press this button then use the Dimming/Speed (item 1) buttons to cycle through the color presets.
- AUTO (Color Cycle Mode): Cycles through colors. Use the Dimming/Speed buttons (item 1) to set the speed at which the unit will cycle through colors.
- STROBE: Select your color from the buttons then press this button to activate strobe mode.
- FADE (Color Fade Mode): The unit will fade from one color to next. Use the Dimming/Speed buttons (item 1) to set the speed at which the unit will fade between colors.
- SOUND: Activate/deactivate sound mode. Use the Dimming/Speed buttons (item 1) to adjust each of the 4 sound modes. Mic sensitivity is adjusted via the unit's settings menu.
- Preset Colors: Use these buttons to select a specific pre-mixed color.
