Battery Par 6RF Owner's Manual

A001

A001-A512

Set wired DMX address

Press the MODE button until the screen reads A001. Press the ENTER button to toggle between A001 (wired DMX address) or id01 (wireless DMX channel ID) to make adjustments.

id

id01-id07

Wireless DMX channel ID (for wireless DMX pairing)

Chnd

6.ch/10.ch

Set DMX channel mode (6 channel or 10 channel)

N/A

CL01

CL01-CL32

Single color

CC01

CC01-CC99

Automatically cycle through colors

EE01

EE01-EE99

Pulse

FF01

FF01 - FF99

Color fade

ST01

ST01-ST99

Select strobe speed

Press the MODE button until the screen reads ST01. Press the ENTER button to toggle between ST (strobe speed) or Co (strobe color) to make adjustments as necessary.

Co01

Co01-Co32

Select strobe color

SoU1

SoU1-SoU4

Select sound control mode

SoU1: Color change

SoU2: Color fade

SoU3: Color change + strobe

SoU4: Color change + color fade + strobe

2.4G

On/Off

Turn wireless DMX function on or off.

Press the ENTER button, then use the arrow keys to toggle on or off.

r000

r000-r255

Red dimmer

N/A

g000

g000-g255

Green dimmer

b000

b000-b255

Blue dimmer

u000

u000-u255

White dimmer

y000

y000-y255

Yellow dimmer

P000

P000-P255

Purple dimmer

Ren.1

Ren.1-Ren.2

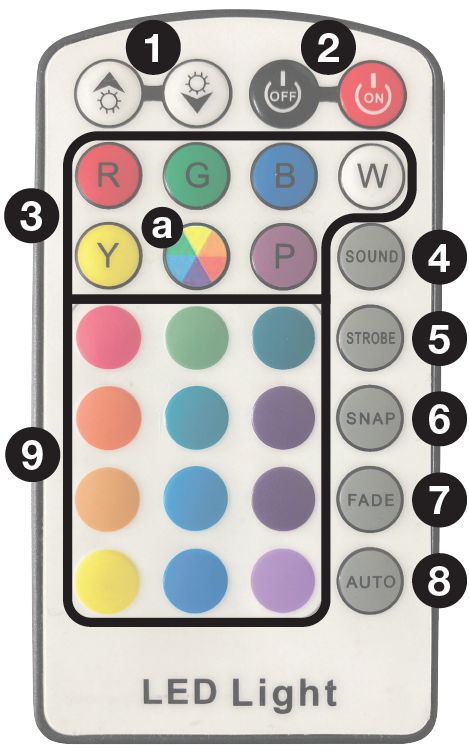

Select remote control channel. Please refer to the diagram below.

Press the ENTER button, then use the arrow keys to toggle between Ren.1 and Ren.2. In order to use the remote control, the unit must remain in this mode (Ren.1 or Ren.2).

1. ▲/▼ (+/-, up/down): Adjust speed, sensitivity, or brightness (single colors only) depending on what mode the unit is set to.
2. ON/OFF: Turns the LEDs on or off. Please note, this button is strictly for the LEDs. The unit will remain on and continue to use battery power. To turn it off, use the power switch on the unit.
3. COLORS: Directly select red, green, blue, white, yellow, or purple LED color. Use the ▲/▼ buttons to adjust the brightness. Press the COLOR WHEEL button (a) then use the ▲/▼ buttons to cycle through the 32 color presets.
4. SOUND: Sets the unit to sound control mode. Use the ▲/▼ buttons to adjust the sensitivity of the internal microphone.
5. STROBE: Sets the unit to strobe mode. First select the desired color, then press the strobe button. Use the ▲/▼ buttons to set the strobe speed.
6. SNAP: The unit will snap/pulse through colors. Use the ▲/▼ buttons to set the snap/pulse speed.
7. FADE: The unit will fade from one color to next. Use the ▲/▼ buttons to set the speed at which the unit will fade between colors.
8. AUTO: Cycles through 32 colors. Use the ▲/▼ buttons to set the speed at which the unit will cycle through colors.
9. COLOR PAD: Use the color pad to directly select a variety of preset colors.
