RF WEDGE: How To Set Up Master/Slave Mode

1. Select one light as the Master.

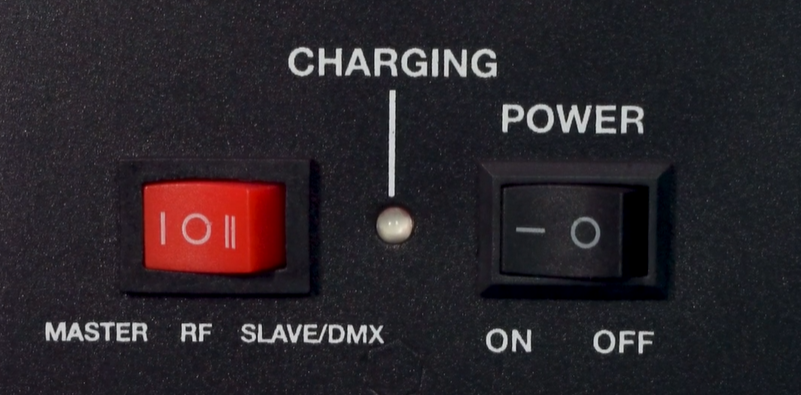

2. Set this light to Master mode using the red switch on the back.


• Set all other lights to Slave mode using the red switch on the back of each light.


1. On the Master light, select a Wireless DMX Color Code from the 7 options/channels:
   • Red (selected in video)

   • Green
   • Yellow
   • Blue
   • Purple
   • Cyan
   • White
2. Select the same Wireless DMX Color Code on all Slave lights.

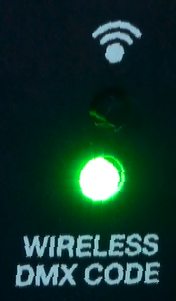

3. The Master light’s Wireless DMX Code light will flash, while the Slave lights’ DMX code lights stay solid—this means they are synced.
4. Now, changing the mode or color on the Master light will automatically apply to all Slave lights.

Please Note: The remote cannot control Master/Slave mode directly—manual control is required on the Master light, unless Workaround Method(see next section) is used.

If you want to use the remote to control all lights:

1. Set the Master light to Slave Mode temporarily(so it can receive commands from the remote):

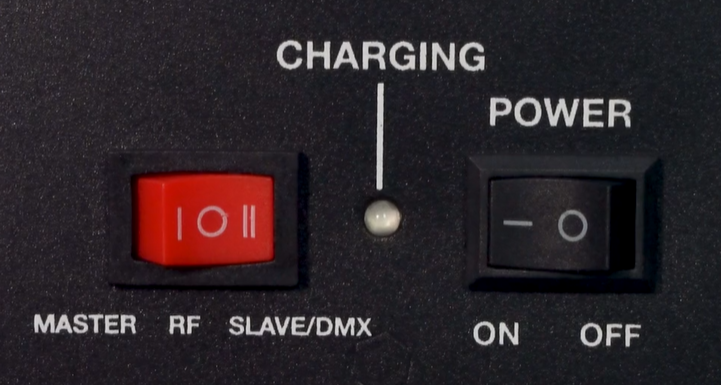

   • Slave Mode is set using the red switch on the back of the light.

   • This will temporarily break sync between Master and Slave lights.
2. Use the remote to set colors or modes using the information provided in the next section.
3. Once done, switch the Master light back to Master Mode—this will resync the Slave lights:
   • Master mode is set using the red switch on the back.


Remote Functions:
1	Brightness ⇧ / ⇩	~Increase / Decrease brightness for static colors. ~Increase / Decrease SOUND mode sensitivity. ~Control effect speed for STROBE, SNAP, FADE and AUTO modes. ~Scroll through 32 preset static colors after pressing Color Wheel button.
2	OFF	Turns LEDs off completely. (Blackout) Please note: This does not power down the light. The POWER switch on the back of the light must be used to fully power off the light (and back on as well).
	ON	Turns LEDS back on after Blackout, and returns them to previous function.
3	Base Colors	6 Buttons for Base Colors; Select Red, Green, Blue, White, Amber or Purple.
3a	Color Wheel	Press Color Wheel button. Then Brightness ⇧ / ⇩ scrolls through 32 color presets.
4	SOUND	Activate sound responsive mode. Brightness ⇧ / ⇩ controls sensitivity.
5	STROBE	Strobe Effect → Brightness ⇧ / ⇩ controls speed.
6	SNAP	Snap / Pulse between colors.  Brightness ⇧ / ⇩ controls speed.
7	FADE	Fades automatically between colors. Brightness ⇧ / ⇩ controls speed.
8	AUTO	Cycles automatically between colors. Brightness ⇧ / ⇩ controls speed.

Confirm Lights Will Respond to RF Remote:
RF Wedge lights must be set as shown below. They should already come set this way, but if not responding to remote these settings may have been changed.

1. Turn on the light.
2. Press the Mode button until you reach REN mode.
3. Using the Up /Down buttons; select rEn1 or rEn2 as the RF Channel.
4. Press Enter to confirm.
5. Use the RF Remote to change colors, brightness, and effects.

Tip: The Sound-Activated mode syncs lights to music beats using the built-in microphone—perfect for DJ sets and parties.

You can set up independent groups of synced lights using different Wireless DMX Color Codes:

1. Group 1:
   • Set one light to Master Mode using the red switch on the back.

   • Set others in the group to Slave Mode using the red switch on the back of each light.

   • On the Master light, select a Wireless DMX Color Code from the 7 options/channels:
     • Red
     • Green (selected in video)

     • Yellow
     • Blue
     • Purple
     • Cyan
     • White
   • Select the same Wireless DMX Color Code on the other lights in Group 1.

   • The Master light’s Wireless DMX Code light will flash, while the Slave lights’ DMX code lights stay solid—this means they are synced.
   • Now, changing the mode or color on the Master light will automatically apply to all Group 1 lights.
2. Group 2:
   • Set one light to Master Mode using the red switch on the back.

   • Set others in the group to Slave Mode using the red switch on the back of each light.

   • On the Master light, select a Wireless DMX Color Code from the 7 options/channels:
     • Red (selected in video)

     • Green
     • Yellow
     • Blue
     • Purple
     • Cyan
     • White
   • Select the same Wireless DMX Color Code on the other lights in Group 2.

   • The Master light’s Wireless DMX Code light will flash, while the Slave lights’ DMX code lights stay solid—this means they are synced.
   • Now, changing the mode or color on the Master light will automatically apply to all Group 2 lights.

Now, each group operates independently, allowing different effects like pulse mode on one group and strobe on another.

Wired Master/Slave Setup:
3-Pin DMX Cable (1 per Slave Light) required for this.

1. Select one light as the Master.
2. Connect a DMX cable from the DMX OUT on the Master light to the DMX IN on the first Slave light.
3. For additional Slave lights; connect the DMX OUT of the previous connected Slave light to the DMX IN another RF Wedge light.
4. Repeat the previous step for additional RF Wedge Slave Lights..

Wired Master/Slave Setup:

1. Set the Master light to Master mode using the red switch on the back.

2. Set all other lights to Slave mode using the red switch on the back of each light.


Control Options with DMX Cables:

• Manual Control: Set the Master light to Master mode and adjust settings.
• Remote Control: Set the Master light to RF mode, then use the remote to control all connected lights.
