RF Wedge Owner's Manual

54W RGBWA+UV Rechargeable Battery & Wireless DMX Par Light w/RF Remote

Important Safety Instructions

• To reduce risk of electric shock, never open the unit. There are no user serviceable parts; refer service to the Rockville service center.
• Avoid looking directly into the lights.
• Do not expose this unit to any kind of moisture.
• This device has an IP20 rating and is intended for indoor use only.
• Maximum operating temperature is 104°F (40°C).
• Do not operate this unit when the cover is open.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to break off or remove the ground prong. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
• Never plug this unit into a dimmer pack.
• Do not operate this unit if it is damaged.
• This unit is intended for indoor use only.
• Always mount this unit in a safe and stable manner.
• Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point of exit from the unit.
• To avoid unnecessary wear and to improve the unit's lifespan, unplug the unit when not in use for extended periods of time.

ATTENTION

Please charge fixture for 10 hours before initial use.

To charge the light: plug in the power cord and turn off the power switch.

The power LED indicator will remain red while charging and will turn green once the unit is fully chared.

Always charge your light for 8 - 10 hours.

This will help extend the battery's life span.

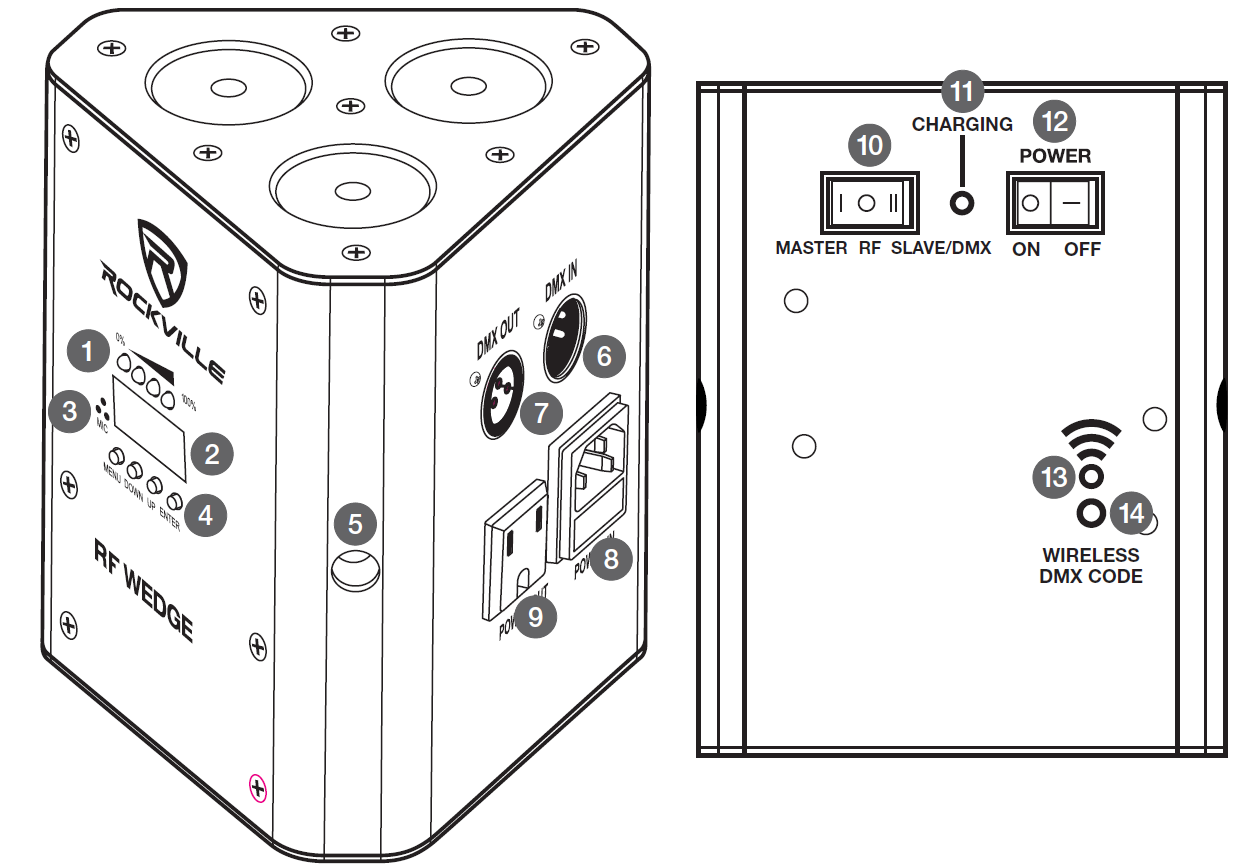

Functions

1. Battery level LED indicators
2. LCD display shows unit status
3. Sound mode mic

4. Menu: Enter menu mode/cycle through menu options.

   Down: Scroll down through menu or scroll through selection.

   Up: Scroll up through menu or scroll through selection.

   Enter: Confirm selection. The mode, settings, and values will be saved and will remain in place even after powering off the unit. They will be the default when you power the unit back on.

5. Mounting bracket hole (Four total: One on each side and one on the bottom)
6. DMX in
7. DMX out
8. IEC AC power socket with a user serviceable fuse
9. Power out
10. Mode switch
11. Charging LED indicator
12. Power switch
13. Wireless DMX frequency set button
14. Wireless DMX frequency LED indicator

Remote Control

1. ☼/S (+/-): Adjust speed, brightness, or sensitivity depending on the function the unit is set to. Holding both buttons at once will change the remote control's RF channel.
2. ON/OFF: Turns the LEDs on or off. Please note, this button is strictly for the LEDs. The unit will remain on and continue to use battery power. To turn it off, use the power button on the unit (no.12 on the functions diagram).
3. COLORS: Directly select red, green, blue, white, yellow, or purple/UV LED color. Use the buttons to adjust the brightness. Press the COLOR WHEEL button (a) then use the buttons to cycle through the 32 color presets.
4. SOUND: Sets the unit to sound control mode. Use the buttons to adjust the sound modes of the internal microphone.
5. STROBE: Sets the unit to strobe mode. First select the desired color, then press the strobe button. Use the buttons to set the strobe speed.
6. SNAP: The unit will snap/pulse through colors. Use the buttons to set the snap/pulse speed.
7. FADE: The unit will fade from one color to next. Use the buttons to set the speed at which the unit will fade between colors.
8. AUTO: Cycles through 32 colors. Use the buttons to set the speed at which the unit will cycle through colors.
9. COLOR PAD: Use the color pad to directly select a variety of preset colors.

Please note, the remote control uses a CR2025 battery (included).

Charging

To charge the light, connect the power cord to the unit and to an outlet. Turn off the power switch. The LED indicator next to the power switch will be red when the unit is charging. Once the unit is fully charged, the LED will be green. For prolonged battery life we recommend fully charging the unit before first use (10 hours) and charging for 8–10 hours whenever the battery is depleted.

Setting Wireless DMX Frequency Groups

The RF WEDGE features seven individual 2.4GHz groups so you can organize your fixtures. Each group is represented by a color. First, set the Mode Switch to SLAVE/DMX, then use the wireless DMX frequency set button to select any one of the seven available group colors. Make sure all the other fixtures within that group are set to the same group color.

Operation

Master/Slave Function

In this mode you can connect multiple fixtures together and have one of the fixtures control all others without the use of a DMX controller.

1. Turn on all fixtures.
2. Connect all fixtures wirelessly or via the DMX IN/DMX OUT ports. If connecting wirelessly, make sure that all fixtures are set to the same wireless DMX frequency group. See the "Setting Wireless DMX Frequency Groups" section on the previous page.
3. Set the mode switch to SLAVE/DMX. The screen will say SLAv and from there you can press ENTER to enter 10ch/6ch mode configuration menu. Use the UP or DOWN buttons to change channel mode, then press ENTER to confirm.
4. Select one fixture to be the master and set its mode switch to MASTER. Set the mode switch of the other fixtures to SLAVE. These fixtures will now follow the master fixture. You also have the ability to set the mode switch on the MASTER light to RF mode and change to whatever color/function you want. Then put the switch back to MASTER and it will send that to all the SLAVE units in the same group.

Display Codes

Use the MENU button to enter the settings menu. Keep pressing the menu button to cycle through the different menu options. Use the UP or DOWN buttons to select the desired setting and set their values. Press and hold the UP or DOWN buttons to scroll quickly through the menu options. Press the ENTER button to save your selection or enter a submenu if one is available for that option.

a submenu if one is available for that option.

DMX Controller Function

When using a DMX controller, use the chart below to reference each channel's function.

6 Channel Mode

10 Channel Mode

DMX Termination (Optional)

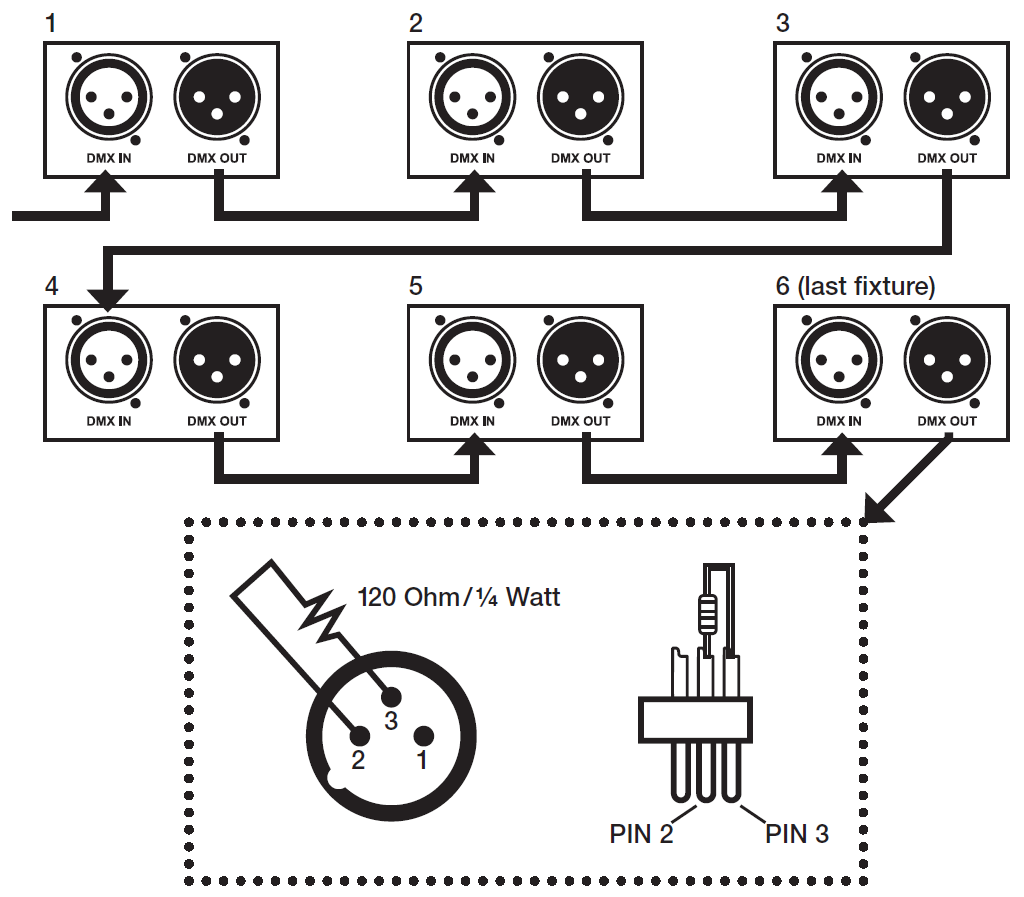

The last fixture of a DMX chain has to be "terminated." This prevents electrical noise from disturbing and corrupting the DMX control signals. To terminate the last fixture, solder a 1/4 Watt, 120 Ohm resistor across the DATA - and DATA + wires. The connections are illustrated below. If you are only connecting a few fixtures that are close together and use a short run to the controller, you may be able to operate without a terminator.

Mounting

Please follow the directions below for safely hanging the RF WEDGE on a truss. You will need an adjustable wrench and pliers. Please use a safety cable when hanging the fixture. This will prevent any injuries in the event that the fixture falls.

STEP 1

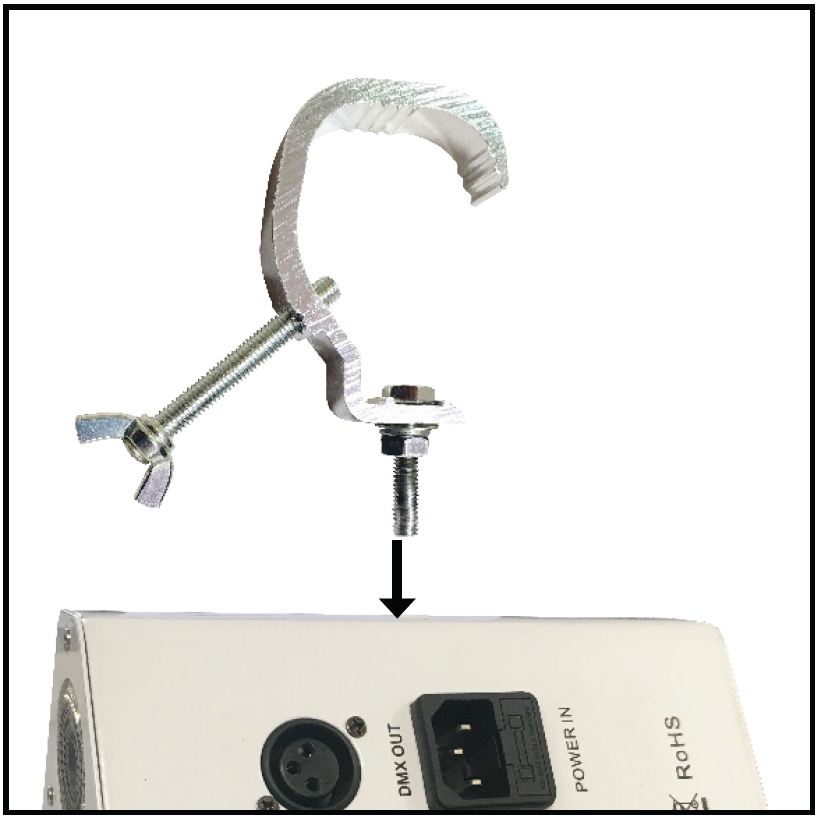

Attach your mounting clamp to any one of the four mounting holes located on the sides and bottom of the fixture.

PLEASE NOTE: Your mounting clamp may differ from the one used in our installation instructions. Make sure to refer to your clamp's specific mounting instructions for proper use.

STEP 2

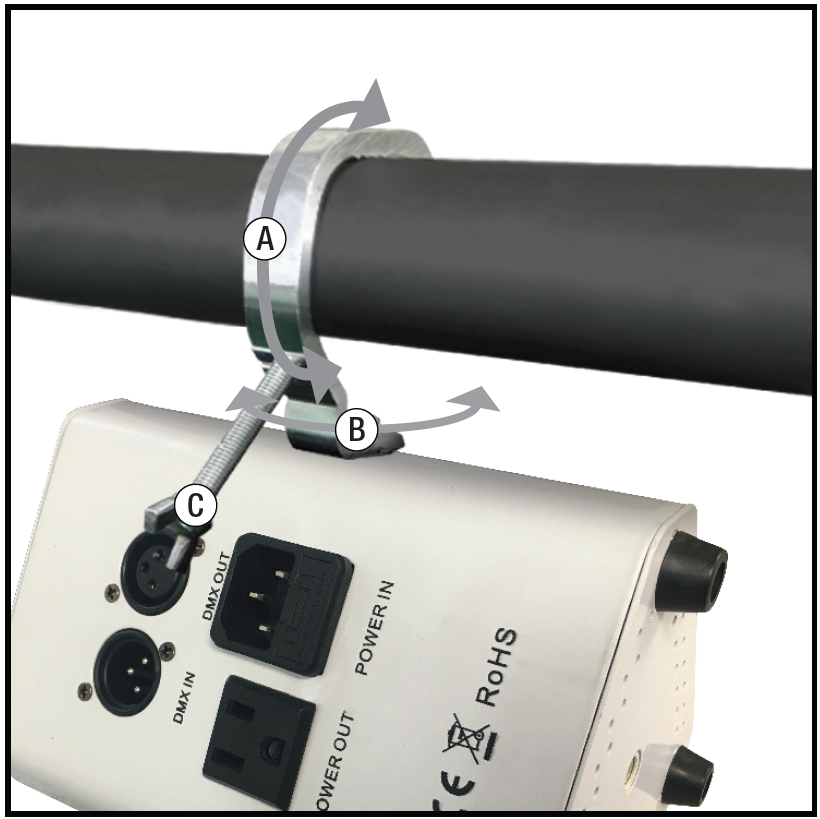

Attach the clamp to a truss. Adjust the angle (A) and direction (B) as needed. Next, tighten the wing nut (C).

Features and Specifications

• RF remote with 70 foot range and Dual channels (RF remote can control many lights at the same time from a distance)
• 3 mode switch (RF, Master, Slave/DMX) allows for the ultimate flexibility and control
• 100% true wireless! Built in 2.4GHZ Wireless DMX 512 receiver allows you to link multiple lights together without wires (7 groups)
• Built in rechargeable battery allows you to use the lights without plugging them in making your setup 100% wireless
• Light Source: 3 LEDs that can handle 18 Watts each, which is 300% the handling of the voltage being given to the LED so they will last for 50,000 hours of use
• Each LED is a 6-in-1 RGBWA+UV (RED, GREEN, BLUE, WHITE, AMBER + ULTRA VIOLET)
• DMX control: 6 or 10 channels
• DMX input and output (3-pin)
• 50,000 hours life expectancy
• RF wireless remote control included
• Super bright: 6500 lux @1m
• Large color 4-digit digital LCD display for easy color mixing & operating.
• Easy to operate with the large LCD display, remote control, DMX controller, built-in programs, and sound activated mode
• Easy color mixing on one screen
• LED angle: 30° (±5°)
• Built-in 7,800 mAh lithium battery
• Battery indicator uses LED's so you know how much longer your battery will last
• Single Color run time - Red: 24 hours, Green: 22 hours
• Double Color run time: 15 hours
• All Colors run time: 12 hours
• Recharge Time: 10 hours
• Battery will still perform optimally even after hundreds of charging cycles
• Battery overcharge protection
• Power supply: AC110V-220V/50Hz-60Hz
• Power consumption: 25W
• Automatic modes: color change, strobe, color blend cycle, color jump change, sound activated
• Flicker-free lights
• Colors: 16.7 million colors
• 1-year warranty
• Black housing
• Create customized colors using the built-in LCD display
• Field replaceable batteries
• Truss mountable
• Rubber feet
• 110/220 switchable for use in any country
• Unit Dimensions: 6.69 x 6.69 x 8.86 inches
• Unit Weight: 4.4 Lbs
• Wireless DMX range: 1,000 to 1,500 feet
