FLIP PAR: How To Set Up & Use

Introduction

This article walks you through everything you need to know to set up and use your Rockville Flip PAR light(s). You’ll learn how to charge, control and position your Flip PAR light(s). This includes controlling with the IR remote and linking multiple lights using Master/Slave mode, in addition to using DMX (wired and wireless) as well as the Par Control mobile app (iOS/Android). Whether using an IR remote or the WiFi-enabled app; each setup process is designed to be simple, even for users with no technical experience. For our lighting pros and those looking to create fully customized lighting effects, any DMX Controller can be used for full (512 channel) DMX control; wired or wireless. Whether being used for wall washing, DJ facades or truss mounting, this guide will ensure you get the most out of your Flip PAR light(s).

Requirements:
✅Rockville Flip PAR (available in Black or White)
✅Included Power Cable or Wireless Charging Case
✅*Included IR Remote (for remote control)
✅*Rockville LC70 or Similar Lighting Clamp (for mounting)
✅*Rockville Wireless DMX Controller or other DMX Controller & Cable (for DMX control)
✅*Rockville Par-Control App on Android or iOS Device (for App control)

*These items are only needed for certain functions or applications.

Setup Guide

A.) Charging Your Flip Par Lights
You can also leave the power cable connected to run the light from AC power instead of battery.

Charging a Single Light:

1. Locate the included IEC power cable.
2. Plug the IEC end into the power socket on the Flip Par.
3. Plug the other end into a wall outlet or power source.
4. The charging indicator LEDs on the light will show that it is charging.

Charging with the Flip Charge Pack:
If you have the charging case, you can charge up to 6 lights at once inside the case.

1. Prepare the case.
   • Open the case.
   • You’ll see individual compartments for each light and a row of power sockets in the middle.
2. Connect the case to power.
   • Use the thicker IEC power cable that came with the case.
   • Plug it into the power socket on the side of the case.
   • Plug the other end into a wall outlet or power source.
   • Make sure the power switch on the case is turned off for now.
3. Connect each light inside the case.
   • Insert each Flip PAR into its compartment with the power socket facing up.
   • Plug an IEC power cable into each light.
   • Plug the other end of each cable into one of the middle power sockets inside the case.
4. Start charging the lights.
   • Flip the power switch on the side of the case to ON.
   • All charging indicators on the lights should light up, confirming they are charging.

⚠️Always keep the case open while charging so the lights can get proper ventilation and avoid overheating.

B.) Positioning & Mounting

Using the Adjustable Head:
A key feature of the Flip Par is its adjustable head.

• You can leave the head completely down to have the light shine straight up.
• Or lift the head upward to angle the beam:
  • Slight tilt for wall washing.
  • Steeper angle for specific objects or areas.

Ideal flexibility for:

• Up-lighting walls
• Highlighting backdrops
• Lighting truss or stage elements

Mounting to a Truss (or Speaker Stand Pole):
If you want to mount the Flip PAR to a lighting truss, beam or speaker stand pole you’ll need a lighting clamp like the Rockville LC70.

• Attaching a Lighting Clamp
  1. Locate the threading (for a lighting clamp) on the bottom of the light.
  2. Align the bolt from the lighting clamp with the threading.
  3. Rotate the clamp to screw into the threading; attaching firmly to the base of the Flip PAR light.
• Placing & Adjusting the Light on a Truss, Beam or Speaker Stand Pole
  1. Loosen the clamps butterfly screw until wider than truss / beam/ pole diameter.
  2. Position the clamp on your truss, beam or speaker stand pole.
  3. Tighten the butterfly screw to lock the light in place.
  4. Adjust the angle of the light to direct the beam where needed.

C.) Getting to Know the Light’s Controls

Power Button:

• Located on the side of the light.
• Turns the light on or off.

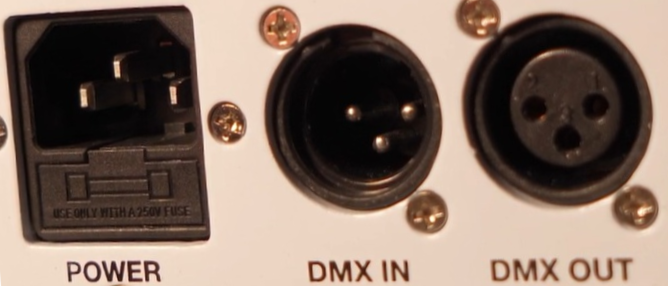

External Connections:

• Power Socket (IEC)
  • For charging or running on AC power.
• DMX In and DMX Out
  • For wired DMX control or daisy-chaining lights (e.g., for DMX control or Master/Slave mode).

Wireless Antenna:

• Located on the back.
• Flip it up to strengthen wireless DMX or wireless group communication.

Display & Onboard Control Buttons (Under the Head):
Lift the head of the light to reveal...

• Display Screen:

  • Mode (i.e. color, sound, fade, DMX)
  • DMX Address or other relevant settings depending on the mode
  • Battery Level
  • Group / App settings, etc.

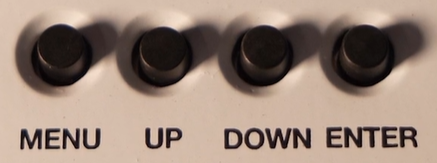

• Buttons:

  • Menu – cycles through modes and main menus.
  • Up / Down – scroll through options or change values.
  • Enter – open submenus and confirm/save settings.

D.) Built-in Operating Modes

DMX Address & Channel Mode:

• DMX Address
  This allows you to set the light to DMX control or Slave mode for wireless syncing.

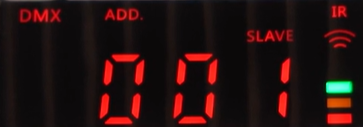

  1. Press the Menu button until you see DMX ADD 001 ~ DMX ADD 512.

  2. Use the Up / Down buttons to set the address to A001 for Scanner / Fixture 1, or to a different address corresponding to another scanner / fixture (specified by your DMX controller).

• DMX Channel Mode
  This allows you to select between 6-Channel Mode and 10-Channel Mode based on the level of control needed.

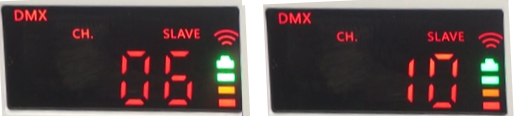

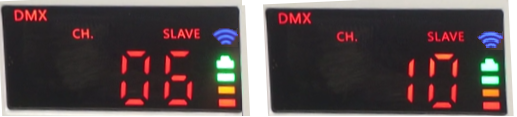

  1. Press the Menu button until you see DMX CH. 06 or DMX CH. 10.

  2. If necessary, use the Up or Down button to select:
     • 6-Channel Mode → Allows color mixing (Red, Green, Blue, White, Yellow/Amber, Purple/UV).
     • 10-Channel Mode → Allows color mixing with Master dimmer, plus Strobe, Auto and Sound modes.

Please note: You can also reach the DMX Channel Mode directly as a separate menu after Address in some firmware versions.

Static Color Mode:
This allows you to select from 48 pre-set colors.

1. Press the Menu button until you see COLOR SUB 01 ~ COLOR SUB 48.

2. Use the Up / Down buttons to scroll through the 48 pre-set color options.

3. Press the Enter button to activate (optional) Strobe Effect.
   • Use the Up / Down buttons to set Strobe Speed.


Jump Mode:
This allows you to activate and control automatic color changing.

1. Press the Menu button until you see JUMP SPEED 01 ~ JUMP SPEED 09.

2. Use the Up / Down buttons to adjust speed.


Fade Mode:
This allows you to activate and control automatic color fading and pulsing.

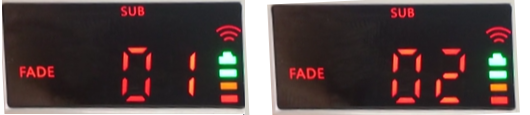

1. Press the Menu button until you see FADE SUB 01 or FADE SUB 02.

2. If necessary, use the Up or Down button to select:
   • 01 → Color Fade Mode
   • 02 → Color Pulse Mode
3. Press Enter and use Up / Down buttons to adjust speed.

Sound-Activated Mode:
Light reacts to sound or music via its built-in mic with sensitivity control.

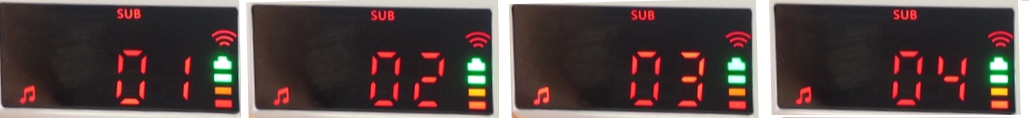

1. Press the Menu button until you see ♫ SUB 01 ~ ♫ SUB 04.

2. Use the Up / Down buttons to select one of four Sound Modes:
   • Sound Mode 1 → Color Cycle / Jump
   • Sound Mode 2 → Color Pulse
   • Sound Mode 3 → Color Strobe
   • Sound Mode 4 → Color Cycle + Pulse + Strobe
3. Press Enter and use Up / Down buttons to adjust sound sensitivity.
   • Higher values → More reactive to sound.
   • Lower values → Needs louder sounds to trigger changes.

App Control Group:
This allows you to control up to four groups of lights using the

1. Press the Menu button until you see AP1, AP2, AP3 or AP4.

2. Use the Up / Down buttons to select one of four App Groups.

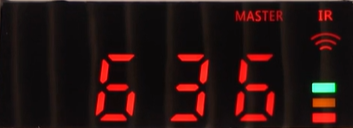

3. Press Enter to see the 3-Digit UID (Unique Identification Number).

   ⚠️The UID on your light will likely be different.
4. On a smartphone or tablet you should be able to find and connect to a WiFi network labeled Rockville-UID. This enables control using the Rockville Par-Control App.
   • For the example above, the WiFi network would appear on your smartphone or tablet as shown below.

   • Connecting to this network enables control using the Rockville Par-Control App.

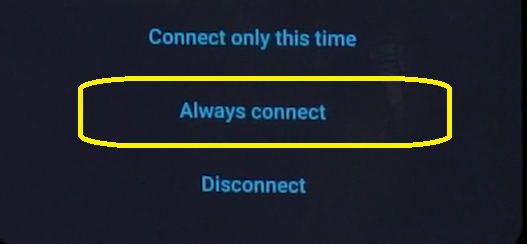

   • If prompted, select Always Connect.

5. Press Enter on the light again to stay in app mode.

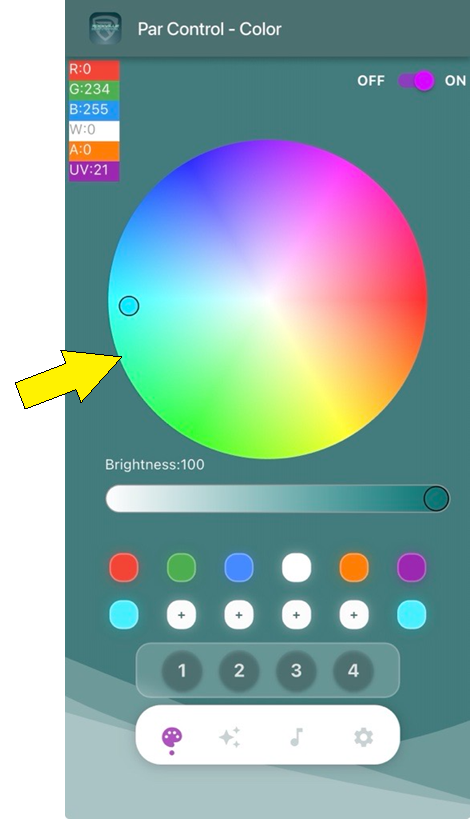

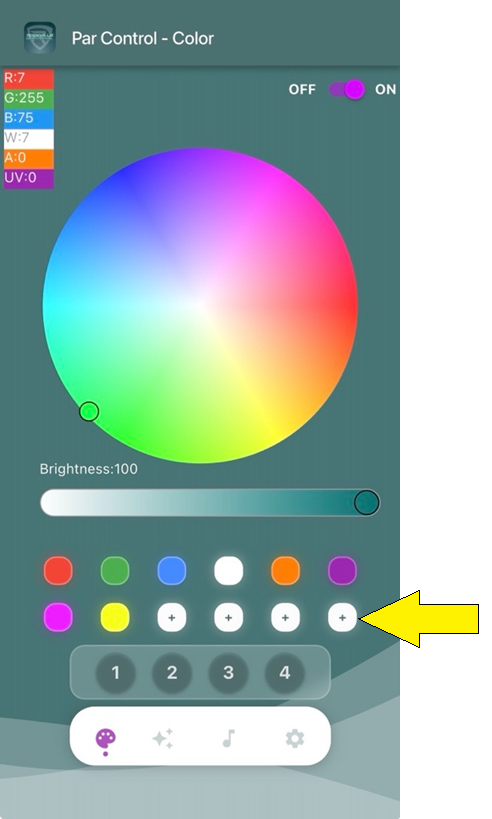

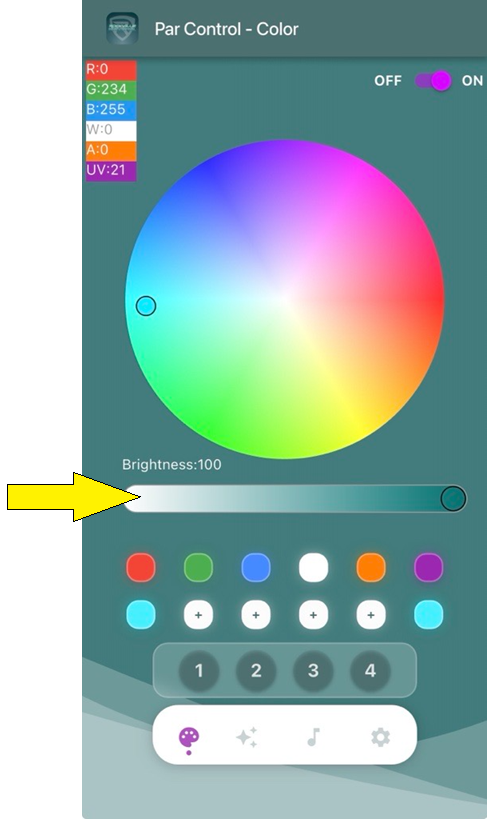

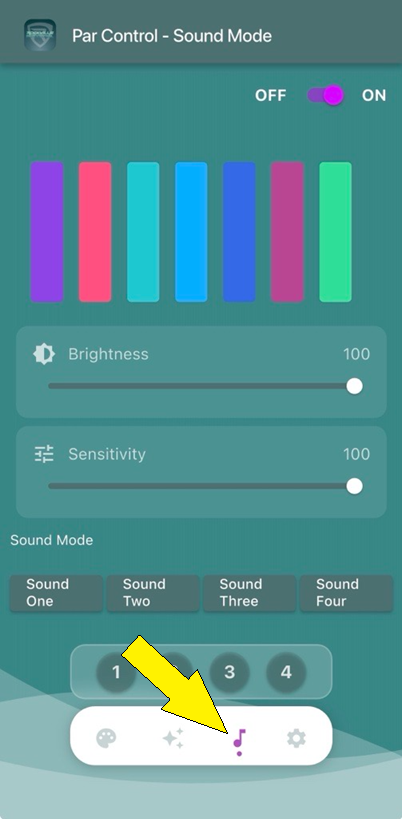

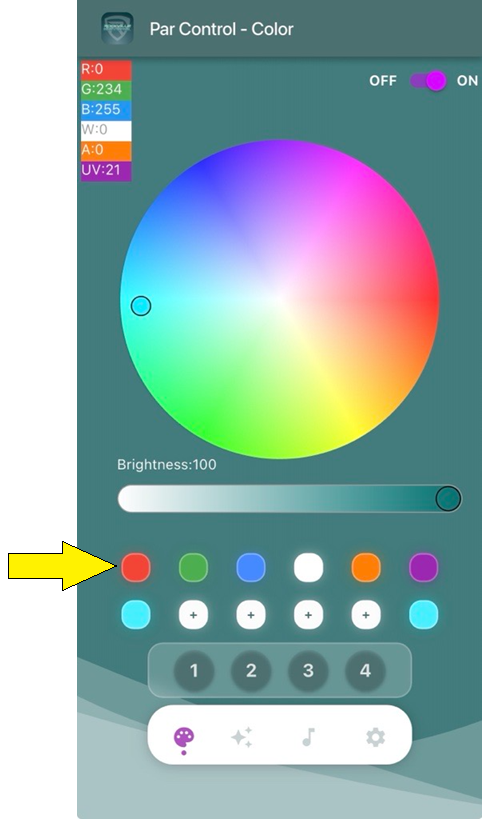

6. Open the Rockville Par-Control App.

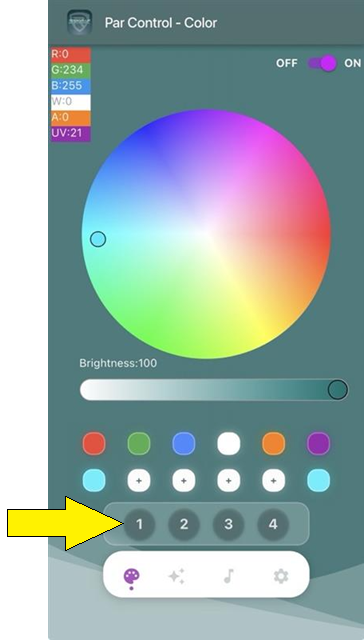

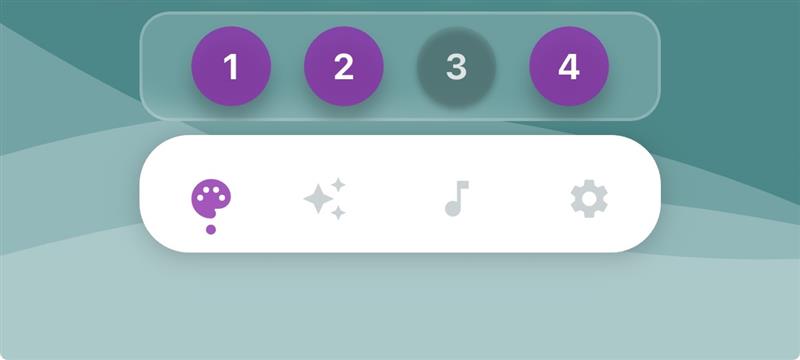

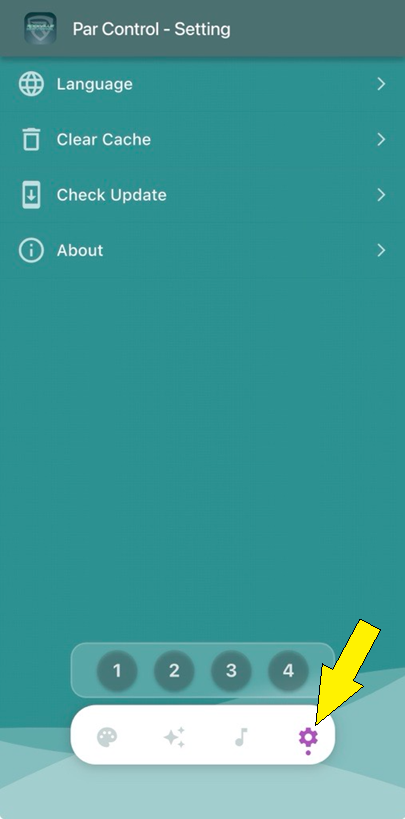

7. Note the four buttons toward the bottom of the screen labeled; 1, 2, 3 and 4.

8. These correspond to the Flip PAR's four App Groups; AP1, AP2, AP3 and AP4.
9. Select the App Group that corresponds to the Flip PAR light(s) you wish to control.

Custom Color Mode:
This mode allows for manually blending of the 7 base colors to create custom colors.

1. Press the Menu button until you see CoL.

2. Press Enter to adjust each LED color individually:

   • r → Red
   • G → Green
   • b → Blue
   • u → White
   • y → Yellow / Amber
   • P → Purple / UV (Ultraviolet)
3. Use the Up / Down buttons to set values from 0-99 to control the intensity of each color.

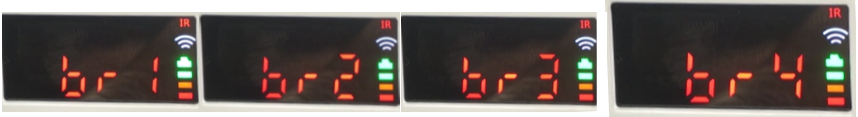

Global Brightness Control:
This sets the maximum brightness for all modes and functions.

1. Press the Menu button until you see br4(default), br3, br2 or br1.

2. Use the Up / Down buttons to select:
   1. br1 → Minimum Brightness (maximum battery life)
   2. br2 → Medium-Low Brightness
   3. br3 → Medium-High Brightness
   4. br4 → Maximum Brightness (default)

Display Control:
This controls how long the display remains active.

1. Press the Menu  button until you see dSP.

2. Use the Up / Down buttons to select:
   1. on → Displays remains always On.
   2. 10 → Display shuts off after 10 seconds (comes back on when any button is pressed).
   3. 20 → Display shuts off after 20 seconds (comes back on when any button is pressed).
   4. 30 → Display shuts off after 30 seconds (comes back on when any button is pressed).

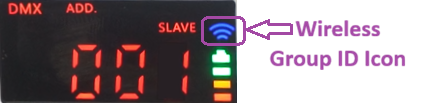

Wireless Group ID:
This allows you to select one of 7 Wireless Group ID options for Master/Slave Mode or wireless DMX control.

1. Press the Menu button until you see 01, 02, 03, 04, 05, 06, 07 or oFF with the corresponding Wireless Group ID color.

2. Use the Up / Down buttons to select:
   • 01 → Red
   • 02 → Green
   • 03 → Yellow
   • 04 → Blue
   • 05 → Purple
   • 06 → Cyan
   • 07 → White
   • oFF → No Wireless DMX Control

IR Control:
This allows you to turn On or Off the light's response to the IR remote.

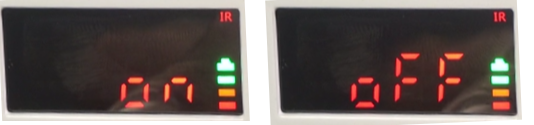

1. Press the Menu button until you see IR on or IR oFF.

2. If necessary, use the Up or Down button to select:
   • on → For Master light (in Master/Slave mode) or individually controlled lights.
   • oFF → Helpful for Slave lights (in Master/Slave mode) to prevent accidental adjustments.

Master Mode:
This allows you to set your light as Master (controls Slave lights).

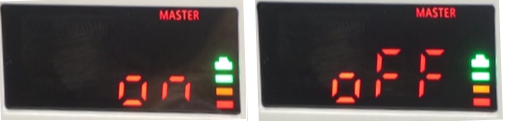

1. Press the Menu button until you see MASTER on or MASTER oFF.

2. If necessary, use the Up or Down button to select:
   • on → Light acts as the Master in a Master/Slave mode.
   • oFF → Light functions as a Slave in Master/Slave mode or with wireless DMX control.

E.) Using the IR Remote
IR Remote must be in line of sight with the light you wish to control.

1	Brightness	Adjust brightness in any mode.
2	BLACKOUT	Turns LEDs off completely. Please note: This does not power down the light.
3	ON	Turns LEDS back on after Blackout, and returns them to previous function.
4	WIRELESS GROUP	Select 1 of 7 Wireless Group ID options using the ⇧ / ⇩ buttons.
5	APP GROUP	Select 1 of 4 App Groups options using the ⇧ / ⇩ buttons.
6a	Sound Modes	1 → Color Cycle
		2 → Color Pulse
		3 → Color Strobe
		4 → Color Cycle + Pulse + Strobe
6b	Sound SENSitivity	Increase/Decrease response to sound.
7a	SLAVE / DMX	Switch between setting the DMX Address and Channel Mode.
7b	SLAVE / DMX ⇧ ⇩	Set DMX Address (001~512) or DMX Channel Mode (6 or 10).
8a	AUTO MODE:  Cycle between →	JUMP Mode: Automatic cycling between colors.
		FADE 01 Mode: Continuous smooth transitions between colors.
		FADE 02 / Pulse Mode: Continuous pulsating between colors.
8b	MODE SPEED ⇧ ⇩	Controls speed for all modes above.
9a	STROBE	Create strobe strobe effect with any color selected.
9b	STROBE SPEED ⇧ ⇩	Adjust the speed of the strobe.
10a	COLOR BANK	Access 48 available preset colors.
11a	Color Selection	6 Color Wheels; each with 8 preset color options.
10/11b	COLOR ADJUST ⇧ ⇩	Cycle through preset colors.

F.) Controlling Lights with a DMX Controller

Wired DMX Setup:
You can control one or multiple Flip Pars via a DMX controller using DMX cables.

• Required:
  ✅Any DMX Controller or Computer Control Interface
  ✅3-Pin DMX Cable (one required for each light being connected)

1. Controller to first light:
   • Connect a DMX cable from the DMX Out of your controller to the DMX In of your first Flip Par.
2. Daisy-chain additional lights:
   • Plug a DMX cable (male end) into the DMX OUT port of the previously connected light.
   • Connect the female end to the DMX IN port on the next nearest light.
   • Repeat for additional lights being connected with DMX cable to the controller.
3. Program lights for DMX response:
   • Power on your DMX controller and determine fixtures / addresses for Flip PAR lights (consult user guide or manual if necessary).
   • Disable Master Mode.
     • Press the Menu  button until you see MASTER on or MASTER oFF.

     • If you see MASTER on, use the Up or Down button select MASTER oFF.

   • Set DMX Mode and Address.
     • Press the Menu  button until you see DMX ADD 001 ~ DMX ADD 512.

     • Use the Up / Down buttons to set the address to A001 for Scanner / Fixture 1, or to a different address corresponding to another scanner / fixture (specified by your DMX controller).

     • Press the Menu button until you see DMX CH. SLAVE.

     • Use the Up / Down buttons to select between 6-Channel Mode and 10-Channel Mode based on the level of control you need.
       • 6-Channel Mode → Allows color mixing (Red, Green, Blue, White, Yellow/Amber, Purple/UV).
       • 10-Channel Mode → Allows color mixing with Master dimmer, plus Strobe, Auto and Sound modes.
       • For maximum control, set your Flip PAR lights to 10-Channel Mode.
   • Use the DMX Controller (or control software) to control lights.
     • Power on the controller, activate Scanner / Fixture 1, or the one(s) corresponding to your Flip PAR Lights.
     • Skip the next section, go to the DMX Control Functions sections and reference the charts below to control the light(s) using the faders on your controller or controls within your DMX control software.

Wireless DMX Setup:
Using either the Rockville W2 or W4 Wireless DMX Controller up to 25 of our Flip PAR lights can be connected. You can also use any other DMX controller or software interface (with 3-pin DMX output) to control up to 25 Flip PAR lights, using our DMX-WTR Wireless DMX Transmitter.

1. Turn on Flip PAR lights.
2. Power on your controller and activate Wireless DMX.
   • If using Rockville W2 or W4 Wireless DMX Controller; Turn On the WIRELESS switch.
   • If not using Rockville W2 or W4 Wireless DMX Controller; Connect the DMX-WTR to an AC power source.
3. Set all lights to the same Wireless Group ID.
   • Press the Menu button until you see 01, 02, 03, 04, 05, 06, 07 or oFF with the corresponding Wireless Group ID color.

   • Use the Up / Down buttons to select one of the 7 available ID codes.
     • Example: 04 → Blue

4. Match the Wireless ID on the DMX Controller or Transmitter.

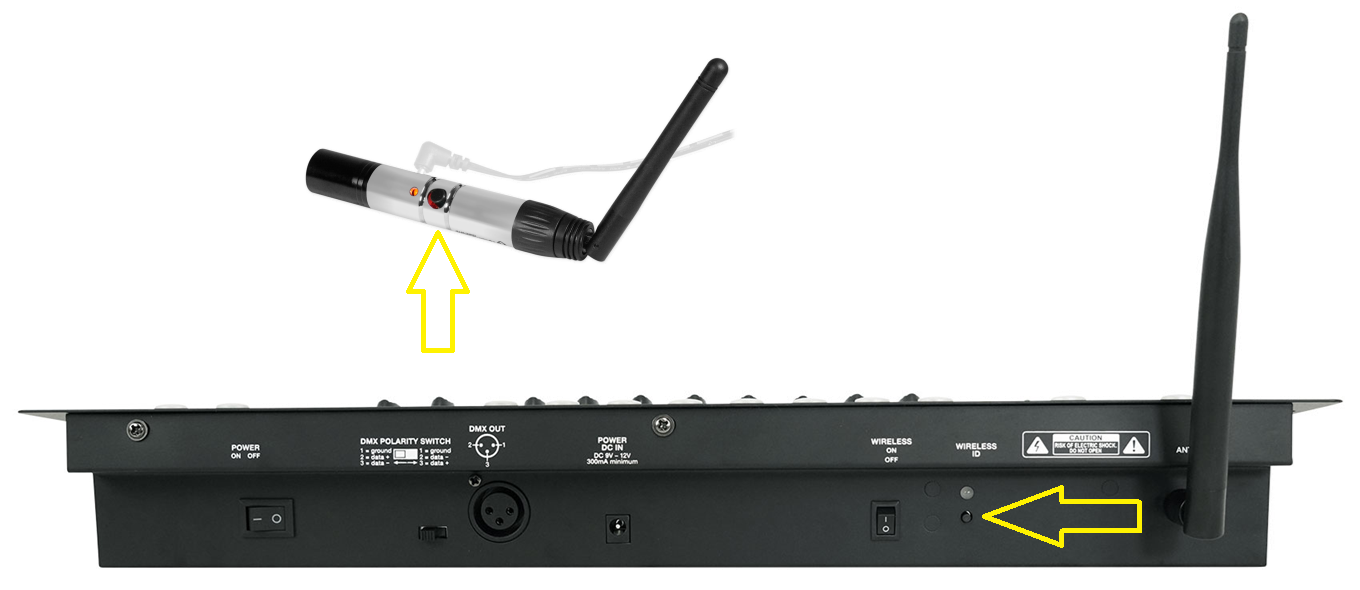

   • Locate the WIRELESS ID button on the back of the controller, or the ID Key button on the transmitter.

   • Press the button to cycle through different colors.
   • Select the color matching the Wireless Group ID set on each light.
     • Example: Blue
   • Once synced, the controller or transmitter should display a flashing red light, indicating a successful connection.
5. Disable Master Mode.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER on, use the Up or Down button select MASTER oFF.

6. Set DMX Mode and Address.
   • Press the Menu button until you see DMX ADD 001 ~ DMX ADD 512.

   • Use the Up / Down buttons to set the address to A001 for Scanner / Fixture 1, or to a different address corresponding to another scanner / fixture (specified by your DMX controller).

   • The Wireless Group ID Icon will flash / blink, indicating it's synced with the controller or transmitter.

     • The Wireless Group LED on the controller or transmitter should also flash / blink, indicating a successful connection.
   • Press the Menu button until you see DMX CH. SLAVE.

   • Use the Up / Down buttons to select between 6-Channel Mode and 10-Channel Mode based on the level of control you need.
     • 6-Channel Mode → Allows color mixing (Red, Green, Blue, White, Yellow/Amber, Purple/UV).
     • 10-Channel Mode → Allows color mixing with Master dimmer, plus Strobe, Auto and Sound modes.
     • For maximum control, set your Flip PAR lights to 10-Channel Mode.
7. Use the DMX Controller (or control software) to control lights.
   • Understanding the DMX Fader / Channel Functions:
     • On the controller, activate Scanner / Fixture 1, or the one(s) corresponding to your Flip PAR Lights.
     • Reference the charts below to control the light(s) using the faders on your controller or controls within your DMX control software.

DMX Control Functions:

Pro Tip: You can mix faders 2–7 to create custom colors, then use fader 8 to apply a strobe effect.

E.) Master/Slave Mode Setup
This lets you control multiple Flip Pars from one “Master” fixture without a DMX controller.

Wired Master/Slave Configuration:
3-Pin DMX Cable required for each Flip PAR Slave light being connected.

1. Select one Flip PAR to be Master.
   • This light will control all slave lights connected.
   • It is recommended to use the light that will be easiest to control; either by accessing the buttons / display, or using the IR remote (pointed at Master light).
2. Activate the light's Master Mode setting.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER oFF, use the Up or Down button to select MASTER on.

3. Configure all Slave Lights.
   • Deactivate the Master Mode setting on the rest of the lights:
     • Press the Menu button until you see MASTER on or MASTER oFF.

     • If you see MASTER on, use the Up or Down button select MASTER oFF.

   • Make sure IR Remote response is not Active (if controlling Master w/ remote).
     This avoids interference or desynchronization if you accidentally point the remote at a Slave Light.
     • Press the Menu button until you see IR on or IR oFF.

     • If you see IR on, use the Up or Down button select IR oFF.

4. Connect via DMX cables.
   • Plug a DMX cable (male end) into the DMX OUT port on the Master.
   • Connect the female end to the DMX IN port on the nearest Flip PAR light.
   • Plug a DMX cable (male end) into the DMX OUT port on the previously connected light (a.k.a. Slave).
   • Connect the female end to the DMX IN port on the next nearest Flip PAR Slave light.
   • Repeat steps 4 and 5 for additional Flip PAR Slave lights.
5. Control from the Master
   • Any changes made on the Master Light will be mirrored on all Slave Lights.
   • You can adjust colors, modes, brightness and effects using the Master Light’s buttons or the included remote.
   • Using the Remote...
     • The remote offers convenient handheld control with the same functions as the onboard buttons.
     • You can easily change colors, switch auto modes, adjust brightness, and activate effects.
     • Make sure IR response is only active on your Master light (as shown above) to ensure Slave lights don't get accidentally thrown out of sync.
   • The Rockville PAR-Control App on a smartphone or tablet can also be used with Master/Slave mode. (more info in App Control section below)

Wireless Master/Slave Configuration:
No DMX Cables, additional devices or accessories are required for this.

1. Select one Flip PAR to be Master.
   • This light will control all slave lights in the system.
   • It is recommended to use the light that will be easiest to control; either by accessing the buttons / display, or using the IR remote (pointed at the top of the light).
2. Activate the light's Master Mode setting.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER oFF, use the Up or Down button to select MASTER on.

3. Select a Wireless Group ID.
   • Press the Menu button until you see 01, 02, 03, 04, 05, 06, 07 or oFF with the corresponding Wireless Group ID color.

   • Use the Up / Down buttons to select from 7 available IDs, each with a color code:
     • 01 → Red

     • 02 → Green

     • 03 → Yellow

     • 04 → Blue
       *Selected in Video Example*
     • 05 → Purple

     • 06 → Cyan

     • 07 → White

4. Make sure IR Remote response is Active (if using IR remote).
   • Press the Menu button until you see IR on or IR oFF.

   • If you see IR oFF, use the Up or Down button select IR on.

     • This allows you to control all lights using a remote pointed at the Master light (IR sensor on top near display)
5. Configure all Slave Lights.
   • Deactivate the light's Master Mode setting:
     • Press the Menu button until you see MASTER on or MASTER oFF.

     • If you see MASTER on, use the Up or Down button select MASTER oFF.

   • Select matching Wireless Group ID.
     • Press the Menu button until you see 01, 02, 03, 04, 05, 06, 07 or oFF with the corresponding Wireless Group ID color.

     • Use the Up / Down buttons to select from 7 available IDs, each with a color code:
       • 01 → Red

       • 02 → Green

       • 03 → Yellow

       • 04 → Blue
         *Selected in Video Example*
       • 05 → Purple

       • 06 → Cyan

       • 07 → White

   • Make sure IR Remote response is not Active (if controlling Master w/ remote).
     This avoids interference or desynchronization if you accidentally point the remote at a Slave Light.
     • Press the Menu button until you see IR on or IR oFF.

     • If you see IR on, use the Up or Down button select IR oFF.

   • Set to Slave Mode (DMX Address: 001).
     • Press the Menu button until you see DMX ADD 001 ~ DMX ADD 512.

     • If necessary, use the UP / DOWN buttons to set the address to 001.

6. Once configured...
   • Set the Master to any static color, color-changing or sound-active mode. All Flip PAR lights should respond.
   • The Master Light’s Wireless Group ID Icon will stay solid.
   • The Slave Lights’ Wireless Group ID Icon will flash, indicating they are synced with the Master Light.

7. Controlling the Lights...
   • Any changes made on the Master Light will be mirrored on all Slave Lights.
   • You can adjust colors, modes, brightness and effects using the Master Light’s buttons or the included remote.
8. Using the Remote...
   • The remote offers convenient handheld control with the same functions as the onboard buttons.
   • You can easily change colors, switch auto modes, adjust brightness, and activate effects.
   • Make sure IR response is only active on your Master light (as shown above) to ensure Slave lights don't get accidentally thrown out of sync.

F.) App Control via Smartphone or Tablet
The Par-Control app from Rockville lets you control your Flip PAR lights from an iOS or Android device.

Install the App:

1. Open the App Store (iOS) or Google Play Store (Android).
2. Search for: “Par Control” (displayed as “Par-Control” / “Par Control”).
3. Download and install the app.

Prepare the Lights for App Control:

1. Press the Menu button until you see AP1, AP2, AP3 or AP4.

2. Use the Up / Down buttons to select one of four App Groups.

3. Press Enter to see the 3-Digit UID (Unique Identification Number).

   ⚠️The UID on your light will likely be different.
4. On a smartphone or tablet you should be able to find and connect to a WiFi network labeled Rockville-UID. This enables control using the Rockville Par-Control App.
   • For the example above, the WiFi network would appear on your smartphone or tablet as shown below.

   • Connecting to this network enables control using the Rockville Par-Control App.
   • If prompted, select Always Connect.

5. Press Enter on the light again to stay in app mode.

Linking Multiple Lights:
⚠️Be sure to check Network Settings periodically, as Rockville-UID WiFi may need to be reconnected.

1. Set all lights to the same Wireless DMX Code.
   • Press the Menu button until you see 01, 02, 03, 04, 05, 06, 07 or oFF with the corresponding Wireless Group ID color.

   • Use the Up or Down button to set all lights to the same Wireless Group ID # / color.

2. On the first (main/master) light only, set Master Mode to ON.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER oFF, use the Up or Down button to select MASTER on.

3. On all additional (slave) lights, set Master Mode to OFF.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER on, use the Up or Down button select MASTER oFF.

4. Assign each Slave light to the same APP Group selected previously for the Master.
   • Press the Menu button until you see AP1, AP2, AP3 or AP4.

   • Use the Up / Down buttons to select one of four App Groups.

5. Set only additional (slave) lights to DMX Address or Slave Mode.
   • Press the Menu button until you see DMX ADD. 001 ~ DMX ADD. 512.

   • If necessary, use the UP / DOWN buttons to set the address to 001.

6. On your smartphone of tablet (must still be connected to Rockville-UID WiFi network), open the Rockville Par-Control App.
   • Select the App Group that corresponds to the light(s) you wish to control.



Using Different App Groups:
⚠️Be sure to check Network Settings periodically, as Rockville-UID WiFi may need to be reconnected.

1. Set all lights within the group to the same Wireless DMX Code.
   • Press the Menu button until you see 01, 02, 03, 04, 05, 06, 07 or oFF with the corresponding Wireless Group ID color.

   • Use the Up or Down button to set all lights to the same Wireless Group ID # / color.

2. On the first (main/master) light only, set Master Mode to ON.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER oFF, use the Up or Down button to select MASTER on.

3. On all additional (slave) lights, set Master Mode to OFF.
   • Press the Menu button until you see MASTER on or MASTER oFF.

   • If you see MASTER on, use the Up or Down button select MASTER oFF.

4. Assign each light to one of the four APP Groups.
   • Press the Menu button until you see AP1, AP2, AP3 or AP4.

   • Use the Up / Down buttons to select one of four App Groups.

5. Set only additional (slave) lights to DMX Address or Slave Mode.
   • Press the Menu button until you see DMX ADD. 001 ~ DMX ADD. 512.

   • If necessary, use the UP / DOWN buttons to set the address to 001.

6. On your smartphone of tablet (must still be connected to Rockville-UID WiFi network), open the Rockville Par-Control App.
   • Select the App Group that corresponds to the light(s) you wish to control.


   • Multiple groups can be selected and controlled together.
7. Repeat this process (as needed) for up to four separate app groups.

Par-Control App Features:

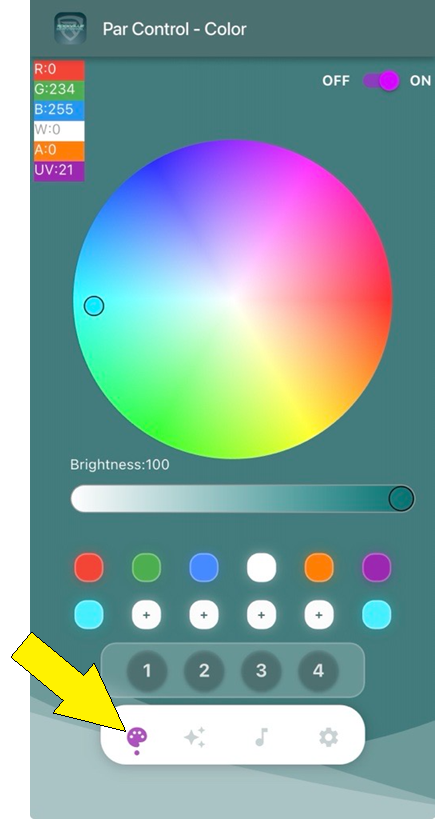

• Color Tab:


  • Standard Color Buttons: Quickly change light to predefined colors.


  • Color Wheel: Select custom colors.


  • Brightness Slider: Adjust brightness level.


  • Custom Color Buttons: Save up to 6 customized colors for easy recall.

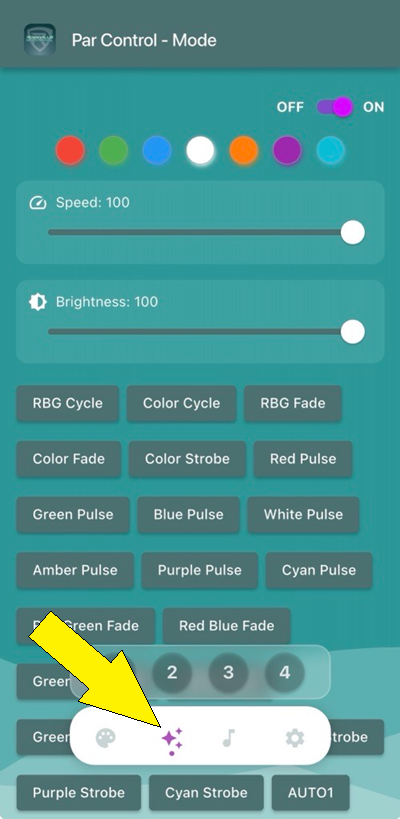

• Mode Tab:

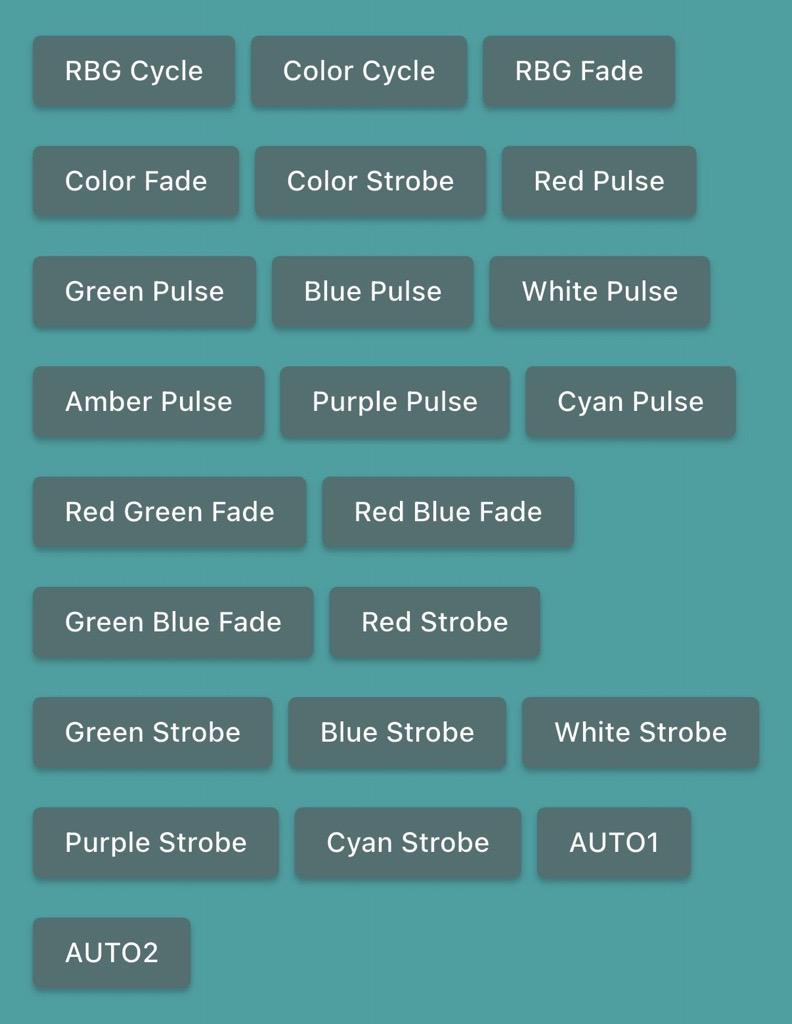

  • Choose from preset effects such as:

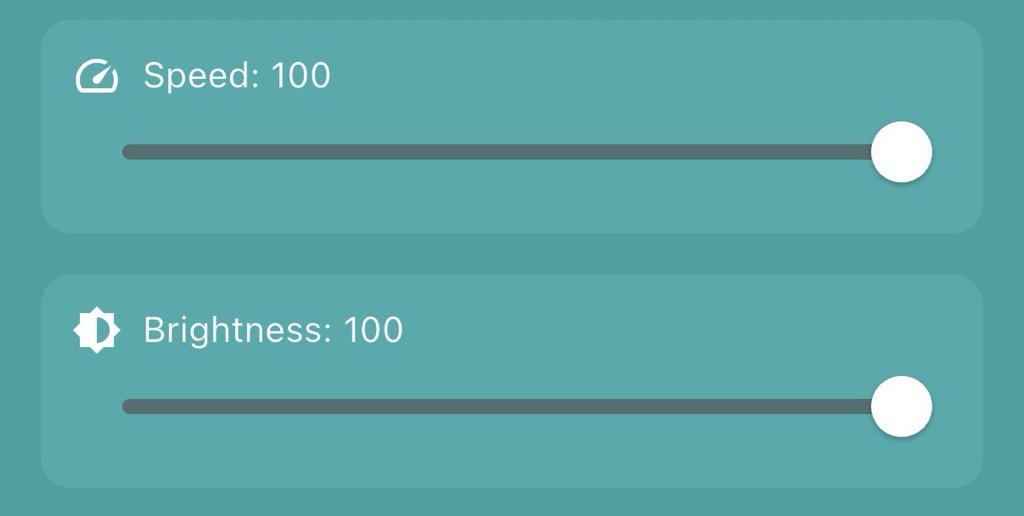

  • Adjust effect speed and brightness with sliders.




• Sound Tab:

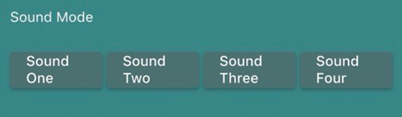

  • Four different sound-activated modes.

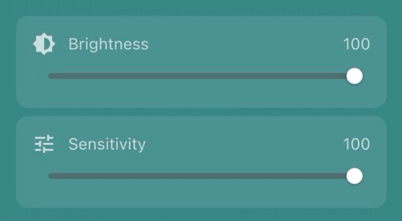

  • Adjust sound sensitivity and brightness of LEDs.
    Lights will react to ambient noise or music.




• Settings Tab:
  • Language: Select from available languages for app viewing.
  • Clear Cache: Erases all saved app settings (e.g. custom colors).
  • Check Update: Checks to ensure you have the most current version of the Par-Control App.

  • About: Displays app version, Rockville support information and Licenses.



Troubleshooting & FAQs

My lights don’t charge in the case.
✅Make sure the thicker IEC cable is firmly connected to the case and wall outlet.
✅Make sure the case power switch is ON.
✅Each light’s IEC cable should be plugged into both the light and one of the middle sockets.
✅The case lid should be open for proper ventilation.

The lights feel warm or hot while charging.
✅It is normal for lights to get warm during charging or operation.
✅Always keep the case or area well ventilated.
✅Never close the 6-pack case while charging.
✅If the light feels excessively hot, disconnect power and let it cool before use.

Remote not controlling the light(s):
✅Confirm the light is showing IR on indicating IR Remote response is active.
✅Be sure to to point the remote toward the side of the light where the display (and IR sensor) is located.
✅Check the remote’s battery and replace it if needed.

App Will Not Connect:
✅Make sure the light is in App Mode.
✅Confirm your phone is connected to the light’s WiFi code.
✅Recheck WiFi connection if it disconnects.

My Slave lights are not responding.
✅Check that all lights are set to the same Wireless Group ID.
✅Ensure Master Mode is ON for only the Master light.
✅Confirm Slave Mode is ON for all other lights.
✅Turn OFF IR Mode on all Slave Lights to avoid interference / desynchronization when using remote.

How many Slave lights can I control with one Primary?
✅Up to 25 Slave lights can be wirelessly linked to a single Primary.

My DMX controller moves only some lights or behaves strangely.
✅Make sure the DMX cables are fully plugged in; Controller OUT → Flip Par IN, OUT to IN between lights.
~ or for wireless setup ~
✅Ensure the lights and controller are set to the same Wireless ID / DMX color group.
✅Confirm light(s) set to the correct DMX Address and Channel Mode.
✅Check that the correct DMX scanner / fixture (e.g., Scanner 1) is enabled on the controller.

How many lights can I connect with a DMX Controller?
✅25 lights can be wirelessly linked directly to a Rockville Wireless DMX Controller or Transmitter.
✅25 more lights can be linked to another Transmitter connected to the same DMX output.

Sound mode not responding:
✅Increase sensitivity setting;
  –  Press the Enter button once in sound mode, then use the Up button to set to 9.
✅Ensure ambient sound is loud enough or test with louder audio.

Conclusion

Your Rockville Flip Par lights are highly versatile and can be used for simple static colors, sound-active DJ setups or fully programmed shows via DMX (wired or wireless). With the Par-Control app, you have an easy way to achieve the maximum effect from your lighting setup. In this guide, you learned everything from how to charge and position your Flip PAR lights, use all major built-in modes (color, strobe, fade, sound, custom color), operate the IR remote, to controlling your lights via DMX. We also went over using the Rockville Par-Control App; linking multiple lights using a Master/Slave configuration to create a pro lighting display in minutes.
