Titan Mix12A | Titan Mix12C Owner's Manual

12" Powered Speaker/Sub 8-channel Mixer PA Systems

Important Safety Instructions

• To reduce risk of electric shock, never open the unit. There are no user-serviceable parts; refer service to the Rockville service center.

• Do not expose this unit to any kind of moisture.

• Please ensure that the unit is situated in a properly ventilated area.

• Make sure the unit is placed on a level and stable surface.

• This unit can operate with either 110V or 220V.

Included

Titan Mix12A

• 12" Powered subwoofer with DSP and 8-channel mixer

• One column array speaker with eight 2.75" Neo drivers

• One column array speaker with four 2.75" Neo drivers

• Travel bag for the column speakers

• Travel cover for the subwoofer

• 8 Foot Power cable

• Access to training video(s) for setup and use

• Manual

Titan Mix12C/Titan Mix12C White

• 12" Powered subwoofer with DSP and 8-channel mixer

• One column array speaker with eight 3.5" Neo drivers w/four midrange diffusers

• Two pole options to connect the column to the sub (12" and 29")

• Travel bag for the column speaker and pole

• Travel cover for the subwoofer

• 8 Foot Power cable

• Access to training video(s) for setup and use

• Manual

How to Avoid Irritating Feedback

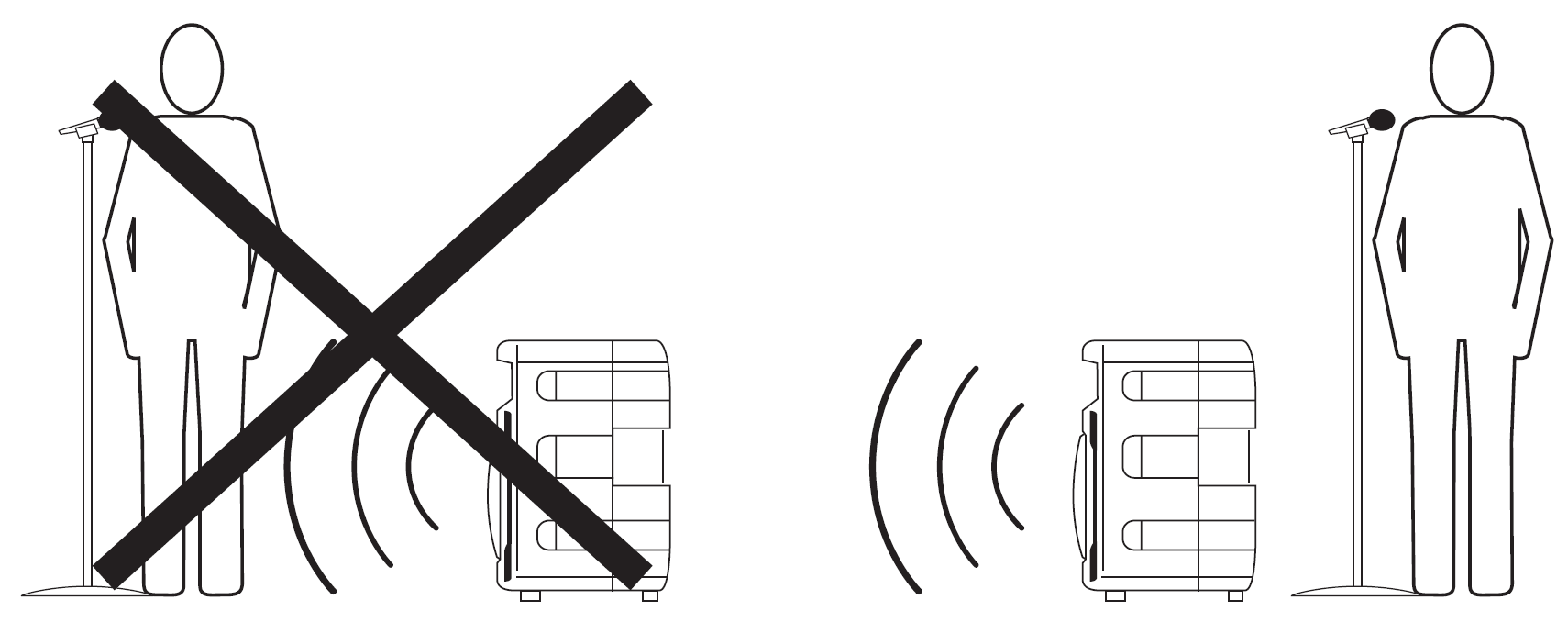

The placement of your microphone is critical in avoiding feedback through your TM 12 speaker. Never set up your microphone in front of the speaker. Always set up your microphone behind the speaker. When approaching the speaker to make any adjustments, approach the speaker from the rear and do not walk directly toward the front of the speaker.

Setting Level Controls

It is best practice to set your input volume (gains) in this manner:

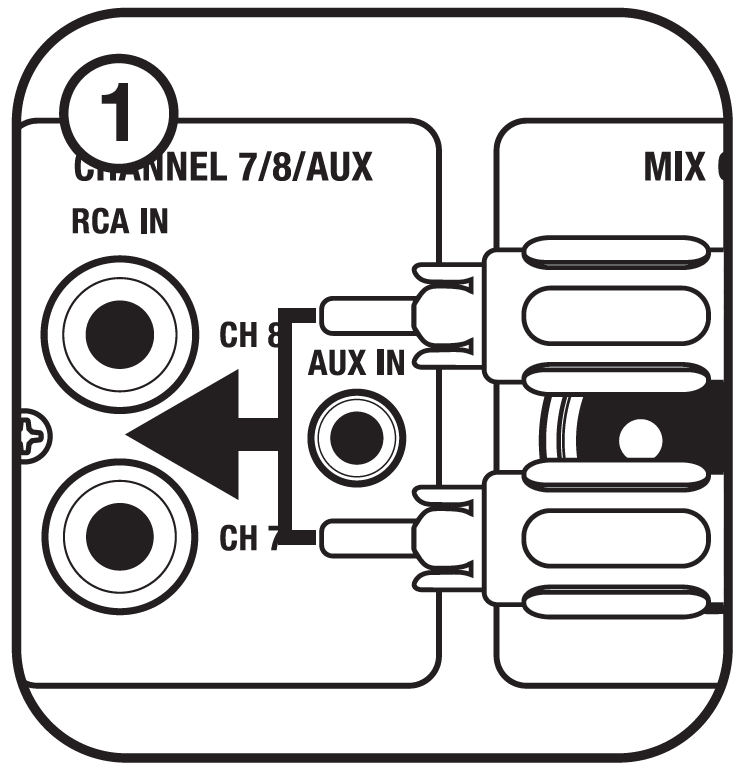

1. Connect the appropriate input cable (3.5mm or RCA). In this instance we will be using the RCA line inputs.

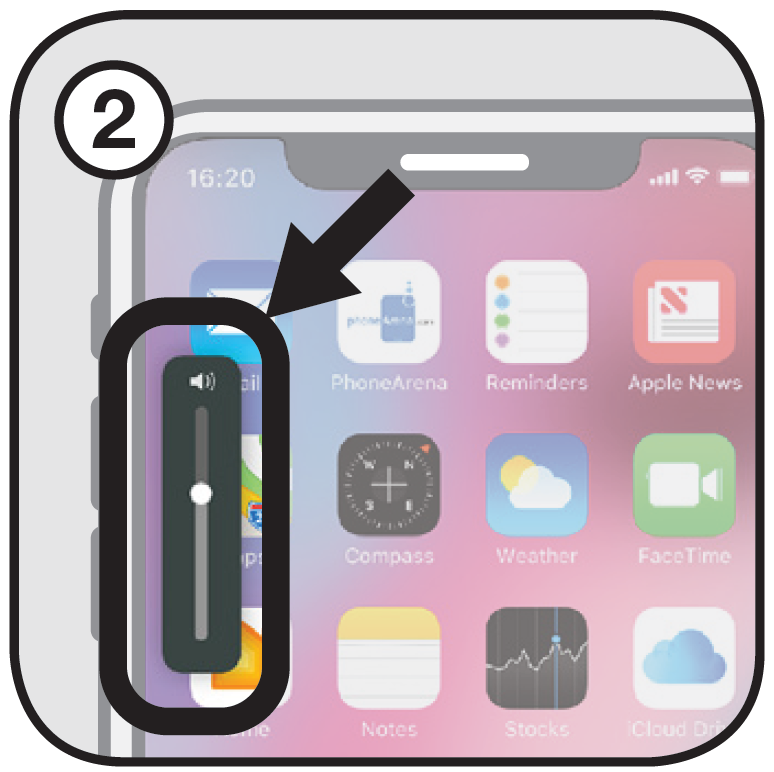

2. Raise the line level input device's volume (smartphone [pictured], tablet, MP3 player, etc.)

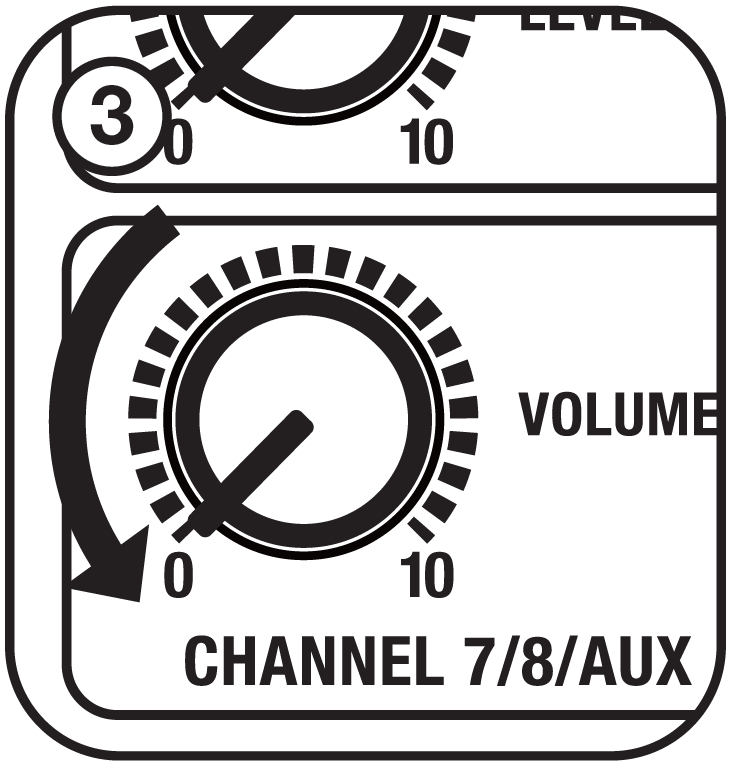

3. Set the CHANNEL 7/8/AUX volume control to 0.

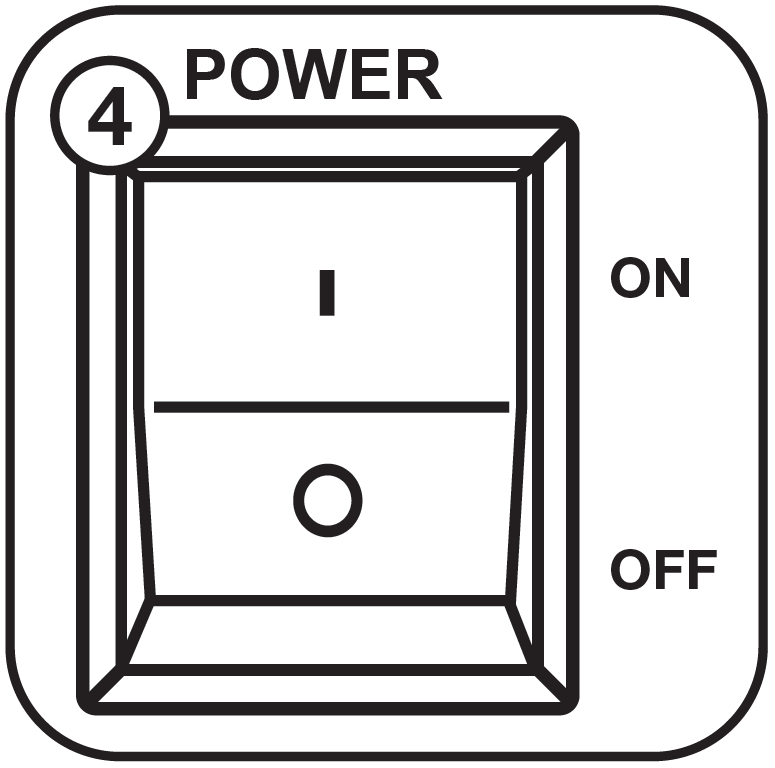

4. Set the power switch to ON.

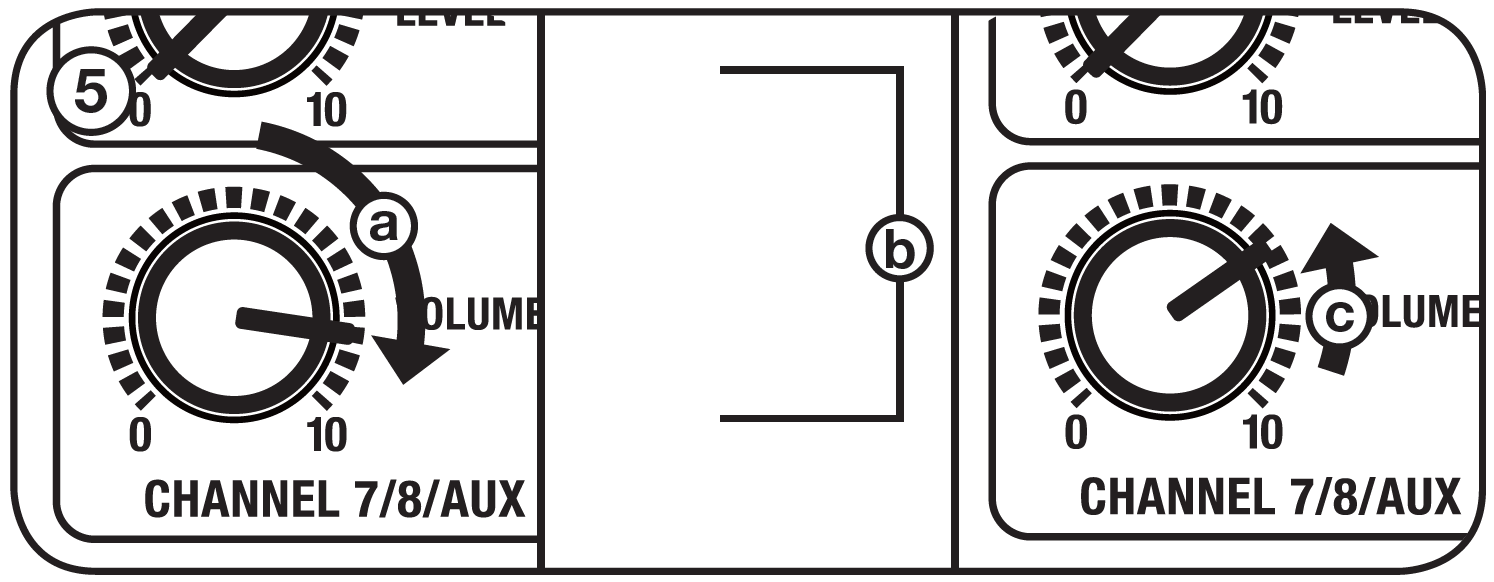

5. Slowly turn up the CHANNEL 7/8/AUX volume control (a). As soon as the yellow indicator LEDs go on (b) or you hear any distortion, turn LINE/MP3 LEVEL down one or two notches (c).

Please Note

A. Because mixers feature two volume controls (channel, sub level, and master), when connecting one via the line input, the procedure is slightly different. Set the CHANNEL LEVEL control to 50% and set your mixer's master volume to 50%. Make the adjustments in step 3 on the mixer channel level control. If after making these adjustments the signal still isn't strong enough, you can additionally boost the signal by turning up the MASTER and SUB level controls.

B. When adjusting the MIC/GUITAR/LINE LEVEL control, you must speak into the microphone and adjust the control as needed. This is because adjustments to the mic input are a matter of mic sensitivity/volume in relation to the music volume and not necessarily a clipping issue.

Microphone/Guitar Input

Your TITAN MIX12 features four balanced combo XLR/1/4" TRS microphone/guitar inputs.

1. Switch OFF the unit.

2. Using the appropriate cable (XLR, 1/4" TRS, or 1/4" TS) connect your microphone or guitar to the CH1, CH2, CH3, or CH4 of the combo input.

3. Switch ON your TITAN MIX12. Set the MIC/GUITAR/LINE selector button to MIC/GUITAR.

4. Refer to the "Setting Level Controls" section of this manual for instructions on how to properly adjust the input volume (gain).

   When working with a microphone, always stand behind the TM 12 to avoid feedback while making adjustments.

Line Input

You can connect an additional signal source such as a CD player, DVD music player, MP3 player, DJ mixer or controller, etc. Plug the device directly into the combo 3.5mm or RCA jacks in the CH7/CH8/AUX section, or the CHANNEL 1 - CHANNEL 4 combo XLR/1/4" TRS inputs. When using CHANNEL 1-4 input, make sure the MIC/GUITAR/LINE selector button is set to LINE.

XLR/1/4" TRS Input

1. Switch the unit OFF.

2. Connect the music source to the combo XLR/1/4" TRS input of your choice (CH1 - CH4) using an XLR or 1/4" cable. Make sure the MIC/GUITAR/LINE selector switch is set to LINE.

3. Switch the unit ON.

4. Refer to the "Setting Level Controls" section of this manual for instructions on how to properly adjust the input volume (gain).

RCA Input

1. Switch the unit OFF.

2. Connect the music source to the RCA jacks in the CHANNEL 7/8/AUX section.

3. Switch the unit ON.

4. Refer to the "Setting Level Controls" section of this manual for instructions on how to properly adjust the input volume (gain).

Bluetooth Pairing

To connect your iPod, iPhone, MP3 player, Android phone, or any other Bluetooth-capable device, follow the steps listed below. If you have problems pairing your device, please check the troubleshooting guide.

1. Switch the unit ON and short press the BT/TWS button. The blue BT LED indicator will begin to flash indicating the unit has entered BT pairing mode.

2. Turn on the Bluetooth feature on your device and ensure that it is discoverable. Look for "TITAN MIX 12" on the list of available devices and select it.

3. Once paired, the blue LED will stop flashing and remain lit. The TM12 unit will remember the last paired device. When the unit is in BT mode and the device is nearby, it will connect to it automatically.

4. Volume is controlled via your device, the CH5/CH6/BT volume control knob, the SUB LEVEL knob, and the MASTER VOLUME knob. All other functions, such as playback and track selection, are controlled via your device.

5. To disconnect a device, short press the BT/TWS button. The blue BT LED indicator will turn off indicating your device has been successfully disconnected.

True Wireless Stereo (TWS) Speaker Linking

The TM12 features True Wireless Stereo (TWS) linking via Bluetooth. This means you can purchase two of these speakers and link them to play wirelessly in stereo.

1. Turn on the 2 units and activate Bluetooth mode by short pressing the BT/TWS button. (slow flashing LED on both.)

2. Press and hold for 2 seconds the BT/TWS button on one unit (quick flashing LED). The units will automatically pair. The BT LED on the first unit will remain lit (right CH) and the other unit's LED will flash slowly (left CH).

3. Turn on the Bluetooth feature on your device and ensure that it is discoverable. Look for "TITAN MIX 12" on the list of available devices and select it.

4. Volume is controlled via your device, the CH5/CH6/BT volume control knob, the SUB LEVEL knob, and the MASTER VOLUME knob. Each unit's volume is set independently. All other functions, such as playback and track selection, are controlled via your device.

5. To exit TWS linking mode, short press the BT/TWS button on either unit.

Mix Out Balanced Connection

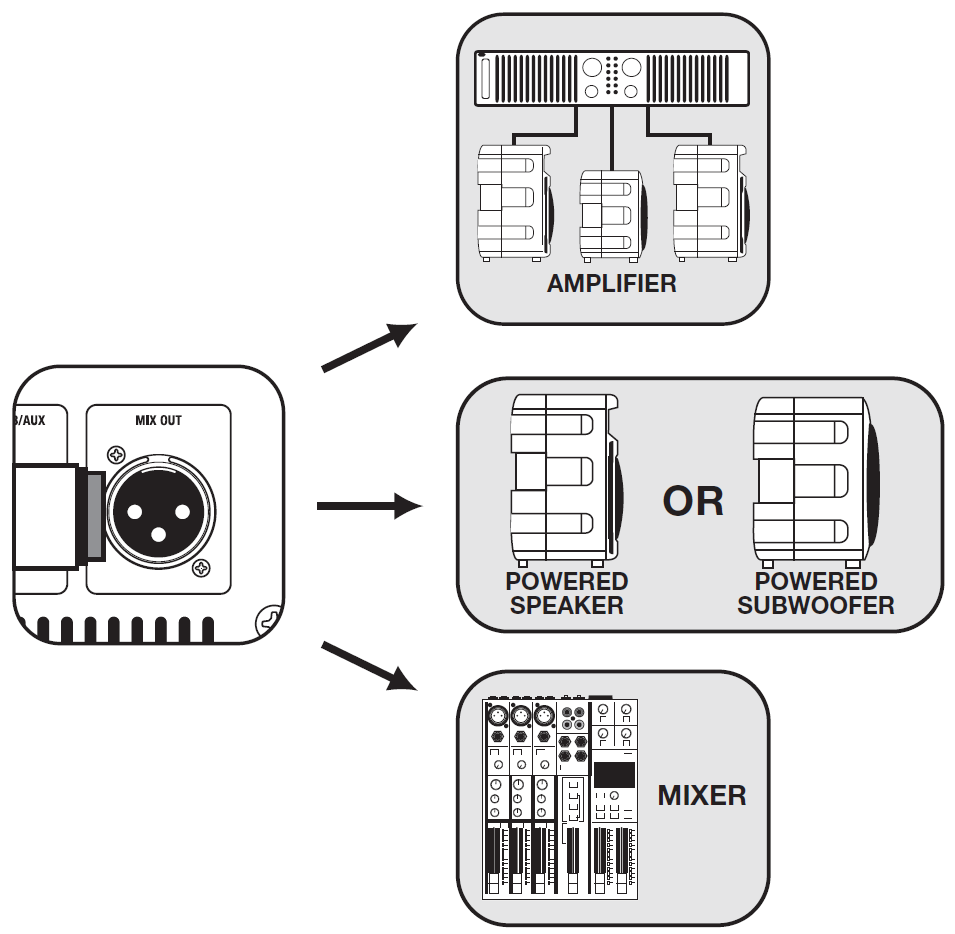

The MIX OUT XLR port allows you to output the amplifier signal to a subwoofer, another powered speaker, or an amp or mixer, which will, in turn, send audio to other speakers. The MIX OUT output should be connected to the input of the external device using an XLR-to-XLR or XLR-to-1/4" TRS cable. We recommend you use high-quality cables such as Rockville's RCXFM20E-B XLR-to-XLR cable or the RCXMB20-B XLR-to-1/4" TRS cable.

Functions

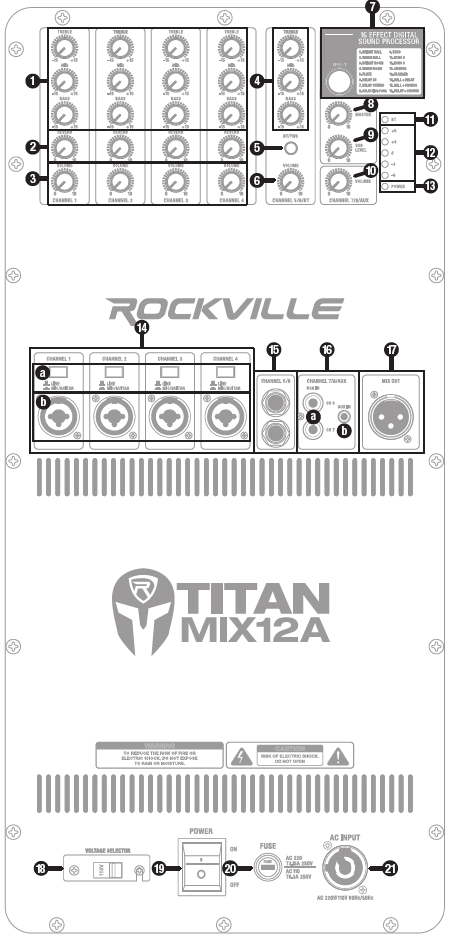

(Please note, this diagram applies to all TITAN MIX12 models)

1. CH1-4 Equalizer controls (Bass, Mid, and Treble)

2. CH1-4 Effects controls

3. CH1-4 Volume controls

4. CH5/6/BT Equalizer controls (Bass, Mid, and Treble)

5. WIRELESS STREAMING/WIRELESS LINKING button

6. CH5/6/BT Volume control

7. Effects selector and display

8. Master Volume control

9. Sub Level control

10. CH7/8/AUX Volume control

11. Wireless Streaming/Wireless Linking Status LED

12. Output Level LED indicators

13. Power LED indicator

14. CH1-CH4 MIC/GUITAR/LINE input section

    a. MIC/GUITAR/LINE selector switch: When connecting a microphone or guitar, make sure that the corresponding channel's button is in the "down" position. When connecting a line level device, make sure that the specific button is in the "up" position.

    b. Combo XLR/1/4" TRS input

15. CH 5/6 1/4" TRS inputs

16. CH 7/8/AUX

    a. CH 7/8 RCA inputs

    b. 3.5mm AUX in

17. MIX OUT port

18. Voltage selector switch

19. Power switch

20. User serviceable fuse

21. PowerCON power input.

Features

Titan Mix12A

• 3200W Peak Power / 1600W Program Power / 800W Continuous RMS

• Light-weight, compact, and extremely loud with deep bass

• Covers up to 300 people in an 10k sq. ft. space

• Built in 8-channel mixer

• Wireless stereo linking of 2 systems

• Bluetooth 5.2 for clear music streaming (65-foot range) with 3-band EQ and volume control

• USB playback (32GB max)

• SD playback (32GB max)

• Input 1-4: Mic/Guitar/Line level XLR/1/4" combo jacks each with 3-band EQ, FX level, and volume control

• Two 1/4" TRS jacks

• Line level RCA stereo jacks or 3.5mm jack with volume control

• Separate sub level and master volume controls

• XLR Mix output allows you to connect another speaker or amplifier

• Class D amplifier is extremely efficient with a low current draw, and approximately 90% of energy is turned into clean amplifier power

• Limiter allows the speaker to play at extremely high volumes while limiting the frequencies that cause clipping

• 12" Subwoofer with a 75 oz. magnet and 2.5" voice coil delivers loud and deep bass (600W RMS amp just for the sub)

• 8mm virgin polypropylene enclosure makes this item strong, light-weight, and reproduce clean sound

• Two columns deliver crystal clear sound, even at high SPL

• Twelve 2.75" drivers with neodymium magnets for clean highs and mids (200W RMS amp just for the highs/mids)

• Advanced DSP with multi-band compression tuned by Rockville musicians for balanced sound with clear vocals, deep bass, and crisp highs

• Built-in Effects: 24-bit effects engine with 16 premium effects including multiple hall & room simulations, various delay options (echo), chorus, and flanger effect combinations for maximum versatility

• Top mounted built-in carry handle on the subwoofer unit

• Frequency Response: 38Hz - 20kHz (-6dB) and 40Hz - 19kHz (-3dB)

• Maximum SPL: 128dB

• Voltage: 110/220 voltage switch for worldwide use

• Weight of sub: 44.15lb

• Dimensions of sub (D x W x H): 17.52" x 14.57" x 22.375"

• Weight of columns: 4.5lb (lower) / 5.75lb (upper)

• Dimensions of each column (D x W x H): 3.25" x 3.5" x 31" (lower) / 3.25" x 3.5" x 30.5" (upper)

Titan Mix12C

• 3400W Peak Power / 1700W Program Power / 850W Continuous RMS

• Powerful, compact, and extremely loud with deep bass

• Covers up to 400 people in a 12k sq. ft. space

• Built in 8-channel mixer

• Wireless stereo linking of 2 systems

• Bluetooth 5.2 for clear music streaming (65-foot range) with 3-band EQ and volume control

• USB playback (32GB max)

• SD playback (32GB max)

• Input 1-4: Mic/Guitar/Line level XLR/1/4" combo jacks each with 3-band EQ, FX level, and volume control

• Two 1/4" TRS jacks

• Line level RCA stereo jacks or 3.5mm jack with volume control

• Separate sub level and master volume controls

• XLR Mix output allows you to connect another speaker or amplifier

• Class D amplifier is extremely efficient with a low current draw, and approximately 90% of energy is turned into clean amplifier power

• Limiter allows the speaker to play at extremely high volumes while limiting the frequencies that cause clipping

• 12" Subwoofers with 75 oz. magnets and 2.5" voice coils deliver loud and deep bass (600W RMS amp just for the sub)

• Eight 3.5" drivers with neodymium magnets for clean highs and mids (250W RMS amp just for the highs/mids)

• Four midrange driver diffusers provide a wider horizontal coverage pattern

• Downward curved mounting pattern of lower midrange drivers provides "down-fill" vertical coverage pattern typical of well tuned line array systems

• Polyurethane coated plywood top column enclosure

• 15mm-thick polyurethane coated plywood sub enclosure with sandblasted paint

• Advanced DSP with multi-band compression tuned by Rockville musicians for balanced sound with clear vocals, deep bass, and crisp highs

• Built-in Effects: 24-bit effects engine with 16 premium effects including multiple hall & room simulations, various delay options (echo), chorus, and flanger effect combinations for maximum versatility

• Includes one 12 inch and one 29-1/2 inch pole to adjust the speaker columns height.

• Top mounted built-in carry handle on the subwoofer unit

• Frequency Response: 38Hz - 20kHz (-6dB) and 40Hz - 19kHz (-3dB)

• Maximum SPL: 130dB

• Voltage: 110/220 voltage switch for worldwide use

• Weight of sub: 46.75lb

• Dimensions of sub (D x W x H): 21.65" x 13.86" x 19.49"

• Weight of column: 9.75lb

• Dimensions of each column (D x W x H): 5.75" x 4.375" x 33.5"

• Available in Black or White
